USE AND MAINTENANCE MANUAL

COLD PLANER

PL 4520 - PL 5020 - PL 5520 - PL 6020 - PL 7520



SIMEX s.r.l.

Via Newton,31

40017 - San Giovanni in Persiceto (BO) Italy

Tel +39.051.6810609 fax +39.051.6810628

www.simex.it - simex@simex.it



No part of this manual may be reproduced or translated

without prior written permission from its owner. The

information and illustrations contained in this manual are for

illustrative purposes only. SIMEX S.r.l. reser

ves the right to

make changes to the machine at any time without any prior

notice.

Code: SXNM153D07 (English)

Type:

……………………………(C.A.T.)

Serial n° ……………………..

TABLE OF CONTENTS

1. Sound power levels detected ................................................................................................................4

2. Declaration of conformity ......................................................................................................................5

3. Symbols...................................................................................................................................................6

4. Safety and hazard stickers ....................................................................................................................7

5. General precautions for use..................................................................................................................9

6. Technical characteristic.......................................................................................................................10

6.1 Machine description ............................................................................................................................10

6.2 Overall dimensions..............................................................................................................................11

6.3 Specifications and performance..........................................................................................................12

6.4 Main machine parts.............................................................................................................................13

6.5 Environmental conditions....................................................................................................................15

6.6 Permitted uses ....................................................................................................................................15

6.7. Residual risks......................................................................................................................................15

6.8 Safety devices.....................................................................................................................................16

7Delivery and unloading ........................................................................................................................17

8Handling, transportation and lifting....................................................................................................18

9Use .........................................................................................................................................................19

9.1 Preliminary checks..............................................................................................................................19

9.2 Procedure for getting on and off the prime mover ..............................................................................19

9.3 Machine/prime mover matching..........................................................................................................20

9.4 Hydraulic connection of the standard machine with 3-line hydraulic system to the prime mover.......22

9.5 Hydraulic connection of the standard machine with 5-line hydraulic system to the prime mover.......23

9.6 Hydraulic disconnection of the standard machine with 3- or 5-line hydraulic system from the prime

mover ..................................................................................................................................................24

9.7 Disconnecting the machine from the prime mover..............................................................................25

9.8 Planing depth adjustment....................................................................................................................26

9.8.1. Setting the zero position for planing depth adjustment.......................................................................27

9.9 Cutter drum removal and refitting........................................................................................................28

9.10 Mechanical floating tilt device with spring jack....................................................................................29

9.11 Starting up standard machines ...........................................................................................................30

9.12 Side shift operation on the standard machine with 3-line hydraulic system .......................................32

9.13 General operating conditions..............................................................................................................33

9.14 Side-by-side planing............................................................................................................................34

9.15 Stopping the machine in normal conditions ........................................................................................35

9.16 Emergency stops.................................................................................................................................35

9.17 Parking ................................................................................................................................................35

10 Maintenance................................................................................................................................................36

10.1 Cutter drum inspection........................................................................................................................37

10.2 Tool integrity assessment (teeth)........................................................................................................38

10.3 Tool replacement (teeth).....................................................................................................................40

10.4 Machine cleaning ................................................................................................................................40

10.5 Structural integrity assessment...........................................................................................................40

10.6 Nut and bolt tightness test...................................................................................................................40

10.7 Check the support skids for wear........................................................................................................41

10.8 Depth adjustment mechanism lubrication...........................................................................................41

10.9 Shock absorber lubrication..................................................................................................................42

10.10 Lubrication of the depth adjustment shaft mounts..............................................................................42

10.11 Hose inspection...................................................................................................................................43

10.12 Drain line safety cap check.................................................................................................................43

11 Storage instructions...................................................................................................................................44

12 Recommissioning.......................................................................................................................................44

13 Spare parts and accessories.....................................................................................................................44

14 Disposal.......................................................................................................................................................44

15 Troubleshooting .........................................................................................................................................45

16 Optionals .....................................................................................................................................................47

16.1 Special drums......................................................................................................................................47

16.2 Removable skid...................................................................................................................................48

16.3 Misting unit..........................................................................................................................................49

16.4 Hydraulic tilt adjustment......................................................................................................................50

16.5 Hydraulic depth adjustment.................................................................................................................51

17 Charts.....................................................................................................................................................53

17.1 Maximum screw tightening torques.....................................................................................................53

17.2 Tightening torques for hose fittings.....................................................................................................53

17.3 Tightening torques for hoses...............................................................................................................53

18 Guarantee....................................................................................................................................................54

19 Control circuit diagrams............................................................................................................................55

Dear Customer,

Thank you for choosing a “SIMEX s.r.l.” product! We are pleased to give you this manual, which we hope will

help you get the most out of our product and enhance your work.

Inside this manual the user will find all the information required to use the machine correctly. The trade name

of the machine is stated on the front cover of this manual. You are advised to follow all the instructions

contained in this handbook exactly and to store it carefully in an appropriate, accessible place. The manual

must be kept for future reference until the machine is scrapped. If the machine is sold, the vendor is required

to pass on the manual to the new owner.

The information in the manual is arranged into topic-based chapters. The information is originally supplied by

the manufacturer in Italian. In order to meet certain legal or business requirements, the original information is

translated into the other official languages.

The contents of this manual may be altered without prior notice, with no further duties ensuing, in

order to include changes or upgrades made to the units already despatched.

Please note that, for reasons of visibility and clarity, certain figures may show the equipment

arranged in ways which do not correspond to the correct set-up for use.

No part of this handbook may be reproduced or translated without the manufacturer’s permission.

“Original Instructions”

1. Sound power levels detected

The table below shows the sound power levels detected (LwA) according to EN ISO 3744, for the various

self-levelling planers.

SELF-LEVELLING PLANER PL 4520 LwA 86 dB +/- 3dB

SELF-LEVELLING PLANER PL 5020 LwA 87 dB +/- 3dB

SELF-LEVELLING PLANER PL 5520 LwA 86 dB +/- 3dB

SELF-LEVELLING PLANER PL 6020 LwA 87 dB+/- 3dB

SELF-LEVELLING PLANER PL 7520 LwA 87 dB+/- 3dB

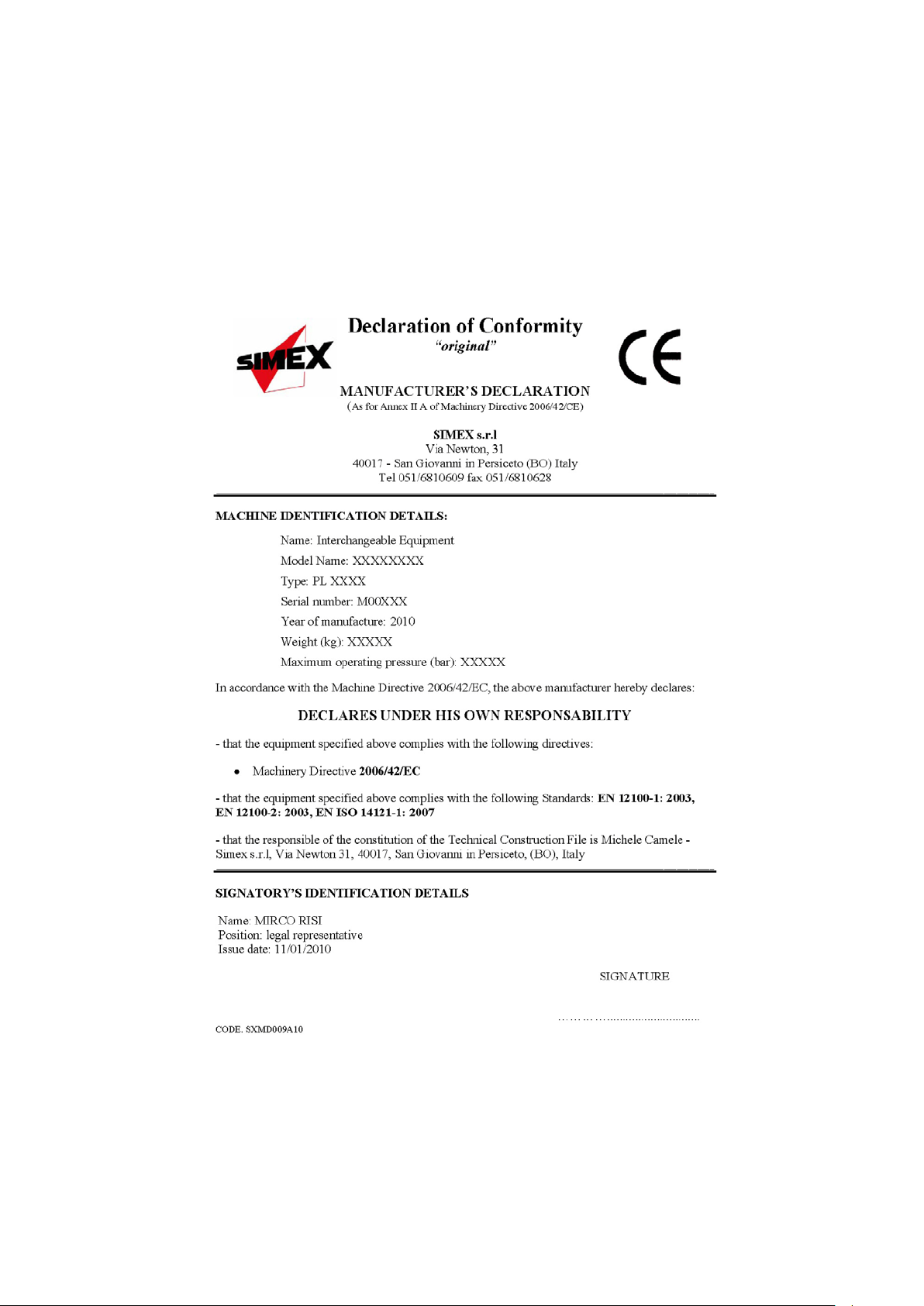

2. Declaration of conformity

The declaration of conformity is filled in and signed by SIMEX S.r.l.’s legal representative, and attached to this

manual. Following an example of the declaration of conformity.

3. Symbols

The chart below outlines the symbols used in this handbook (those considered the most important).

WARNING – HAZARD: this alerts the user to situations or problems which could either

jeopardise personal safety or lead to fatal injuries.



IMPORTANT: this alerts the user to situations or problems linked to machine efficiency rather

than safety.

“OPERATOR”: This is the appropriately trained staff member who is authorised to install,

operate, adjust, clean and transport the machine.

“MAINTENANCE ENGINEER”: This is the person(s) trained and authorised to work on the machine for

routine maintenance and the replacement of certain components.

“MACHINE”: This is the interchangeable equipment outlined in section 6.1.

“PRIME MOVER”: This is the vehicle on which the interchangeable equipment is fitted. The

abbreviation “p.m.” may also be used in this manual.

“RIGHT-HAND SIDE AND LEFT-HAND SIDE”: These are the sides of the equipment determined in relation

to the prime mover driving point.

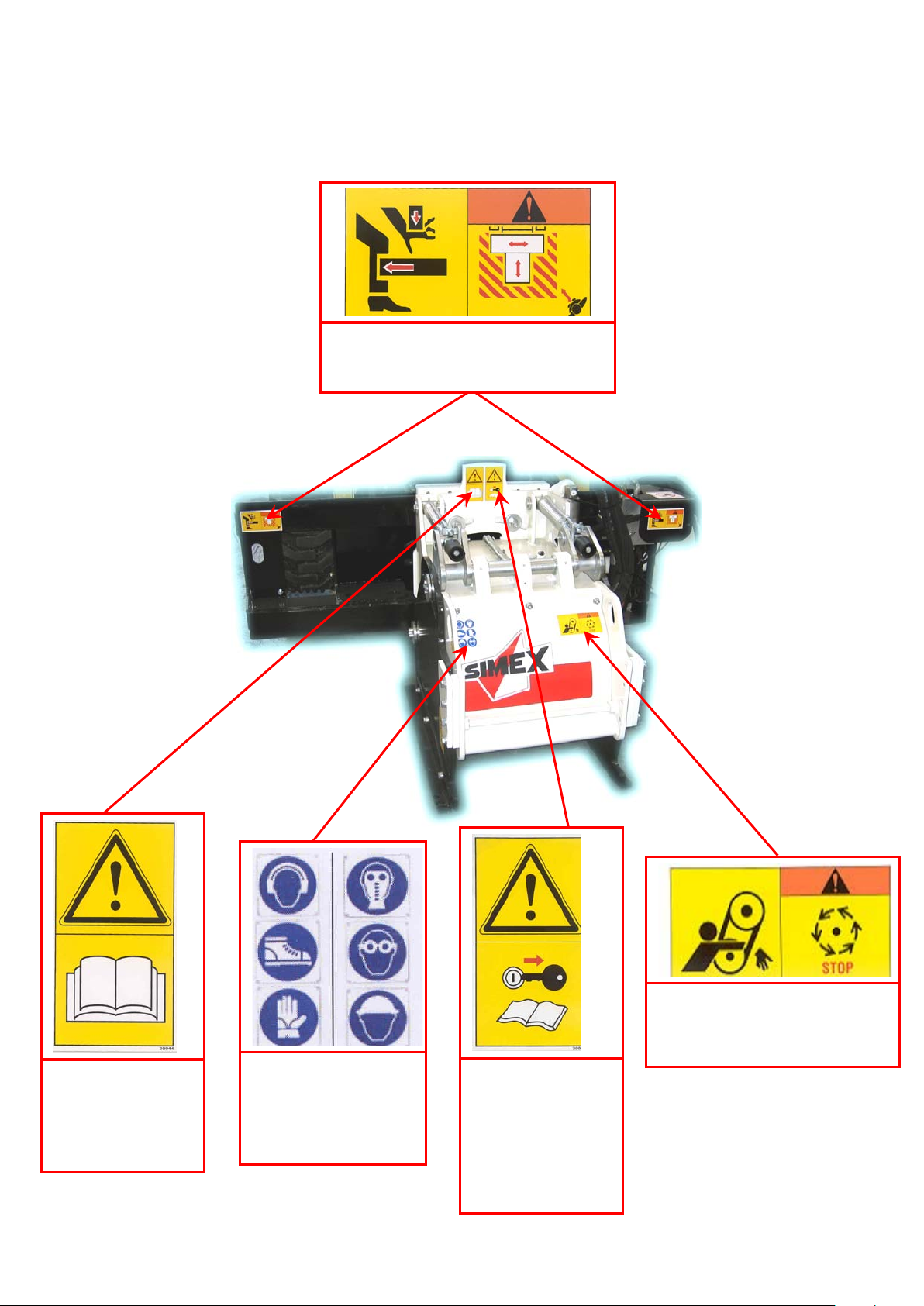

4. Safety and hazard stickers

Location of the data plate and the safety and hazard stickers on the machine.

Warning:

READ THE MANUAL

CAREFULLY BEFORE

USING THE MACHINE

Code: 20944

Warning:

RISK OF CRUSHING STICKER;

DO NOT ACCESS THE AREA OF RISK

Code: 20937

Warning:

NO WORK MAY BE CARRIED OUT ON

THE MACHINE

UNTIL DRUM

ROTATION HAS STOPPED

Code: 20942

Warning:

READ THE MANUAL

CAREFULLY AND

REMOVE THE KEY

FROM THE CONTROL

PANEL BEFORE

MAINTENANCE OR

REPAIRS

Code: 20943

Requirement:

YOU ARE REQUIRED TO

WEAR APPROPRIATE

PERSONAL PROTECTION

EQUIPMENT

Code: 75104

Always heed the warnings on the plates and transfers/stickers. Failure to do so may result in death or

serious injury. Make sure the plates and transfers/stickers are always in place and legible. If this

is not the case, affix or replace them, obtaining the materials required from the manufacturer.

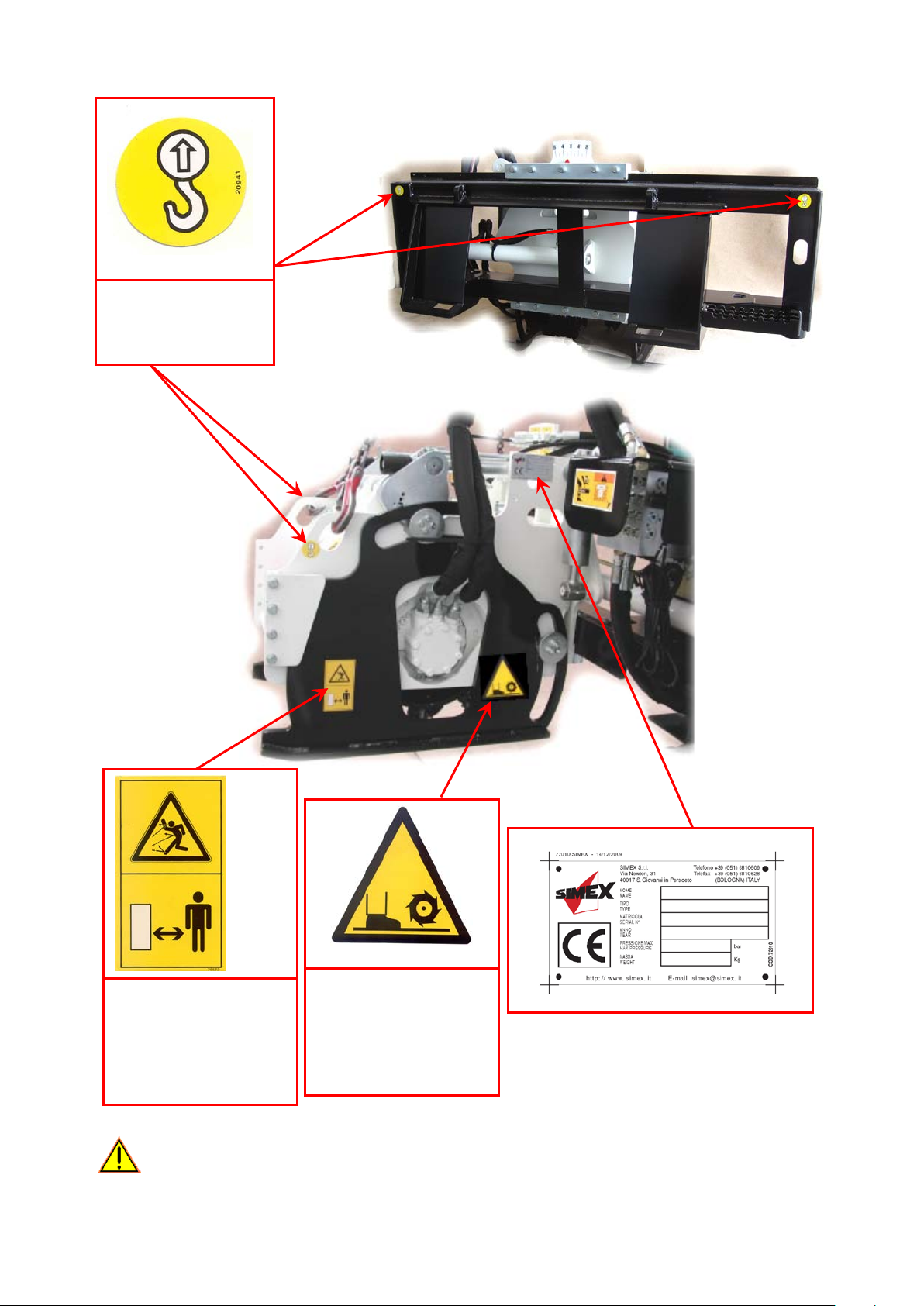

4 stickers

HOOK UP POINT

FOR LIFTING PURPOSES

Code: 20941

Affixed to both sides of

the machine

Warning:

KEEP CLEAR OF THE

MACHINE (MIN. 10 m)

Code: 75572

Warning:

CUTTER DRUM ROTATING

Code: 74796

5. General precautions for use



•The operator is directly accountable for the machine’s safe operation.

•Read this manual carefully before proceeding with installation, start-up, use or any servicing

of the machine.

•The aim of this handbook is to familiarise the operator, through the figures and explanations,

with the basic rules and criteria to follow during machine use and maintenance.

The following procedures are essential to guarantee safe operation:

•Check that the machine has not suffered any damage during transportation and i

f it has,

advise the manufacturer or area agent straight away.

•Make sure the machine is only used by authorised adults with appropriate training.

•Make sure the prime mover due to be used has all the dead-man’s controls fitted and that

they are in perfect working order.

•Ensure all non-members of staff are kept clear of the machine when it is in use (safety

distance of at least 10 metres). Cordon off the work area. This operation has to be done by

the operator.

•Stop working if anyone or any animals should enter the work area.

•Clean the machine regularly, removing all foreign matter which could impair operation or

cause injury to the operator.

•Before using the machine, make sure all the safety devices are correctly in place and in

good condition; if any broken devices are found, replace them immediately.

•Make sure all the hoses and fittings are properly attached.

•Do not carry out any maintenance work until you have read the instruction manual, and

always remove the ignition key from the prime mover before starting.

•Any repairs needed must be carried out solely by authorised personnel using original spare

parts. If this rule is not applied, the user could be exposed to serious risks.

•All inspections of the hoses and fittings must be carried out using

suitable personal

protection equipment (goggles, gloves and clothing to protect against contact with the skin).

•Do not leave the machine installed on the p.m. when the p.m. is unattended

in the work

area.

•Do not wear anything which might get caugh

t in the moving parts, such as unsuitable

clothing, shoes, shirts etc. You are recommended to wear garments approved for accident-

prevent purposes, e.g. helmets, non-slip shoes, headphones, and safety goggles and gloves.

Check with your employer as to the safety regulations in force and the accident-prevention

devices required.

•Do not wear rings, bracelets, necklaces, watches, or scarves.

•If you have long hair, keep it tied back.

6. Technical characteristic

6.1 Machine description

The Self-levelling Planer, hereinafter referred to as the ‘machine’, is a cold planer for working on flat surfaces

made of asphalt or concrete. It can be fitted onto the majority of skid steer loaders, and is ideal for lengthwise

trench cutting on horizontal ground.

The self-levelling feature of the side support side plates ensures the side plates are kept parallel to the

ground, guaranteeing the utmost stability and perfect spoil containment. It also maintains the set planing

depth in all conditions. The depth can be uniform or set differently for each side (RH/LF) using adjustment

screws (standard version) or hydraulic cylinders (optional accessories).

The planer must be positioned so that the sides grip the ground. For increased safety, it is advisable to lift the

rear wheels of the skid steer loader a few centimetres off the ground.

To facilitate planing on a surface which is not parallel to the surface on which the primer mover wheels are

resting, the planer can be tilted transversally either automatically (on the standard machine) or using a

hydraulic cylinder (optional).

If planing is required up to and beyond the external edge of the prime mover, a side shift, operated by a

hydraulic cylinder, allows the operator to shift the machine from the central position to the right-hand side.

There is also an optional water misting system available, which features a tank that can be mounted on either

the side shift or the prime mover's roof and is used for dust abatement during planing.

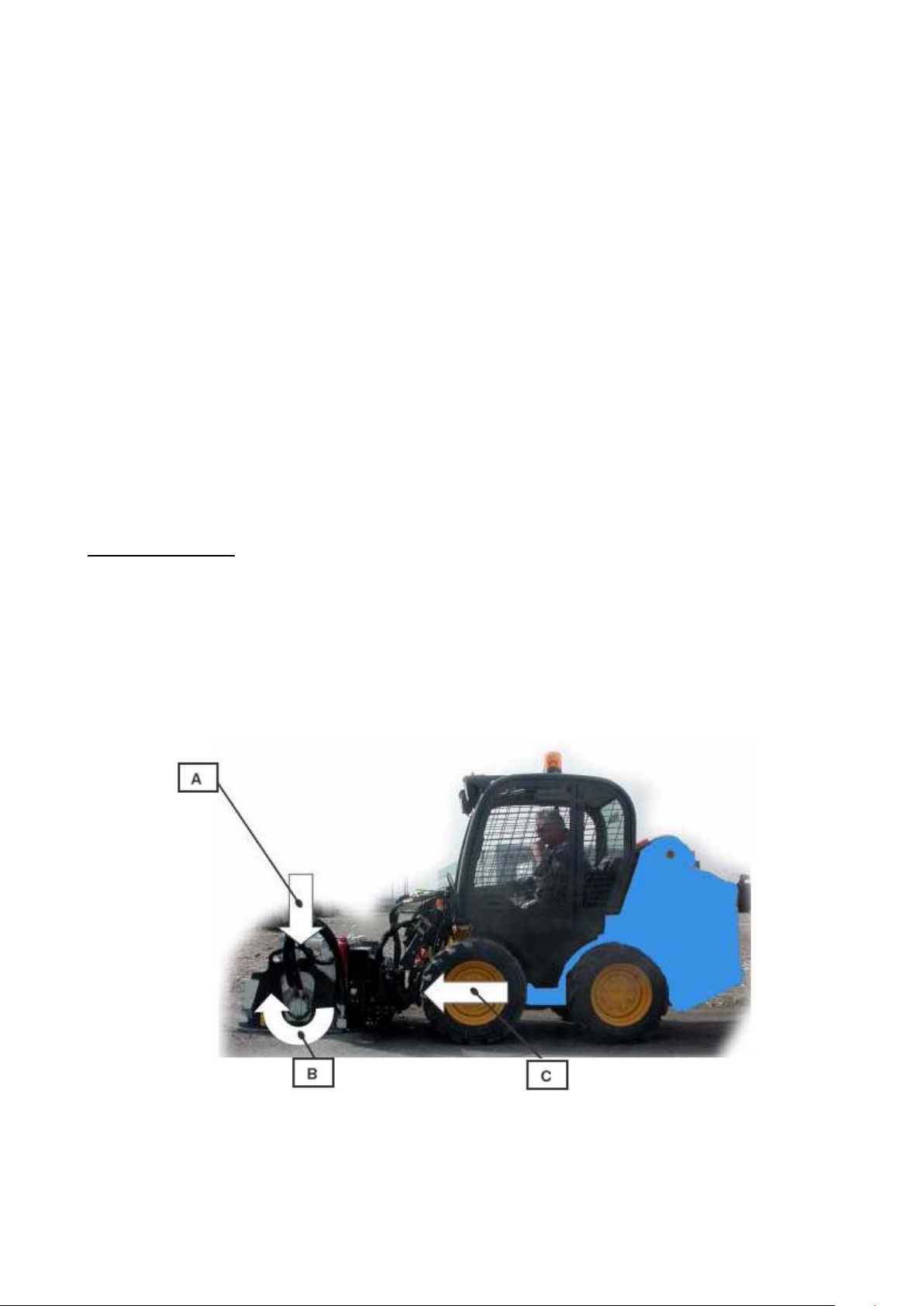

Operating principle:

The planing action is obtained by combining the rotary motion of the cutter drum (driven by the hydraulic

motor onto which it is fitted directly) and - at the same time - the side shift motion of the prime mover on which

the machine is installed.

The hydraulic motor drives the cutter drum directly, which rotates in the direction indicated by the arrow in the

figure, cutting away and crushing up the material in question (asphalt, concrete and suchlike). The material is

removed by hard metal teeth positioned on the said drum.

The hydraulic power is transmitted by the prime mover to the machine via hoses.

A = Maintenance of grip on ground

B = Cutter drum rotation direction

C = Direction of work

Ce manuel convient aux modèles suivants

Table des matières

Manuels Raboteuse populaires d'autres marques

Felisatti

Felisatti PF180/1500 Manuel utilisateur

DeWalt

DeWalt DW 1150 Mode d’emploi

Triton

Triton TRP UL Guide rapide

Melbourne

Melbourne MTC-49407 Manuel utilisateur

VARO

VARO POWERplus POW1520 Manuel utilisateur

Powermatic

Powermatic 209 Manuel de service

Skil

Skil 1565 Manuel utilisateur

Makita

Makita 1051D Manuel utilisateur

Scheppach

Scheppach Plana 3.0 Instructions de montage

Grizzly

Grizzly G1033X Manuel utilisateur

Stanley

Stanley STPP7502 Manuel utilisateur

Palmgren

Palmgren 84115 Manuel utilisateur

Draper

Draper PT610V Manuel utilisateur

Makita

Makita PC5000C Manuel utilisateur

Berner

Berner BP 40-82 C Manuel utilisateur

Grizzly

Grizzly G0603X Manuel utilisateur

King Industrial

King Industrial CT-381FX Manuel utilisateur

FXA

FXA FXAJD8220 Manuel utilisateur
