SIMEREC PCS-2 Manuel utilisateur

PCS-2

General Description

The PCS-2 allows you to switch your PC / HTPC on-off with your existing TV or universal infrared (IR) remote.

Single button mode allows switching the PC on/off with a single IR remote button.

Dual button mode allows the PC to be switched on with any IR remote button, and off with any second button.

Forced shutdown option.

No soldering required. Splicer is included for connecting the PCS-2 to PC power supply (ATX).

Auto-detect feature makes electrical connections a snap.

Requirements

PC with an ATX power supply. (Most PCs are ATX.)

The PCS-2 is designed to fit behind a 3/8” hole that the user must drill into their PC case.

Universal Infrared Remote PC Power Switch

Installation Steps

Caution! Before beginning the installation, unplug the AC power from your PC.

The following installation steps assume that the PCS-2 module will be installed onto the inside of the front cover plate of

the PC. However, you can install it on any side you see fit.

Typical installation:

1. Locate a spot on the front of your PC case where you will drill the hole for the IR receiver.

Note that this must be in a location that is unobstructed during normal PC operation.

2. Verify that your PC is disconnected from AC power.

3. Remove the cover of your PC so that you can access the motherboard and ATX power supply.

4. If possible, remove the front cover of the PC for drilling the hole.

5. It’s recommended that you start with a 1/8” drill bit, then finish with 1/4”. This will make for a hole with a smooth edge.

6. Once the hole is drilled, remove the red backing of the tape on the PCS-2 module.

7. (See the diagram on the next page for alignment details.) On the inside of the front panel, place the IR receiver behind

hole you drilled, and carefully press the PCS-2 module against the inside face so that the tape sticks.

8. Disconnect the PC power button cable from the motherboard and connect it to the 2-pin connector located near the end

of the twisted-wire pair of the PCS-2. The polarity does not matter, as the PCS-2 will auto-detect. Plug the end of the

twisted-wire pair from the PCS-2 module onto the 2-pin power switch connector on the motherboard. Again, polarity

doesn’t matter.

9. Refer to the diagram on the next page for connecting the power wires.

Caution: Be very careful to connect the purple wire correctly to the power supply.

Failure to do so will damage the PCS-2 module and possibly your PC.

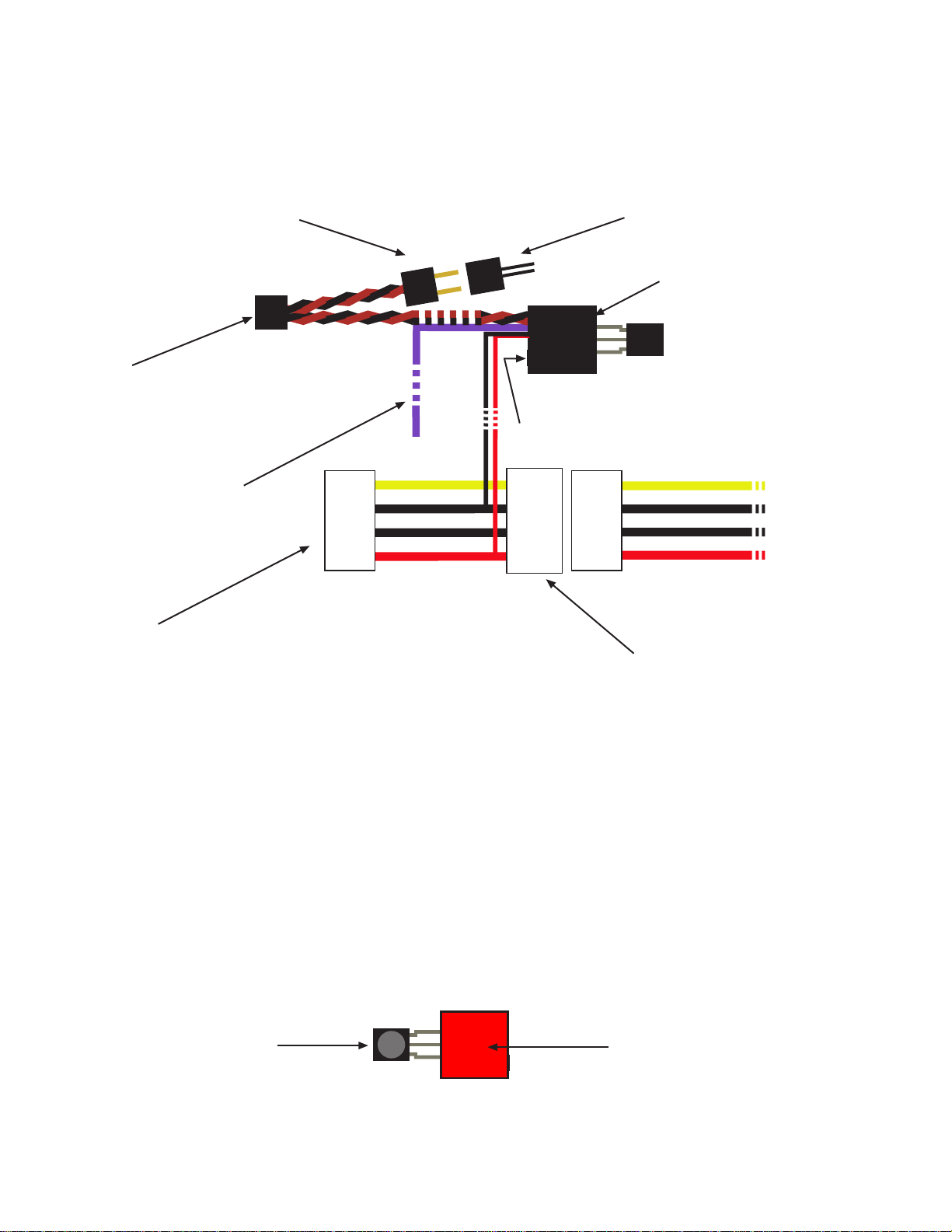

PCS-2 Back View

PCS-2 Front View

(no wiring shown)

Caution: Be very careful to connect the purple wire correctly to the power

supply. Failure to do so will damage the PCS-2 module and possibly your PC.

Place this behind the hole

drilled into PC case.

Remove the red backing from the

gray adhesive tape, and stick the

HTPC module against the inner wall

of the PC case.

Plug PC power switch onto this

2-pin connector. (The polarity

does not matter.)

PC power switch connector from the

power switch on the front of the PC.

Plug this onto the 2-pin

motherboard power switch

connector. (The polarity does

not matter)

Use one of the red

splicers to connect this

purple wire to the purple

wire of the ATX power

supply.

Pushbutton

LED under corner edge.

IR detector (Back side)

Connect any 4-pin power

plug from the power supply

to here.

This 4-pin pass-through connector

is free to connect to a hard drive

or other internal device.

Twisted-wire pair

IMPORTANT: Before continuing, verify your wiring.

Programming the PCS-2

The following is for programming the PCS-2 to recognize 2 different IR codes from your remote

control. The first IR code will switch your PC on, and the second IR code will switch your PC

off. If you want to be able to switch your PC on/off with a single IR code, then simply program

the same IR code (ie same button on your remote) for both “on“ and “off“.

1. Select the button(s) on the IR remote that you wish to use for switching the PC on/off -- typically

button(s) not being used for anything else.

2. Connect the PC to AC power. If your ATX power supply has a switch, make sure that it is on.

3. Press the button on the PCS-2, and the PCS-2 LED should light.

4. While holding the IR remote at least 15” (38cm) away from the receiver and aiming at the receiver,

press the IR remote button that you want to switch the PC “on”. When the LED goes out, release

the remote button. The LED will re-light.

Repeat step 4 three more times.

5. After the above steps are completed, the LED will flash several times, then stay on. This indicates

that the first IR code is learned.

Now program the second IR code for switching the PC “off”...

6. While holding the IR remote at least 15” (38cm) away from the receiver and aiming at the receiver,

press the IR remote button that you want to switch the PC “off”. When the LED goes out, release

the remote button. The LED will re-light.

Repeat step 6 three more times.

7. After the above steps are completed, the LED will flash continuously. Press and hold the power

switch on the front of the PC until the LED turns completely off.

The LED should be off, and programming the PCS-2 is complete.

You can test the programming at this point by letting the PC boot completely, then pressing the button

on the IR remote that you selected for “off.“ This should cause the PC to shutdown/hibernate/standby,

depending on how your system is configured.

Forced Shutdown Option

When the forced shutdown option is enabled, the PCS-2 will force the PC to shutdown if it has not

already shut itself down within 1 minute of the user requesting that the system shut down. This is

especially useful if your system has a background application that tends to prevent the system from

automatically shutting down.

By default forced shutdown is disabled.

To enable forced shutdown, hold down on the PCS-2 button until the LED flashes several times.

Note that forced shutdown will only work if the 4 second power-down option is enable in the PC BIOS.

(This is enabled by default on virtually all PCs.)

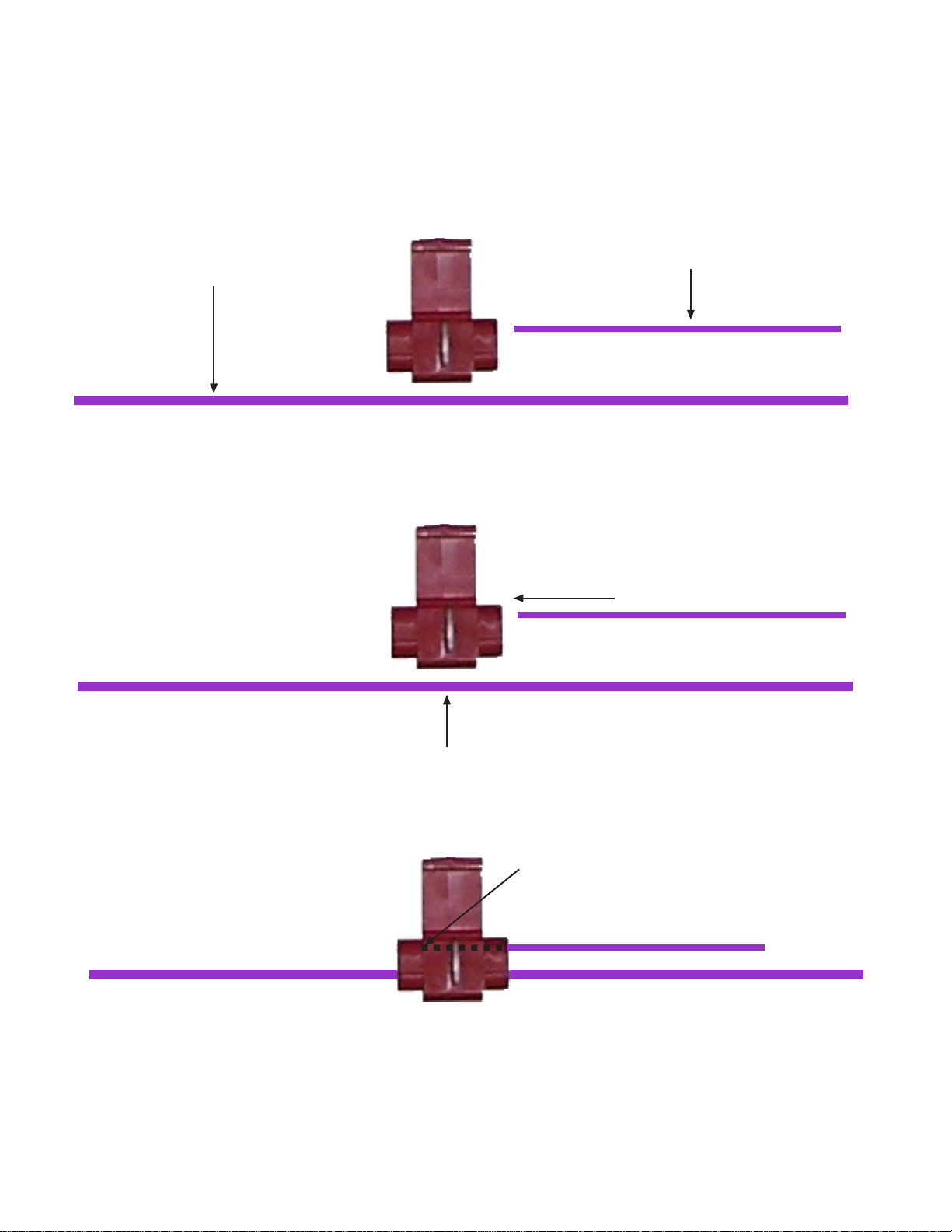

How to Properly Splice the Power Wire

Purple power wire from the PCS-2 module.

Purple wire from the ATX power supply.

Insert until wire is past the metal splicing tab,

and the tip of the wire is against the stop.

Insert into side slot of splicer.

This dashed line shows how far the wire should

be held against the inner stop, until splicing is

completed as described on the next page.

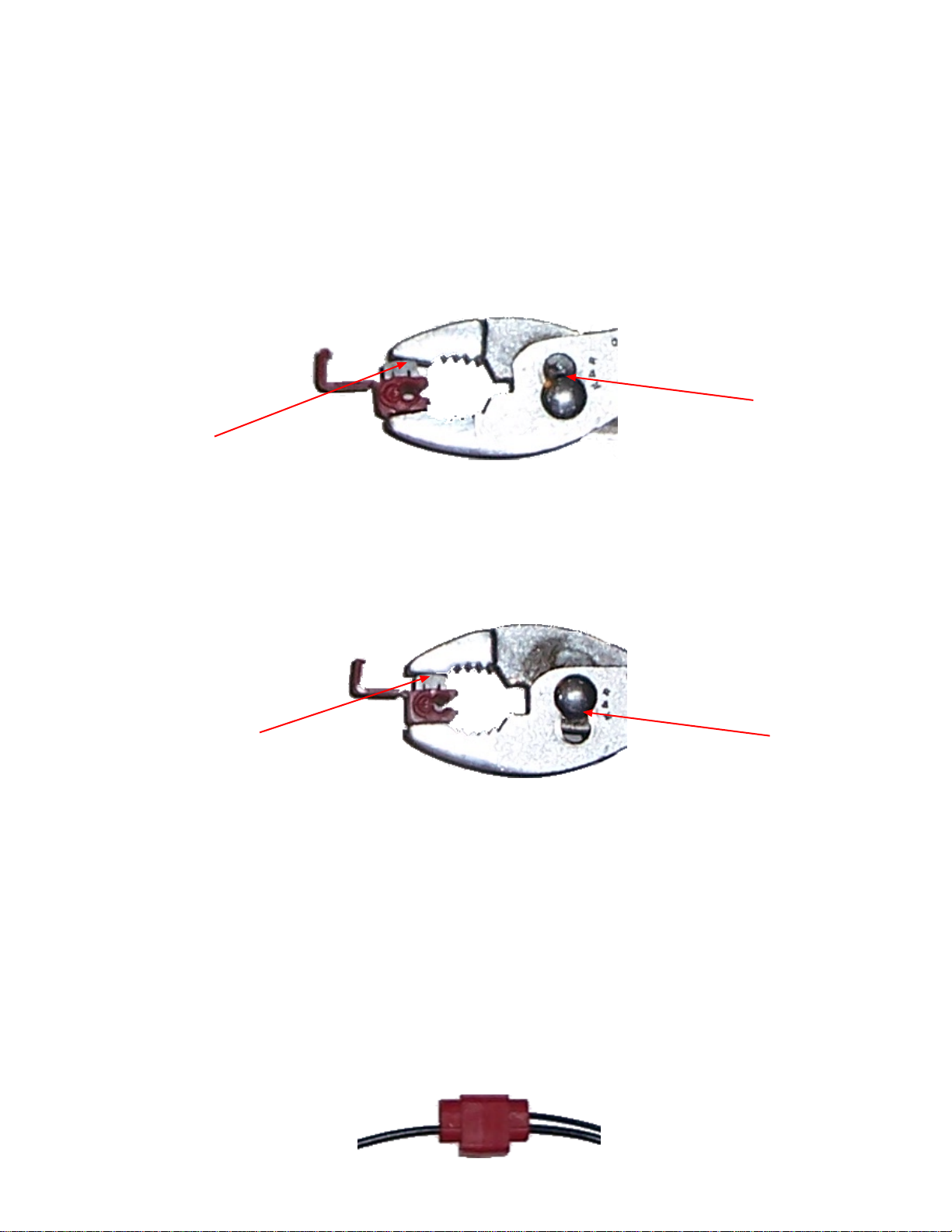

To complete the splice, it is now necessary to use pliers to press the metal tab into the

two wires. It is important that the pliers are aligned with the metal tab before applying

pressure. Below are the incorrect and correct alignments. (Note: For purposes of

clearer illustration, that the wires are not shown in the splicer below.)

INCORRECT ALIGNMENT

This can result in the wire from the PCS-2 module not being properly captured.

The pliers

should be set to

the wider setting

here.

The angle of the

pliers is not directly

on top of the metal

splicer tab here.

CORRECT ALIGNMENT

The pliers

are set to

the wider

setting

here.

The pliers are directly

on top of the metal

splicer tab here.

Complete the Splice

Once alignment is correct as above, squeeze the pliers until the metal tab is flush with the plastic housing.

The metal tab should not be above the housing at all.

Lastly, fold the plastic cover over the metal tab slot so that it clicks securely. The final product will look

like this:

If you do not see a purple wire on your ATX power connector, then the below

images are provided to indicate which wire is the standby power wire to be spliced

to the purple PCS-2 wire. First determine if you have a 20-pin or 24-pinATX power

connector.

This is the location of the wire to splice.

(20-pin ATX connector)

In this image, the wire is purple, but

your wire might not be.

The splice can be anywhere on the

wire.

ATX 20-pin

ATX 24-pin

This is the location of the wire to splice.

(24-pin ATX connector)

In this image, the wire is purple, but

your wire might not be.

The splice can be anywhere on the

wire.
