Sime SOLIDA 5 PL Manuel utilisateur

SOLIDA 5 PL

SOLIDA 8 PL+

Fonderie SIME SpA Cod. 6113735B - 05/2017

RUS

ENG

SOLIDA 5 PL cod. 8058541

Kit pellet Sime 5 PL cod. 8075980 (optional)

SOLIDA 8 PL + cod. 8075743

Kit pellet Sime 8 PL + cod. 8075981 (optional)

SOLIDA PL - ENGLISH

INDEX

1 OPERATION WITH PELLETS AND SPECIAL KIT ................................................ 16

2 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

WARNINGS

- In case of failure or malfunction of the equipment, contact authorised technical staff

- Make sure that no external electrical cables can come into contact with hot parts of the water heater

- Duly install a device in the electrical power supply grid that ensures complete omni-polar disconnection

(surge category III)

- During operation of the water heater, the fumes exhaust pipe and the cast iron doors reach high tempera-

tures (do not touch without appropriate protection)

- If the electrical power supply cable is damaged, it must be replaced by the manufacturer or by qualified

technical staff

- To avoid system water backflow, install check valves or valves that are only opened to reintegrate water

into the system.

GENERAL NOTES

- The appliance must be installed by qualified staff who operate in compliance with the national standards in

force and with the instructions in the accompanying manual.

- The appliance is not intended for use by persons, including children, with reduced physical, sensory or

mental abilities. Children must be monitored to ensure they do not play with the appliance.

- A puffer (inertial accumulation) is recommended but not obligatory. Its presence has the advantage of

releasing the water heater from the system’s “sudden” requests and allowing integration with other

sources of heat. Reduces consumption and increases system efficiency.

- Do not use or leave materials that are explosive or easily flammable (e.g. petrol, paint, paper) in the room

where the appliance is installed.

- The user must be instructed on use and operation of the equipment.

SOLIDA 5 PL code 8058541

Kit pellet Sime 5 PL code 8075980 (optional)

SOLIDA 8 PL + code 8075743

Kit pellet Sime 8 PL + cod. 8075981 (optional)

1.1 DESCRIPTION

The SOLIDA PL boilers may be trans-

formed to operate with pellets. Accessory

kit containing:

SOLIDA

5 PL

8 PL+

a) front spacers n° 6 n° 10

b) back spacers n° 2 n° 4

c) deflectors n° 3 n° 5

d) cement bricks n° 2 n° 3

e) thermostat

and connectors

n° 1 n° 1

To maximize use of the product, we rec-

ommend the use of pellets with a quality

that is certified by an authorized body

(the quality of the pellets used with the

SOLIDA PL are defined in accordance

with the DIN plus standard).

The boiler complies with Class 3 in

accordance with EN 303-5/2012.

1 OPERATION WITH PELLETS AND SPECIAL KIT

1.1.1 OVERALL DIMENSIONS (with pellets kit code 8079580 for SOLIDA 5 PL /code 8075981 for SOLIDA 8 PL+)

Fig. 1

SOLIDA

5 PL

SOLIDA

8 PL+

L 1202 mm 1502 mm

P 535 mm 835 mm

1080

470

1465

ø 147

198 P418

1.1.2 TECHNICAL FEATURES (Kit with pellet)

Model SOLIDA 5 PL SOLIDA 8 PL +

Nominal thermal output kW 26.2 40.0

Minimum thermal output kW 7.4 12.0

Nominal heat input kW 34.7 50.0

Minimum heat input kW 10.4 15.0

Maximum useful efficiency % 75.96 80.00

Minimum useful efficiency % 72.81 80.00

CO mg/Nm3 at 10% of O2 at the nominal thermal input 837.8 28.0

CO mg/Nm3 at 10% of O2 at the minimum thermal input 467.3 1451.0

OGC mg/Nm3 at 10% of O2 at the nominal thermal input 10.0 7.2

OGC mg/Nm3 at 10% of O2 at the minimum thermal input 90.7 25.5

DUST mg/Nm3 at 10% of O2 at the nominal thermal input 42.0 13.4

DUST mg/Nm3 at 10% of O2 at the minimum thermal input - 22.2

C.H. flow/return fittings ø 2” 2”

Fumes flow-rate at nominal/minimum power Kg/s 0,0171/0,0104 0,0188/0,0111

Max/min operating pressure Mpa 0,15/0,05 0,15/0,05

Water content l 31 43

Weight Kg 270 375

Size of a pellet container with a capacity of 200 dm3H 1081 1081

L 440 440

Size of a pellet container with a capacity of 300 dm3H 1381 1381

L 440 440

Size of a container with a capacity of 500 dm3H 1481 1481

L 640 640

ENG

RUS

2 INSTALLATION

2.1 MOUNTING ACCESSORIES SUPPLIED SEPARATELY

A) Place the cast iron 1st deflector with the rear side supports

Fig. 2 Rear side supports Fig. 3 1st deflector with the rear side supports

B) Place the cast iron 2nd deflector with the front side supports

Fig. 4 Front side supports Fig. 5 2nd deflector with the front side supports

C) Place the remaining front lateral supports and insert the cement bricks

Fig. 6 Lateral supports Fig. 7 Cement bricks

WARNING!

THE CEMENT BRICKS MUST BE ADJACENT TO THE FRONT PART OF THE BOILER

D) Place the last cast iron deflector

Fig. 8 Last deflector

E) Screw the brass reduction by interposing the sealant for the hydraulic seal

F) Screw the safety thermostat to the reduction

CAUTION:

Screw the thermostat by hand or with a fork spanner: tightening

torque of 1.5 Nm

Fig. 9 Safety thermostat

ENG

RUS

4 x

TCB M5x12 (66 x)

TCB M6x8 (2 x)

TCB 7SPx3/8” (6 x)

TSP M5x20 (8 x)

Mod. 500 dm

TCB M5x12 (54 x)

TCB M6x8 (2 x)

TCB 7SPx3/8” (6 x)

TSP M5x20 (8 x)

Mod. 200-300 dm

Tiranti solo per

contenitore

da 500 dm

2 x

5 x

8 x (200-300 dm3)

2 x

4 x

6 x

4 x (200-300 dm3)

6 x (500 dm3)

4 x

5 x

2 x 10 x (500 dm3)

4 x (200-300 dm3)

6 x (500 dm3)

2 x

8 x (200-300 dm3)

10 x (500 dm3)

2 x

G) Assembly pellets tank (200 to 500 dm3) positioned to the right of the boiler, resting on the flank and aligned at the same.

4 x

TCB M5x12 (66 x)

TCB M6x8 (2 x)

TCB 7SPx3/8” (6 x)

TSP M5x20 (8 x)

Mod. 500 dm

TCB M5x12 (54 x)

TCB M6x8 (2 x)

TCB 7SPx3/8” (6 x)

TSP M5x20 (8 x)

Mod. 200-300 dm

Tiranti solo per

contenitore

da 500 dm

2 x

5 x

8 x (200-300 dm

)

2 x

4 x

6 x

4 x (200-300 dm

)

6 x (500 dm

)

4 x

5 x

2 x 10 x (500 dm

)

4 x (200-300 dm

)

6 x (500 dm

)

2 x

8 x (200-300 dm

)

10 x (500 dm

)

2 x

Only for pellets

tank 500 dm3

Fig. 10 - Insertion cochlea

H) Push the cochlea feeder motor in its housing container pellets.

I) Mounting the burner (

B-Home Round 25 for SOLIDA 5 PL and B-Essential Round 50 for SOLIDA 8 PL+)

Position the seal (4), supplied with the burner, between the flange (5) and the door (2) of the boiler

Push in the 4 screws (6) (M8) but ONLY tighten the two screws which hold the lower split-flange. The two screws of the upper split-

flange must ONLY BE PLACED but not tightened.

Insert the combustion chamber of the burner into the boiler as far as is necessary

Tighten the two semi-flanges with the screws (7) and the screws (6), which were previously just placed in position.

WARNING DANGER

The burner MUST be mounted ONLY in the position shown in the diagram. Any other position is FORBIDDEN.

The flame will propagate in a straight line, through the hole of the burner combustion chamber.

Round 25

Round 50

159

Ø 172

135

Ø 142

ENG

RUS

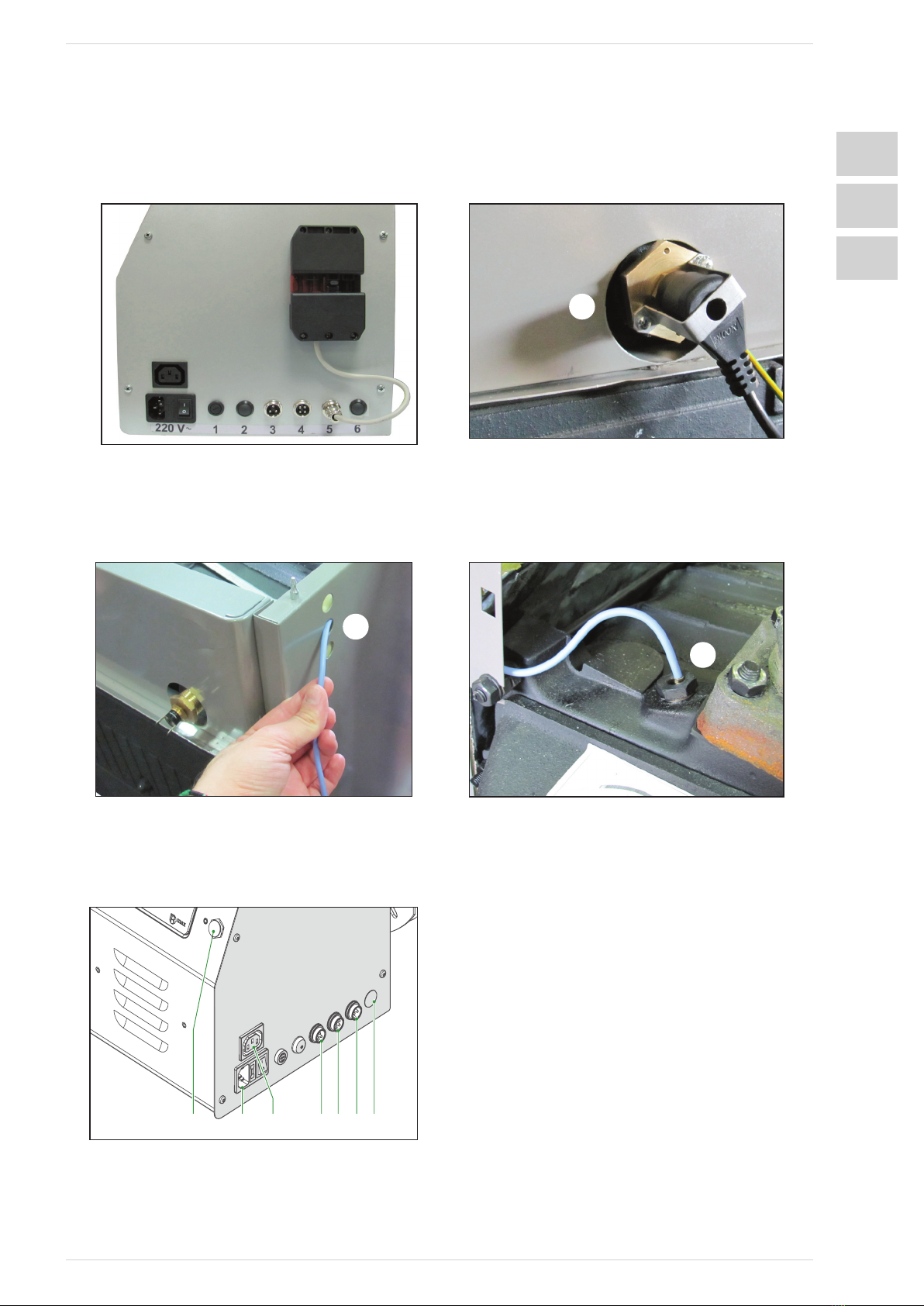

2.2 ELECTRICAL CONNECTIONS

A) Connect the cable connector coming from the screw feeder motor to the burner (3 fig. 11)

B) Connect the safety thermostat connector (7 fig. 12) the seven-pin plug (see WIRING DIAGRAM)

Fig. 11 Screw feeder motor cable Fig. 12 Safety thermostat connector

C) Place the inlet joint (8 fig. 13) in the sheath (9 fig. 14) found on the boiler body

Fig. 13 Inlet joint Fig. 14 Inlet joint

D) Connect the burner power cable to the mains (1 fig. 15).

2134576

BLUE = NEUTRAL

BROWN = PHASE

YELLOW-GREEN = EARTH

1 Power supply socket (230V-50Hz)

2 External cochlea fan power socket

3 External cochlea motor

4 Boiler water temperature probe

5 Connection seven-pin plug

(Safety thermostat / Air pressure switch / Door micro switch)

6 Connection for use with a PC

7 Arrangement for additional applications

Fig. 15 Connection to the mains

2.3 WIRING DIAGRAM

VPC

VCE

230V/50Hz

24 Vdc

–

ARC

PM1

VPC Main combustion valve

VCE External cochlea fan

RS Resistance

PM1 External cochlea button

TE External thermostat

SA Water probe

FR Photoresistance

M1 External cochlea

M2 Internal cochlea

ARC Compressed air

MP Door micro switch

PA Air pressure switch

TS Safety thermostat

SP Seven-pin plug

TE External thermostat

TA Room thermostat

Fig. 16
