Sim-Lab PUSH/PULL SHIFTER Manuel utilisateur
PUSH/PULL SHIFTER
VERSION 1.0
Last updated:07-04-2023
INSTRUCTION MANUAL
2|2 8
BEFORE YOU START:
Thank you for your purchase. In this manual we will provide you with the means to
get started using your new shifter!
Allowing you to shift rally style, you always know where your shifter is in relation to
your wheel. Thanks to the quick disconnect lever it is easy to make adjustments. The
quick disconnect lever allows for a very rigid solution while really locking down your
preferred configuration.
PUSH/PULL SHIFTER
Features:
Rally style shifting
Support for different hardware
Adjustable in length and angle
Aluminum construction
Hall-sensor activated
Carbon fiber paddles
Quick disconnect lever
USB
3
| |38 8
Preparation

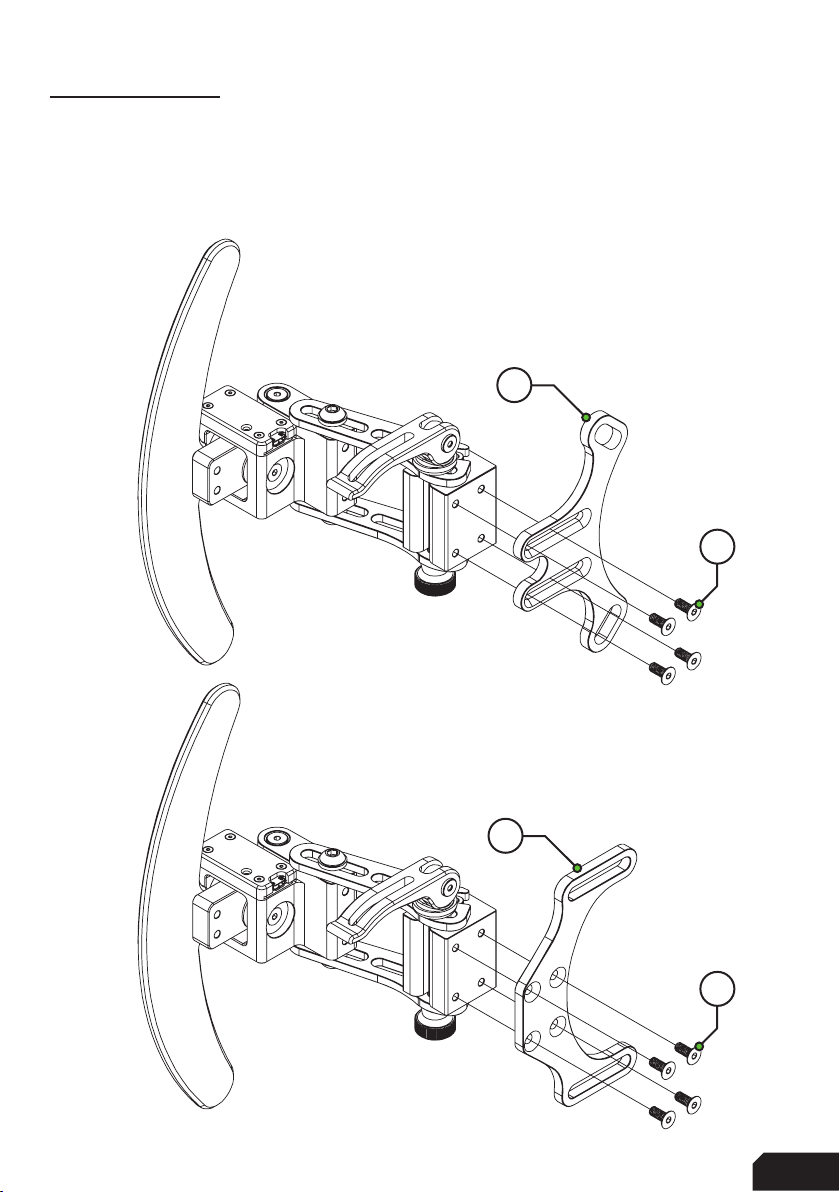

Depending on your hardware; Fanatec (A3) or Simucube/ALPHA/MIGE (A4), a
different mounting plate must be fitted.
Mounting such a plate is very straightforward and uses four countersunk bolts.
A3
A4
A8
A8
4|4 8
Installation

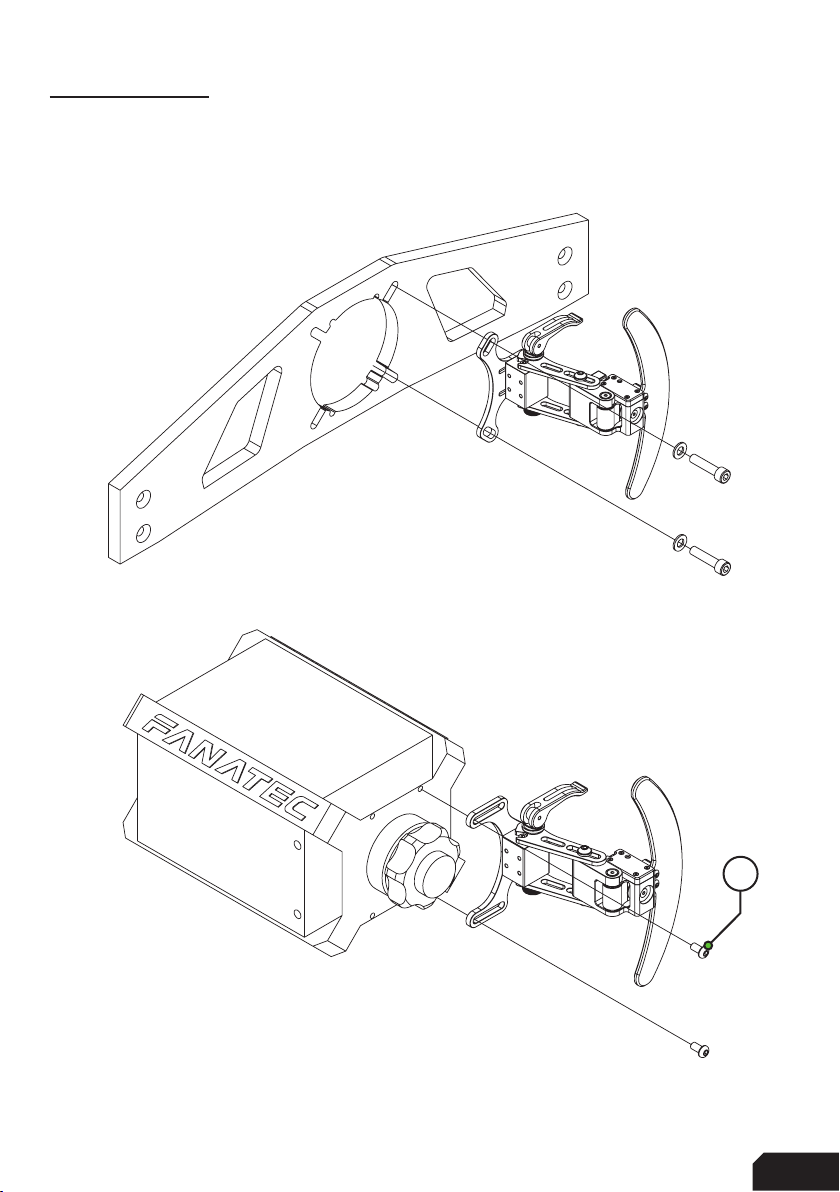

The installation of the Push/Pull Shifter (PPS) is fairly straight forward. Loosen existing
bolts on your motor and mount, use these to attach the adapter plate to your front
mount.
For Fanatec users, appropriate bolts (A9) are supplied.
A9
5
| |58 8
Configuration

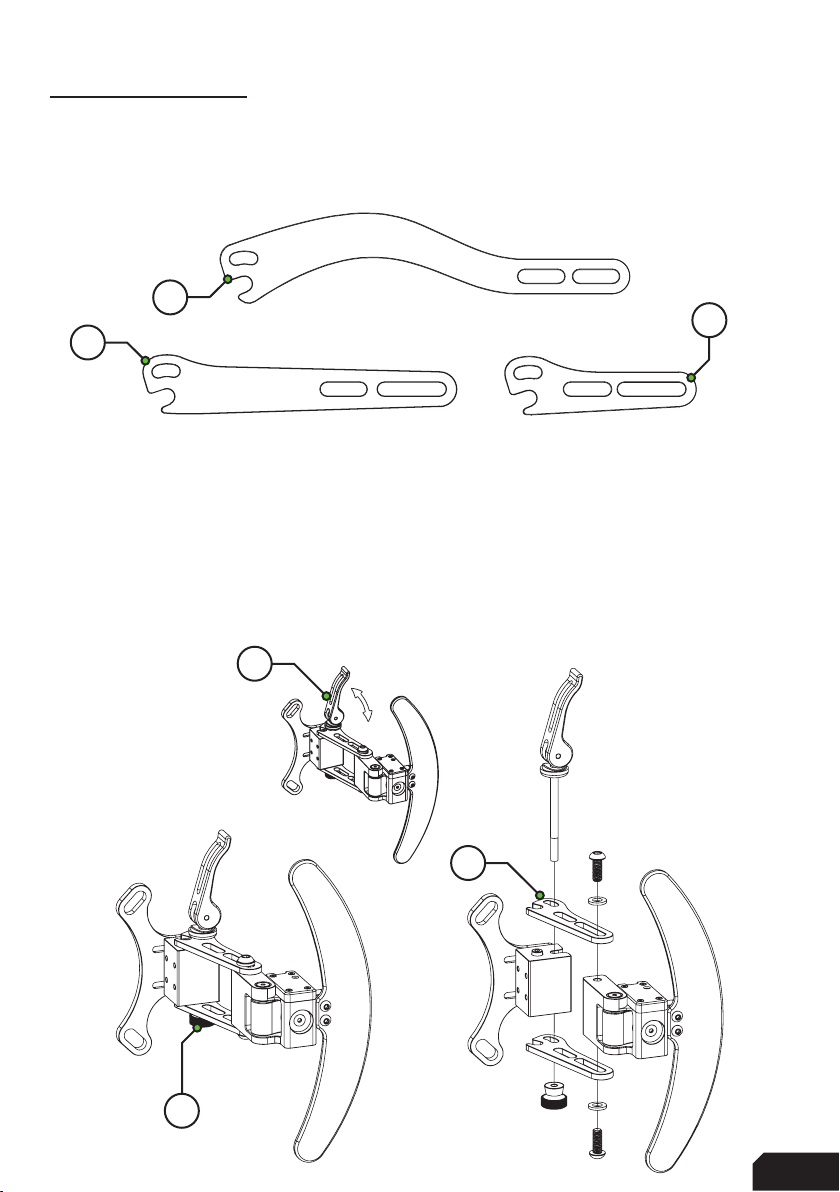

Depending on your setup, there might some configuration needed to make the PPS
fit your setup. We included 3 different ams to be able to adjust the positioning of the
paddle in relation to your wheel.
If arms (F) fitted out of the box need to be swapped, first rotate the lever (L) upwards
and loosen the nut (N). Now you can disconnect the complete shifter body along with
the arms and swap them with your preferred arms (A5/6).
With the new arms in place, some tweaking is still possible to suit your needs. When
re-assembling, don’t tighten the nut (N) completely, the lever (L) will clamp down on
the system to tighten everything. When there is still play after you have clamped
down the lever, release the lever and adjust the tension of the nut and try again.
A
N
L
A5
A6
F
6|6 8

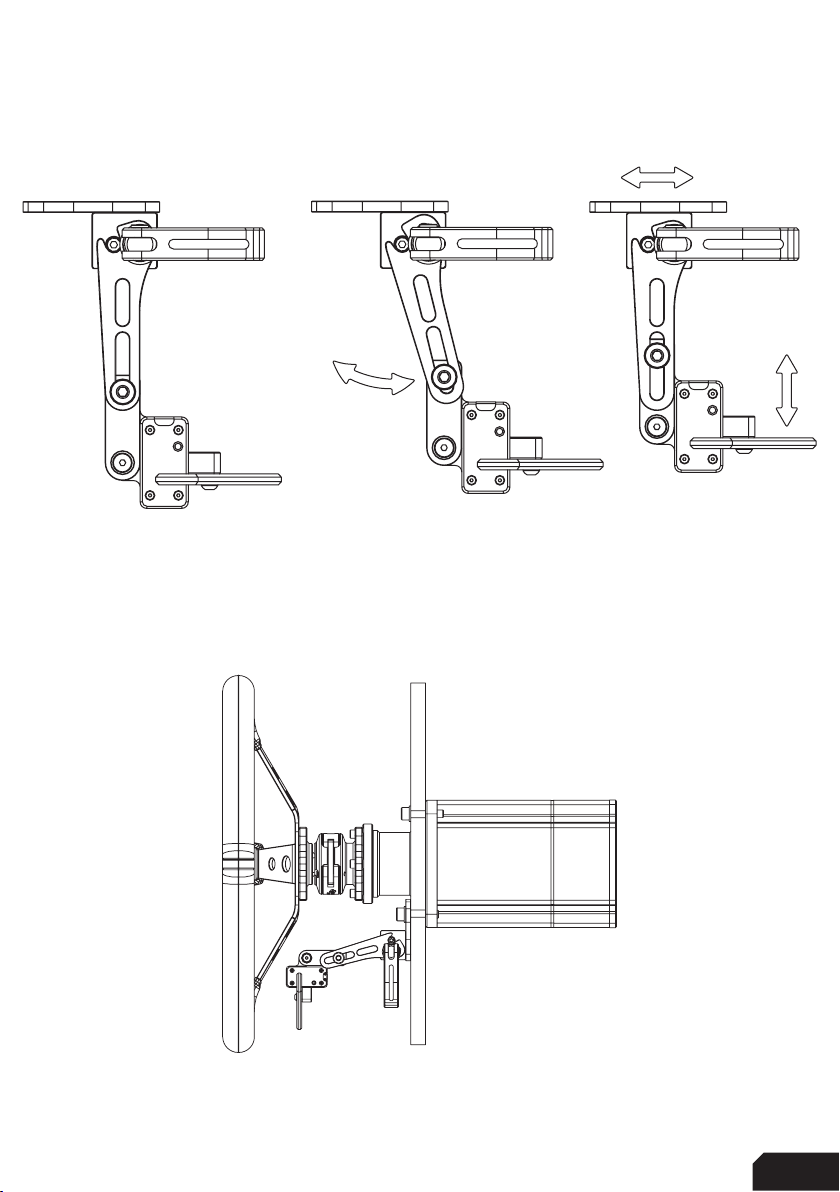

There are different means of adjustment possible, depending on the part.
Most adjustments can be made loosening the bolts which hold the arms and rotating
the locking lever upwards. Be sure to tighten bolts securely and double check after
the first use if they are still tight. Here is how we achieved our setup to work with a
deep dish wheel.
7
| |78 8
Initial calibration

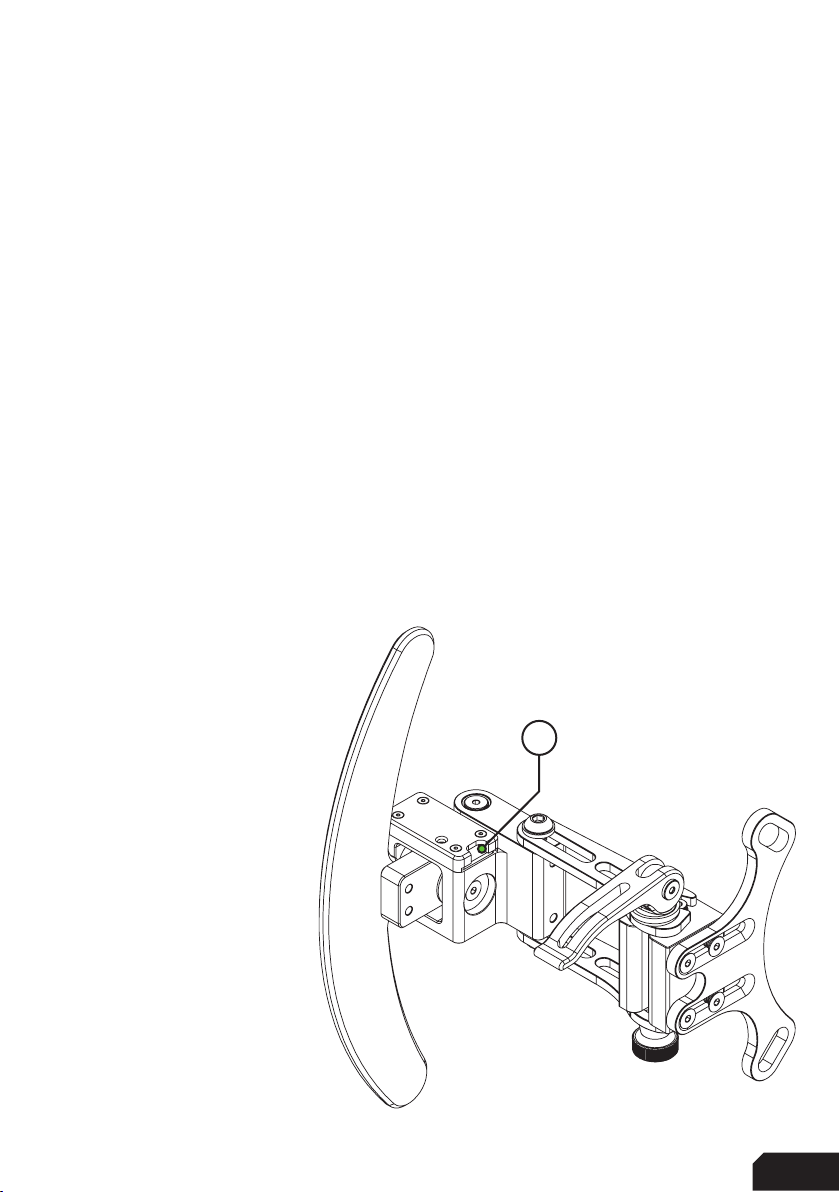

Press and hold the calibration button (C) until its LED starts blinking. Now the unit is
in calibration mode. Shift up (pull) and down (push) a couple of times. When you are
done, press the calibration button (C) one last time. Now the device has been
calibrated and ready for use.
C
8|8 8
Bill of materials
More information
If you still have some questions regarding assembly of this product or about the
manual itself, please refer to our support department. They can be reached at:
Alternatively, we now have Discord servers where you can hang out or ask for help.
www.sim-lab.eu/discord / www.gridbysimlab.com/discord
Product page on the
GRID by Sim-Lab website:
IN THE BOX
#Part QTY Note
A1 Push/Pull Shifter 1
A2 USB-micro cable 1
A3 Fanatec mount 1
A4 Simucube/Alpha/MIGE mount 1
A5 Mount Arm M75-125 2
A6 Mount Arm M185-1225 2
A7 Bolt M8 X 35 DIN 912 2
A8 Bolt M4 X 10 DIN 7991 4
A9 Bolt M6 X 12 DIN 7380 2 Use to mount unit to Fanatec.
A10 Bolt M4 X 10 DIN 7380 2 Use to mount paddle.
A11 Nut M8 2
A12 Washer M8 DIN 125-A 2 To use with A8 and/or A11.
A13 Toolkit 1
