Sim-Lab GT1-PRO Manuel utilisateur

GT1-PRO INTEGRATED SINGLE MONITOR MOUNT

VERSION 1.0

Last updated: 12-07-2023

INSTRUCTION MANUAL

2|2 11

BEFORE YOU START:

Thank you for purchasing this Sim-Lab product! On the following pages, you will ﬁnd detailed instructions

on assembly. This requires only a set of simple tools and some of your time. Please check the bill of

materials before starting (page 10) and make sure all the parts are delivered.

We encourage you to read the product manuals for included products if this one doesn’t answer all of

your questions. Please refer to the following if needed:

www.sim-lab.eu/vario-vesa-manual

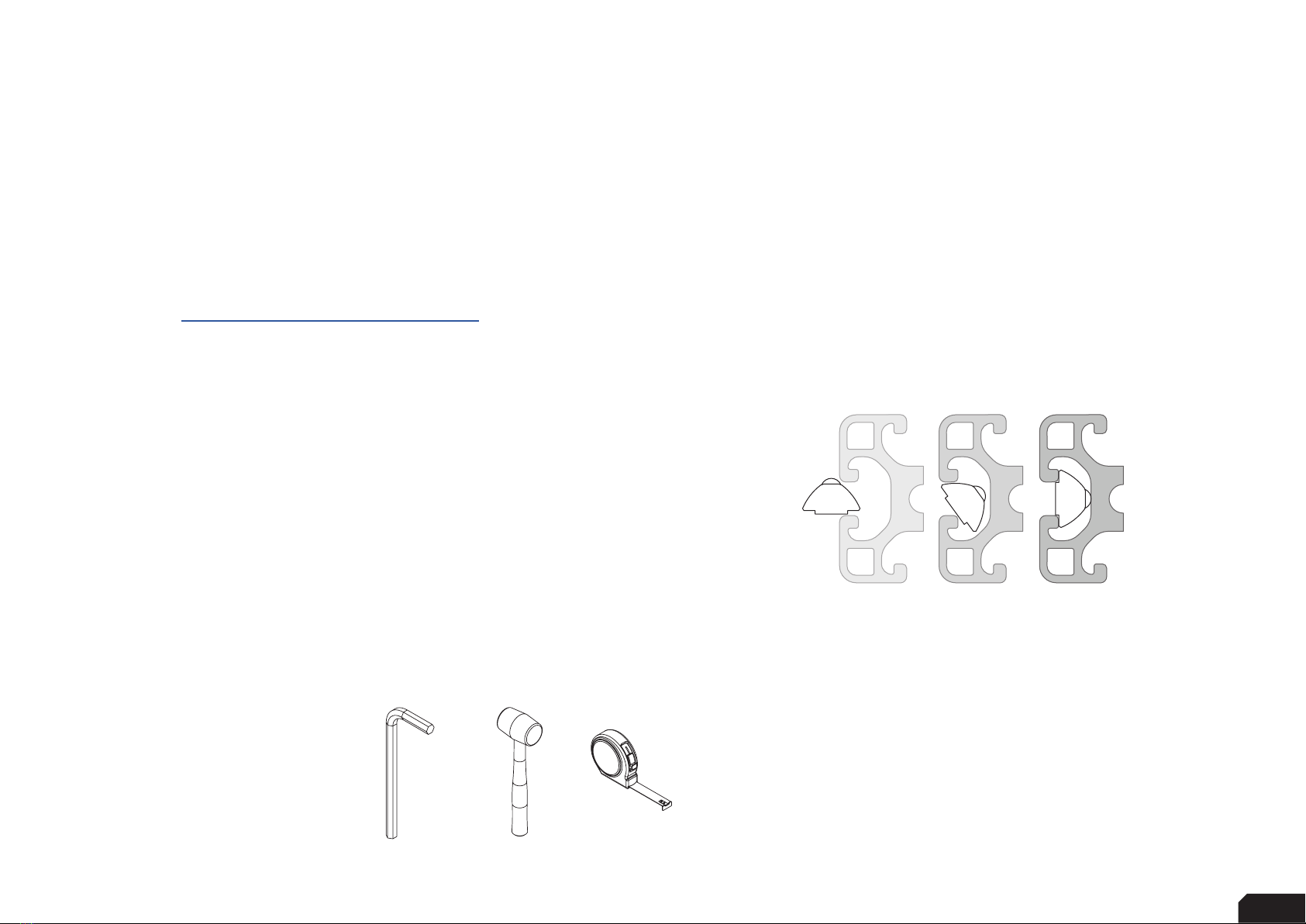

Inserting Slot-Nuts:

You got excited, ﬁnished the build, put the caps on, but forgot to install

one element. Do not worry. It happens to everyone. In this diagram, you

can see how to insert a Slot-Nut directly into the slot from the side.

You can also use one of your smaller Hex wrenches to help wiggle

the Slot-Nut in place.

6MM

Tools needed:

3|3 11

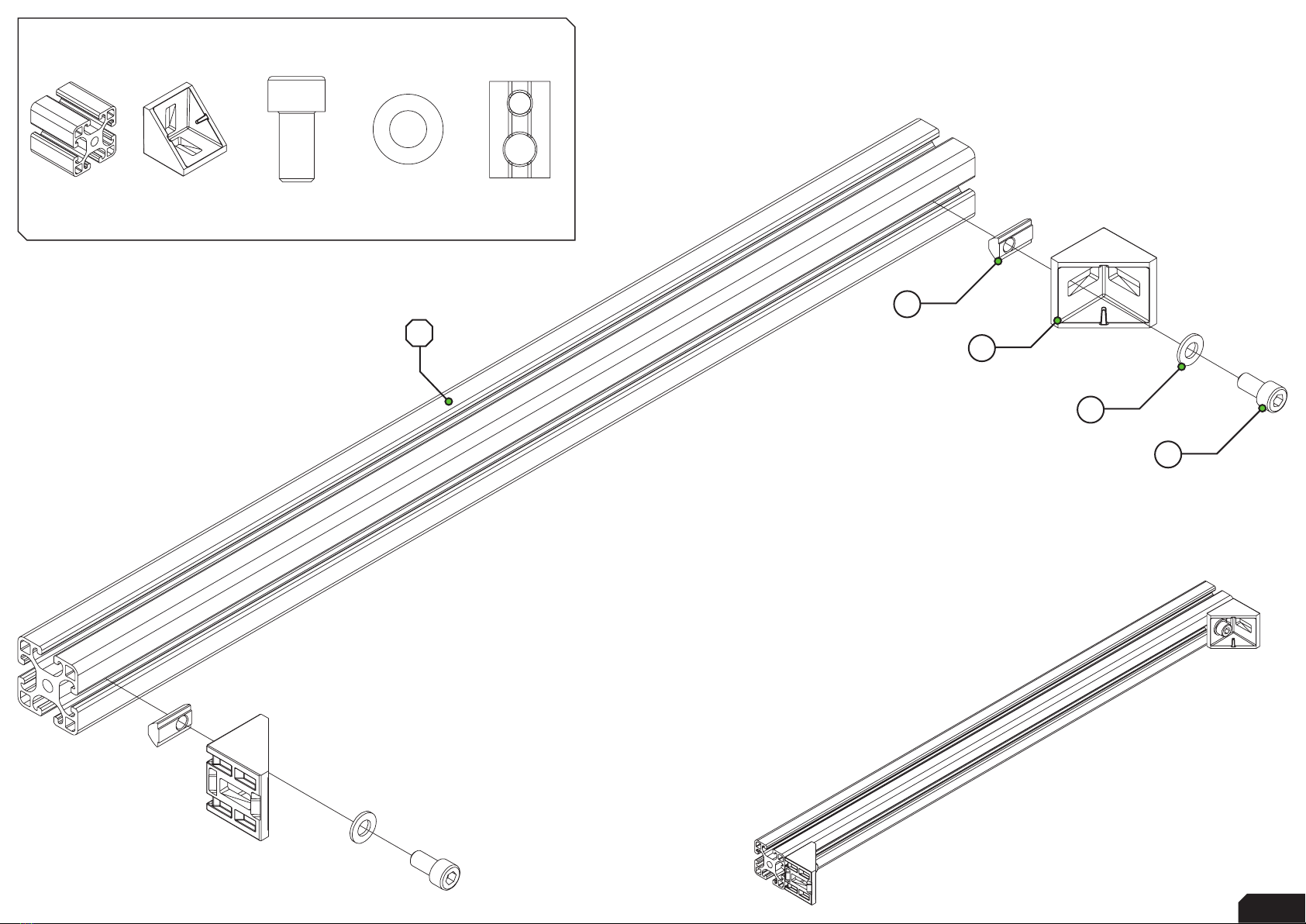

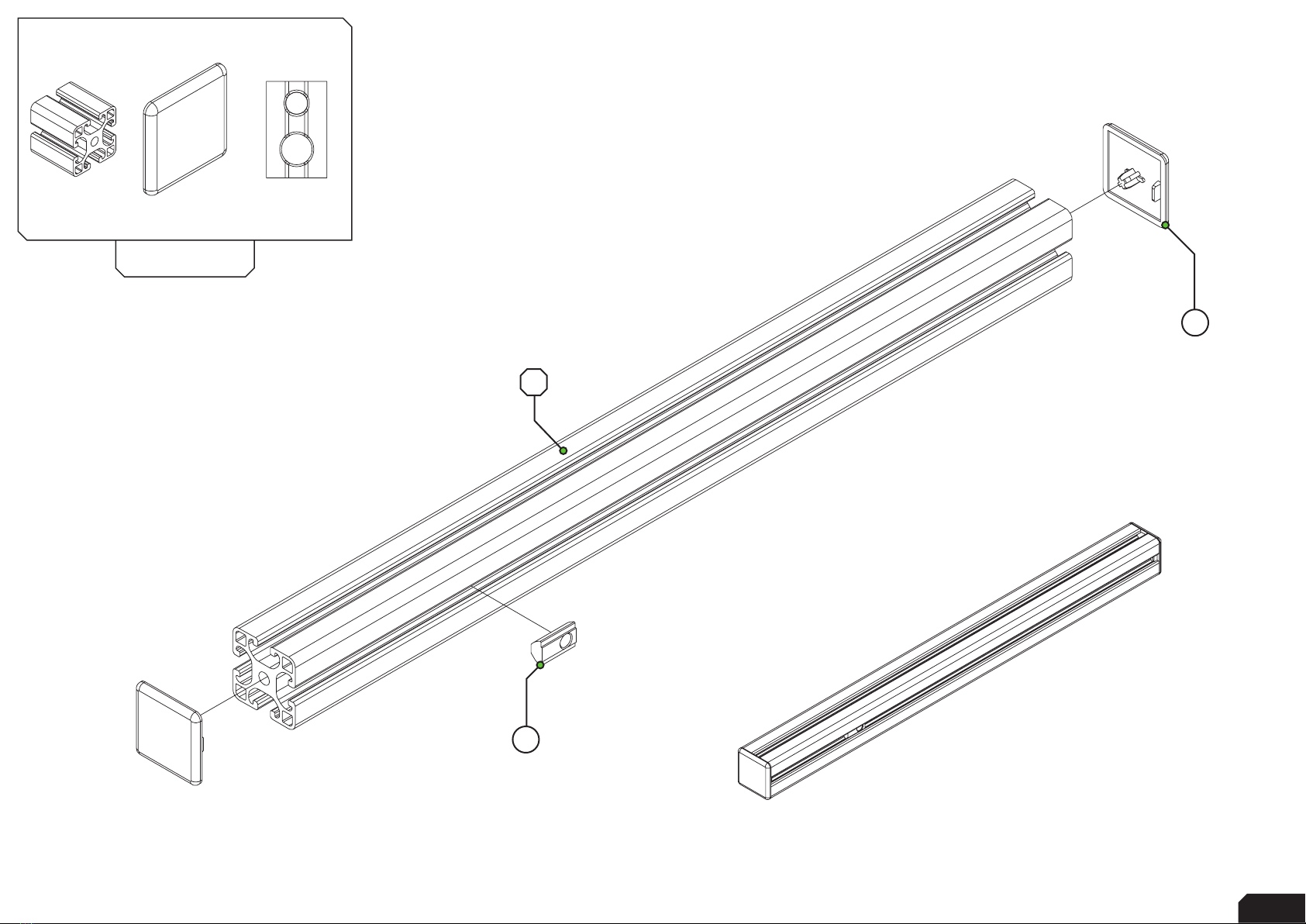

BUILD 2X

Slot-Nut M8

500MM

Proﬁle 40X40

End-Cap

A11

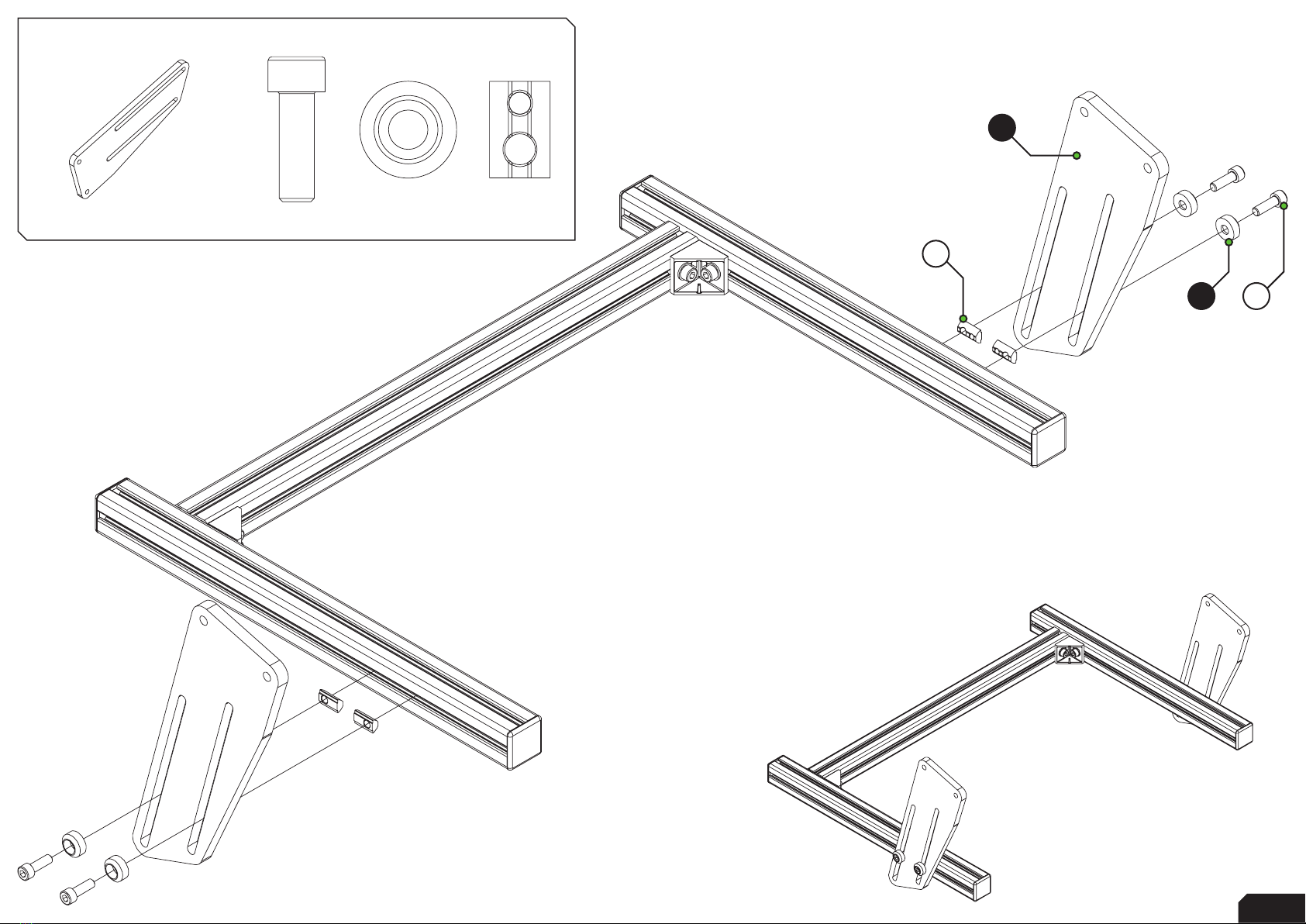

4|4 11

Corner

Bracket

M8 X 16

Slot-Nut M8

600MM

Washer M8

A11

A10

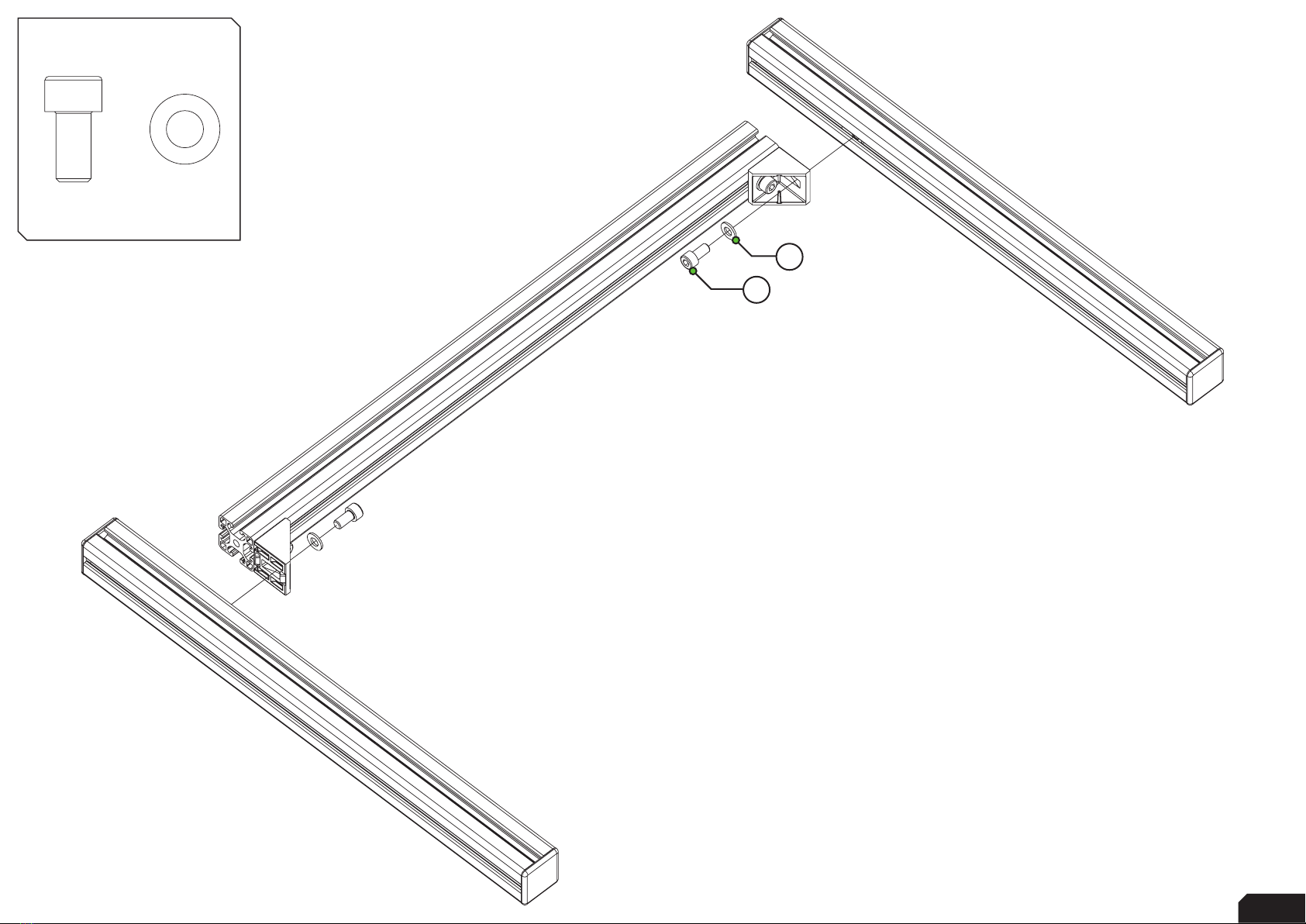

5|5 11

M8 X 16

Washer M8

A10

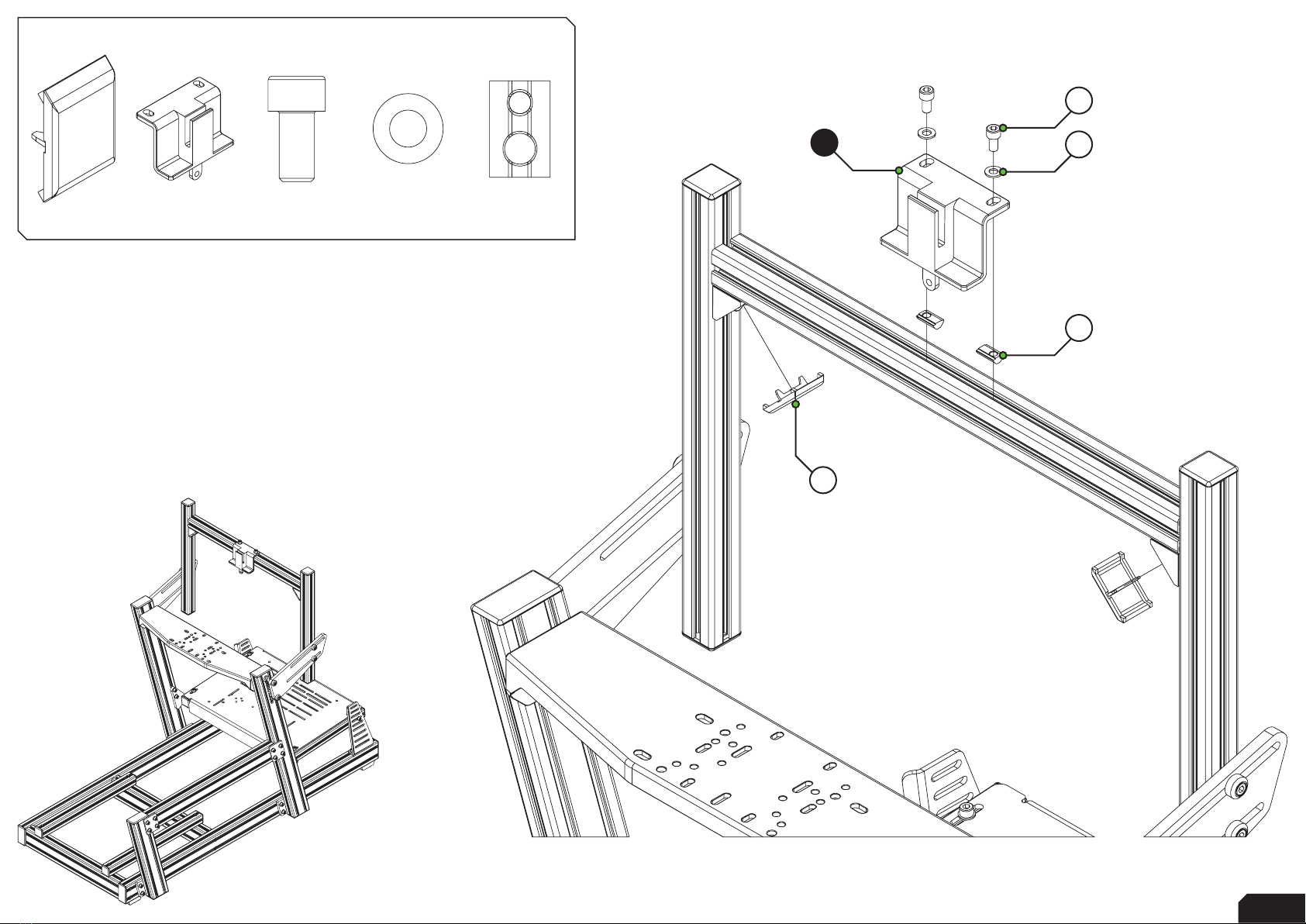

6|6 11

Cap-Washer

Slot-Nut M8

Integrated Bracket

M8 X 25

4X 4X

A9 A7

A11

7|7 11

Cap-Washer

Slot-Nut M8

M8 X 25

4X 4X

A7 A9 A11

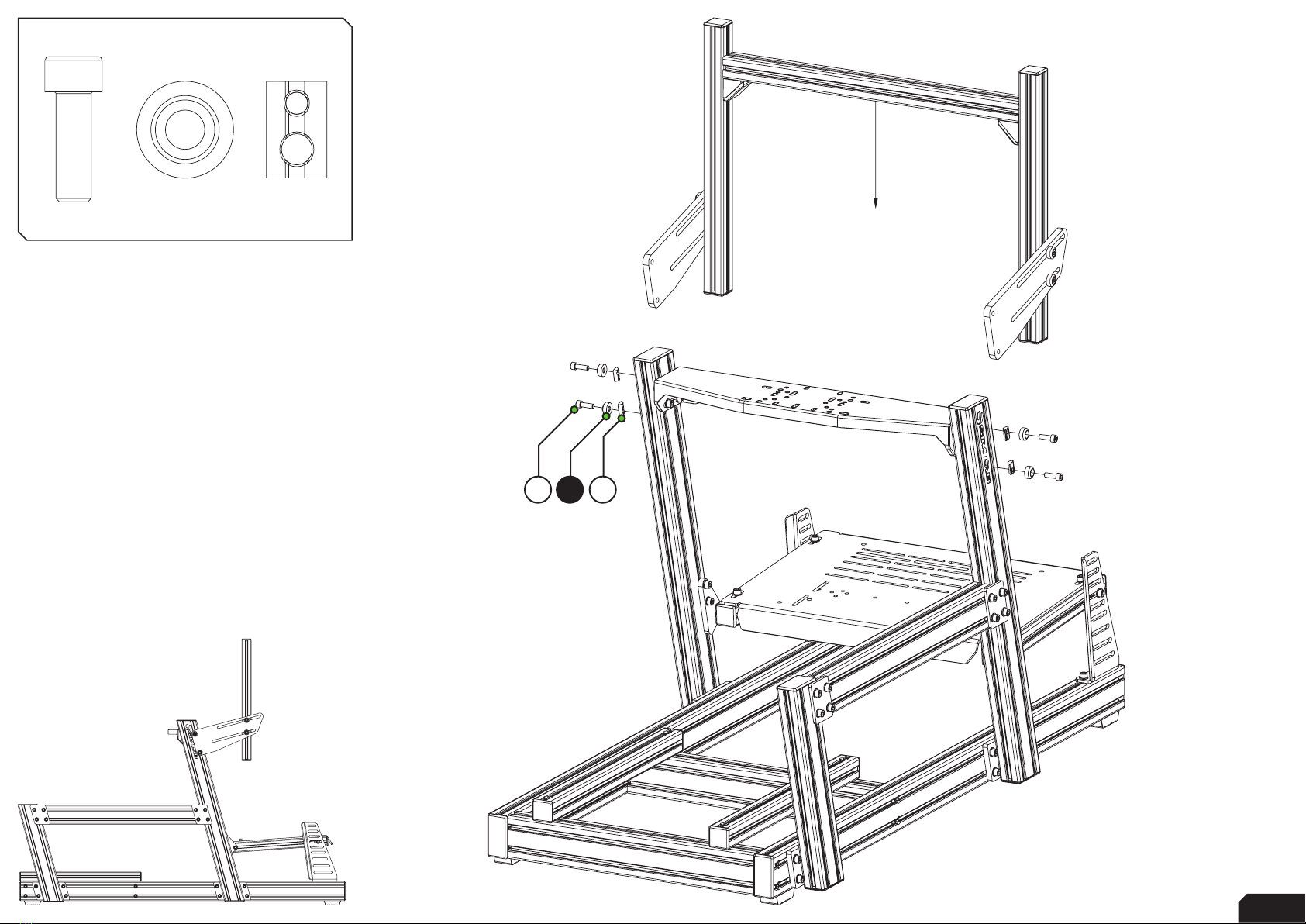

8|8 11

M8 X 16

Vario VESA

Holder

Corner Bracket

Cap

Washer M8

Slot-Nut M8

B15

B14

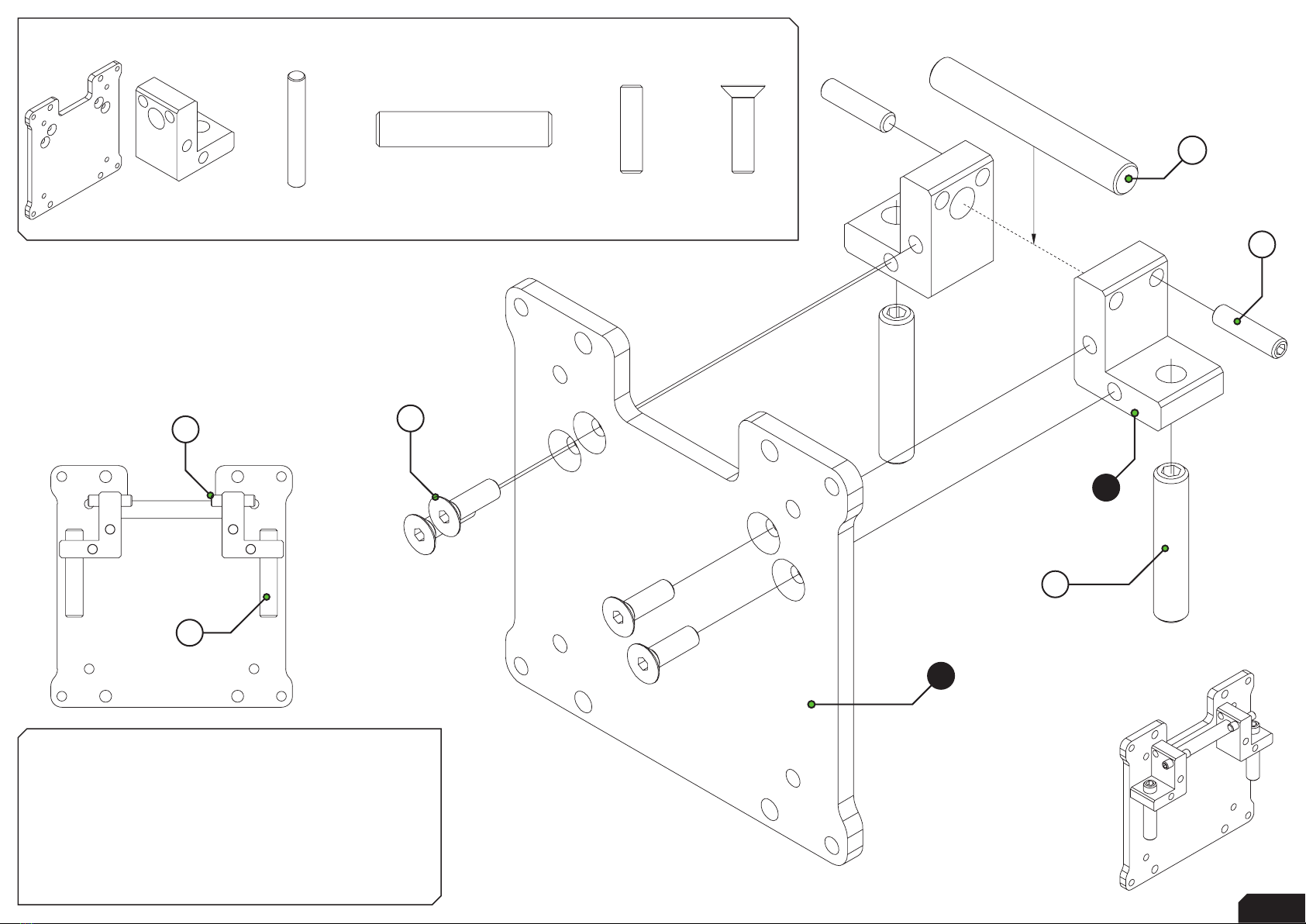

9|9 11

Vario VESA

Plate

Vario VESA

Pin Holder

M8 X 40

(Set Screw)

M5 X 20

(Set Screw)

M5 X 20

Vario VESA

B12

B13

B12

When parts B12 and B13 are installed like above,

monitors are easy to install in a neutral

position. Parts B12 can be adjusted to change

the tilt and/or height.

Parts B13 can be adjusted to adjust the monitor

sideways if needed, and ﬁx it in place.

10 |10 11

BOX A - GT1-Pro Integrated Monitor Mount

PROFILE KIT

#Part QTY Note

A1 40X40 Length=600mm 1

A2 40X40 Length=500mm 2

HARDWARE KIT

A3 Integrated bracket 2

A4 Corner bracket 40x40 2

A5 Corner bracket 40x40 cap 2

A6 Proﬁle 40x40 end-cap 4

A7 Bolt M8 X 25 DIN 912 8

A8 Bolt M8 X 16 DIN 912 4

A9 Cap-Washer M8 8

A10 Washer M8 DIN 125-A 4

A11 Slot-Nut M8 12

BOX B - Vario VESA single adapter set

HARDWARE KIT

#Part QTY Note

B1 Vario VESA holder 1

B2 Vario VESA plate 1

B3 Vario VESA pin holder 2

B4 Vario VESA pin 1

B5 Bolt M6 X 12 DIN 7991 4 Used with VESA 100/200 adapter.

B6 Bolt M5 X 20 DIN 7991 4

B7 Bolt M4 X 16 DIN 7985 4 Philips head.

B8 Bolt M4 X 10 DIN 7985 4 Philips head.

B9 Bolt M8 X 16 DIN 912 2

B10 Bolt M6 X 16 DIN 912 4

B11 Bolt M5 X 16 DIN 912 4

B12 Set screw M8 X 40 DIN 916 3

B13 Set screw M5 X 20 DIN 916 2

B14 Washer M8 DIN 125-A 2

B15 Slot-Nut M8 2
