© 2011 Silver Peak Systems, Inc. PN 200486-001 Rev C
Mount the chassis in a 4-post server rack. Because the screws needed
may vary from one rack model to the next, the rails kit comes with
multiple packages of screws. Spares are included.
CAUTION Due to the appliance’s weight and size, Silver
Peak recommends that two people mount the chassis in a
4-post server rack, using the chassis rails that ship with
the appliance.Alternatively, when using a lift, it’s possible
to install the appliance safely with one person.
Please make sure that you install the chassis covers and chassis rails onto
the chassis before you install the chassis into the rack.

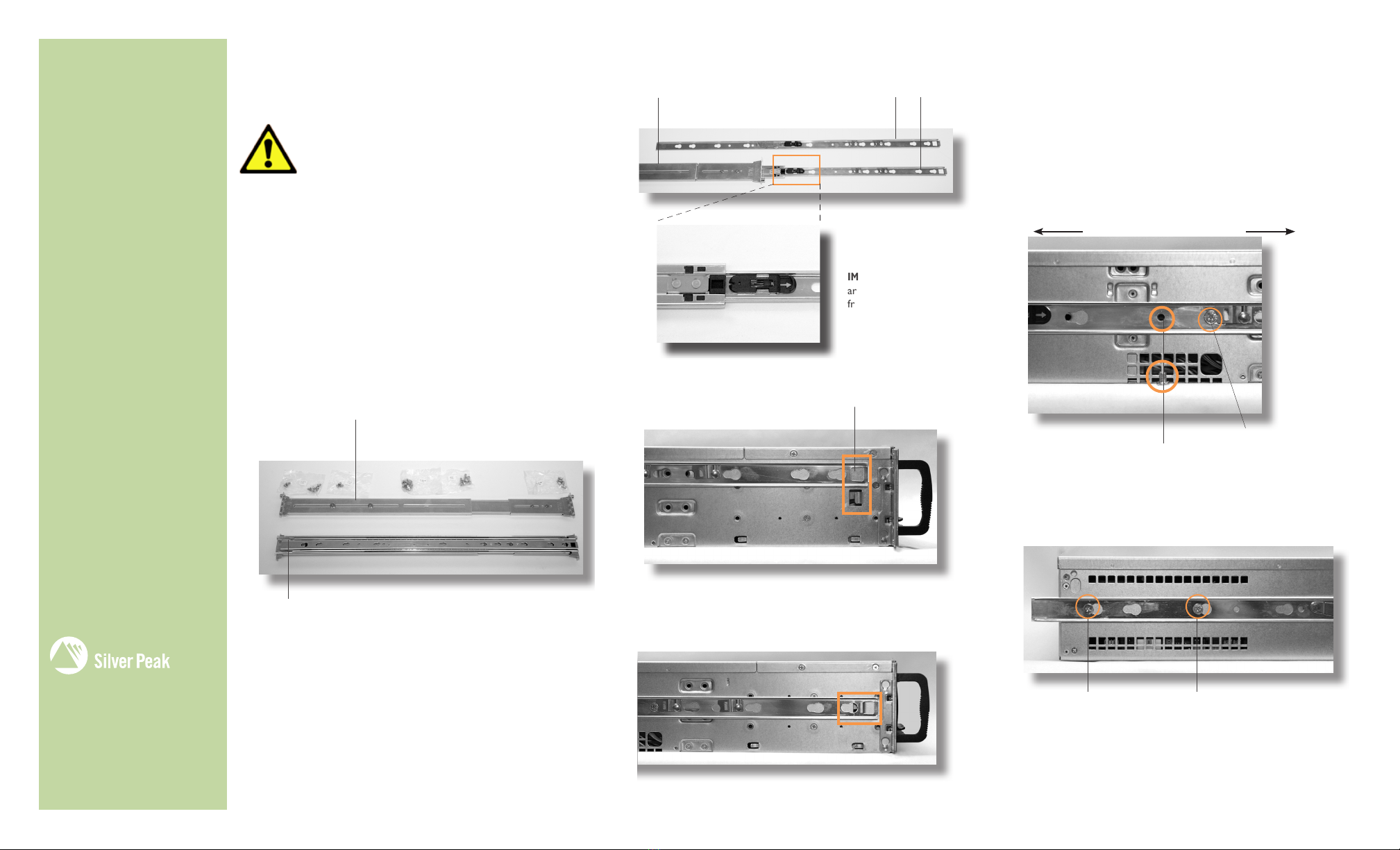

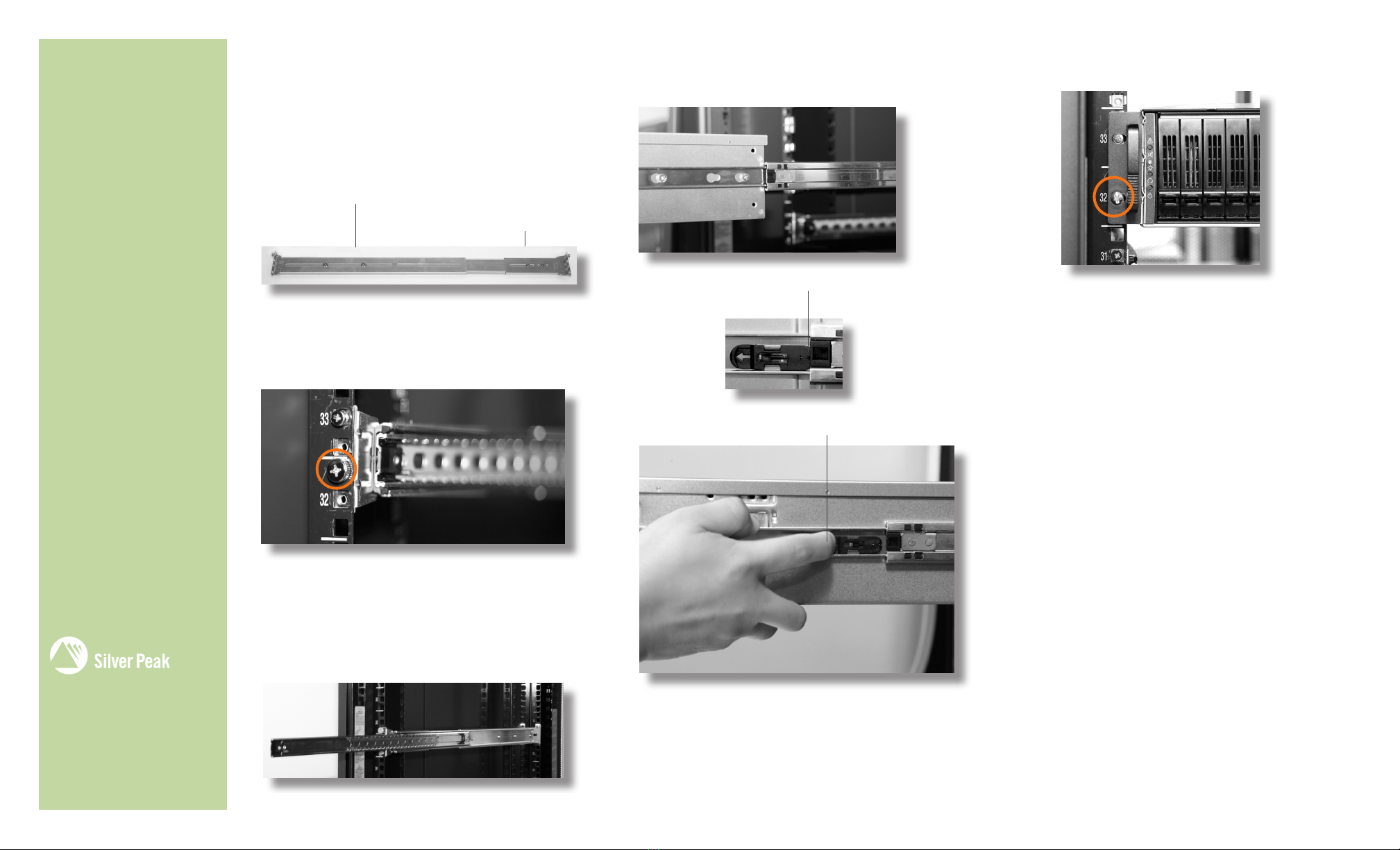

AInstall the inner chassis rails onto the appliance
Before installing the chassis rail, be sure to remove all external devices
and connectors from the appliance.
1. Included in the shipping package are a pair of rail assemblies. In each
rail assembly, locate the inner and the outer rail.
2. Pull the black latch in the direction of the arrow to release the inner
rail, and pull it out from the rail assembly.The inner rails attach to the
chassis and the outer rails install in the rack.
Before You Begin
Check your packing slip to
verify that you have all the
necessary items.
Make sure you have a standard
Phillips screwdriver.
3. Locate the square hole at the end of the inner rail and the catch at
the front side of the appliance chassis.
4. Place hole over catch and move the inner rail toward the rear to
secure.
RACK MOUNT
INSTRUCTIONS
Quick Start Guide
Silver Peak Systems, Inc.
4500 Great America Parkway
Suite 100
Santa Clara, CA 95054
1.877.210.7325 (toll-free in USA)
+1.408.935.1850
www.silver-peak.com/support
NX-10700
NX-9700
NX-8700
NX-7700
NX-5700
NX-3700
NX-2700
GX-110 0
5. For each side, you’ll need to use the following screws:
•One loose 10#-32 screw for anchoring the rail’s alignment to the
chassis. Here, the size and shape of the hole in the rail is the same
as the one in the appliance chassis.
•Three 10#-32-R screws (previously attached to the chassis) for
securing the rail through keyhole slots. Relative to the anchor
screw, one screw is between the alignment screw and the appliance
faceplate.
The remaining two screws are between the alignment screw and
the rear of the chassis.
6. Repeat steps 2 through 5 to install the other rail onto the chassis.
Page 1 of 2
•Supplement•
• 2-RU WITH RAILS •
Outer rail mounts to the rack
Inner rail mounts to the appliance
IMPORTANT: The latch
arrows point toward the
front end of the chassis
Front end of chassisToward rear end of chassis
Outer rail Inner rails
For anchoring alignment – 10#-32
Front end of chassisRear end of chassis
For keyhole slots – 10#-32R
For keyhole slots -- 10#-32R
Rear end of chassis
