Silver Cross Pioneer Manuel utilisateur

Pioneer

Pushchair and Carrycot

These instructions are important.

Read these instructions before use

and keep them for future reference.

Your child’s safety may be aected if

you do not follow these instructions.

Your Pioneer Pushchair is a high

quality Silver Cross product. It meets

current safety standards and care

and regular light maintenance will

ensure long service.

This pushchair is suitable from birth

up to 9kg with the Carrycot and

from 6 months, up to 25 kg using

the Seat Unit.

If somebody unfamiliar is using your

Pioneer Pushchair always ensure

that they read these instructions

carefully so that they understand

how the product works best.

The Pioneer Pushchair is designed

and tested to be used with the

Pioneer Carrycot and the Simplicity

Car Seat (sold separately)

THE SAFETY OF YOUR CHILD IS YOUR

RESPONSIBILITY.

Contents

First check all your parts have been

supplied. Your Pioneer pushchair

includes:

1.1 Seat Unit with Harness

1.2 Bumper Bar

1.3 Chassis

1.4 Front Wheels

1.5 Rain Cover

1.6 Cup Holder

1.7 Carrycot Outer

1.8 Carrycot Liner

1.9 Carrycot Mattress

1.1 1.2

1.3

1.4

1.6

1.7 1.8

1.5

1.9

silvercrossbaby.com

Preparation for use

Remove all packaging material

from your Pioneer pushchair.

To use your Pioneer pushchair

from birth you must use the

Pioneer Carrycot (included)

Pioneer chassis

2.1 Attach the front wheels by

inserting the axles into the

Pioneer frame until they ‘click’

into position.

2.2 Release the folding lock and

lift the handle upwards.

CHECK THE WHEEL IS SECURE BY

PULLING GENTLY DOWNWARDS.

CHECK THAT THE CARRYCOT

OR SEAT UNIT OR CAR SEAT

ATTACHMENT DEVICES ARE

CORRECTLY ENGAGED BEFORE

USE.

2.1

2.2

WARNING

Pioneer chassis

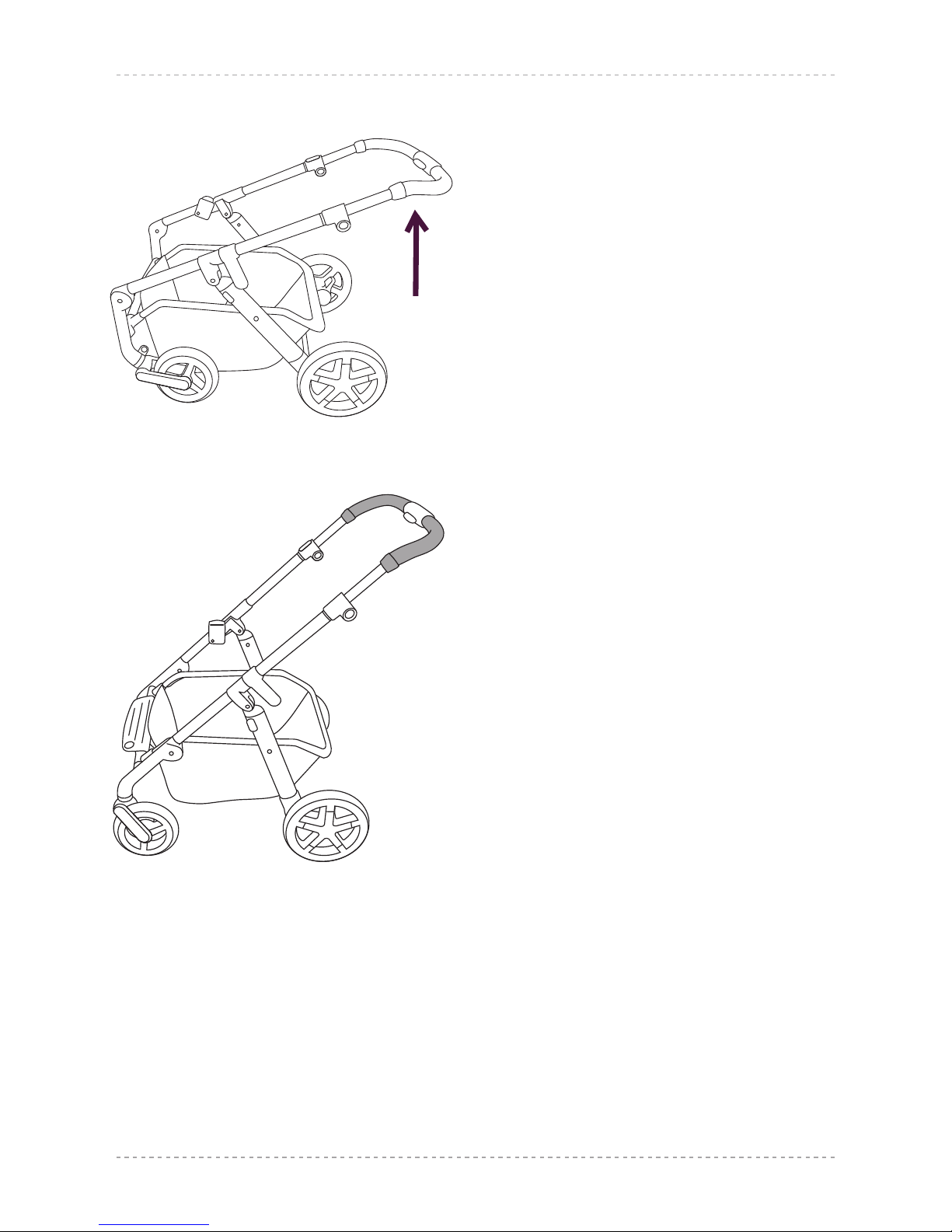

2.3 Continue to lift the handle

upwards until the frame

‘clicks’ and locks into position.

Always check that the frame

is secure.

2.3

silvercrossbaby.com

Using the brake

ALWAYS APPLY THE PARKING

BRAKE WHEN YOU ARE

STANDING STILL.

WARNING

ALWAYS APPLY THE BREAK

WHEN PLACING AND REMOVING

THE CHILD.

3.1 To engage the brake, press

down on the red brake pedal.

Listen for the ‘click’.

NOTE: Always check that

your brake is fully engaged by

gently rocking the pushchair.

To disengage the brake, gently

press down on the green

brake release button. Rock the

pushchair backwards before

moving forward.

3.1

WARNING

Operating the swivel wheels

Your Pioneer chassis has lockable

front swivel wheels. We advise

locking the front wheels if pushing

the pushchair straight ahead for a

long period.

4.1 Rotate the swivel release lever

sideways to lock the wheels

into the xed position.

Always apply brake when

placing and removing children.

4.1

silvercrossbaby.com

Operating the height adjustable

handle

Your Pioneer has a 4-position

handle height.

5.1 Press and hold the handle

height adjustment/folding

button.

5.2 Slide the handle up or down

to required height and release

the adjustment button. The

handle will lock and ‘click’ into

place.

CAUTION: Before making any

adjustments to your pushchair,

ensure the brake is engaged.

5.2

5.1

Folding your Pioneer chassis

NOTE: To ensure your Pioneer

chassis folds correctly remove all

items from the shopping basket

before attempting to fold.

NOTE: If using as a travel system

(with a car seat) or pram (with

Pioneer carrycot) please ensure

each part has been removed

before folding.

Your Pioneer chassis can be

folded with the seat unit attached

and in forward- facing, upright

position. In all other positions it

is recommended to remove the

seat unit.

6.1 Ensure the swivel wheels are

locked (see 4.1)

6.2 Engage the brake pedal

(see 3.1)

6.1

6.2

silvercrossbaby.com

Folding your Pioneer chassis

6.3 Press and hold the fold release

button. Pull the fold release

triggers towards you. Push the

handle downwards gently and

lower the handle downwards

until the fold lock engages.

Lift the handle upwards gently

to ensure that the chassis is

folded correctly.

TO AVOID POSSIBLE INJURY OR

DAMAGE, ALWAYS ENSURE THE

STORAGE LATCH HAS BEEN

ENGAGED BEFORE LIFTING THE

PRAM/STROLLER.

CARRY THE PRAM USING THE

MAIN HANDLE, ONCE STORAGE

LATCH HAS BEEN ENGAGED.

DUE CARE SHOULD BE

TAKEN WHEN FOLDING AND

UNFOLDING THIS PUSHCHAIR.

PLEASE ENSURE FOLDING

MECHANISMS ARE KEEP CLEAR

TO AVOID POSSIBLE FINGER

ENTRAPMENTS OR INJURIES TO

PARTS OF THE BODY.

WARNING

6.3

Using your Pioneer from birth

with the carrycot

Preparing the carrycot for use

Remove all packaging material

from your Pioneer carrycot.

7.1 First erect the carrycot outer.

Lay the carrycot outer down

with the frame upper most.

Press the 2x metal bars into

the locators on internal base

of carrycot. A small groove in

the locator holds the frame in

position.

7. 2 Attach the carrycot liner to

the carrycot outer. Fasten

each inner zip. There is one at

each end of the liner.

7. 3 Pass the two D-shaped parts

of the liner between the liner

and the outer and fasten the

Velcro patches to secure the

liner in place.

7.4 Place the mattress into the

base of the liner.

DO NOT LEAVE YOUR CHILD

UNATTENDED.

NEVER USE THE CARRYCOT ON A

STAND.

DO NOT LET OTHER CHILDREN

PLAY UNATTENDED NEAR THE

CARRYCOT.

7.1

7. 2

7. 3

WARNING

7.4
