Silicon Imaging SI-2K Manuel utilisateur

Thank you for purchasing this Silicon Imaging/P+S Technik

Product. Before operating this unit, please read the Instruc-

tions carefully to ensure best possible performance.

Art.No. 22709 v0807

User Manual

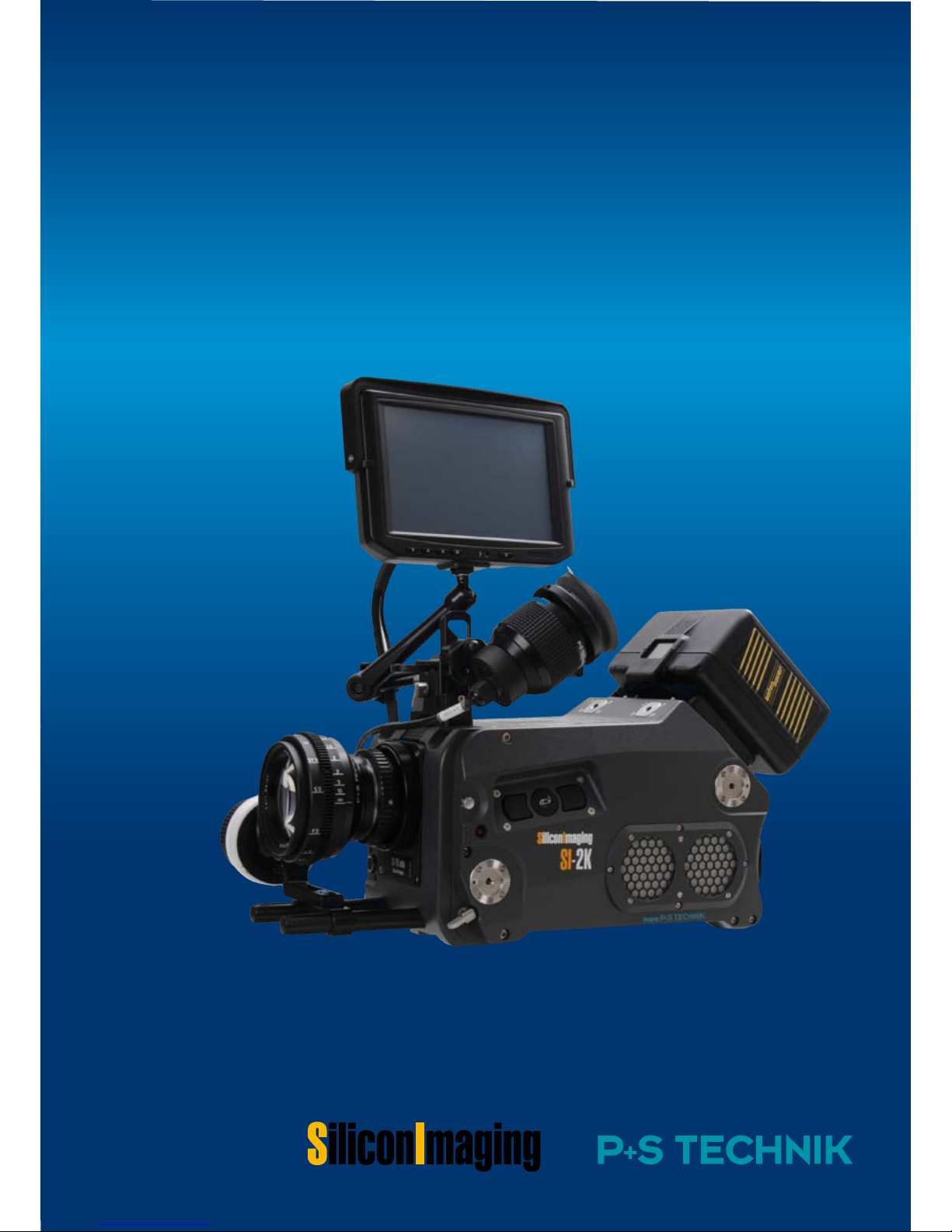

SI-2K Digital Cinema Camera

2 SI 2K Manual

Introduction 3SI 2K Manual

Introduction

The SI-2K Digital Cinema Camera and SI-2K Mini Camera Head are camera

systems operating in conjunction with SiliconDVR software.

SiliconDVR Software controls the SI-2K Mini from either the Recording Unit or

a PC Laptop/Workstation. Silicon DVR is preinstalled on the Recording Unit

and auto-starts by switching on the Recording Unit.

The device is designed to be controlled by a touchscreen monitor. Therefore all

dedicated control buttons at the camera have been removed. All features can

be controlled by the SiliconDVR Software interface via touchscreen, built-in

Mousepad or common IT driven input devices such as keyboard and mouse.

This is a new approach in camera control and user interface.

Thank you for purchasing the SI-2K camera,

P+S Technik and Silicon Imaging

SI 2K Manual

Read all of these instructions carefully.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufac-

turer’s instructions.

Do not install near any heat sources as radiators, heat registers, stoves, or

other apparatus (including ampliﬁers) that produce heat.

Protect the power cord from being walked on or pinched particularly at plug,

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manu-

facturer, or sold with this apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury tip-over.

Unplug this apparatus during lightning storms or when unused for long periods

of time.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

Do not leave in direct sunlight (or at least cover camera from heavy

sunlight i.e. with ﬂags)

Only use camera in advised temperature range from 0 to +40° Celsius

/ 32°-104° Fahrenheit

Important Safety Instructions

4 Safety Instructions

Safety Instructions 5SI 2K Manual

AT T EN T I O N:

The pr od u ct you h ave p ur ch as ed is po wer ed by

a n ick el ca dmium ba ttery wh ich i s recy clab le.

At the end of it’s useful life, un der various

state an d local la ws, it is illeg al to d isp ose of

this bat tery in to y our mu ni cipa l w aste strea m.

Ple ase call 1-800-8-BATTER Y for inform ation

ho e to re cyc le this bat ter y.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRONIC SHOCK

DO NOT OPEN

The lightning ﬂash with arrowhead

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of non-isolated "dangerous

voltage" within the products enclosure

that may be of sufﬁcient magnitude to

constitute a risk of electric shock to

persons.

The exclamation point within an equi-

lateral triangle is intended to alert the

user to the presence of important op-

erating and maintenance (service) in-

structions in the literature accompany-

ing the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE:

CAUTION

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD AND ANNOYING INTERFERENCE, USE

THE RECOMMENDED ACCESSORIES ONLY.

CAUTION

TO REDUCE THE RISK OF FIRE OR SHOCK

HAZARD, REFER CHANGE OF SWITCH SET-

TING INSIDE THE UNIT TO QUALIFIED SERVICE

PERSONNEL.

FCC NOTE

This device complies with Part 15 of

the FCC Rules. To assure continued

compliance follow the attached instal-

lation instruction and do not make any

unauthorized modiﬁcations.

This equipment has been tested and

found to comply with the limits for a

class A digital device, pursuant to Part

15 of the FCC Rules. These limits are

designed to provide reasonable pro-

tection against harmful interference

when equipment is operated in a com-

mercial environment. This equipment,

generates, uses, and can radiate radio

frequency energy and, if not installed

and used in accordance with the in-

struction manual, may cause harmful

interference in which case the user will

be required to correct the interference

at his own expense.

Replace Battery with part. No. CR2032

only. Use of another battery may pres-

ent a risk of ﬁre explosion.

CAUTION

Battery may explode if mistreated. Do

not recharge, disassemble or dispose

of in ﬁre.

ATTENTION

At the end of its useful life, under vari-

ous state and local laws, it is illegal to

dispose of batteries into your munici-

pal waste stream.

SI 2K Manual6 Safety Instructions

Contact Information 7

SI 2K Manual

Contact Information

Web Support:

http://www.siliconimaging.com/DigitalCinema/

http://www.pstechnik.de/en/digitalﬁlm-si2k.php

Support Forum:

http://www.siliconimaging.com/support_forum/index.php

In the U.S.A.:

Silicon Imaging Inc.

17534 Von Karman Avenue

Suite 200

Irvine, CA 92614-6208

USA

Phone: 949-650 1766

Sales: [email protected]

Support: [email protected]

Worldwide :

P+S TECHNIK GmbH

Siemensstraße 12

D-85521 Ottobrunn / München

GERMANY

Tel +49 (0)89 45 09 82 30

Fax +49 (0)89 45 09 82 40

Email: [email protected]

Web: www.pstechnik.de

Contact Information

8 Contact Information SI 2K Manual

Table Of Contents 9SI 2K Manual

Table Of Contents

Introduction ...........................................................................................3

IMPORTANT SAFETY INSTRUCTIONS.......................................4

Contact Information.............................................................................6

Table Of Contents................................................................................7

Chapter 1Delivery Content.............................................................................. 11

Chapter 2Mechanical Speciﬁcations........................................................ 13

SI-2K Mini Camera Head............................................................. 13

SI-2K Recording Unit ................................................................... 14

Chapter 3Quick Start Guide.......................................................................... 17

Mechanical Preperation ............................................................... 18

Inputs & Outputs ........................................................................... 20

Recording Data & Storage.......................................................... 23

Start the Camera........................................................................... 25

Chapter 4SiliconDVR Software................................................................... 31

Software Activation and Licensing............................................ 31

SiliconDVR User Interface...........................................................36

Status Information ................................................................... 34

Utility Menu ............................................................................... 37

Main Screen.............................................................................. 41

Operating Menu....................................................................... 46

Chapter 5Look Control ................................................................................... 47

Set Look and Look Library .......................................................... 47

Iridas Color Correction Mode.....................................................49

Chapter 6Shooting with the SI-2K ............................................................ 53

Lens Selection ............................................................................... 53

Exposure Control........................................................................... 55

Apendix ATechnical Speciﬁcations ............................................................ 59

Dealer and Partner Contacts ......................................................... 63

10 Table Of Contents SI 2K Manual
