Silent Alert TD4A-2227-UK Manuel utilisateur

Quick start guide TD4A-2227-UK

Mini telephone monitor

CCM3A-2216-EU-PIR-MKX

MOVEMENT MONITOR 11/12/13

USE MAINS POWER SUPPLY

PS3A-2207-UK ONLY

SILENT ALERT SA3000 SYSTEM

WWW.SILENT-ALERT.CO.UK CLOFIELD LTD.UK

TEL 01246 260045

MOVE KEY DOWN

TO SWITCH ON

1 = System Code 1

2= System Code 2

3 = System Code 3

4 = System Code 4

5= Audio Monitoring

6 = Zone Multiplier (7-12)

7 = Short Audio Delay

8 = Medium Audio Delay

7 & 8 = Long Audio Delay

9 = PIR Delay 5 Mins

10= PIR Delay 10 Mins

9& 10 = PIR Delay 15 mins

11= Zone 6

12= Zone 5

13= Zone 4

14= Zone 3

15= Zone 2

16= Zone 1

MOVE KEY DOWN

TOSWITCH ON

Any questions? Call us on 01246 450789

Silent

Alert

12:14

SNZ

Status light

Test button

Configuration

switch Cover

PP3 battery

contacts

Screw cap

CCD4A-2220-EU

CARE CALL

MINI MAGNETIC

DOOR MONITOR

USE ALKALINE PP3

9 V BATTERY ONLY

Batch 06/01/14

www.silent-alert.co.uk

Clofield Ltd. UK

Tel: 01246-260045

Keys 1-4 System

Channel

Key 5=10 Sec Delay

Key 6=20 Sec Delay

Keys 5+6=30 Sec Delay

Key 7 Leave ON

Key 8 Not Used

USE WITH MAGNET SUPPLIED

PP3 Battery The light will then will flash

green several times to show the

battery voltage.

9 flashes = 9Volts in the battery.

When a battery is first fitted the

indicator light will flash red then

green a few times.

1. Install a 9 volt PP3 alkaline or lithium battery

making sure to observe the correct polarity.

If the light flashes red at this

point the battery is flat

and will need to be replaced.

To repeat the battery check remove the battery, press the test

button then re-insert the battery to start the sequence again.

TD4A

MONITOR

USE ALKALINE PP3

9 V BATTERY ONLY

Batch 06/01/14

www.silent-alert.co.uk

Clofield Ltd. UK

Tel: 01246-260045

Keys 1-4 System

Channel

Key 5=10 Sec Delay

Key 6=20 Sec Delay

Keys 5+6=30 Sec Delay

Key 7 Leave ON

Key 8 Not Used

USE WITH MAGNET SUPPLIED

BT phone

plug

1 2 3 4 5 6 7 8

Configuration switches shown

with cover removed. Do not alter

these without referring to page 2

ADSL

PHONE

LINE

ADSL

Plug the mini monitor into a

telephone socket. If the line is

broadband enabled the

monitor should be first

connected to an ADSL

microfilter

(not supplied)

2. Press and hold the

test button on the

front of

the monitor for

around 10 seconds.

The light will shine green for

a few seconds.

Check the Pager or

SignWave receives a signal.

If you have a system

channel code set on the

receiver refer to the

advanced settings overleaf.

4. Ring the phone line the monitor

is connected to.

The light will shine green

when a call is detected and

the monitor will transmit.

WARNING! Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.

Advanced settings TD4A-2227-UK

Mini telephone monitor

Any questions? Call us on 01246 450789

Silent

Alert

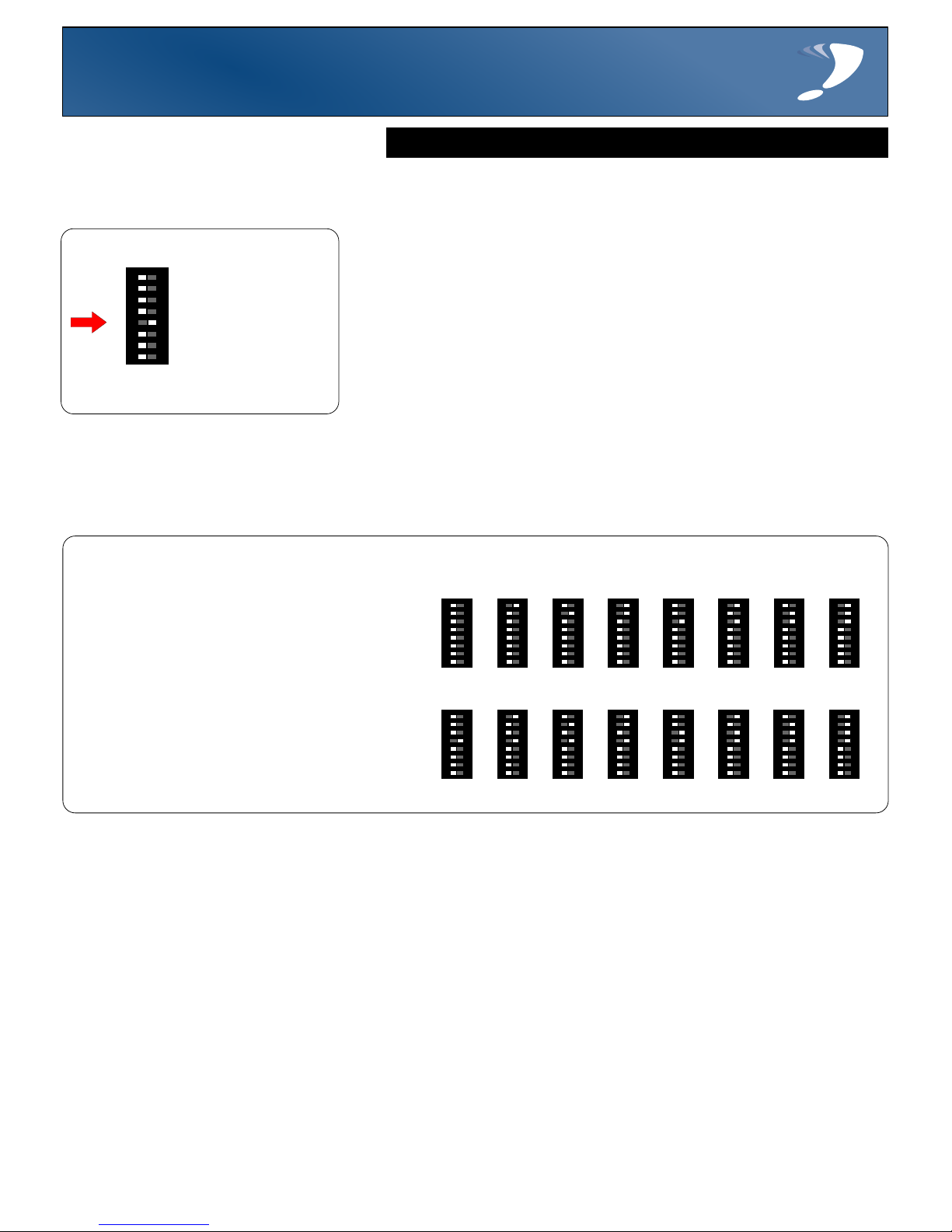

Changing the system channel code

NOTE. In most cases it is not necessary to change the system code. However, when one or

more systems are in close proximity, system codes can be used to avoid interference from

other SA3000 systems using up to a maximum of 16 channels.

1 2 3 4 5 6 7 8

The monitor is supplied with no

system code switches set (system code 1).

For reference this is the factory setting

should you need to re-set the unit.

System codes can be set using

key switches 1 - 4.

The diagram to the right shows the 16

possible combinations.

Be sure that the same system code is set on

the receiver to be used and any other

monitoring options in that system.

23456 7 8

1 2 3 4 5 6 7 8

It is possible for the monitor to send a person to person signal. This is ideal when two

telephone lines need to be monitored.

1 2 3 4 5 6 7 8

Move key 5 to the right

to change to

person to person.

Press the test button

and check the correct

event is received by the

Pager or SignWave
