Silent Alert CL4A-2212-EU Manuel utilisateur

Quick start guide CL4A-2212-EU

Mini Chair Leaving Monitor

Any questions? Call us on 01246 450789

Silent

Alert

PM5 Activation

Status light

Test button

Configuration

switch Cover

PP3 battery

contacts

Screw cap

CCD4A-2220-EU

CARE CALL

MINI MAGNETIC

DOOR MONITOR

USE ALKALINE PP3

9 V BATTERY ONLY

Batch 06/01/14

www.silent-alert.co.uk

Clofield Ltd. UK

Tel: 01246-260045

Keys 1-4 System

Channel

Key 5=10 Sec Delay

Key 6=20 Sec Delay

Keys 5+6=30 Sec Delay

Key 7 Leave ON

Key 8 Not Used

USE WITH MAGNET SUPPLIED

PP3 Battery The light will then will flash

green several times to show the

battery voltage.

9 flashes = 9Volts in the battery.

When a battery is first fitted the

indicator light will flash red then

green a few times.

1. Install a 9 volt PP3 alkaline or lithium battery

making sure to observe the correct polarity.

If the light flashes red at this

point the battery is flat

and will need to be replaced.

To repeat the battery check remove the battery, press the test

button then re-insert the battery to start the sequence again.

CCD4A-2220-EU

CARE CALL

MINI MAGNETIC

DOOR MONITOR

USE ALKALINE PP3

9 V BATTERY ONLY

Batch 06/01/14

www.silent-alert.co.uk

Clofield Ltd. UK

Tel: 01246-260045

Keys 1-4 System

Channel

Key 5=10 Sec Delay

Key 6=20 Sec Delay

Keys 5+6=30 Sec Delay

Key 7 Leave ON

Key 8 Not Used

USE WITH MAGNET SUPPLIED

Pressure pad

socket

1 2 3 4 5 6 7 8

Configuration switches shown

with cover removed. Do not alter

these without referring to page 2

2. The monitor is activated using an under carpet

pressure pad (PM2).

Plug the PM2 plug into the socket on the monitor.

The connection can be taped for added security

if required.

The monitor may transmit the first time the connection is

made, this is normal.

3. Place the pad under the chair cushion ensuring

the pad is not folded.

When installing the pad make sure the cable can't

cause a trip hazard.

WARNING! Your device and its accessories are not toys. They may contain small parts. Keep them out of the reach of small children.

4. As the user stands up the monitor will send a

signal to the Pager or SignWave.

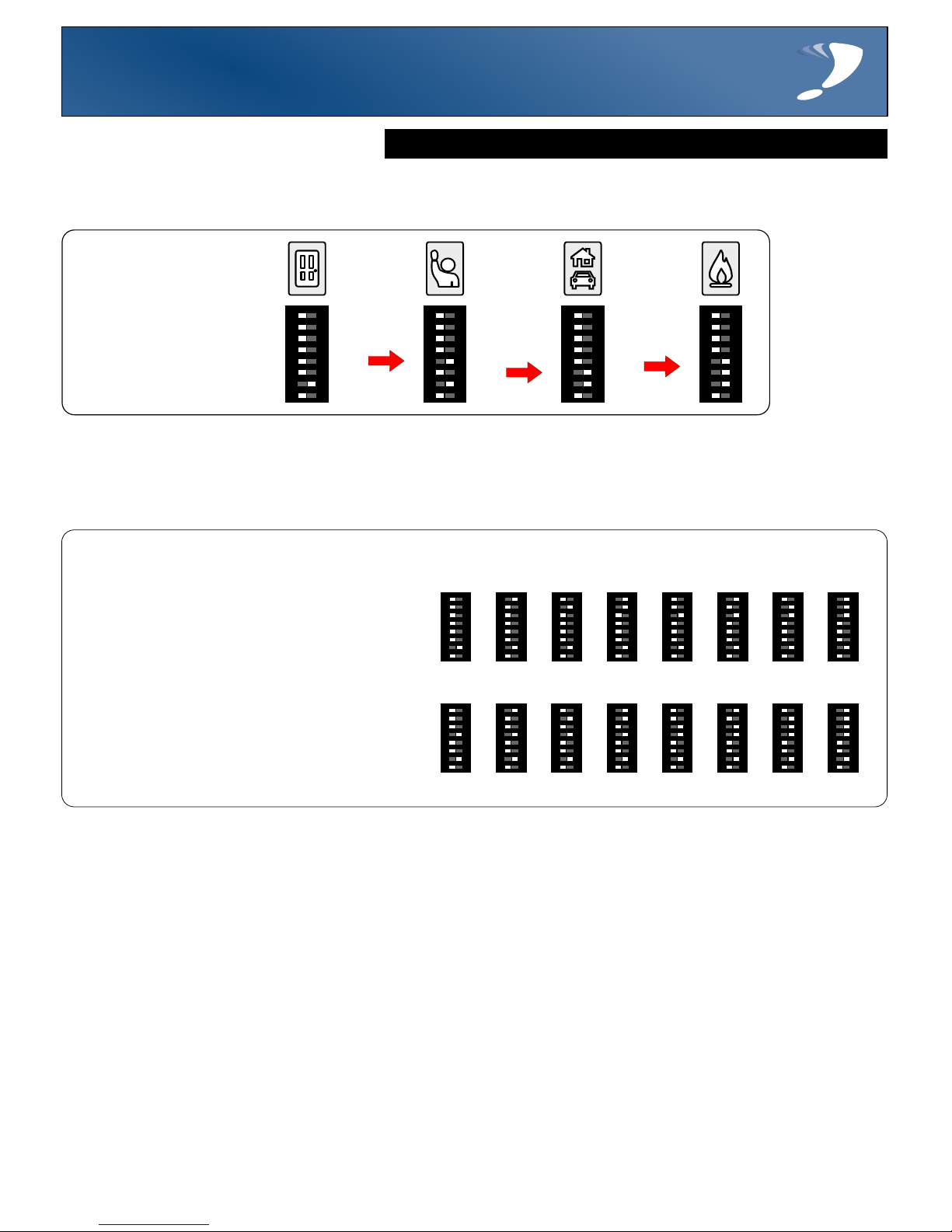

Advanced settings CL4A-2212-EU

Mini Chair Leaving Monitor

Any questions? Call us on 01246 450789

Silent

Alert

It is possible for the monitor to light up a different key on the Pager or SignWave. This allows

more than one chair leaving monitor to be used on a SA3000 system.

Move the relevant key

to the right .

Press the test button

and check the correct

event is received by the

Pager or SignWave.

Key 7 must be left on.

Changing the system channel code

NOTE. In most cases it is not necessary to change the system code. However, when one or

more systems are in close proximity, system codes can be used to avoid interference from

other SA3000 systems using up to a maximum of 16 channels.

1 2 3 4 5 6 7 8

The monitor is supplied with no

system code switches set (system code 1).

For reference this is the factory setting

should you need to re-set the unit.

System codes can be set using

key switches 1 - 4.

The diagram to the right shows the 16

possible combinations.

KEY 7 MUST BE LEFT ON

Be sure that the same system code is set on

the receiver to be used and any other

monitoring options in that system.

23456 7 8

1 2 3 4 5 6 7 8
