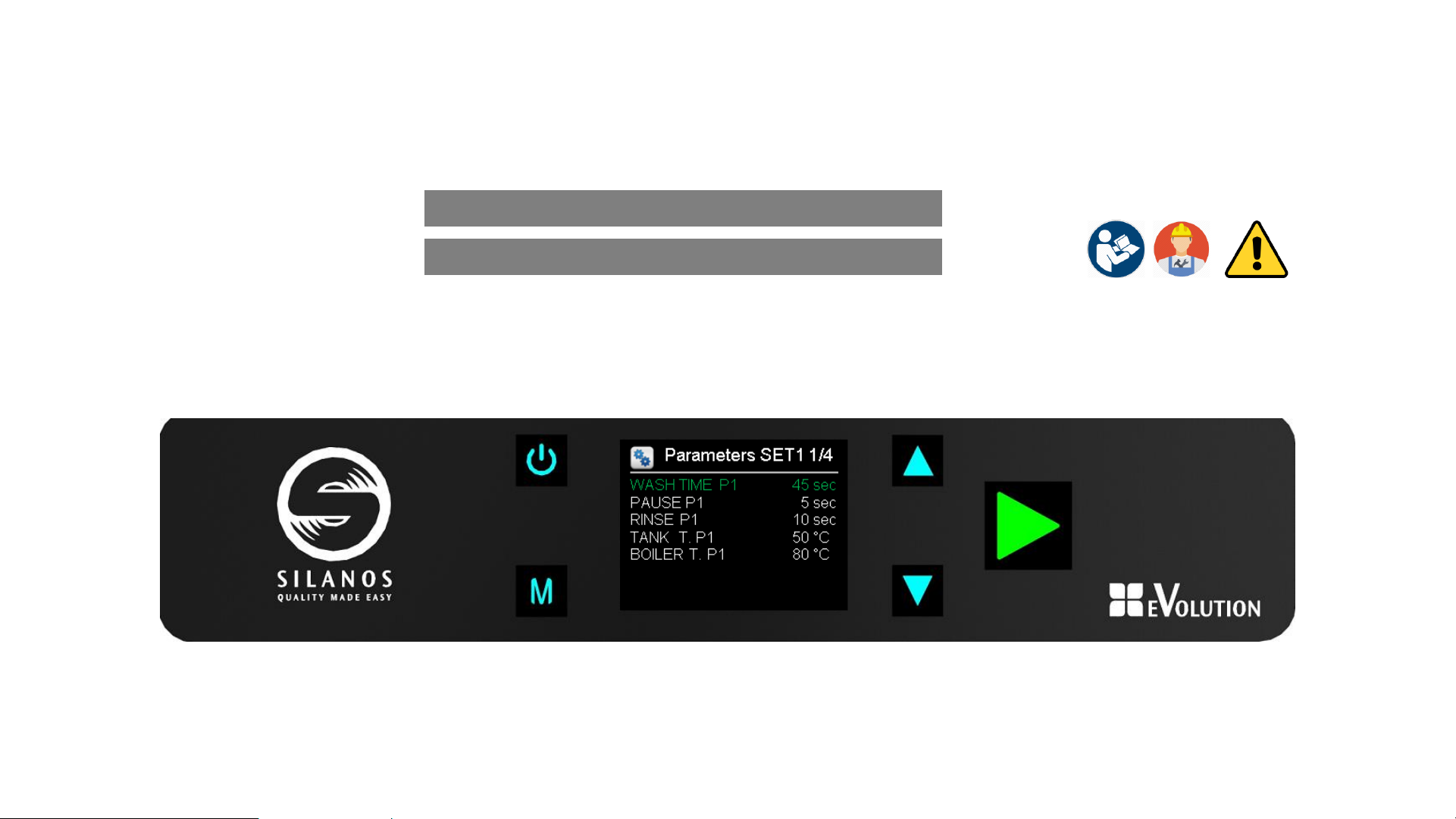

SILANOS Evolution Manuel utilisateur

INSTALLATION INSTRUCTIONS (REV. 1 march 19 - annex of original manual of instruction).

This is a safety alert symbol. The symbol alerts you to potential dangerous hazards.

All safety messages mean you must follow immediatly the instructions to avoid to

be seriously injured.

These instructions are for qualified technicians who install, commission, test and

possibly carry out maintenance on the machine.

Indicate suggestions for use, description of commands and proper

dishwasher cleaning and maintenance.

Read the ORIGINAL MANUAL OF INSTRUCTION supplied with the machine carefully before installing and

using the machine for the first time.

Models with Osmosis integrated

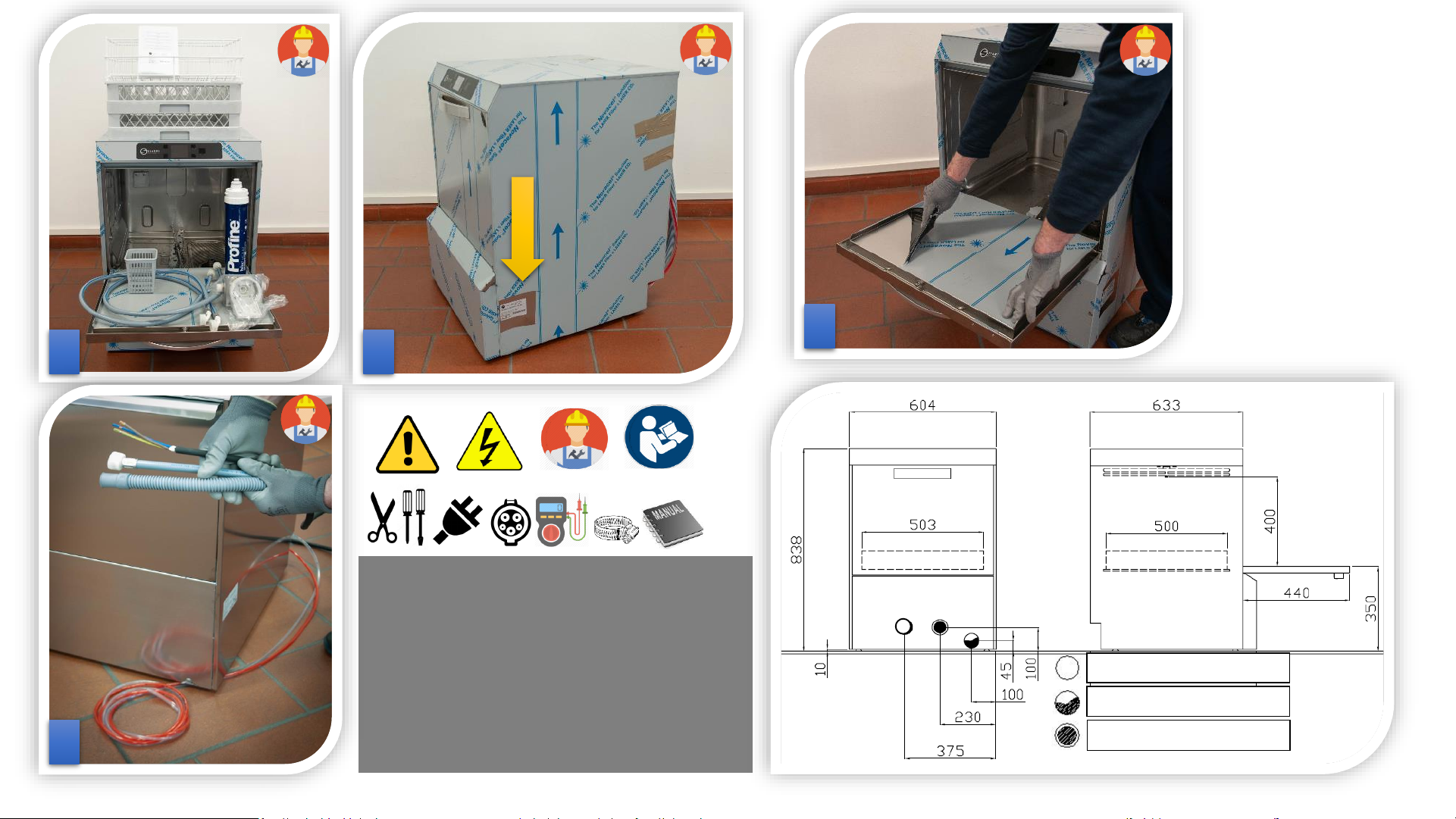

Recommended tools and parts for proper installation:

X 1 X 1 X 1 X 1

SINGLE OR 3PHASES PLUG

X 1 X 1

10/05/2019 1

10/05/2019 2

SAFETY WARNINGS

Read the original handbook carefully

before installing and using the dishwasher

for the first time.

If the electrical and plumbing systems have

to be adapted to install the dishwasher,

these modifications must be carried out by

authorized professionals.

DRAIN WATER Ø 1”1/4 “

ELECTRICAL CONNECTION

INLET WATER Ø 3/4 “

10/05/2019 3

Water supply temperature °CMax 30

Water supply hardness °F7 –12

Water supply pressure kPa 200/400

Rinse cycle water consumption at 200 kPa l 2,4/2,6

Wash water temperature °C50 -60

Rinse water temperature °C82 -85

Net weight kg 82

Ambient temperature max °C40

Power cable type ◄HAR►H07RN-F

•Do not use old water filling hoses, but exclusively new filling hoses.

•The following fundamental rules must be observed when using this appliance:

1) Never touch the appliance with wet hands or feet.

2) Never use the appliance with bare feet.

3) Do not install the appliance in workplaces where it could get sprayed/splashed with water.

•Do not put your bare hands into water containing detergent. If you do, wash them thoroughly under running water straightaway.

•Strictly follow the manufacturer’s instruction handbook for the cleaning operations.

•This appliance is designed to work in a workplace with a maximum ambient temperature of 40°C, in a suitable area where the temperature is never lower than 5°C.

•Do not use water to extinguish fire on electrical parts.

•After disconnecting the power supply, only qualified personnel may access the control panel.

•The machine has a protection rating against accidental water splashes of IPX1; it is not protected against pressurised water sprays; you are therefore recommended not to use pressurised cleaning systems.

ATTENTION: YOU MUST WAIT 10 MINUTES AFTER SWITCHING THE MACHINE OFF TO CLEAN IT INTERNALLY.

ATTENTION: IT IS FORBIDDEN TO PUT YOUR HANDS INTO THE TANK AND/OR TO TOUCH THE PARTS AT THE BOTTOM OF THE TANK DURING AND/OR AT THE END OF THE WASH CYCLE.

NB: The manufacturer declines all forms of responsibility for personal injuries or damage to property deriving from the failed observance of the instructions given above.

INSTALLATION GENERAL WARNINGS

If the electrical and plumbing systems have to be adapted to install the machine, these modifications must be

carried out by authorised professionals.

•Glass and dishwasher are professional machines. It must be used by adult and authorised personnel. It must be installed and

repaired exclusively by a qualified technical assistance service. The manufacturer declines all forms of responsibility for improper use,

maintenance and repairs.

•Make sure the machine does not sit on the power supply cable or on the filling and draining hoses. Adjust the support feet of the

machine to set it level.

•The user must not carry out any repairs or maintenance work on the machine. These jobs must be carried out by qualified and

authorised personnel.

•Any assistance required on this machine must be carried out by authorised personnel.

ATTENTION: Use exclusively original spare parts, otherwise the product warranty issued and the manufacturer's responsibility will

become void.

ALWAYS UNPLUG THE MACHINE FROM THE MAINS SOCKET BEFORE STARTING ANY MAINTENANCE WORK. IF THIS IS NOT POSSIBLE, IF THE MAINS SWITCH IS HIDDEN BEHIND THE MACHINE OR FAR

AWAY FROM WHOEVER CARRIES OUT THE WORK, YOU MUST PUT UP A SIGN ON THE EXTERNAL MAINS SWITCH AFTER TURNING IT OFF TO WARN OTHERS THAT MAINTENANCE WORK IS IN PROGRESS

10/05/2019 4

9 WATER CONNECTION

Make sure the dynamic pressure of the mains water is minimum200 kPa to ensure the perfect operation of the machine.

The temperature of the supply water must be maximum 30°C

Each machine is supplied with 2 water filling hoses with threaded 3/4”fitting.

The drainage hose is to be connected, after adding a siphon, directly to the drains.

Do not fit the drain hose into the drains of sinks, bathtubs etc.

Make sure the water hardness is between 7 and 12°f, otherwise install a water softener to prevent damages caused by scale, which are not covered by warranty.

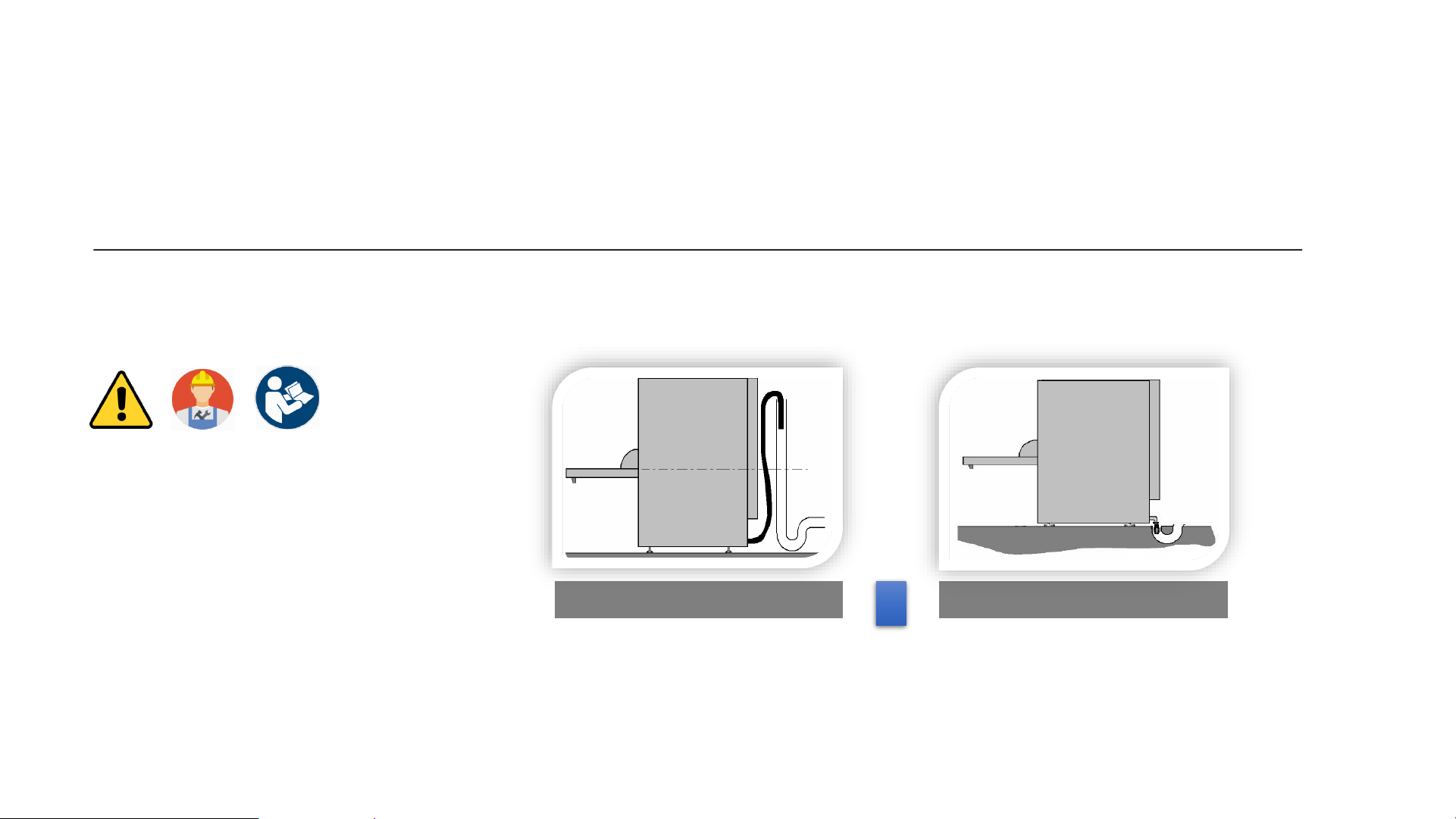

WITH DRAIN PUMP WITHOUT DRAIN PUMP

9.1 DRAIN

The drainage hose is to be connected, after adding a siphon, directly to the drains.

The water falls freely into the drains, therefore the point where it is connected to the drain outlet must always be below the level of the wash tank.

If the existent drain point is above this level, a suitable drain pump has to be installed (optional). Do not fit the drain hose into the drains of sinks, bathtubs etc.

10/05/2019 5

9.2 WATER AND FILTER CONNECTION

Temperature of the water supply °C30 MAX

Hardness of the water supply °f7 –12

Pressure of the water supply kPa 200/400

FIX THE FILTER TO THE BRACKET CONNECT 2 INLET PIPES

FOLLOWING THE ARROW

DIRECTION: MAIN FAUCET -

FILTER –FILTER - MACHINE

ONCE PIPES ARE

FIXED, OPEN THE

WATER AND CHECK

THE TIGHTENING

CARBON FILTER

FILTER MUST BE CHANGED AT

LEAST TWICE A YEAR

Install the carbon or mesh filter supplied on the water supply cock. The water hardness must be between 7 and 12°F and the maximum temperature 30°C.

The filters must be replaced at least twice a year.

Failed observance of these parameters will cause the internal osmotic membrane to deteriorate rapidly.

Make sure the water hardness is between 7 and 12°F, otherwise install a water softener to prevent damages caused by scale, which are not covered by warranty.

SECURE THE BRACKET

ON THE WALL AT MIN.

50 CM FROM THE

GROUND

10/05/2019 6

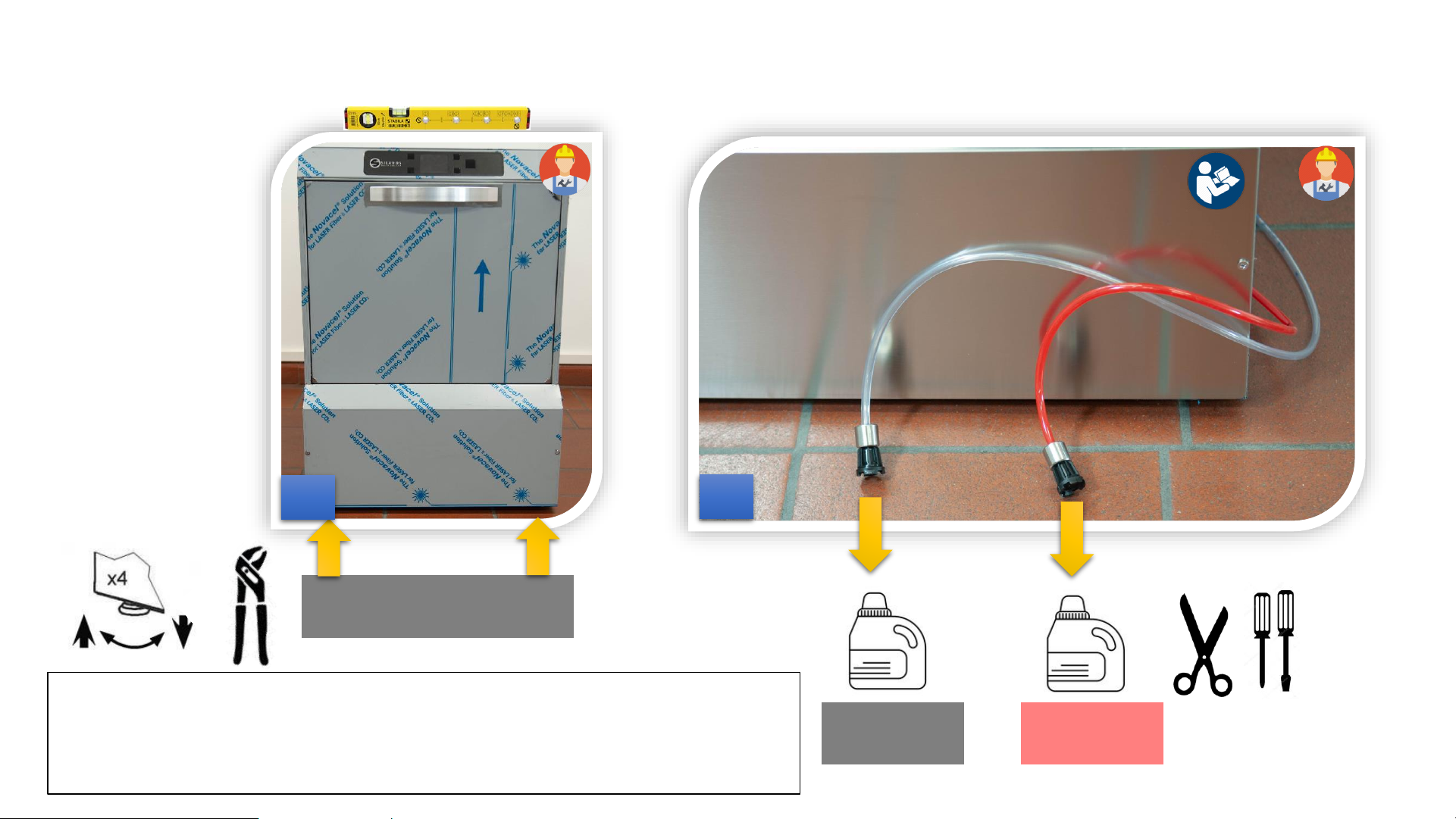

LEVEL THE DISHWASHER

AND ADJUST FEETS

10 LEVEL AND DOSING PIPES

RINSE AID

CRYSTAL PIPE

DETERGENT

RED PIPE

Only use detergents and rinse aids specific for industrial machines.

OSMOTIC WATER NEEDS SPECIFIC DETERGENT AND RINSE AID.

Do not use normal washing up liquid.

Do not use detergents for domestic machines.

Ask a specialist in chemical products for the correct choice of products to use and their quantities.

10/05/2019 7

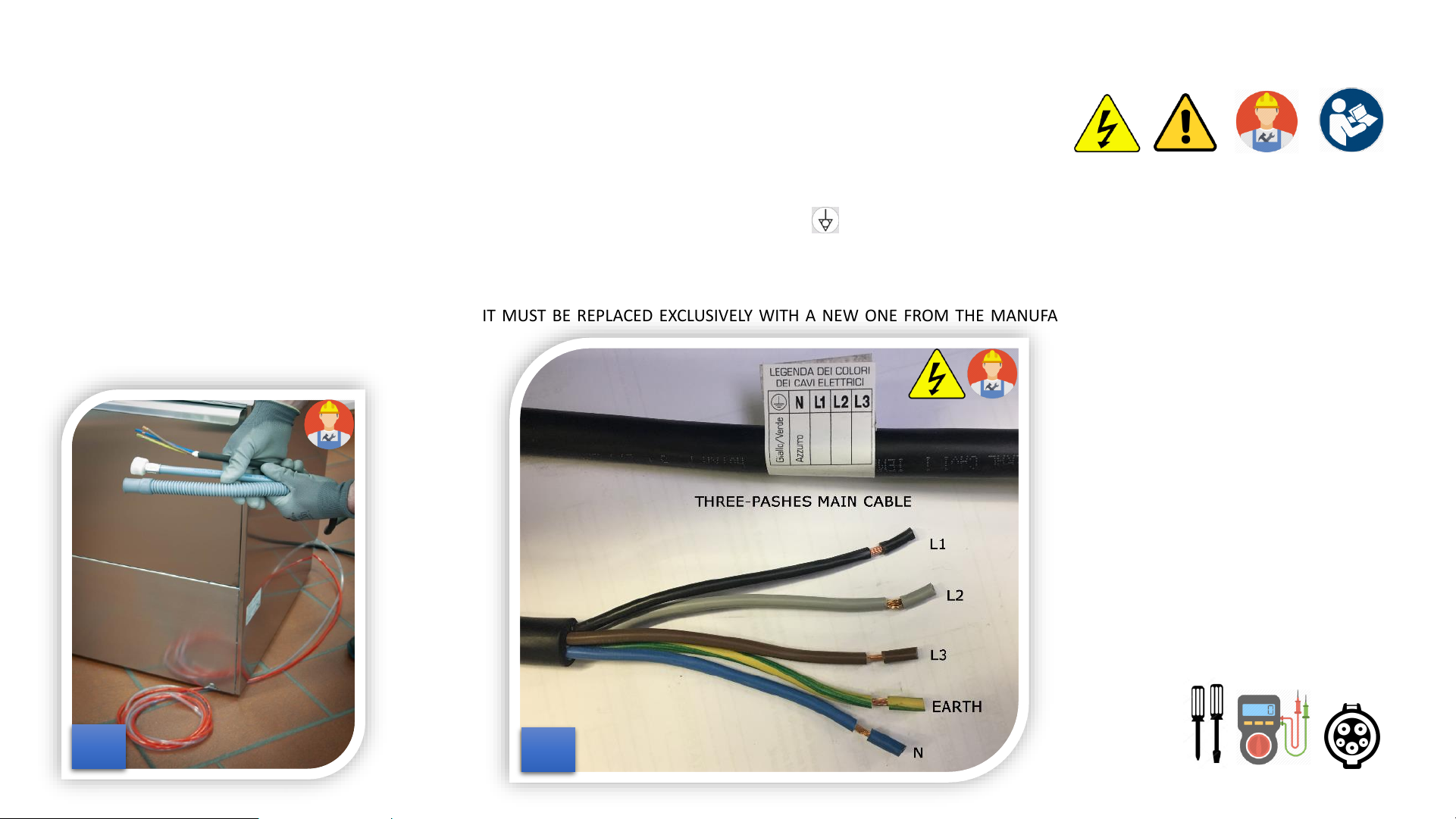

11 ELECTRICAL CONNECTION

The electrical connection must be carried out according to technical standards currently in force.

Make sure the measured mains voltage matches that written on the technical data nameplate of the machine.

You have to fit an appropriate omnipolar protection circuit breaker switch suitable for the input of the machine.

This switch must be used exclusively for this utility and installed right next to it. Make sure the electrical systems are suitably earthed.

The machine also has a connection, at the rear bottom part, marked with the equipotential symbol that is used to connect various appliances together equipotentially (check

standards on electrical systems).
