Modular Aluminium Jointing Chamber 2100 x 600 x 700 / 900H
ASSEMBLY INSTRUCTIONS
___________________________________________________________________________________
Chamber Rating: CLASS D - 210kN - AS3996:2006
Sika ‘Chambers’ are used for both Pathway & Roadway Installations

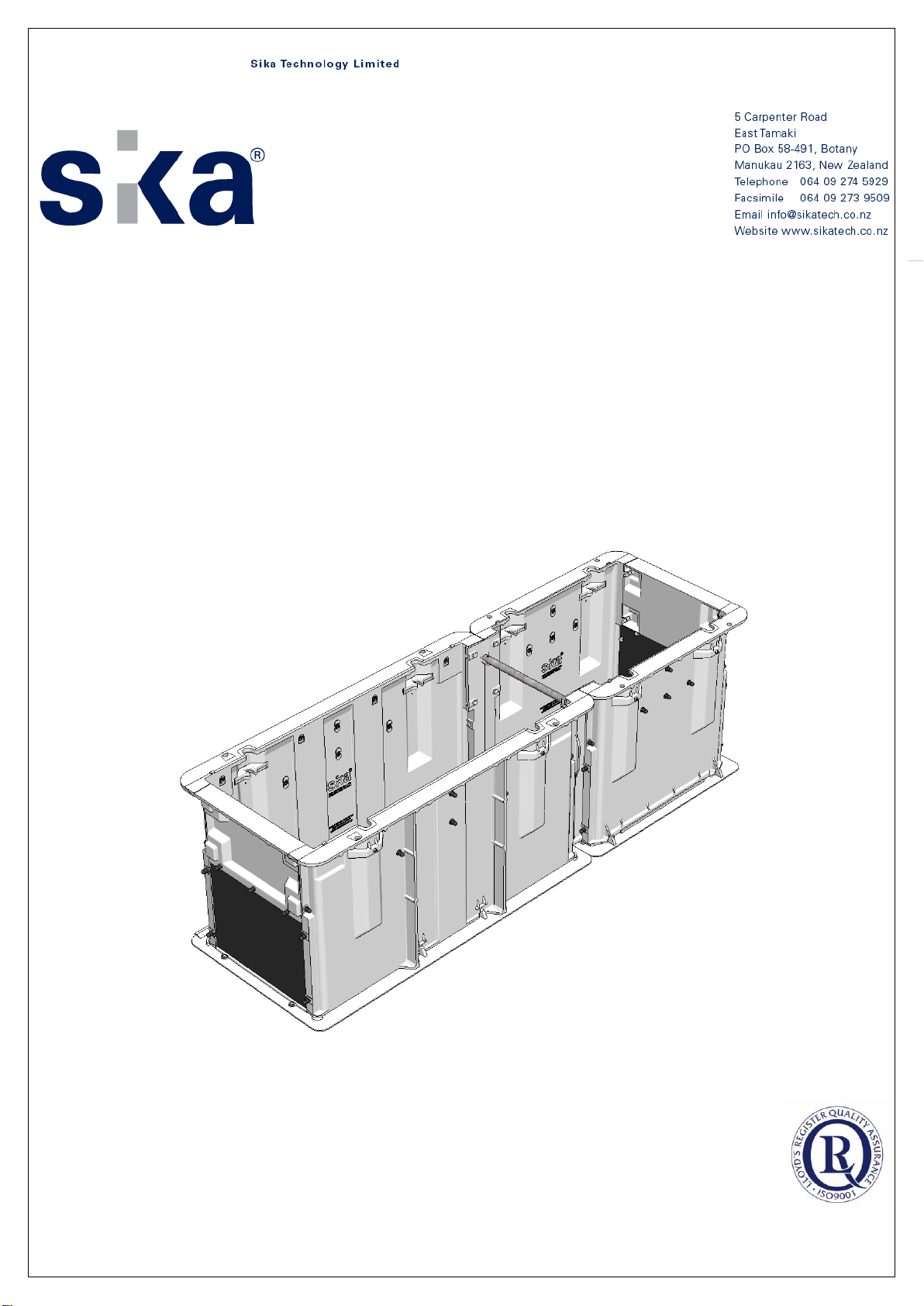

Chamber 2100 x 600 x 700H
Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 2 of 6
April 2014 www.sikatech.co.nz ST-PD016-01
1. Place the 1200mm and 700mm chamber bases end to end on a flat area adjoining the pit or on a
prepared bed of imported material in the excavated pit. Note the “1200 x 600”script and Sika logos will be
face up.
Place the base joiner 600 where both chamber bases join and apply the 4 –M10 x 40 bolts and
washers, and tighten.
Chamber Base Studs
Base Joiner 600
Chamber Bases
“1200 x 600” Identification
Fig 1
2. Where there is existing ducting and minimal side excavation is required use a split base. Ref Fig 2
Split Base Optional
Fig 2
Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 3 of 6
April 2014 www.sikatech.co.nz ST-PD016-01

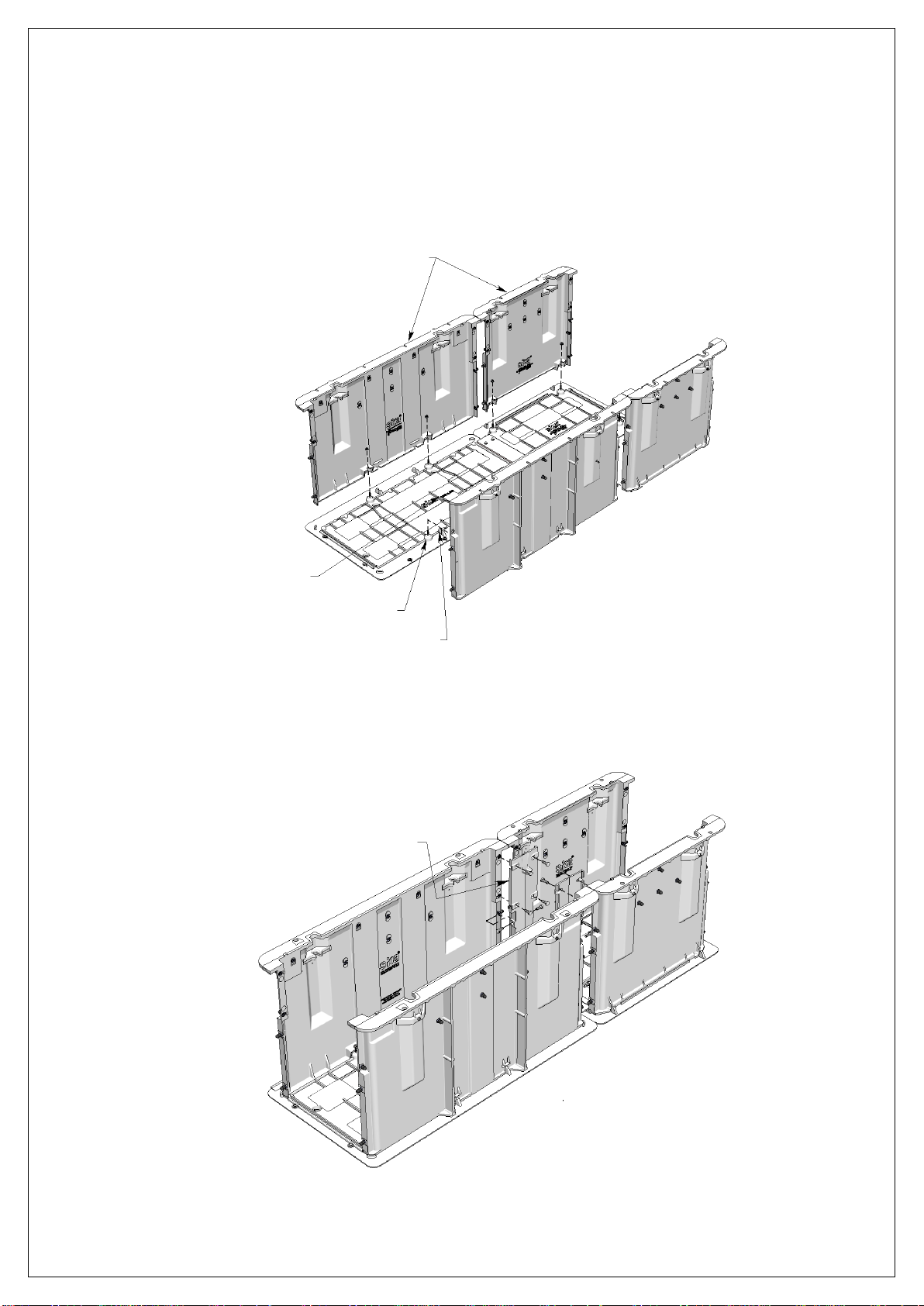

3. Remove the plastic tubes protecting the 8 –M10 studs protruding from the chamber base and place the
2 –1200 and 2 –700 chamber sides into place.
Insert the four chamber sides into the appropriately marked positions on the chamber base. Chamber
side supports cast into the chamber base will hold the chamber sides vertical until the 8 –M10 nuts
and washers are applied to hold them down. (Do not tighten these yet.)
Chamber Sides
“1200x600” Identification
Chamber Base Studs Fig 3a
Chamber Side Supports
Add the two side joiners 700 adjacent to the base joiner 600 using 16 –M10 x 30 bolts and washers.
Side Joiner 700
Fig 3b
Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 4 of 6
April 2014 www.sikatech.co.nz ST-PD016-01
Chamber Spreader 600
Chamber End 600
Duct Entry Panel

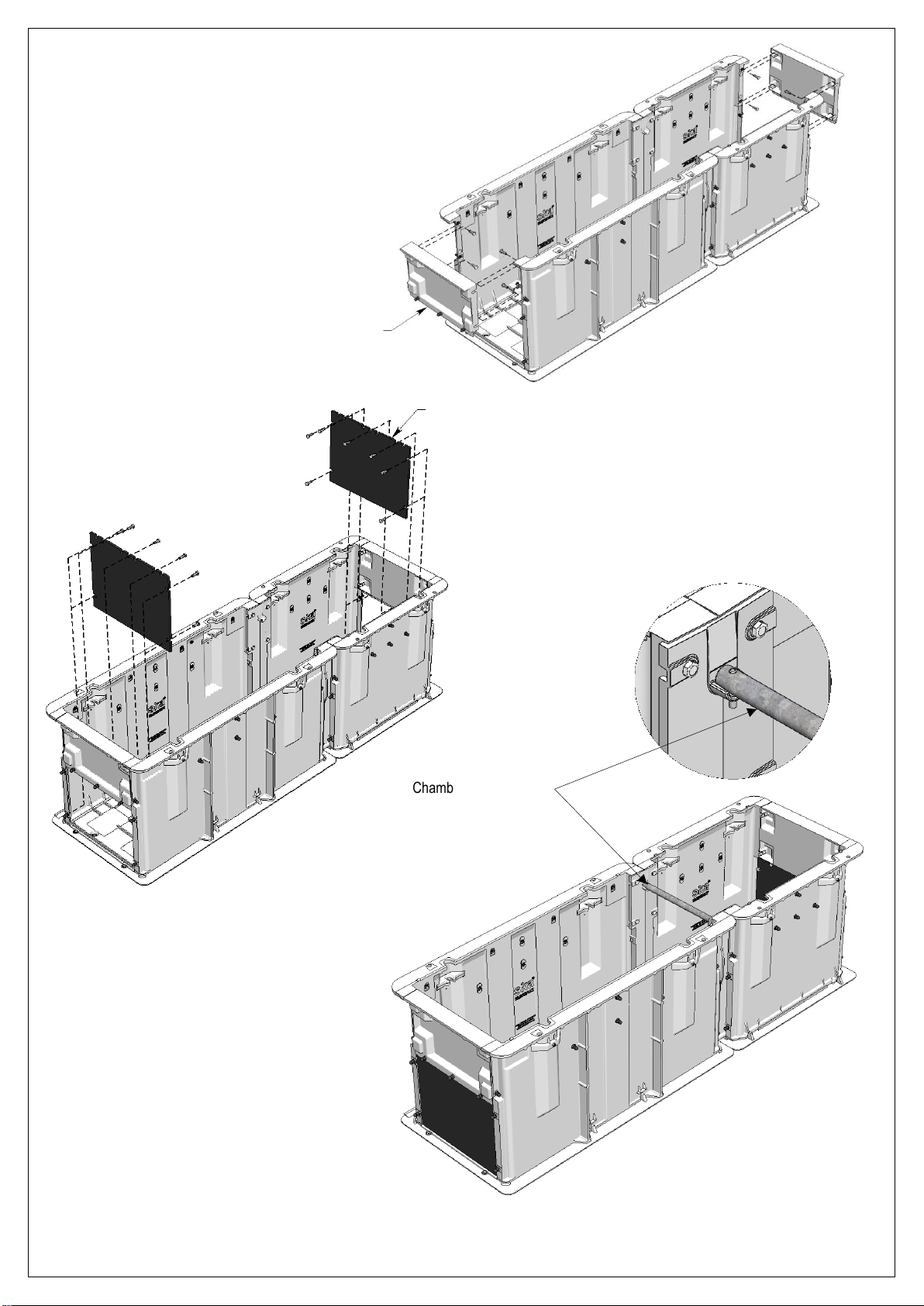

4. Add the two chamber ends 600 and secure them
with the 8 –M10 x 30 bolts and washers.
(Now tighten all the aforementioned fixings)
Fig 4
5. Apply the two polypropylene duct entry panels
to each end recess and secure each one with 7 -
M10 x 30 bolts and washers supplied.
Fig 5a
Align and fit the chamber spreader 600
in place between the two side joiners 700.
Ref Fig 5b
Fig 5b
Chamber 2100 x 600 x 700H
Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 5 of 6
April 2014 www.sikatech.co.nz ST-PD016-01
Chamber Extension 200mm
6. Assemble chamber extension as per Fig 6a using the extension side joiners 200 and 16 –M10 x 30
bolts and washers supplied. Place on top of chamber flange. See arrows for right way up.
Chamber Extension
2100 x 600 x 200H
Extension Side Joiner 200
Fig 6a
Fig 6b
Bolt assembled chamber extension to
the chamber with the 8 –M16x40 bolts,
nuts and spring washers supplied.
Fig 6c
Chamber 1200 x 600 x 700HChamber 1200 x 600 x 700H
Arrows
Chamber Extension
2100 x 600 x 200H
Locator Lug will Self Align Extension
Chamber 2100 x 600 x 700H
Chamber 2100 x 600 x 700H
& Extension 2100 x 600 x 200H
Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 6 of 6
April 2014 www.sikatech.co.nz ST-PD016-01

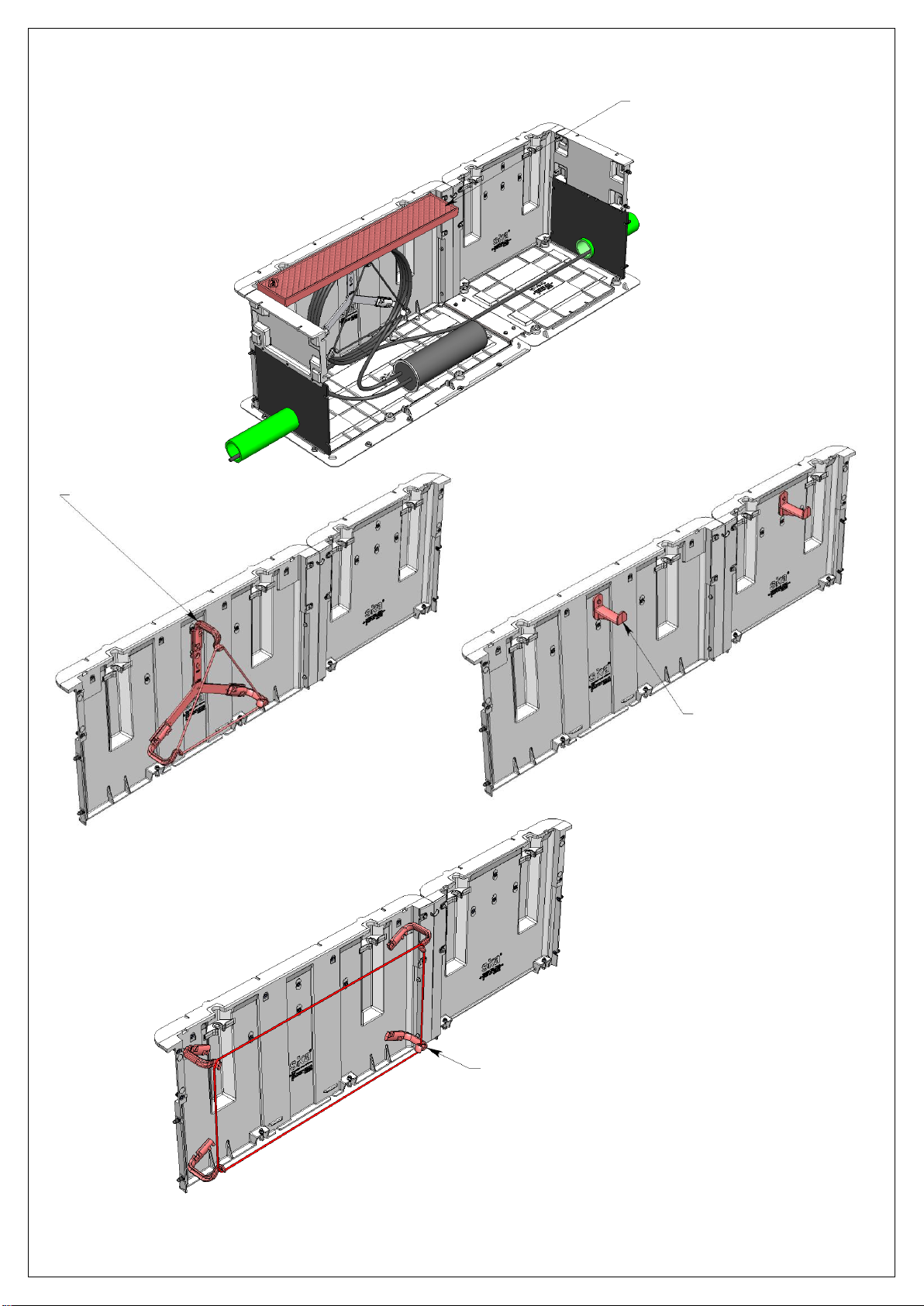

Chamber Accessories Cable Protection Plate
Cable Support & Protection Options
Cable Management Bracket
Cable Stirrup Bracket
Option 145 mm Long
Option 250 mm Long
‘J’ Brackets
