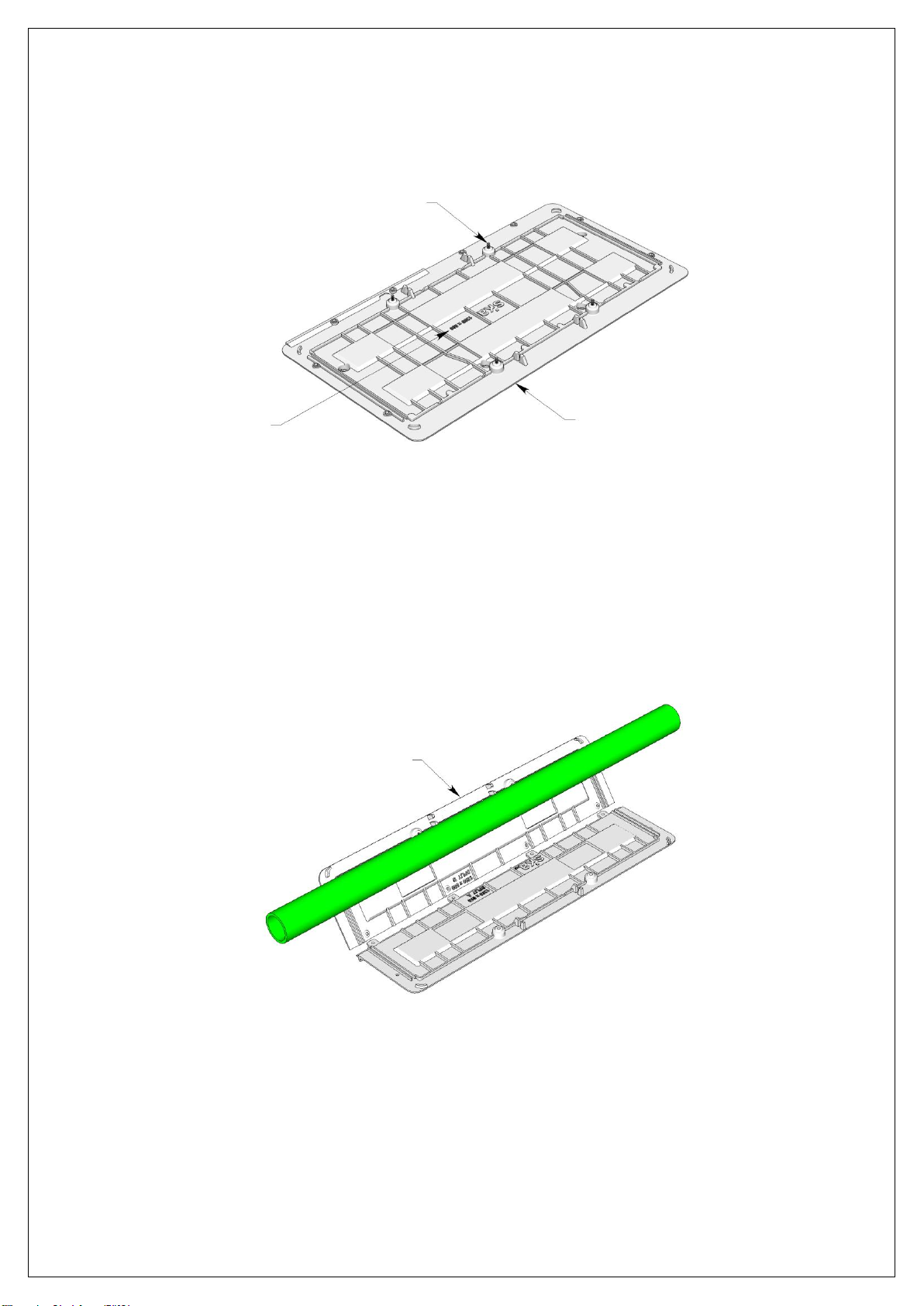

3. Remove the plastic tubes protecting the 4 –M10 studs protruding from the chamber base and place the
two chamber sides into place.

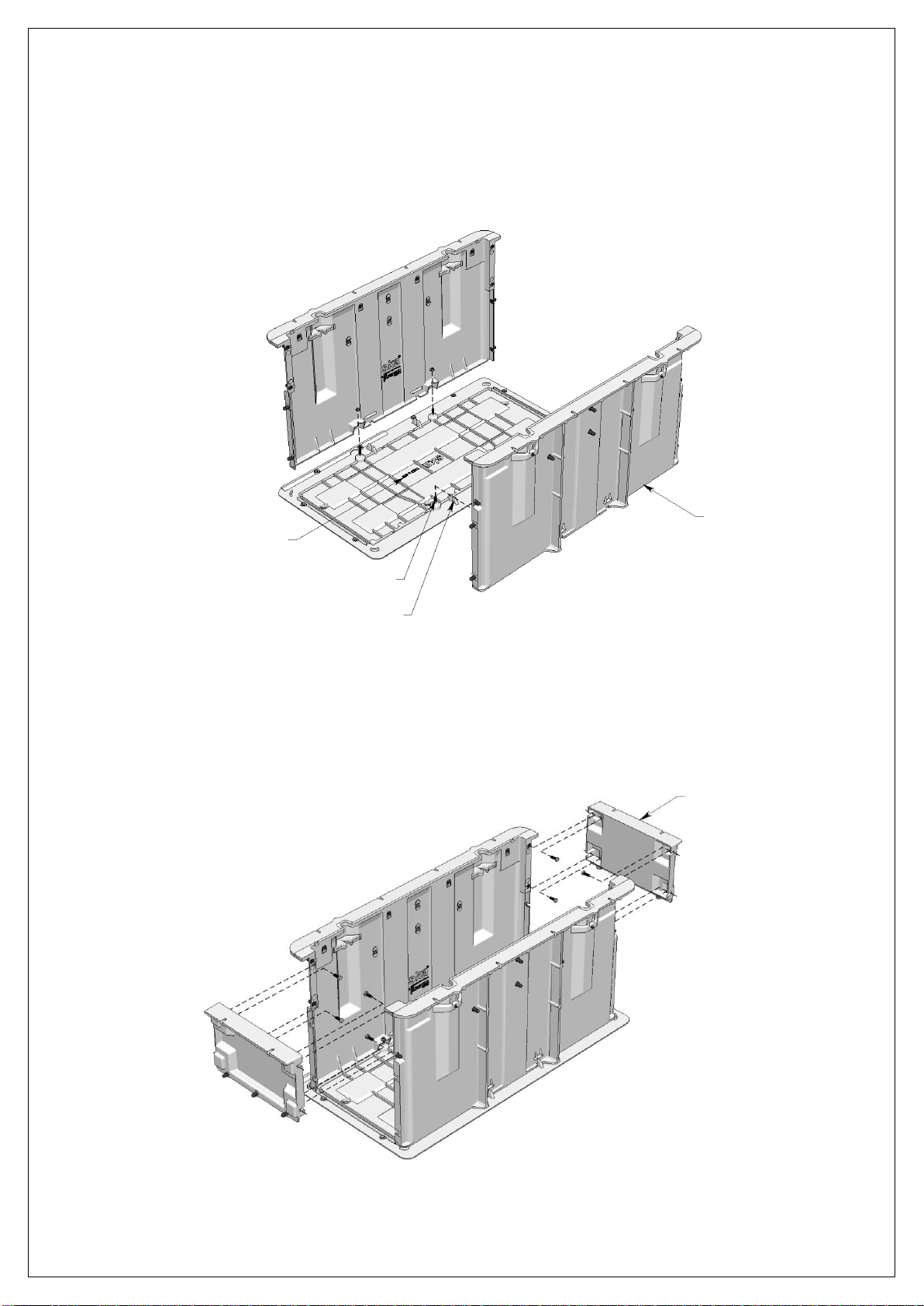

Insert the two chamber sides into the appropriately marked positions on the chamber base. Chamber
side supports cast into the chamber base will hold the chamber sides vertical until the 4 –M10 nuts
and washers are applied to hold them down. (Do not tighten these yet.)
Chamber Side
“1200x600” Identification
Chamber Base Studs
Chamber Side Supports Fig 3

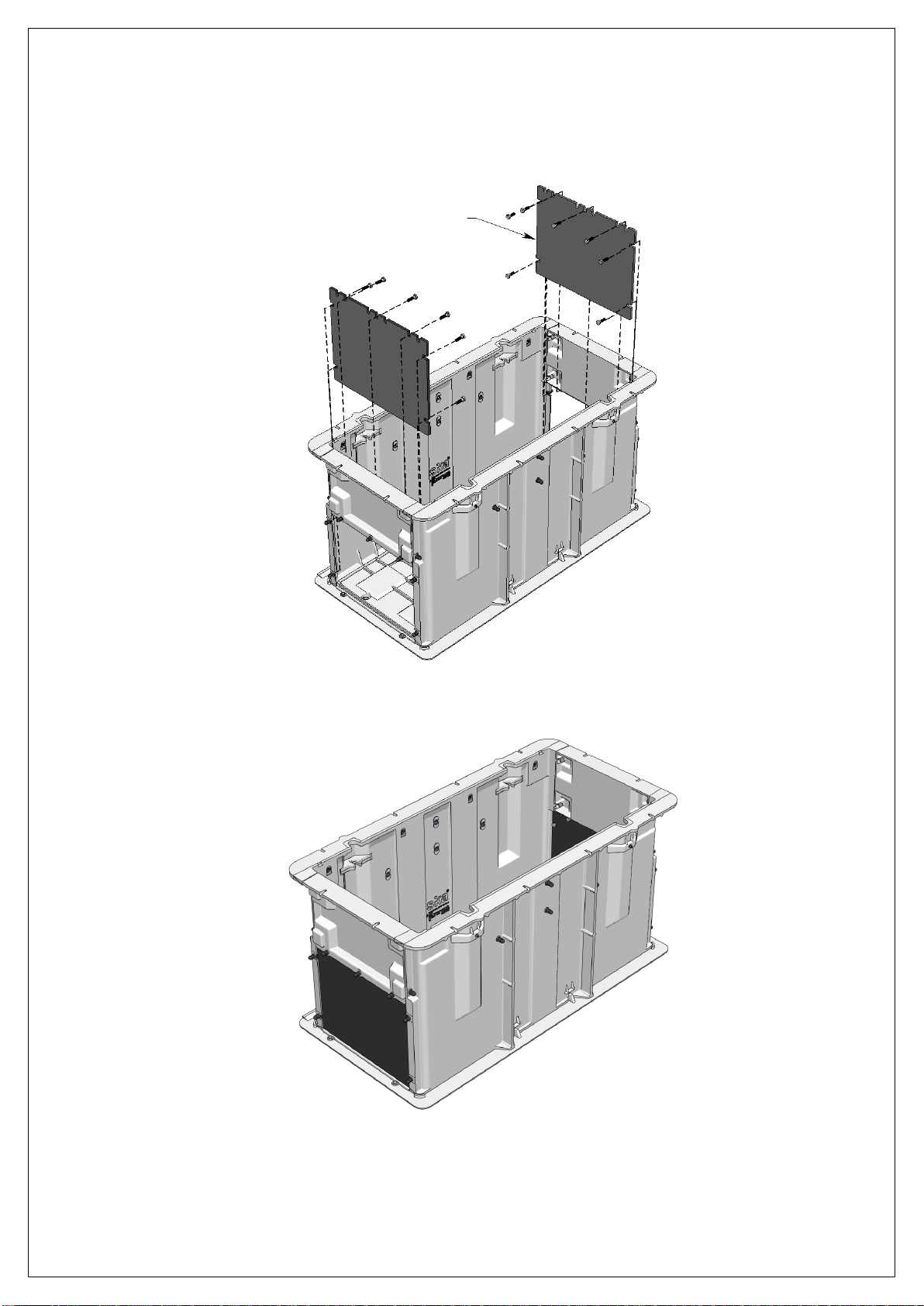

4. Add the two chamber ends 600 and secure them with the 8 –M10 x 30 bolts and washers.
(Now tighten all the aforementioned fixings.)
Chamber End 600
Fig 4
