SIIG Serial ATA PCI Manuel utilisateur

SerialATA+UltraATACombo

Quick Installation Guide

04-0264C

FeaturesandBenefits

• Compliant with Serial ATA Specification, rev. 1.0

• Compliant with PCI Specification, revision 2.2

• Provides two independent channels to connect one

Serial ATA and one Ultra ATA hard disk drive

• Features independent 256-byte FIFOs per channel

for host reads and writes

• Co-exists with on-board controller

• Features Watch Dog timer for fault resiliency

• Supports 32-bit wide PCI bus at 66MHz

• BackwardcompatiblewithexistingUltraATA133/

100/66 hard disk drives

• Supports drives with capacities larger than 137GB

SystemRequirements

• Pentium-class computer with an available PCI slot

• Windows 98/98SE/ME/NT4.0/2000/XP

PackageContents

• Serial ATA+Ultra ATA Combo board

• Driver diskette

• Serial ATA cable

• Serial ATA power cable adapter

• This quick installation guide

Board Layout

Serial ATA

Connector

Ultra ATA

Connector

JP7 (Default Setting)

Figure 1. Serial ATA+Ultra ATA Combo Layout

JumperConfiguration

Important: This jumper JP7 has to be set at the correct

position for this controller to work properly.

JP7

1-2 Enable Ultra

ATA Connector

(Default)

2-3 Disable Ultra

ATA Connector

•Set JP7 to 1-2 (default setting) if there's a hard disk

drive connected to the Ultra ATA Connector.

•SetJP7to2-3iftheUltraATAConnectorisnotused.

Hardware Installation

General instructions for installing the card are provided

below. Since the design of computer cases and

motherboards vary, refer to your computer’s reference

manual for further information, if needed.

1. Turn OFF the power to your computer.

2. Unplugthepowercordandremoveyourcomputer's

cover.

3. Remove the slot bracket from an available PCI slot.

4. Carefully align the card to the selected PCI slot and

push the board down firmly, but gently, until it is

well seated.

5. Replace the slot bracket's holding screw to secure

the card.

DeviceConnection

If you plan to use the Ultra ATA channel, you will need

to purchase a 40-pin/80-wire Ultra ATA ribbon cable.

ConnectingtheSerialATAdrive

Note: Skip the following 5 steps if you are not installing

a Serial ATA drive at this time.

1. Install hard disk drive in chassis.

2. SetjumperJP7,referbackto JumperConfiguration

on page 2.

3. ConnecttheSerialATAharddiskdrivetothesystem

power supply using the Serial ATA power cable

adapter.

4. Connect one end of the Serial ATA cable to the hard

disk drive.

5. Attach the other end of the Serial ATA cable to the

Serial ATA connector on the board.

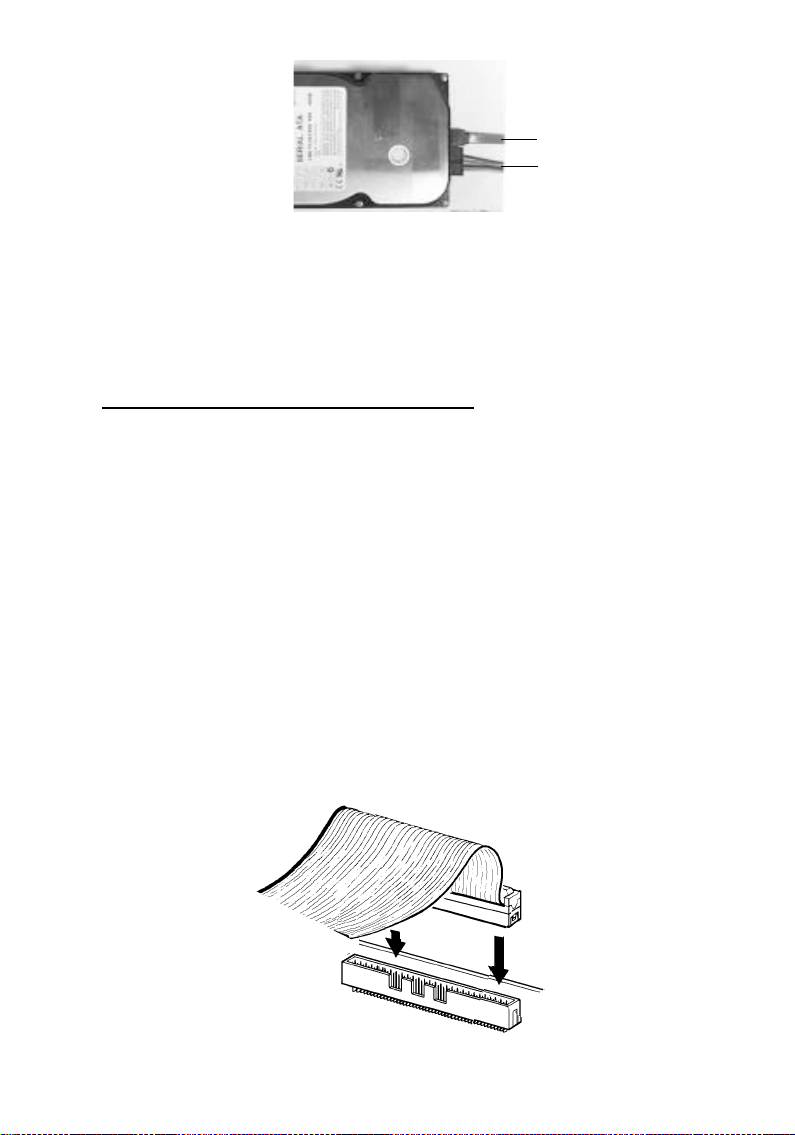

Figure 2. Serial ATA drive connections

6. IfyouarenotconnectinganUltraATAharddriveat

this time, replace the PC's cover and plug-in the

power cord.

ConnectingtheUltraATAdrive

Note: Skip the following 5 steps if you are not installing

anUltraATAdriveatthistime. TheUltraATAconnector

only supports one Ultra ATA hard disk drive.

1. Set your Ultra ATA drive up as Single or Master.

2. Install the Ultra ATA drive in chassis.

3. SetjumperJP7,referbackto JumperConfiguration

on page 2.

4. Attach one connector of the Ultra ATA ribbon cable

to the board's Ultra ATA Connector and the other

connector to your Ultra ATA drive. Make sure pin

1 on the cable (indicated by the colored stripe)

matches pin 1 on the board's connector and your

IDE drive.

Serial ATA cable

Serial ATA power

cable adapter

Figure 3. Connecting the Ultra ATA Cable

5. Connectthesystem'spowerconnectortothedrive's

power connector.

6. ReplacethePC'scoverafteralltheconnectionshave

been made and plug-in the power cord.

Software Installation

This section provides information on how to install the

SerialATA+Ultra ATA Combo drivers.

Windows98/98SEDriverInstallation

For New Windows 98/98SE Installation

1. Follow Microsoft procedures to install Windows 98

accordingly.

2. Once Windows has been installed, right click My

Computer and click Properties. Select Device

Manager tab.

3. Double click PCI Mass Storage Controller listed

under Other Devices.

4. Select Driver tab, then click Update Driver button.

5. Insert the driver diskette and click Next.

6. Select Search for a better driver... and click Next.

7. Check Floppy disk drives, clear the other boxes,

then click Next. Click Next again, then Finish.

8. Remove the driver diskette and restart Windows to

complete driver installation.

For Existing Windows 98/98SE Installation

1. Boot up Windows.

2. At the Add New Hardware Wizard, click Next.

3. SelectSearchforthebestdriverforyourdeviceand

click Next.

4. Insertthedriverdiskette,checkFloppydiskdrives,

clear the other boxes, then click Next.

5. Click Next and Finish.

6. Remove the driver diskette and restart Windows to

complete driver installation.

WindowsMEDriverInstallation

For New Windows ME Installation

1. Follow Microsoft procedures to install Windows

ME accordingly.

2. Once Windows has been installed, right click My

Computer, then click Properties. Select Device

Manager tab.

3. Double click PCI Mass Storage Controller listed

under Other Devices.

4. Select Driver tab, then click Update Driver button.

5. Insert the driver diskette, select Automatic search

forabetterdriver(Recommended),thenclickNext.

6. Click Finish, remove the driver diskette and restart

Windows to complete driver installation.

For Existing Windows ME Installation

1. Boot up Windows.

2. AttheAddNewHardwareWizard,insertthedriver

diskette.

3. Select Automatic search for a better driver

(Recommended), then click Next.

4. Click Finish.

5. Remove the driver diskette and restart Windows to

complete driver installation.

VerifyInstallationforWindows98/98SE/ME

1. Right-click My Computer, then click Properties.

Select Device Manager tab.

2. Double click SCSI Controllers, an entry, Silicon

Image SiI 3112... Controller should be listed.

3. Highlight Silicon Image SiI 3112... Controller and

click Properties. A message This device is working

properly is displayed in the dialog box. If an error

message is displayed, remove Silicon Image SiI

3112... Controller and restart your system.

WindowsNT4.0DriverInstallation

For New Windows NT4.0 Installation

1. Follow Microsoft procedures to install Windows

NT4.0 accordingly.

2. At the Windows NT Setup screen, press F6 to

specify and add the driver.

3. Press S, select Other, then press Enter.

4. Insert the driver diskette and press Enter.

5. SelectSiliconImageSiI3112...Controllerandpress

Enter.

6. Press Enter to continue and follow on-screen

instructions to complete the installation.

For Existing Windows NT4.0 Installation

Note: If the hard disk drive connected to your controller has a

boot partition, do not connect this drive until the controller's

driverhasbeencompletelyinstalledinWindowsNT. Followthe

instructions below to install the driver for the controller first,

then shut down your system and connect the hard disk drive.

1. Boot up Windows NT4.0.

2. Double click My Computer/Control Panel/SCSI

Adapters, then click the Drivers tab.

3. Click Add... then Have Disk....

4. Insert the driver diskette, type in A:, then click OK.

5. Highlight Silicon Image SiI 3112... Controller and

click OK.

6. ClickOK,removethedriverdisketteandrestartNT

to complete driver installation.

VerifyInstallationforWindowsNT4.0

1. Double click My Computer/Control Panel/SCSI

Adapters.

2. Silicon Image SiI 3112... Controller should be

displayed.

Windows2000DriverInstallation

For New Windows 2000 Installation

1. Follow Microsoft procedures to install Windows

2000 accordingly.

2. Restart your system when prompted during

Windows' installation.

3. At the Windows 2000 Setup screen, press F6 to

install the driver.

4. Insert the driver diskette. Press S, then press Enter.

5. SelectSiliconImageSiI3112...Controllerandpress

Enter.

6. Press Enter to continue and follow on-screen

instructions to complete the installation.

For Existing Windows 2000 Installation

Note: If the hard disk drive connected to your controller has a

boot partition, do not connect this drive until the controller's

driverhas been completely installed in Windows2000. Follow

theinstructionsbelowtoinstallthedriverforthecontrollerfirst,

then shut down your system and connect the hard disk drive.

1. Boot up Windows.

2. At the Found New Hardware Wizard, click Next.

3. Select Search for a suitable driver for my device

(recommended) and click Next.

4. Insertthedriverdiskette,checkFloppydiskdrives,

unchecktheotherboxes, andclickNext. ClickNext

again to continue.

5. IftheDigitalSignatureNotFoundmessageappears,

click Yes. Our driver has been thoroughly tested in

Windowsforstability.

6. Click Finish, remove the driver diskette and restart

Windows to complete driver installation.

WindowsXPDriverInstallation

For New Windows XP Installation

1. Follow Microsoft procedures to install Windows

XP accordingly.

2. Restart your system when prompted by Windows'

installation.

3. AttheWindowsSetupscreen,pressF6toinstallthe

driver.

4. Insert the driver diskette. Press Sthen press Enter.

5. SelectSiliconImageSiI3112...Controllerandpress

Enter.

6. Press Enter to continue and follow on-screen

instructions to complete Windows XP installation.

Note: When the Software Installation warning

pops up, click Yes. And when the Hardware

Installation warning pops up, click Yes again. Our

driverhasbeenthoroughlytestedinWindowsforstability.

For Existing Windows XP Installation

Note: If the hard disk drive connected to your controller has a

boot partition, do not connect this drive until the controller's

driverhasbeencompletelyinstalledinWindowsXP. Followthe

instructions below to install the driver for the controller first,

then shut down your system and connect the hard disk drive.

1. Boot up Windows.

2. At the Found New Hardware Wizard, insert the

driver diskette, select Install the software

automatically (Recommended), then click Next.

3. When a warning message pops up, click Continue

Anyway, then click Finish. Our driver has been

thoroughlytestedin Windowsforstability.

4. Remove the driver diskette and restart Windows to

complete driver installation.

VerifyInstallationforWindows2000/XP

1. Right click My Computer and click Manage.

2. Select Device Manager.

3. Double click SCSI and RAID Controllers, then

double click Silicon Image SiI 3112... Controller to

display driver properties.

4. AmessageThisdeviceisworkingproperlyisdisplayed

in the dialog box, the driver has been correctly

installed.

Bios Configuration

The Serial ATA+Ultra ATA Combo BIOS will appear

everytimeyoursystemstartsup. Ifthebiosdoesn'tshow,

pleasetryyourcontrollerinanotherPCIslot. Duringthis

(Post) process, the bios will show up and indicate the

devices attached to it.

Autres manuels pour Serial ATA PCI

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SIIG Carte PCI

SIIG

SIIG CyberPro PCI 2S Manuel utilisateur

SIIG

SIIG SC-SATM12 Manuel utilisateur

SIIG

SIIG US2265 Manuel utilisateur

SIIG

SIIG CyberParallel Dual Manuel utilisateur

SIIG

SIIG CyberPro PCI 4S Manuel utilisateur

SIIG

SIIG SIIG 2S1P Combo-Value Manuel utilisateur

SIIG

SIIG NN-E38012-S2 Manuel utilisateur

SIIG

SIIG FireWire 800 M-64 Manuel utilisateur

SIIG

SIIG USB 2.0 Video Capture Device Manuel utilisateur

SIIG

SIIG FireWire 800 3-Port PCI Manuel utilisateur

SIIG

SIIG SIIG 2S1P Combo-Value Manuel utilisateur

SIIG

SIIG SoundWave 128 PCI Manuel utilisateur

SIIG

SIIG CyberSerial Dual PCI Instructions de montage

SIIG

SIIG SC-SA4M12 Manuel utilisateur

SIIG

SIIG NN-830012-S2 Manuel utilisateur

SIIG

SIIG NN-83M012-S2 Manuel utilisateur

SIIG

SIIG NN2630 Manuel utilisateur

SIIG

SIIG SC-SAE412-S3 Manuel utilisateur

SIIG

SIIG Universal PCI Serial Cards Manuel utilisateur

SIIG

SIIG SoundWave 5.1 PCI-LP Manuel utilisateur

SIIG

SIIG Low Profile PCI-2S Manuel utilisateur

SIIG

SIIG JJ-P00112-S6 Manuel utilisateur

SIIG

SIIG VV-CV0012-S1 Manuel utilisateur

SIIG

SIIG SIISCSATM12 Manuel utilisateur

Manuels Carte PCI populaires d'autres marques

ERMA

ERMA SSI 1417 Manuel utilisateur

Moxa Technologies

Moxa Technologies CP-102E Manuel utilisateur

I-Bus

I-Bus IBC2602 Manuel utilisateur

Exsys

Exsys EX-60102 Manuel utilisateur

Chelsio Communications

Chelsio Communications T5 Series Manuel utilisateur

Conrad Electronic

Conrad Electronic 97 46 71 Manuel utilisateur

Micro Innovations

Micro Innovations USB650A Manuel utilisateur

KTI Networks

KTI Networks KF-310 Manuel utilisateur

Asus

Asus SpaceLink WL230 Manuel utilisateur

TRENDnet

TRENDnet TEW-703PI Manuel utilisateur

Belkin

Belkin F5D7000F Manuel utilisateur

Pericom

Pericom PI7C7100 Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3548 Manuel utilisateur

Digium

Digium TE200 Series Manuel utilisateur

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur

Western Digital

Western Digital FireWire PCI Adapter Manuel utilisateur

Pyle

Pyle Gamelink PLINK1 Manuel utilisateur

Alpha Networks

Alpha Networks WMP-A13V Manuel utilisateur
