SIIG SC-SAE212-S2 Manuel utilisateur
1
SATA II PCIe i/e
Quick Installation Guide
04-0395A
Introducing the SATA II PCIe i/e
The SATA II PCIe i/e is an ultra high-speed dual channel
SerialATA Generation2controllerforuseinPCIExpress-
enabled system.
Features and Benefits
• CompliantwithPCIExpressBaseSpecification1.0a
• CompliantwithSerial1.0aspecificationwithsupport
for full complement of SATA II optional features
• PCIExpress1-lane(x1)SATAIIadapterworkswith
PCI Express slots with different lane width
• InstallsinanyavailablePCIExpressslotandsupport
data transfer rates up to 3.0Gbps (300MBps)
• Spare enchanced low profile bracket is included to
work in low profile chassis
• Supports Native Command Queuing (NCQ), Non-
zero offsets NCQ, and Out-of-order date delivery
NCQ
• Independent command fetch, scatter/gather, and
command execution
• Supports hard disk hot-plugging
System Requirements
•PCI Express-enabled system with an available PCI
Express slot
•Windows 2000/XP/Server 2003
2
PackageContents
•SATA II PCIe i/e adapter and spare enchanced low
profile bracket
•SATA data cable and SATA 15-pin power cable
•Driver CD and user's manual

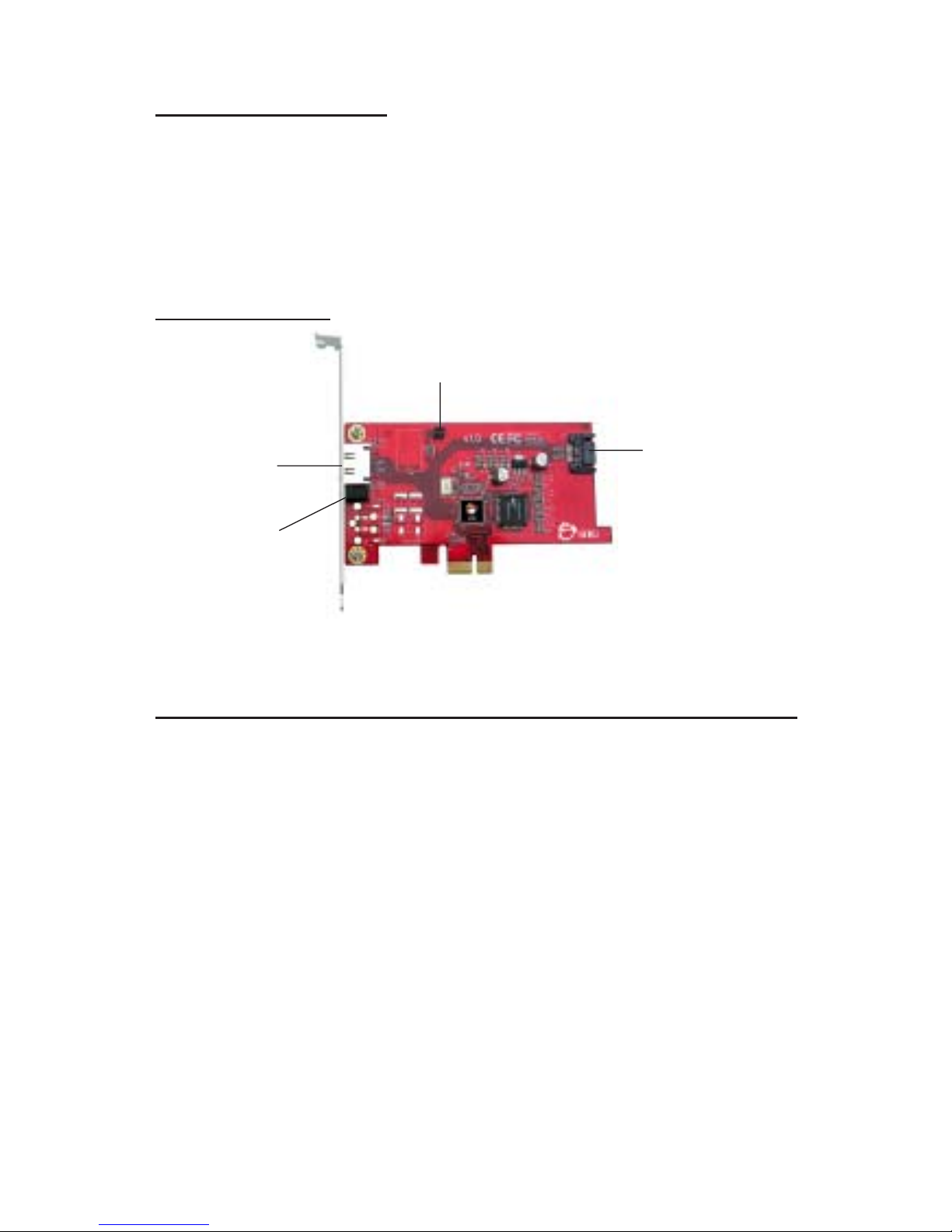

BoardLayout
Figure 1. SATA II PCIe i/e Board Layout
Hardware Installation
General instructions for installing the card are provided
below, since the design of computer cases and
motherboards vary. Refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
External
Connector
Internal
Connector
Hard Disk
LED Pins
(Connect horizontally)
HDD Activity
LED
3
3. Remove your computer’s cover.
4. RemovetheslotbracketfromanavailablePCIeslot.
5. To install the card, carefully align the card's bus
connector with the selected PCIe slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket's holding screw to secure
the card.
DeviceConnection
The SATA II PCIe i/e is a dual channel Serial ATA
controller that supports one internal and one external
Serial ATA drives.
Internal Serial ATA port:
1. Install hard disk drive(s) in chassis.
2. ConnecttheSerialATAharddiskdrivetothesystem
power supply using the Serial ATA power cable.
3. Connect one end of the Serial ATA cable to the hard
disk drive.
Note: For hard drives with both SATA power
connectorandlegacy5-pinconnector, useeitherthe
SATA power connector or the legacy 5-pin power
connector. Using both power connectors may
damage the hard drive.

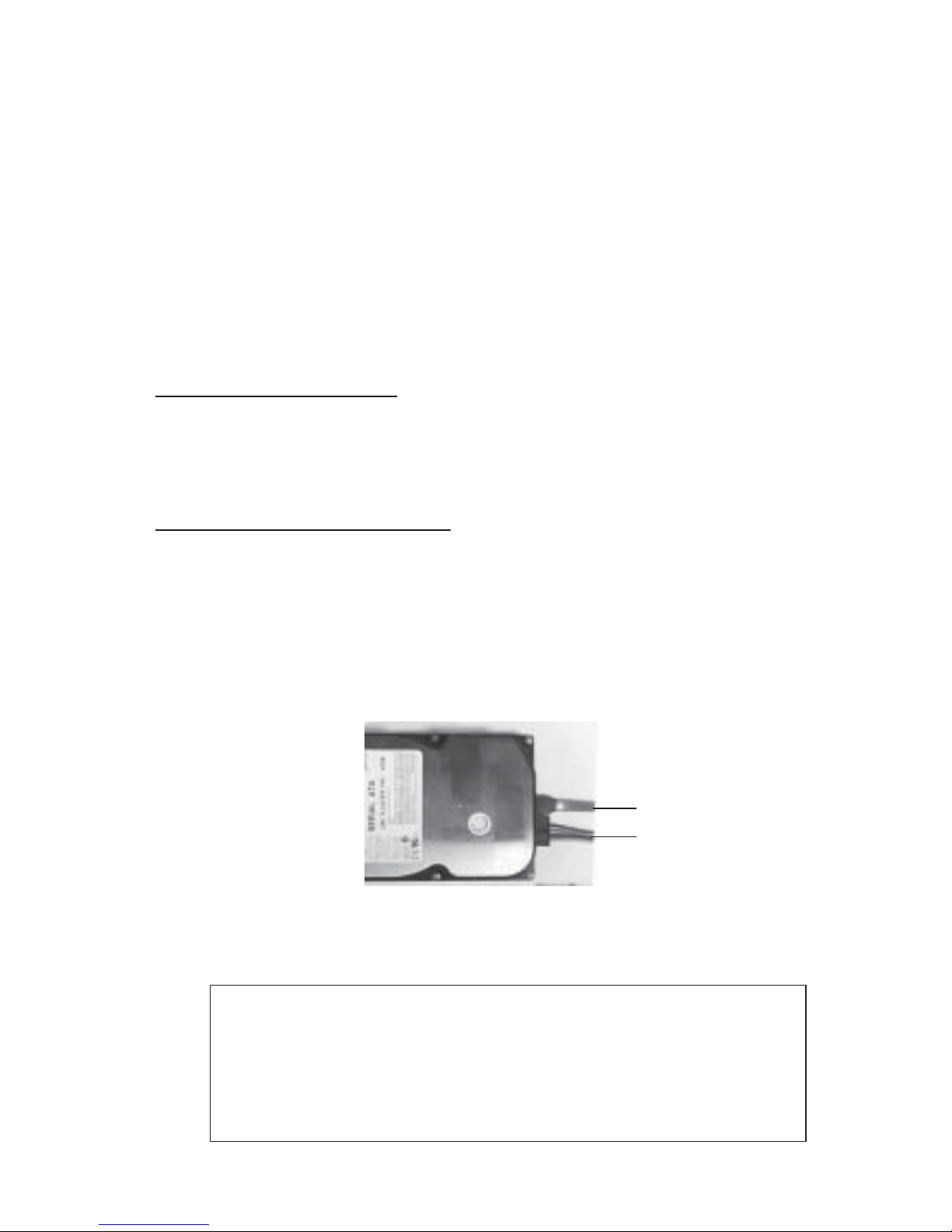

Figure 2. Hard disk drive connections
Serial ATA cable
Power cable adapter
4
4. Attach the other end of the Serial ATA cable to the
internal Serial ATA port.
5. Replacethecomputercoverandreconnectthepower
cord.
External Serial ATA port: External Serial ATA devices
should come with their own accessories. In most cases,
you just need to power up the external device and
connect it to the external port. For more information,
please refer to the external device's manual.
Driver Installation
This section provides information on how to install the
SATA II PCIe i/e drivers for the following operating
systems:
Windows2000
New Windows 2000 Installation
A new installation of Windows 2000 requires a floppy
disk for the driver installation. To make this floppy disk,
copy the contents of the Floppy folder, found on the
driver CD, onto a blank floppy disk then follow the
directions below.
1. Install the board and follow Microsoft procedures
to install Windows 2000 accordingly.
2. Restart your system when prompted during
Windows' installation.
3. At the Windows 2000 Setup screen, press F6 to
install the driver.
4. Insert the driver diskette. Press S, then press Enter.
5. Select Silicon Image SiI 3132 ... Controller and
press Enter.
5
6. Press Enter to continue and follow on-screen
instructions to complete the installation.
Existing Windows 2000 Installation
1. Install the board and boot up Windows 2000.
2. At the Found New Hardware Wizard, click Next.
3. Select Search for a suitable driver for my device
(recommended) and click Next.
4. Insert the driver diskette, check CD-ROM drives,
unchecktheotherboxes,andclick Next. ClickNext
again to continue.
5. Click Next
6. RestartWindowstocompletethedriverinstallation.
Windows XP/Server 2003
New Windows XP/Server 2003 Installation
A new installation of Windows XP/Server 2003 requires
a floppy disk for the driver installation. To make this
floppy disk, copy the contents of the Floppy folder,
found on the driver CD, onto a blank floppy disk then
follow the directions below.
1. InstalltheboardandfollowMicrosoftproceduresto
install Windows accordingly.
2. Restart your system when prompted by Windows'
installation.
3. AttheWindowsSetupscreen,pressF6toinstallthe
driver.
4. Insert the driver diskette. Press Sthen press Enter.
5. SelectSiliconImageSil 3132...Controllerandpress
Enter.
6. Press Enter to continue and follow on-screen
instructions to complete Windows XP installation.
6
Existing Windows XP/Server 2003 Installation
1. Install the board and boot up Windows XP/Server
2003.
2. At the Found New Hardware Wizard, Insert the
driverCD, selectInstallthesoftwareautomatically
(Recommended), then click Next.
3. Click Finish.
4. RestartWindowstocompletethedriverinstallation.
ToVerifyWindows2000/XP/2003Installation
1. Right click My Computer and click Manage.
2. Select Device Manager.
3. Double click SCSI and RAID Controllers, then
double click SiliconImage SiI3132... Controllerto
display driver properties.
Hot-Plugging Hard Disk Drives
To remove a drive from a powered up system, do the
following:
1. Right click My Computer and click Manage.
2. Select Device Manager.
3. Click Disk Drives, right click the target disk and
select Disable/Enable.
4. You can now remove the target disk.
Bios Configuration
The SATA II PCIe i/e BIOS will appear everytime your
systemstartsup. Ifthebiosdoesn'tshow,pleasetryyour
controllerinanotherPCIe slot.Duringthe(Post)process,
the bios will show up and indicate the devices attached
to it.
7
Technical Support and Warranty
QUESTIONS? SIIG’s Online Support has answers!
Simply visit our website at www.siig.com and click on Support.
Our online support database is updated daily with new drivers
and solutions. Answers to your questions could be just a few clicks
away. Youcanalsosubmitquestionsonlineandoneofourtechnical
support analysts will promptly respond.
A lifetime manufacturer warranty supplied with this product is
offered by SIIG, Inc. Please see SIIG website for more warranty
details. If you should happen to encounter any problems with this
product, please follow the procedures below.
If it is within the store's return policy period, please return the
product to the store where you purchased from.
If your purchase has passed the store's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective,anRMAnumberwillbeissued. SIIGRMAdepartment
can also be reached at (510)413-5333.
Step 2: After obtaining an RMA number, ship the product.
•Properlypacktheproductforshipping. Allsoftware,cable(s)
andanyotheraccessoriesthatcamewiththeoriginalpackage
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIGwillrefusetoacceptanyshippingpackage,and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping the product to
SIIG at the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538
RMA #: _________________
•SIIG will ship the repaired or replaced product via Ground
in the U.S and International Economy outside of the U.S at
no cost to the customer.
SATAIIPCIei/eisatrademarkofSIIG,Inc.
SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are
registeredtrademarksofMicrosoftCorporation. Othernamesusedinpublicationareforidentification
only and may be trademarks of their respective companies.
July, 2005 Copyright ©2005 by SIIG, Inc. All rights reserved.
PRODUCT NAME
SATA II PCIe i/e
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Ave.
Fremont, CA 94538-3152
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
ofI/Oconnectivityproducts,includingPCI&ISAserialandparallel
ports,USB,SerialATA&UltraATAcontrollers,FireWire(1394a/b),
Networking,SoundCards,andotheraccessories. SIIGisthepremier
one-stopsourceofupgrades.
SIIGproductsoffercomprehensiveusermanuals,manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
foundincomputerretailstores,mailordercatalogs,ande-commerce
sites in the Americas and the UK, as well as through major
distributors, system integrators, and VARs.
Table des matières
Autres manuels SIIG Carte PCI
SIIG
SIIG CyberSerial Dual PCI Manuel utilisateur
SIIG
SIIG Low Profile PCI-2S Manuel utilisateur
SIIG
SIIG SC-SA0012-S1 Manuel utilisateur
SIIG
SIIG SC-SA3012-S1 Manuel utilisateur
SIIG
SIIG CyberPro 1S1P Manuel utilisateur
SIIG
SIIG CyberSerial Dual PCI Instructions de montage
SIIG
SIIG LB-US0614-S1 Manuel utilisateur
SIIG
SIIG USB 2.0 Video Capture Device Manuel utilisateur
SIIG
SIIG SIIG 2S1P Combo-Value Manuel utilisateur
SIIG
SIIG FireWire 800 M-64 Manuel utilisateur
SIIG
SIIG JJ-P02012 Manuel utilisateur
SIIG
SIIG SIISCSATM12 Manuel utilisateur
SIIG
SIIG SC-SA4M12 Manuel utilisateur
SIIG
SIIG Serial ATA 4-Channel PCI Manuel utilisateur
SIIG
SIIG Cyber 2S1P 950 PCI Manuel utilisateur
SIIG
SIIG SC-SA1012-S1 Manuel utilisateur
SIIG
SIIG 4-Port RS232 Serial PCI with 16550 UART Manuel utilisateur
SIIG
SIIG JU-EC2012-S1 Manuel utilisateur
SIIG
SIIG JJ-P02D11-S6 Manuel utilisateur
SIIG
SIIG CyberPro PCI 2S Manuel utilisateur
Manuels Carte PCI populaires d'autres marques
ERMA
ERMA SSI 1417 Manuel utilisateur
Moxa Technologies
Moxa Technologies CP-102E Manuel utilisateur
I-Bus
I-Bus IBC2602 Manuel utilisateur
Exsys
Exsys EX-60102 Manuel utilisateur
Chelsio Communications
Chelsio Communications T5 Series Manuel utilisateur
Conrad Electronic
Conrad Electronic 97 46 71 Manuel utilisateur
ADLINK Technology
ADLINK Technology cPCI-3548 Manuel utilisateur
Digium
Digium TE200 Series Manuel utilisateur
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur
Western Digital
Western Digital FireWire PCI Adapter Manuel utilisateur
Pyle
Pyle Gamelink PLINK1 Manuel utilisateur
Alpha Networks
Alpha Networks WMP-A13V Manuel utilisateur
