CyberSerial Dual PCI
Quick Installation Guide
04-0376A
Introducing the CyberSerial Dual PCI
The CyberSerial Dual PCI high-speed serial I/O card
provides two additional 9-pin serial ports. Depending
on the model purchased, this board will fit into either a
Full or Low Profile chassis.
FeaturesandBenefits
•Conforms to PCI v2.2 Plug and Play
•Reduces CPU load and improves system
performance dramatically
•IRQ sharing feature reduces IRQ conflicts
•High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•Built-in FIFO buffers dramatically increase data
transmit/receivespeed,especiallyunderWindows'
multitasking environment
•Each serial port can be configured for either 5V or
12V output, for serial devices that require power
SystemRequirements
•Pentium or equivalent computer with an available
PCI slot
•DOS, Windows 95/98/98SE/ME/NT 4.0/2000/
XP/Server 2003
•Linux Kernel 2.4.x or later
2
PackageContents
•CyberSerial Dual PCI board
• 2-port fan-out cable
• Low profile bracket (Dual Profile board only)
• Driver CD
• Quick installation guide
Layout

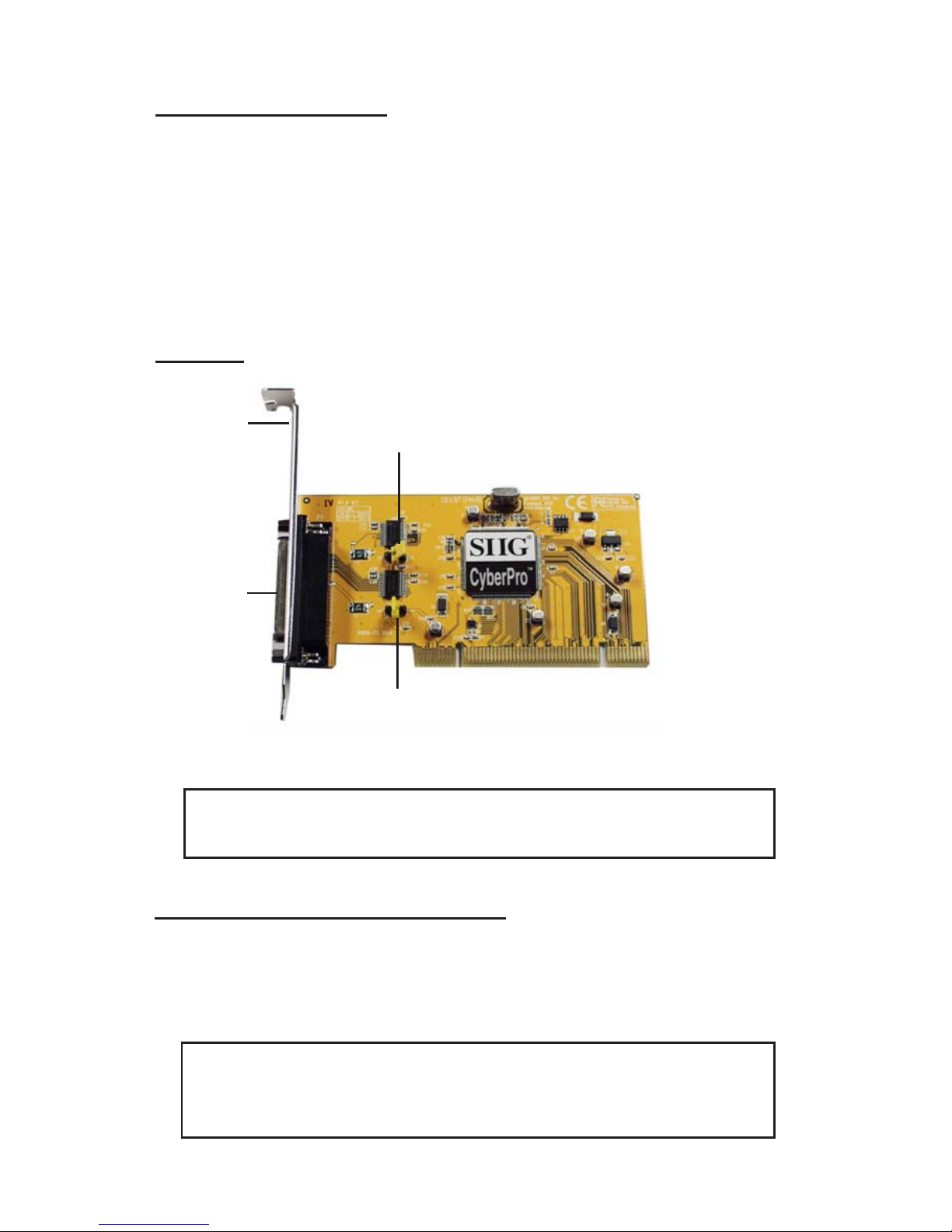

Figure 1. Layout
* Note: Depending on the model purchased, the
bracket size will be either Full or Low profile.
JumperSettings(JP1,JP2)
Open = 0 volts (default)
Short 1-2 = 5V
Short 2-3 = 12V
Note: Mostserialdevicesdonotrequireadditional
power through the serial port. Refer to your serial
device's manual for more information.
Fan-out
cable
connector
(25-pin)
JP1 (Serial port 1)
JP2 (Serial port 2)
Full
profile
bracket*
3
Fan-outCable

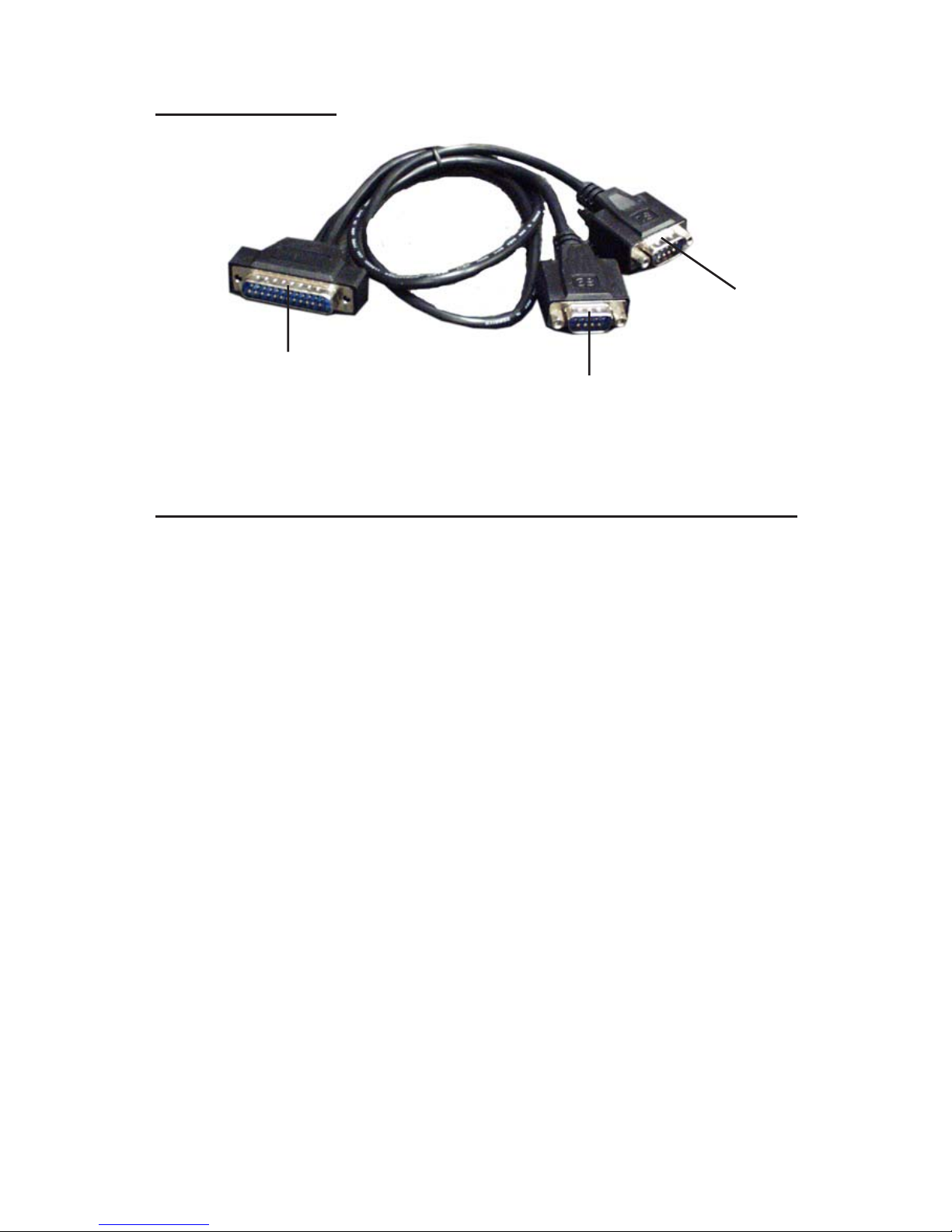

Figure 2. Fan-out cable
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
25-pin
connector 9-pin serial
9-pin serial
4
5. Change JP1 and JP2 jumper settings to the desired
voltage only if your serial device needs additional
power from the serial port. However, most serial
devices do not require additional power. For more
information see Figure 1 on page 2. The jumpers
can be removed if power output is not required.
6. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
7. Replace the slot bracket's holding screw to secure
the card.
8. Replacethecomputercoverandreconnect thepower
cord.
9. Connect the 2-port fan-out cable to the board's
25-pin connector. See Figure 2 on page 3for more
details.
Driver Installation
This section provides information on how to install the
CyberSerial Dual PCI drivers.
DOS
1. Boot up DOS and insert the driver CD.
2. Copy OXSER.EXE from the DOS folder to your C:
drive.
3. At the C: prompt, type in OXSER io=3e8 and the
serial ports will be set up as COM3 and COM4.
If your system already comes with 4 serial ports
enabled, type in OXSER io=220 instead and the
ports will be set up as COM5 and COM6.
4. Copy the OXSER command in step 3 into your
autoexec.bat and restart your system.
5
Windows95
1. At the Update Device Driver Wizard, click Next.
2. Insert the driver CD, click Other Locations.
3. Type in D:\9x, click OK, then click Finish. (Change
D: to match your CD-ROM drive letter)
4. From the Insert Disk window, click OK. When the
Copying Files dialog box pops up, type in D:\9x,
then click OK.
5. Restart Windows to complete the installation.
Windows98/98SE
1. At the Add New Hardware Wizard, click Next.
2. Select Search for the best driver for your device
(Recommend), then click Next.
3. Insert the driver CD, check Specify a location,
uncheck the other boxes, type in D:\9x, then click
Next. (Change D: to match your CD-ROM drive
letter)
4. Click Next, then Finish.
5. Repeat steps 1-4.
6. Restart Windows to complete the installation.
WindowsME
1. At the Add New Hardware Wizard, select Specify
the location of the driver (Advanced), then click
Next.
2. Insert the driver CD, check Specify a location,
uncheck the other box, type in D:\ME, then click
Next. (Change D: to match your CD-ROM drive
letter)
3. Click Next, then Finish.
6
4. Repeat steps 1and 2.
5. Click Next, Next, then Finish.
6. Restart Windows to complete the installation.
ToVerifyWindows95/98/98SE/MEInstallation
1. Right click My Computer, click Properties,then
click Device Manager.
2. Double click Ports (COM & LPT), CyberSerial PCI
16Cxxx... should be displayed two times.
3. Double click Multi-function adapters, SIIG
CyberPro 2S PCI board and PCI Function should
be displayed.
WindowsNT4.0
1. From the desktop click Start, then Run.
2. Insert the driver CD, type in
D:\NT4\Install_serial.exe, then click OK.
(Change D: to match your CD-ROM drive letter)
3. Click Next when the Welcome window appears.
4. Select Install, then click Next.
5. Click Yes, then click Exit.
6. Restart Windows to complete the installation.
ToVerifyWindowsNT 4.0Installation
1. Click Start, Settings, Control Panel.Double click
Ports device icon.
2. Two new COM ports will be assigned when
successfully installed.
7
Windows2000
1. At the Found New Hardware Wizard, click Next.
2. Select Search for a suitable driver for my device
(recommended), then click Next.
3. Check Specify a location, uncheck the other boxes,
then click Next.
4. Insert the driver CD, type in D:\2000, then click OK.
(Change D: to match your CD-ROM drive letter)
5. Click Next and Finish.
6. Repeat steps 1-5 two more times.
7. Restart Windows to complete the installation.
WindowsXP
1. At the Found New Hardware Wizard, select Install
from a list or specific location (Advanced),then
click Next.
2. Insert the driver CD, check Include this location in
the search,uncheck the other box, type in D:\XP,
and click Next. (Change D: to match your CD-ROM
drive letter)
3. If the Hardware Installation window pops up, click
Continue Anyway, then Finish. Our driver has been
testedforstability and compatibility.
4. Repeat steps 1-3 three more times.
5. Restart Windows to complete the installation.
WindowsServer2003
1. At the Found New Hardware Wizard, select Install
from a list or specific location (Advanced),then
click Next.
8
2. Insert the driver CD, check Include this location in
the search,uncheck the other box, type in D:\2003,
thenclick Next. (Change D: to match your CD-ROM
drive letter)
3. If the Hardware Installation window pops up, click
Continue Anyway, then Finish. Our driver has been
testedforstability and compatibility.
4. Repeat steps 1-3 three more times.
5. Restart Windows to complete the installation.
ToVerifyWindows2000/XP/2003Installation
1. Right click My Computer, click Manage, then click
Device Manager.
2. Click on the +(plus sign) in front of Ports (COM &
LPT), CyberSerial PCI 16Cxxx... should be
displayed two times.
3. Double click Multifunction adapters, SIIG
CyberPro 2S PCI board should be displayed.
Linux Kernel 2.4.x or later
1. Open the terminal.
2. Type setserial -bg /dev/ttyS* and hit <enter> to
show the current serial ports installed. SIIG board
will be set up at the next available address. For
example, if your system comes with /dev/ttyS0
and /dev/ttyS1, set up SIIG board as /dev/tty2
and /dev/ttyS3.
9
3. Type lspci -v and hit <enter>. This command
displays the CyberSerial Dual PCI's information
similar to the example listed below. This
information is needed to configure the serial ports.
- 02:0b.0 Serial controller: Oxford Semiconductor
Ltd EXSYS EX-41092 Dual 16950 Serial ....
- Subsystem: SIIG Inc: ....
- Flags: medium devsel, IRQ 9
- I/O ports at a000 [size=32]
- Memory at ed800000 (32-bit, ...) ....
- I/O ports at 9800 [size=32]
- Memory at ed000000 (32-bit, ...) ....
- Capabilities: [40] Power Management ....
4. Edit the startup file and add these two command
lines at end of the startup file.
- setserial /dev/ttyS2 port 0xa000 irq 9 uart 16950.
- setserial /dev/ttyS3 port 0xa008 irq 9 uart 16950.
Note: ttyS value, I/O port address and irq should
be different from one system to another. These
values should be based on the results you get from
steps 2 & 3.
5. Save the startup file and restart your system.
10
Changing COM Port Address
Some serial devices need a specific COM port in order to
work. If your serial device works properly, do not
change this setting.
Windows95/98/98SE/ME
1. From the Device Manager window double click
Ports (COM & LPT), then double click the
CyberSerial PCI serial port you want to change.
2. Click Settings tab, click the down arrow that is next
to the Port Name box and select a COM address that
is not currently in use.
3. Click OK, then close Device Manager to save the
changes.
Windows2000/XP/Server2003
1. From the Device Manager window double click
Ports (COM & LPT), then double click the
CyberSerial PCI serial port you want to change.
2. Click Settings tab and click Advanced.
3. Click the down arrow that is next to the COM Port
number box and select a COM port that is not in use.
Click OK.
4. Click OK, then close Device Manager to save the
changes.
Table des matières
Autres manuels SIIG Carte PCI
SIIG
SIIG USB 2.0 Video Capture Device Manuel utilisateur
SIIG
SIIG JU-EC2012-S1 Manuel utilisateur
SIIG
SIIG CyberPro PCI 1S Manuel utilisateur
SIIG
SIIG DP 4-Port USB 3.0 PCIe i/e Manuel utilisateur
SIIG
SIIG USB 5-Port PCI Manuel utilisateur
SIIG
SIIG SIISCSATM12 Manuel utilisateur
SIIG
SIIG CyberPro 1S1P Manuel utilisateur
SIIG
SIIG Serial ATA 4-Channel PCI Manuel utilisateur
SIIG
SIIG CyberSerial Dual PCI Instructions de montage
SIIG
SIIG Cyber 2S1P 950 PCI Manuel utilisateur
SIIG
SIIG SC-SA1012-S1 Manuel utilisateur
SIIG
SIIG SC-SA2012-S1 Manuel utilisateur
SIIG
SIIG US2265 Manuel utilisateur
SIIG
SIIG SC-SAE012-S2 Manuel utilisateur
SIIG
SIIG Universal PCI Serial Cards Manuel utilisateur
SIIG
SIIG Hi-Speed USB 4-Port PCI Manuel utilisateur
SIIG
SIIG CyberPro PCI 8S Manuel utilisateur
SIIG
SIIG Cyber 1S1P PCI Manuel utilisateur
SIIG
SIIG SATA II-150 PCI Manuel utilisateur
SIIG
SIIG SoundWave 128 PCI Manuel utilisateur
Manuels Carte PCI populaires d'autres marques
ERMA
ERMA SSI 1417 Manuel utilisateur
Moxa Technologies
Moxa Technologies CP-102E Manuel utilisateur
I-Bus
I-Bus IBC2602 Manuel utilisateur
Exsys
Exsys EX-60102 Manuel utilisateur
Chelsio Communications
Chelsio Communications T5 Series Manuel utilisateur
Conrad Electronic
Conrad Electronic 97 46 71 Manuel utilisateur
ADLINK Technology
ADLINK Technology cPCI-3548 Manuel utilisateur
Digium
Digium TE200 Series Manuel utilisateur
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur
Western Digital
Western Digital FireWire PCI Adapter Manuel utilisateur
Pyle
Pyle Gamelink PLINK1 Manuel utilisateur
Alpha Networks
Alpha Networks WMP-A13V Manuel utilisateur
