2-Port RS232 Serial

PCI with 16950 UART

Installation Guide

04-0715C

Introduction

The 2-Port RS232 Serial PCI with 16950 UART

high-speed serial card provides two RS-232 9-pin

serial ports.

Key Features and Benefits

• Universal PCI card design that works in

32-/64-bit 3.3V/5V PCI and PCI-X slots

• Provides 2 RS-232 serial ports

• Supports data transfer rate up to 921Kb/s

System Requirements

• Pentium or equivalent computer with an

available PCI slot

• Windows®

8 (32-/64-bit) / 7 (32-/64-bit) /

Vista (32-/64-bit) / XP (32-/64-bit) / Server

2003 & 2008 (32-/64-bit) / Server 2008 R2

/ 2000 / ME / 98SE / 98 / 95

Package Contents

• 2-Port RS232 Serial PCI with 16950 UART

• Driver CD

• Installation guide

Layout

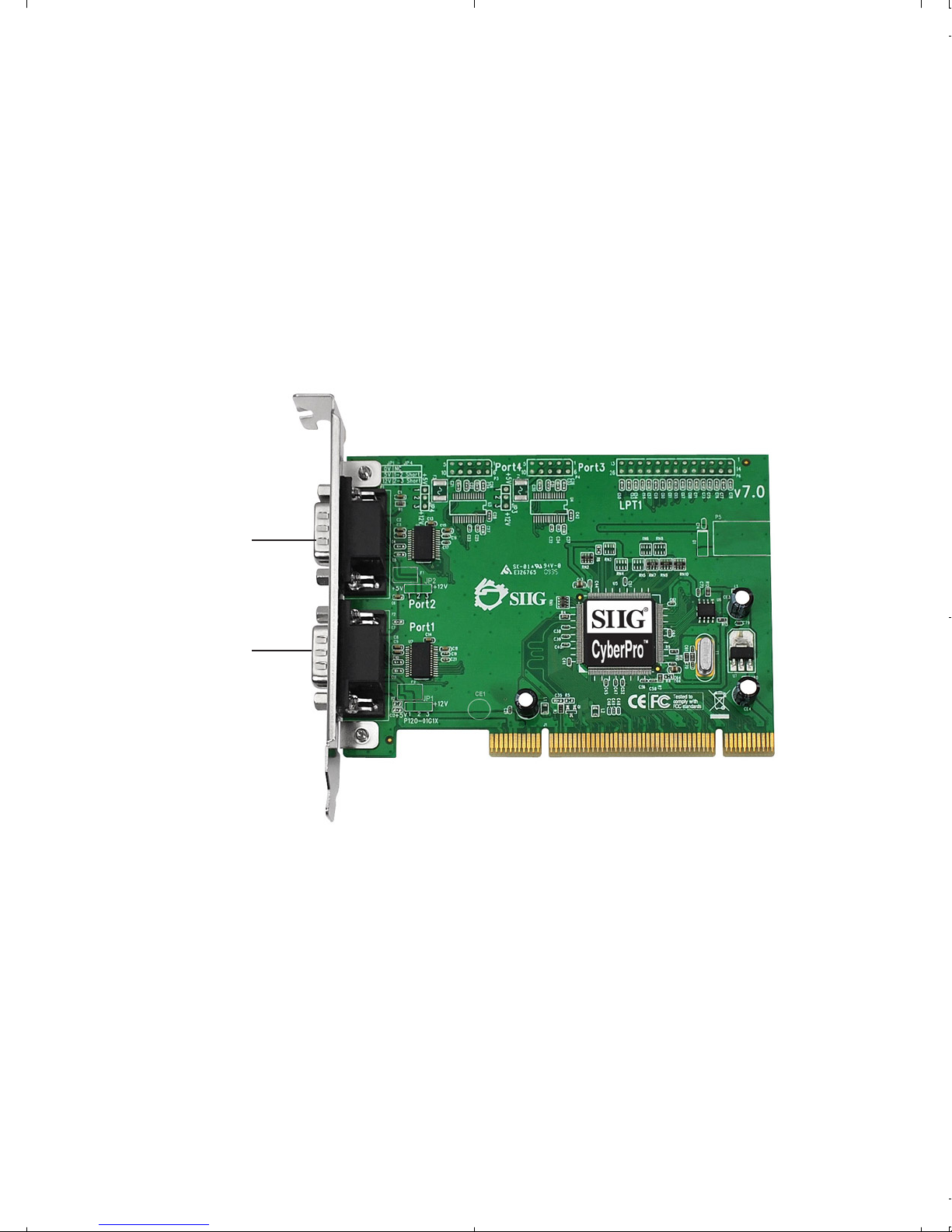

Figure 1: Board Layout

Serial Port 1

Serial Port 2

Hardware Installation

General instructions for installing the card are

provided below. Since the design of computer

cases and motherboards vary, refer to your

computer’s reference manual for further

information, if needed.

Static Electricity Discharge may permanently

damage your system. Discharge any static

electricity build up in your body by touching your

computer’s case for a few seconds. Avoid any

contact with internal parts and handle cards

only by their external edges.

1. Turn OFF the power to your computer and

any other connected peripheral devices.

2. Unplug the power cord from the computer.

3. Remove the computer cover.

4. Remove the slot bracket from an available

PCI slot.

5. To install the card, carefully align the card's

bus connector with the selected PCI slot on

the motherboard. Push the board down

firmly, but gently, until it is well seated.

6. Replace the slot bracket holding screw to

secure the card.

7. Replace the computer cover and reconnect

the power cord.

Driver Installation

Please make sure the board is installed before

proceeding with driver installation.

Windows 8 (32-/64-bit) / 7 (32-/64-bit) /

Server 2008 R2

1. Install the board and boot up Windows.

2. Insert the driver CD. Close the CD autoplay

window if prompted.

3. Right click Computer, click Manage, click

Device Manager.

4. Right click PCI Device, click Update Driver

Software.

5. Click Browse my computer for driver

software.

6. Type D:, then click Next. (Change D: to

match your CD/DVD-ROM drive letter)

7. At Windows has successfully updated

your driver software, click Close.

8. Go back to Device Manager, right click the

first listed PCI Serial Port, click Update

Driver Software.

9. Repeat steps 5-7.

NOTE: Windows 7 with internet

connection enabled, will search for

Microsoft Update's driver database and

complete driver installation automatically.

Otherwise, continue with steps 10-13.

10. Go back to Device Manager, right click

CyberSerial Communication Port, click

Update Driver Software.

11. Repeat steps 5-7.

12. Go back to Device Manager, right click the

remaining CyberSerial Communication

Port, click Update Driver Software.

13. Repeat steps 5-7 to complete the installation.

Windows Vista (32-/64-bit) / Server 2008

(32-/64-bit)

1. Install the board and boot up Windows.

2. At the Found New Hardware window,

click Locate and install driver software

(recommended), click Continue. For Server

2008, skip this step.

3. Insert the driver CD. Close the CD autoplay

window if prompted.

4. Click Don't search online. (Skip this step if

not prompted)

5. Click I don't have the disc, show me other

options.

6. Click Browse my computer for driver

software (advanced).

7. Type D:, then click Next. (Change D: to

match your CD/DVD-ROM driver letter)

8. At The software for this device has been

successfully installed, click Close.

9. Repeat steps 4-8 to complete the installation.

10. Restart Windows to complete the

installation.

Windows XP (32-/64-bit) / Server 2003

(32-/64-bit)

1. Install the board and boot up Windows.

2. Insert the driver CD. Close the CD autoplay

window if prompted.

3. Select No, not this time, click Next. (Skip

this step if not prompted)

4. Select Install the software automatically

(Recommended),then click Next. (Skip this

step if not prompted)

5. Click Finish. It may take several minutes

for this step to appear. Do not interrupt the

process during this time.

6. Repeat steps 3-5 two times.

7. Restart Windows to complete the

installation.

Windows 2000

1. Install the board and boot up Windows.

2. Insert the driver CD. Close the CD autoplay

window if prompted.

3. At the Found New Hardware Wizard, click

Next.

4. Select Search for a suitable driver for my

device (recommended), and click Next.

5. Select Specify a location, uncheck the other

boxes, and click Next.

6. Type in D:, then click OK. (Change D: to

match your CD/DVD-ROM drive letter)

7. Click Next, then click Finish.

8. Repeat steps 3-7 two times.

9. Restart Windows to complete the

installation.

To Verify Windows 8 / 7 / Vista / XP / Server

2003 & 2008 / 2008 R2 / 2000 Installation

1. Check in Device Manager to verify

installation.

For Windows 8 / 7 / XP / Server 2003 / 2000:

Right click Computer or My Computer,

click Manage, then click Device Manager.

For Windows Vista: Right click Computer,

click Manage, click Continue, then click

Device Manager.

For Server 2008 / Server 2008 R2: Right click

Computer, click Manage, double click

Diagnostics, click Device Manager.

2. Double click Ports (COM & LPT),

CyberSerial 16C550... should be displayed.

3. Double click Multifunction adapters, SIIG

CyberPro 2S board should be displayed.

Windows ME

1. At the Add New Hardware Wizard, choose

Specify the location of the driver

(Advanced), click Next.

2. Check Specify a location, uncheck the other

box, insert the driver CD, type in D:\9x,

then click Next. (Change D: to match your

CD-ROM drive letter)

3. Click Next and Finish.

4. Repeat steps 1-3.

5. Restart Windows to complete the

installation.

Windows 98SE / 98

1. At the Add New Hardware Wizard, click

Next.

2. Select Search for the best driver for your

device (Recommended), then click Next.

3. Select Specify a location, uncheck the other

boxes, insert the driver CD, type in D:\9x,

then click Next. (Change D: to match your

CD-ROM drive letter)

4. Click Next, then Finish.

5. Repeat steps 1-4.

6. Restart Windows to complete the

installation.

Windows 95

1. At the Update Device Driver Wizard, click

Next.

2. Insert the driver CD, and click Other

Locations.

3. Type in D:\9x, click OK, then click Finish.

(Change D: to match your CD/DVD-ROM

drive letter)
