SIIG 04-0358C Manuel utilisateur

Parallel PCI 1P

Quick Installation Guide

04-0358C

Introducing the Parallel PCI 1P

The Parallel PCI 1P high-speed parallel card provides one

additional parallel port to your system. Depending on

the model purchased, this board will fit into either Full or

Low Profile chassis.

Features and Benefits

•Conforms to PCI v2.2 Plug and Play

•Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots

•Full support for Windows-based software

•Reduces CPU load and improves system

performance dramatically

•Supports EPP/ECP, BPP (bi-directional), SPP

(standard) parallel port modes

System Requirements

•Pentium or equivalent computer with an available

32-/64-bit PCI or PCI-X slot

•Windows ®95/98/98SE/ME/NT 4.0/2000/XP (32-

/64-bit)/Server2003(32-/64-bit)/Vista(32-/64-bit)

PackageContents

•Parallel PCI 1P board

• Low profile bracket (for Dual Profile PCI-1P only)

• Driver CD

• This quick installation guide

Parallel Port

Layout

Dependingonthemodelpurchased,the bracket mounted

on your board may vary from the image displayed.

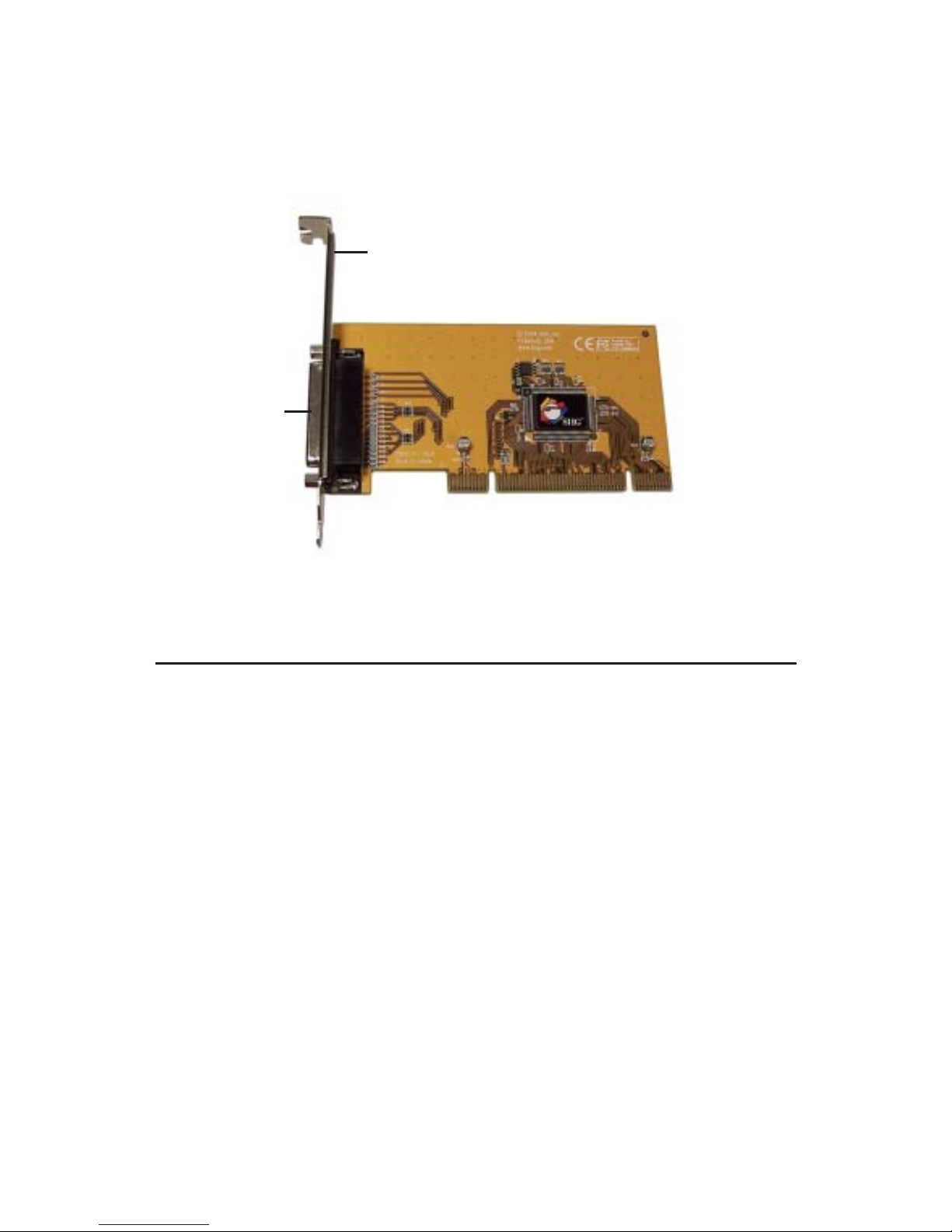

Figure 1. Layout

Hardware Installation

General instructions for installing the card are provided

below. Since the design of computer cases and

motherboards vary, refer to your computer’s reference

manual for further information, if needed.

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer’s case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

1. Turn OFF the power to your computer and any

other connected peripheral devices.

2. Unplug the power cord from the back of the

computer.

Full profile bracket

3. Remove your computer’s cover.

4. Remove the slot bracket from an available PCI slot.

5. To install the card, carefully align the card's bus

connector with the selected PCI slot on the

motherboard. Push the board down firmly, but

gently, until it is well seated.

6. Replace the slot bracket holding screw to secure the

card.

7. Replacethecomputer coverandreconnectthepower

cord.

Driver Installation

This section provides information on how to install the

CyberParallel PCI drivers.

Windows 95

1. At the Update Device Driver Wizard, click Next.

2. Insert the driver CD, and click Other Locations.

Type in D:\9x, click OK, then Finish. (Change D: to

match your CD-ROM drive letter)

3. From the Insert Disk window, click OK. When the

Copying Files dialog box appears, type in

D:\9x, then click OK. (Change D: to match your

CD-ROM drive letter)

4. Restart Windows to complete the installation.

Windows 98/98SE

1. At the Add New Hardware Wizard, click Next.

2. Select Search for the best driver for your device.

(Recommended), then click Next.

3. Select Specify a location, uncheck the other boxes,

insert the driver CD, type in D:\9x, then click Next.

(Change D: to match your CD-ROM drive letter)

4. Click Next, then Finish. If prompted, at the Insert

Disk box click OK. Insert your Windows 98

Installation CD-ROM then click OK.

5. Restart Windows to complete the installation.

Windows ME

1. At the Add New Hardware Wizard, select Specify

the location of the driver (Advanced), then click

Next.

2. Check Specify a location, uncheck the other box,

insert the driver CD, type in D:\Me, then click Next.

(Change D: to match your CD-ROM drive letter)

3. Click Next, then Finish.

4. Restart Windows to complete the installation.

To Verify Windows 95/98/98SE/ME Installation

1. From the main desktop, double click My Computer,

Control Panel,System,then click Device Manager.

2. Double click Ports (COM & LPT), ECP Printer

Port... and SIIG CyberPro Parallel port should be

displayed.

Windows NT 4.0

1. From the desktop click Start, then Run.

2. Insert the driver CD, type in

D:\NT4\Install_Parallel.exe, then click OK.

(Change D: to match your CD-ROM drive letter)

3. At the Welcome window, click Next.

4. Choose Install, then click Next.

5. Click Yes, then click Exit.

6. Click Yes to restart to complete the installation.

To Verify Windows NT 4.0 Installation

1. Click Start, Programs, Administrative Tools, then

Windows NT Diagnostics.

2. Click Resources tab, SIIGpar should be displayed.

Windows 2000

1. At the Found New Hardware Wizard, click Next.

2. Select Search for a suitable driver for my device

(recommended), then click Next.

3. Select Specify a location, uncheck the other options

and click Next.

4. Insert the driver CD, type in D:\2000, then click OK.

(Change D: to match your CD-ROM drive letter)

5. Click Next, then click Finish.

6. Restart Windows to complete the installation.

To Verify Windows 2000 Installation

1. Right click My Computer, click Manage, then click

Device Manager.

2. Click on the +(plus sign) in front of Ports (COM &

LPT), SIIG CyberPro Parallel port... should be

displayed.

32-bit Windows XP/Server 2003

1. At the Found New Hardware Wizard, insert the

driver CD.

For XP w/SP1 or earlier/ Server 2003: go to step #2.

For XP w/SP2 or later/Server 2003 wSP1 or later:select

No, not this time, click Next.

2. Select Install the software automatically

(Recommended,then click Next.

3. Click Finish.

4. Repeat steps 1-3 two more times.

5. Restart Windows to complete the installation.

64-bit Windows XP/Server 2003

1. At the Found New Hardware Wizard, insert the

driver CD.

For XP w/SP1 or earlier/ Server 2003: go to step #2.

For XP w/SP2 or later/Server 2003 wSP1 or later:select

No, not this time, click Next.

2. Select Install the software automatically

(Recommended,then click Next.

3. Click Continue Anyway, then click Finish.

4. Repeat steps 1-3 several more times.

5. Restart Windows to complete the installation.

To Verify Windows XP/Server 2003 Installation

1. Right click My Computer, click Manage, then click

Device Manager.

2. Click on the +(plus sign) in front of Ports (COM &

LPT), SIIG CyberPro Parallel port... should be

displayed.

Windows Vista™

1. At the Found New Hardware window, insert the

driver CD, click Locate and install driver software

(recommended), then click Continue.

Note: Windows Vista driver installation process

may take several minutes to complete.

2. Click Next, then click Close to complete the

installation.

To Verify Windows Vista Installation

1. Right click Computer,click Manage,clickContinue,

then click Device Manager.

2. Click on the +(plus sign) in front of Ports (COM &

LPT), SIIG CyberPro Parallel port... should be

displayed.
