SIIG FE-CXST11 Manuel utilisateur
1
FiberOptic Converters
Quick Installation Guide
This quick installation guide provides instructions for installing a FiberOptic
Converter.
1-1 Introducing the FiberOptic Converter
The FiberOptic Converters are used to convert Fast Ethernet
100Base-TX to fiber optic 100Base-FX network connection. The
Converters can be used as a stand-alone unit or as a slide-in module
to the 19" converter rack (up to 10 units) for use at a central wiring
closet. The following models are available:
• FiberOptic Converter-ST (multi-mode)
• FiberOptic Converter-SC (multi-mode)
Feature/Specifications
•Standards: IEEE 802.3u Fast Ethernet 100Base-TX /FX
•Connectors:
UTP port: RJ-45
Fiber optic port: ST or SC, 1300nm
•Cable:
Fiber optic: 50/125, 62.5/125 or 100/140 µm (multi-mode)
UTP: Category 5 UTP
•Data Transfer Rate:
Half-duplex: up to 100Mbps; Full-duplex: up to 200Mbps
•Cable Connection Parameters: 100Base-TX/FX (multi-mode)
network allows 512-bit time delay between any two node
stations in a collision domain. The overall bit-time of TP/Fiber
wires and devices must be within 512 bit in a segment. You
may use a switch to break up collision domain and extend the
cabling distance.
•Power Requirement: 1.0A @ +5V
•Operating Temperature: 32° to 122° (0° to 50°C)
•Storage Temperature: -40° to 158°F (-40° to 70°C)
•Relative Humidity: 5% to 90%, non-condensing
•Dimensions: 26.2mm (H) x 70.3mm (W) x 94mm (D)
04-0180A
2
•LED Indicators:
LED Color Function
FX ACT Green Blinks when any FX traffic is present
FX LNK Green Lit when Fiber connection is good
TX ACT Green Blinks when any TP traffic is present
TX LNK Green Lit when TP connection is good
FDX Green Lit when full-duplex mode is active
PWR Green Lit when +5V power is coming up
•DC Jack and AC/DC Power Adapter:
AC Input: 100–240VAC 50/60Hz
DC Output: 1A @ +5VDC
UTP Cable Length (Max.):
Full- or Half-duplex Node to Node 100 m
Node to Switch 100 m
Fiber Optic Cable Lengths (Max.):
Half-duplex Node to Node: 412 m
(multi-mode) Node to Switch: 412 m
Full-duplex Node to Node: 2000 m
(multi-mode) Node to Switch: 2000 m
Connecting to 10/100Mbps NWay Device:
TP Port Non-NWay, supports 100Mbps only. Force the
partner to 100Mbps speed at Fdx or Hdx.
Fiber Port Non-NWay, supports 100Mbps only. Force the
partner to 100Mbps speed at Fdx or Hdx.
Fdx/Hdx Selectable to match partner's operation mode.
Default: Hdx
Unpacking
Before setting up your FiberOptic Converter, verify that the following
items are included in the packaging carton:
• FiberOptic Converter
• AC/DC Power Adapter
• This Quick Installation Guide
Please notify your dealer if any item is damaged or missing.
3
2-1 Installing the FiberOptic Converter
1. Insert the power jack from the AC/DC power adapter into the
5VDC jack on the Converter.
2. Connect the cables for the network connection.
a. Connect a fiber cable between the Converter's Tx (transmit) port
andconnectingdevice'sRx (receive) port.Connectanotherfiber
cablebetweentheConverter'sRx(receive)portandtheconnecting
device's Tx (transmit) port.
b. Connect a UTP Cat. 5 cable between the Converter's TP port and
the connecting device's TP port.
3. Full- or half- (default) duplex mode is selectable and must match
the remote link device's mode.
NOTE: Wiring pin-outs for connections from the TP port:
-To a Switch or Hub/Repeater (MPR) :
Straight-through cable 1, 2, 3, 6 to 1, 2, 3, 6
-To a workstation (DTE) or NIC:
Cross-over cable 1 to 3, 2 to 6, 3 to 1, 6 to 2
100Bas
Netw
SC
Fiber
Network
TX
RX
RX
TX
Hdx
Fdx
TP-to-SC
100Base-FX
Fiber Network
100Base-TX
Network
RX
TX
TX
RX FiberOptic
Converter

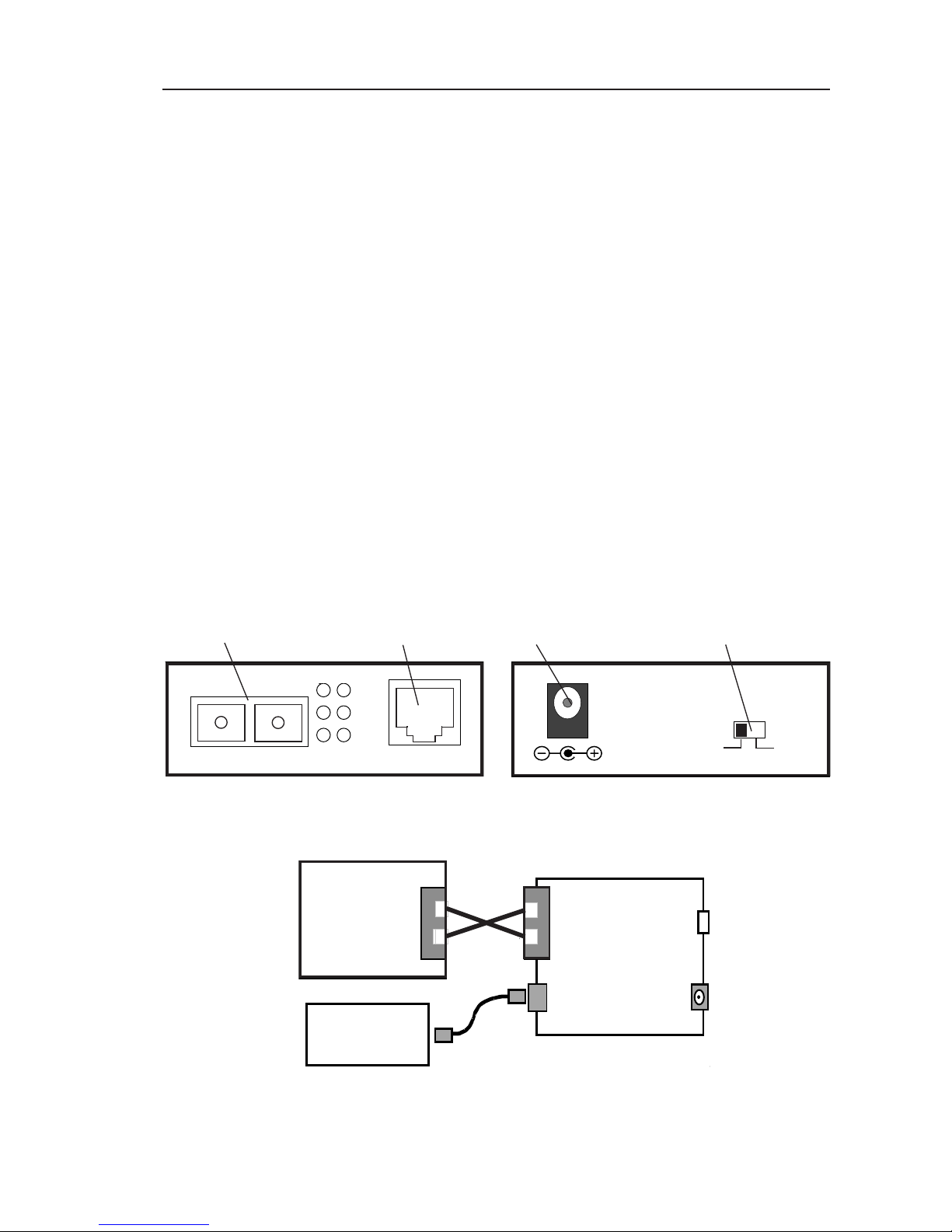

Basic Network Connection
Duplex Mode
Switch
Mode Selection
H
d
x F
d
x
5VDC
HDX FDX
AC
LN
F
Fdx Pwr
TX RX
T
FX TX
ACT
LNK
PWRFDX
AC/DC
Jack
TP Port
ST/SC
Fiber Port
FiberOptic Connector/Switch Locations
NOTE: If connecting to a Router, Bridge, or Switch, please refer to the
device's technical manual.
4
3-1 Technical Support & RMA
Questions? SIIG’s On-line Support has the answers! Simply visit
our web site at www.siig.com and click on the ON-LINE SUPPORT
icon for instant technical support. You may also e-mail us online at:
http:\www.siig.com/technical_support_form.html
If you need additional help, Tech Support Specialists are available
from 8:00 a.m. to 5:00 p.m. Mon. – Fri., PST at (510) 353-7542.
In order for SIIG’s Technical Support to give you prompt service,
you will need the following information.
Part Number: ______________________________________
Computer Configuration: ___________________________
Return Merchandise Authorization (RMA)
SIIG warrants to the original buyer of the product that the hardware
is free of defects in materials and workmanship for a period of five
years from the date of purchase. If your product fails to be in good
working order during the warranty period, you may return it to SIIG
for repair or replacement at SIIG's option. To return a product:
Step 1: Call SIIG's RMA Department
Callthe RMADepartment at(510) 413-5333for aReturn Merchandise
Authorization (RMA) number. To get a RMA number, you must
have your product serial number. The serial number is located on
the side of the box it came in and on the back of the product.
Step 2: Complete the RMA form
• Fill out the RMA form and include it with the product.
• Properly pack the product for shipping. All software, cable(s) and
accessories that came with the original package must be included.
• Clearly write your RMA number on the top of the returned package
andontheaccompanyingRMAform.SIIGwillrefuseanyshipping
package, and not be responsible for a product returned without
a RMA number posted on the outside of the shipping carton.
Step 3: Ship the product
You are responsible for the shipping cost to SIIG at the following
address:
SIIG, Inc. RMA#_______________
6078 Stewart Ave.
Fremont, CA 94538
SIIG will ship the repaired or replaced product via UPS Ground or US
Mail at no cost to you.
