SIIG CE-HM0031 Manuel utilisateur

DVI + Audio to HDMI

QuickInstallationGuide

Introducing the DVI + Audio to HDMI

The DVI + Audio to HDMI provides a low cost solution for

converting DVI video plus either digital audio or analog

stereo audio to Digital HDMI.

FeaturesandBenefits

• Allows DVI based devices such as PCs with S/PDIF

or analog stereo to be connected to HDMI enabled

TVs

• Fully HDCP compliant

• Supports DVI video up to 165MHz

• Features Coaxial S/PDIF and stereo audio inputs

TechnicalSpecifications

• Video Amplifier bandwidth: 1.65Gbps

• Video signal output: 1.2V (peak to peak)

• Output DDC signal: 5V (peak to peak) TTL

• Single link range: 1080p/1920 x 1200

• HDMI connector: 19 pin female

• DVI connector: DVI-I 29-pin female (digital only)

• Power consumption: 10 watts (max)

PackageContents

•DVI + Audio to HDMI

• Power adapter (5V, 2A)

• Quick Installation Guide

04-0496A

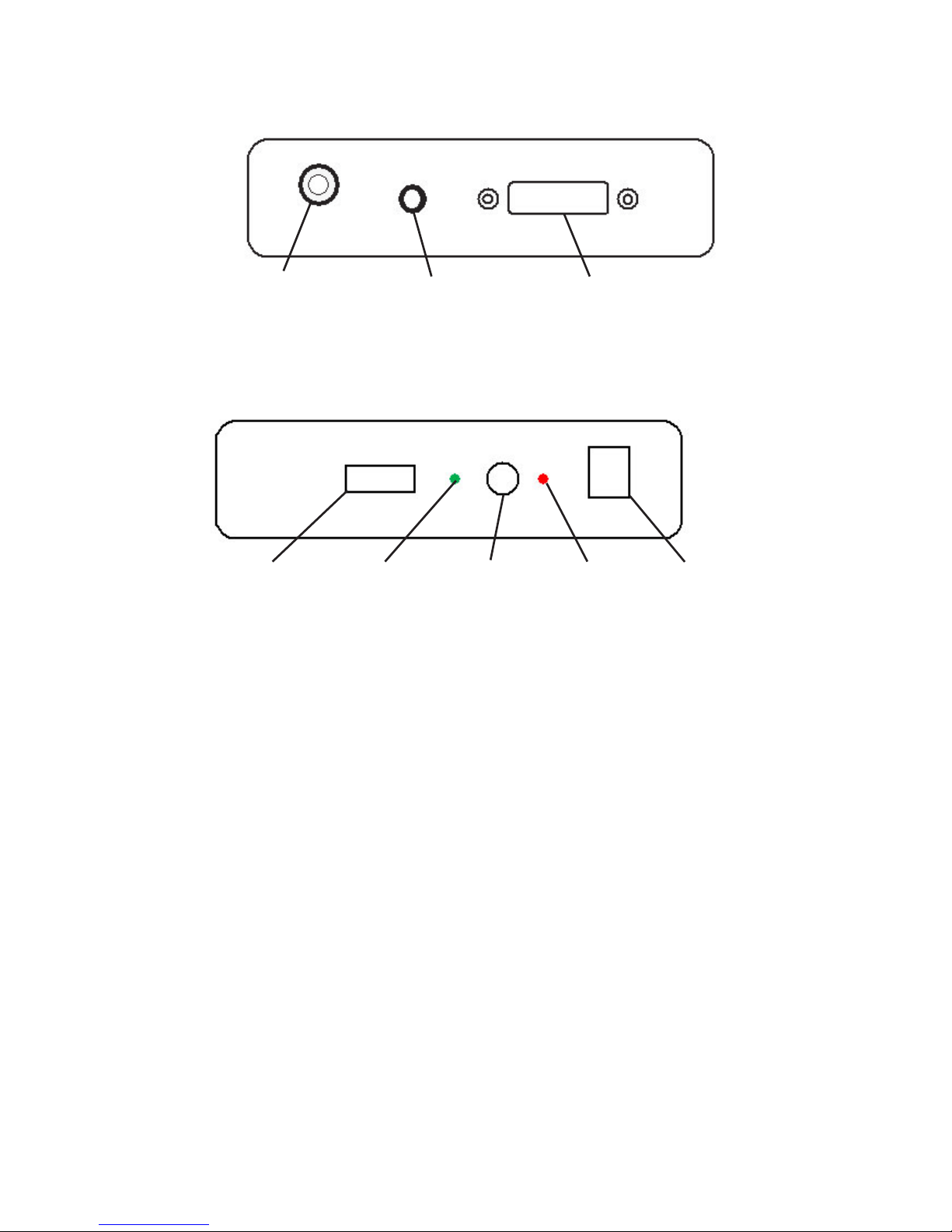

FrontPanel

RearPanel

HDMI

Out

S/PDIF In DVI In

Status

Indicator

Rotary

Switch

Power

Indicator

Power

Jack

RotarySwitchModes

•0: Analog mode

•1: S/PDIF audio mode

•2-5: Reserved

•6: EDID default

•7: EDID update from HDMI port. To enable image,

set rotary switch to 7, when image appears return to

StatusIndicator

Green indicates a good connection.

Stereo Audio In

Hardware Installation

1. Connect your DVI source to the DVI In of the DVI +

Audio to HDMI.

2. Connect either your digital S/PDIF or stereo audio

sourcetoS/PDIFInorStereoAudioIn,respectively,

of the DVI + Audio to HDMI.

3. Connect your HDMI TV or other HDMI enabled

display to HDMI Out of the DVI + Audio to HDMI.

4. Plug the power adapter into the Power Jack of the

DVI + Audio to HDMI, then plug the power adapter

into a reliable power outlet.

Safety Precautions

Like all electronic equipment the DVI + Audio to HDMI

should be used with care. Please read and follow the

safetyprecautionstoprotect yourself from possible injury

and minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on the

unit

• Provide proper ventilation and air circulation, do

not use near water

• Do not attempt to service the unit yourself, except

where explained in the manual

• Keep objects that might damage the device at a safe

distance and assure that the placement of this unit is

on a stable surface

• Do not use liquid or aerosol cleaners to clean this

unit and always unplug the power to the device

before cleaning

• Use only the power adapter and accessories that

came with the unit

FAQs

• OnlyHDMIenabledTVswith underscan/overscan*

support can accurately display full active video.

Some HDMI equipped TVs cannot support this

feature. If underscan/overscan is not supported,

the top, bottom, left and right border of the active

video may be distorted, and the S/PDIF audio may

not sound right.

*Note: Underscan mode displays full video frame,

which reveals content recorded on the edges of the

screen. In overscan mode, the field monitor zooms

into the area that would be visible on most TVs. Set

the field monitor to underscan if your video will be

viewed on a computer monitor or shown with a

projector, also look for light stands, microphones

and other unwanted objects on the edges of your

shot. Set to overscan to see how the video will look

on a television.

•Stereo Audio In: supports 2-channel analog audio.

This port does not support 8-channel analog audio.

•S/PDIF In: supports up to 8-channel audio input.

•S/PDIF In: supports 48KHz audio sampling rate

only. Adjust your audio source's output signal to

48KHz in order to send the correct audio signal.

•Rotary Switch: mode 7; to read EDID of the HDMI

port. Set rotary switch to 7, then return to 0when the

image appears.

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyourquestionscouldbejustafewclicksaway. Youcanalsosubmit

questions online and a technical support analysts will promptly

respond.

SIIGoffers a 2-year manufacturer warranty with this product. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyourpurchasehaspassedthe store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

DVI+AudiotoHDMIisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksof

SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of

theirrespectivecompanies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCIe, PCI & ISA serial and

parallel ports, USB, Serial ATA & UltraATA controllers, FireWire

(1394a/b),networking, sound cards,andother accessories. SIIG isthe

premier one-stop source of upgrades.

SIIGproducts offercomprehensiveuser manuals, manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

DVI +Audio to HDMI

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Ph: 510-657-8688
