SIIG DP FireWire 800 PCI-32T Manuel utilisateur

DP FireWire 800 PCI-32T

Quick Installation Guide

04-0459D

Introducing the DP FireWire 800 PCI-32T

The DP FireWire 800 PCI-32T provides 2 independent hot-

pluggable FireWire 800 (1394b) ports and 1 FireWire 400

(1394a) port with data transfer rates up to 800Mbps.

FeaturesandBenefits

• Provides 2 FireWire 800 (9-pin) and 1 FireWire 400

(6-pin) ports for multiple device connections

• Supports IEEE 1394b and backwards compatible

with 1394a-2000 and 1394-1995 standards

• Supports serial bus data transfer rates of 100, 200,

400 and 800 Mbps

• Built-in4-pinpowerconnectorprovidesextrapower

when connected to the system power supply

(recommended)

• Hot-swapping allows you to connect/detach

devices without turning your system off

• Includes one spare low profile bracket for systems

with low profile chassis

• Works with DV camcorders, CD-RW/DVD-ROM

drives, scanners, FireWire hard disks, digital

cameras, video game systems and other

audio/video devices

System Requirements

• Pentium®or equivalent PC with an available 32-bit

or 64-bit PCI slot

• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP

(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000

PackageContents

• DP FireWire 800 PCI-32T

• Spare low profile bracket

• Driver CD

• Quick installation guide

BoardLayout

Figure1:Layout

FireWire 400 port

FireWire 800 ports

Power Connector

Note: The Power Connector supplies extra

power when connected to the system power

supply. This connection is optional but

recommended.

Hardware Installation

Note: For Low Profile systems, replace the currently

mounted bracket with the included Low Profile bracket.

General instructions for installing the card are provided

below. Since the design of computer cases and

motherboards vary, refer to your computer’s reference

manual for further information, if needed.

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer case for a few

seconds. Avoid any contact with internal parts and handle

cards only by their external edges.

1. Turn OFF the power to your computer and any

connected peripheral device.

2. Unplug the computer's power cord, remove the

cover and install the card in an available PCI slot.

3. Push the board down firmly, but gently, until it is

well seated.

4. Connect an available 4-pin power connector from

the system power supply to the 4-pin power

connector on the DP FireWire 800 PCI-32T (see

Figure1onpage2). Thisconnectionisrecommended

for reliable power output.

5. Secure the card and replace the cover.

Driver Installation

This section provides information on how to install the DP

FireWire 800 PCI-32T drivers.

Windows7(32-/64-bit)

Windows 7 automatically installs it's built-in FireWire 400

driver for the DP FireWire 800 PCI-32T. To getthe full speed

out of this controller,install the FireWire 800 driver using

the directions below.

1. Insert the driver CD. Click Start.

For 32-bit: In the Search programs and files box,

type D:\setup32.exe, press Enter. (Change D: to

match your CD-ROM drive letter)

For 64-bit: In the Search programs and files box,

type D:\setup64.exe, press Enter. (Change D: to

match your CD-ROM drive letter)

2. Follow the on screen instructions to complete the

installation.

WindowsVista™/Server2008(32-/64-bit)

Windows Vista or Server 2008 automatically installs it's

built-in FireWire 400 driver for the DP FireWire 800 PCI-

32T. To get the full speed out of this controller,install the

FireWire 800 driver using the directions below.

1. Insert the driver CD. Click Start.

For 32-bit: In the Start Search box, type

D:\setup32.exe, press Enter. (Change D: to match

your CD-ROM drive letter)

For 64-bit: In the Start Search box, type

D:\setup64.exe, press Enter. (Change D: to match

your CD-ROM drive letter)

2. Follow the on screen instructions to complete the

installation.

WindowsXP/Server2003(32-/64-bit)

Windows XP or Server 2003 automatically installs it's

built-in 1394a driver for the DP FireWire 800 PCI-32T. To

get the full speed out of this controller,install the Firewire

800 driver using the directions below.

1. Insert the driver CD. Click Start, Run.

For 32-bit: Type D:\setup32.exe, clickOK. (Change

D: to match your CD-ROM drive letter)

For 64-bit: Type D:\setup64.exe, clickOK. (Change

D: to match your CD-ROM drive letter)

2. Follow the on screen instructions to complete the

installation.

Windows2000

Windows 2000 automatically installs it's built-in 1394a

driver for the DP FireWire 800 PCI-32T. To get the full

speed out of this controller, install the Firewire 800 driver

using the directions below.

1. Insert the driver CD. Click Start, Run. Type

D:\setup32.exe, click OK. (Change D: to match

your CD-ROM drive letter)

2. Follow the on screen instructions to complete the

installation.

ToVerifyWindowsInstallation

1. Check Device Manger to verify installation.

For Windows 7 / XP / Server 2003 / 2000: Right click

Computer or My Computer, click Manage, click

Device Manager.

For Windows Vista: Right click Computer, click

Manage, click Continue, click Device Manager.

For Windows Server 2008: Right click Computer,

click Manage, click Diagnostics, click

Device Manager.

2. Double click 1394 Bus host controllers. Unibrain

driver/OHCI Compatible Board or IEEE 1394b

(FireWire 800) adapter should be displayed.

Connecting Devices

General driver installation steps are provided below.

Please review your device's user manual for more details.

Windows 7 / Vista / Server 2008

Windows 7, Windows Vista, or Server 2008 will

automatically detect and install most FireWire devices

when connected. However, for devices that do not install

automatically, additional drivers maybe required. Refer

to the device's users manual and/or contact the device's

manufacturer for the correct driver.

Windows XP

1. At the Found New Hardware Wizard.

For XP w/SP2 or later: Select No, not this time, then

click Next.

For XP w/SP1 or earlier: Go directly to step #2.

2. Select Install the Software Automatically, click

Next.

3. Click Continue Anyway. (Skip if not prompted)

4. Click Finish to complete the installation.

WindowsServer2003

1. At the Found New Hardware Wizard.

For Server 2003 w/SP1 or later: Select No, not this

time, then click Next.

For Server 2003: Go directly to step #2.

2. Select Install the Software Automatically, click

Next.

3. At the Security Alert box click Yes, or the Hardware

Installation box click Continue Anyway, then click

Finish to complete the installation.

Windows2000

1. At the Found New Hardware Wizard, click Next.

2. Select Search for a suitable driver..., then click

Next.

3. Uncheck all check boxes, click Next, click Next.

4. Click Finish to complete the installation.

ubSwitch Utility

In order to use a DV camcorder with this controller,

Microsoft's FireWire 400 driver must be installed in the

system. We have supplied an easy to use utility that allows

switching between Microsoft's driver and the FireWire 800

driver. Before using this utility, unplug all devices from the

FireWire 800 card.

The steps, taken from Windows XP, may be different for

other Windows operating systems.

1. Click Start, Programs,Unibrain ubcore, Tools then

ubSwitch.

2. Right click the ubSwitch icon located in the system

tray by the clock.

3. Click the 1394 Adapter that you want to switch,

then click on Microsoft 1394 Drivers.

Note: If your system has multiple 1394 adapters

installed, make sure that you click on the 1394

adapter that the camcorder will be plugged into.

4. Windows will display an information box when the

driver is ready for use. It may take a few seconds

for this box to appear.

Note: To switch back to the FireWire 800 driver,

follow the same procedures, but in step 3 instead of

clicking on Microsoft 1394 Drivers, click on

Unibrain 1394 Drivers.

Blank Page

Autres manuels pour DP FireWire 800 PCI-32T

Table des matières

Autres manuels SIIG Firewire

SIIG

SIIG DP FireWire PCIe Manuel utilisateur

SIIG

SIIG DP FireWire 800 PCI-32T Manuel utilisateur

SIIG

SIIG 1 FireWire 800 CardBus DV-Ki Manuel utilisateur

SIIG

SIIG FireWire ExpressCard Manuel utilisateur

SIIG

SIIG FireWire 3-Port CardBus Manuel utilisateur

SIIG

SIIG FireWire 800 ExpressCard Manuel utilisateur

SIIG

SIIG 1 FireWire 800 CardBus DV-Ki Manuel utilisateur

SIIG

SIIG FireWire 800 DV Kit Manuel utilisateur

SIIG

SIIG FireWire 2-Port CardBus Manuel utilisateur

SIIG

SIIG FireWire 800 2-Port ExpressCard/34 Manuel utilisateur

Manuels Firewire populaires d'autres marques

Kramer

Kramer 648 Manuel utilisateur

Hawking

Hawking DV692 Manuel utilisateur

IOGear

IOGear BattleHub GFH600BH Manuel utilisateur

Philips

Philips SWV3514S/10 Manuel utilisateur

Belkin

Belkin F5U501GEU Manuel utilisateur

Mackie

Mackie D.2 Manuel utilisateur

Plextor

Plextor PX-755UF Manuel utilisateur

Mackie

Mackie FireWire Manuel utilisateur

Belkin

Belkin F5U501NEU Manuel utilisateur

StarTech.com

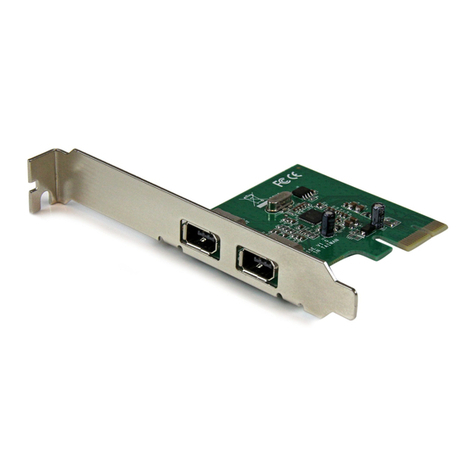

StarTech.com PEX1394A2V Manuel utilisateur
