1
Introducing the HDMI Extender
The HDMI Extender over 2 CAT5e with IR boosts your
audio/video transmission distance up to 60m (200ft) in
HDTV 1080i format. With two cost effective CAT5e/6
cables, users can readily extend an HDMI source such as
a DVD player, Blu-ray Disc player, game console, PC,
and any other TMDS compliant devices to a remote
HDMI/DVI TV or LCD monitor. This cost effective
solution provides flexibility for HDMI enabled devices
to transmit high quality audio/video to greater distances
at minimal cost.
FeaturesandBenefits
•HDMI 1.3a and HDCP compliant
•Extends audio/video transmission from an HDMI
source to an HDMI display over two economical
CAT5e/6 cables
•Controls source devices from the remote side
instantly
•Embedded IR control path
•Minimize cable skew with the adjustable 8-level
equalization knob
•Supports distances up to 60m/200ft @ 720p/1080i
or 40m/130ft @ 1080p
04-0508A
HDMI Extender over 2
CAT5e with IR
Quick Installation Guide
2
PackageContents
•HDMI transmitter (TX)
•HDMI receiver (RX)
• 1xPoweradapter(5V,4A)
•IR transmitter extension cable (90cm/3ft)
•IR receiver extension cable (90cm/3ft)
•Quick Installation Guide
Layout
Figure 1: Transmitter (front & back)
• HDMI In: connect to a HDMI source with an HDMI
M-M cable (not included) here
• IR Extender: this is the IR sending socket, connect
the IR transmitter extension cable here
• TMDS: plug in a CAT5e/6 cable, links to the TMDS
connector of the receiving unit
• DDC: plug in a CAT5e/6 cable, links to the DDC
connector of the receiving unit
3
Figure 2: Receiver (front & back)
• HDMIOut:connectanHDMIdisplaywithanHDMI
M-M cable (not included) here
• EQ: adjusts the equilization of the received signal
from 0 (strongest) to 7 (weakest). It is recommended
to switch from 0 to 7 to find the optimal visual
experience
• IR Extender: this is IR receiving socket, connect the
IR receiver extension cable here
• TMDS: plug in a CAT5e/6 cable, links to the TMDS
connector of the transmitting unit
• DDC: plug in a CAT5e/6 cable, links to the DDC
connector of the transmitting unit
• +5V DC: connect to the included 5V power adapter
4
Figure 3: IR Transmitter Figure 4: IR Receiver
Hardware Installation
1. Connect your HDMI source to the transmitter.
2. Connect the IR transmitter cable to the transmitting
unit and point the emitter directly to the IR of the
HDMI source.
3. Connect your HDMI display to the receiving unit.
4. ConnectyourCAT5ecablesbetweenthetransmitting
and receiving units. Make sure the cables are
securely connected and not loose.
5. Connect the IR receiver cable to the receiver, and
point the IR receiver directly to the IR of the HDMI
display.
6. Plug the power adapter into the receiver, then plug
the power adapter into a reliable power source.
Note:thetransmitter does not need a power adapter.
7. If needed, adjust the EQ switch from 0 - 7 (strongest
- weakest) to find the optimal visual experience.
5
Notes
1. When transmitting non-HDCP compliant audio/
video,youcan use just oneCAT5e/6cableconnected
through TMDS.
2. All transmission distances in this manual are
measuredusingCAT5ecable(s). Actual transmission
length and quality of the received display depends
on the quality of your CAT5e/6 cables.
3. To reduce EMI interference over long transmission
distances, use shielded CAT5e/6 cables.
4. For resolutions greater than 1080i or 1280 x 1024, a
CAT6 cable is recommended.
6
Blank Page
7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support hasanswers! Simply visit our
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyourquestions could be just a few clicks away. You canalsosubmit
questions online and a technical support analysts will promptly
respond.
SIIGoffers a 2-year manufacturer warrantywith this product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyour purchase has passed the store's returnpolicyperiod, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
HDMIExtenderover2CAT5ewithIRisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregistered
trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be
trademarksoftheirrespectivecompanies.
September, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCIe, PCI & ISA serial and
parallel ports, USB, Serial ATA & UltraATA controllers, FireWire
(1394a/b),networking,soundcards, and other accessories. SIIG isthe
premier one-stop source of upgrades.
SIIGproductsoffer comprehensive user manuals,manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
PRODUCT NAME
HDMI Extender over 2 CAT5e with IR
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
Ph: 510-657-8688
Table des matières
Autres manuels SIIG Extenseur
SIIG
SIIG AV-GM04A3-S1-IR Manuel utilisateur
SIIG
SIIG AV-GM04Q3-S1 Manuel utilisateur
SIIG
SIIG CE-KV0511-S1 Manuel utilisateur
SIIG
SIIG AV-GM03S3-S1 Manuel utilisateur
SIIG
SIIG AV-GM03X3-S1 Manuel utilisateur
SIIG
SIIG CE-DP0511-S1 Manuel utilisateur
SIIG
SIIG AV-GM0473-S1 Manuel utilisateur
SIIG
SIIG CE-DV0061-S1 Manuel utilisateur
SIIG
SIIG AV-GM0413-S1 Manuel utilisateur
SIIG
SIIG CE-H26411-S1 Manuel utilisateur
SIIG
SIIG AV-GM02D3-S1 Manuel utilisateur
SIIG
SIIG AV-GM04G3-S1-U Manuel utilisateur
SIIG
SIIG HDMI 4K HDBaseT Extender Over Single Cat5e/6 Cable with IR Control -... Fiche d'information produit
SIIG
SIIG JU-EX0111-S1 Manuel utilisateur
SIIG
SIIG CAT5e Manuel utilisateur
SIIG
SIIG CE-H24B11-S1 Manuel utilisateur
SIIG

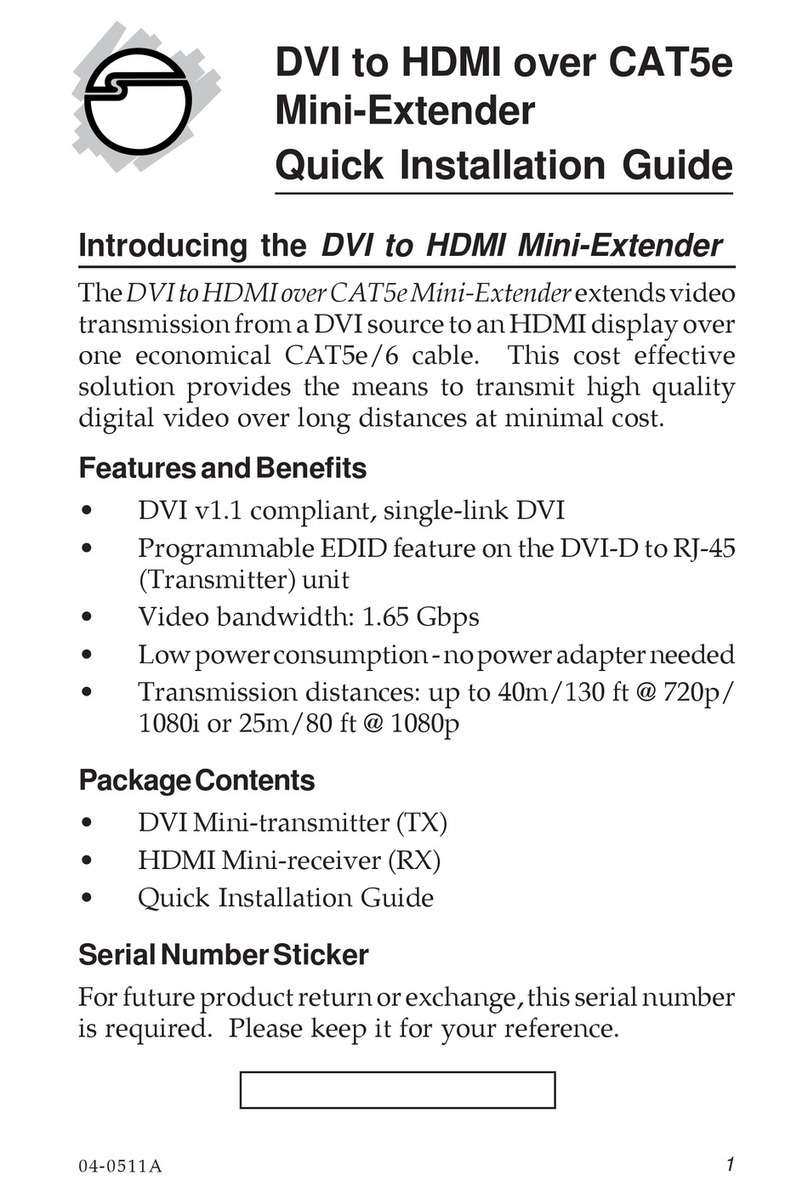

SIIG CE-D20012-S1 Manuel utilisateur
