SATA-to-IDEAdapter
Quick Installation Guide
04-0476B
Introducing the SATA-to-IDE Adapter
The SATA-to-IDE Adapter allows you to connect existing
Ultra ATA 150/133/100/66 hard disk drives and ATAPI
devices to the latest Serial ATA host adapter.
FeaturesandBenefits
• Quickly converts older IDE/Ultra DMA devices for
use with newer Serial ATA controllers
• L-shape compact design to reduce interference with
other devices
• Connects directly to an IDE drive —no expansion
slot required
• Compliant with Serial ATA 1.0a specification
• Supports ATA/ATAPI Ultra DMA data transfer
rates up to 150MB/s
• Compliant with ATA/ATAPI PIO modes 0 to 4
• Connects large Ultra ATA 133/100/66 hard disks to
the latest Serial ATA hosts
• Works with ATAPI optical storage devices such as
CD-ROM,CD-RW,DVD-ROMandDVD-RW(upto
16x)
SerialNumberSticker
For future product return or exchange, this serial number
is required. Please keep it for your reference.
2
SystemRequirements
• Pentium®or equivalent PC with an available
Serial ATA port
• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
PackageContents
•SATA-to-IDE Adapter
• SATA data cable
• "Y" split power cable
• Quick Installation Guide
BoardLayout

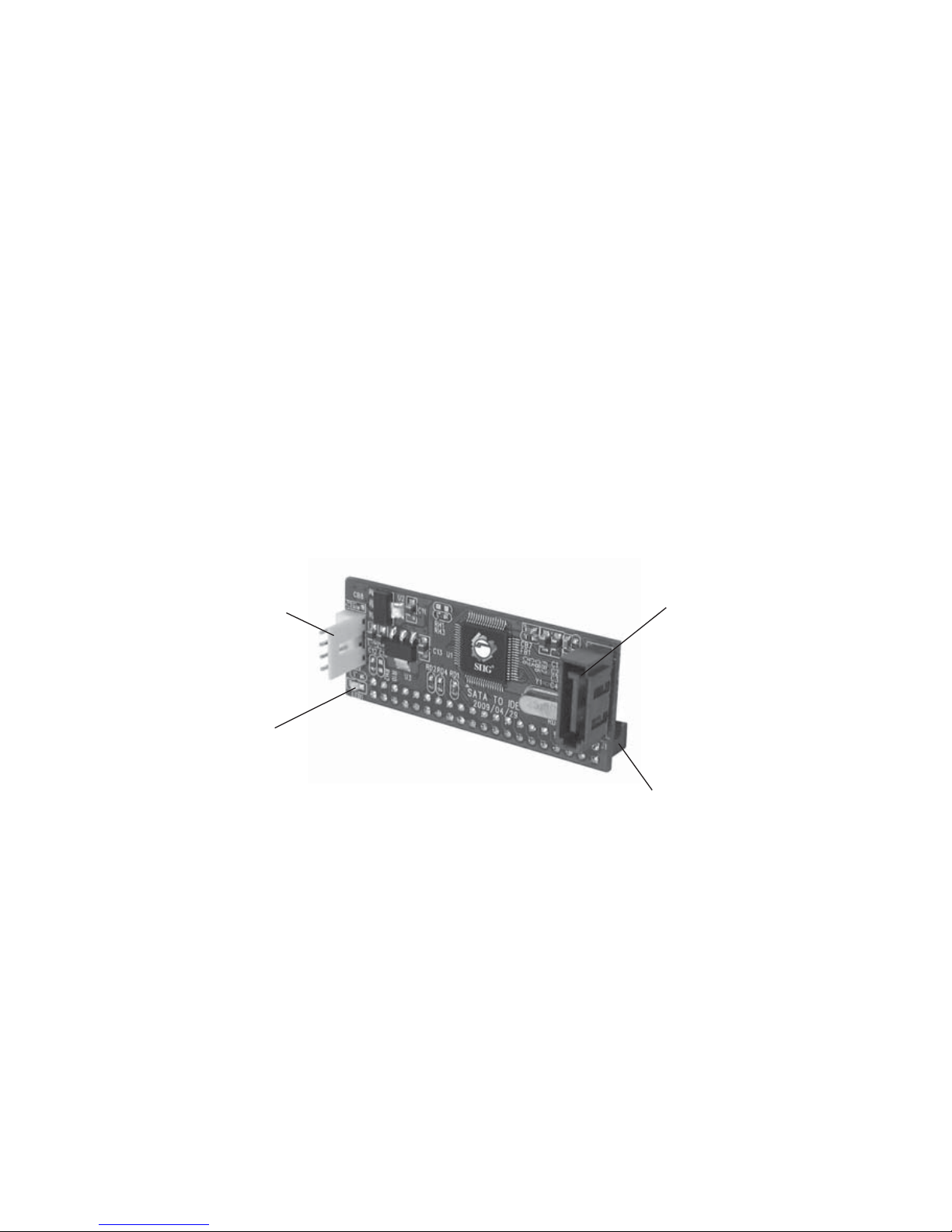

Figure 1: Layout
•LED: activity LED, blinks when the Ultra ATA/
ATAPI device is accessed. If the LED is on
continuouslycheckthejumpersettingof UltraATA/
ATAPI device. To work properly with this adapter,
Ultra ATA/ATAPI devices must be jumpered as
Master. Please read the Ultra ATA/ATAPI device's
users manual for more information.
SATA connector - to
Serial ATA port
Power supply
connector
IDE connector - to Ultra
ATA/ATAPI device
LED - activity LED
3
Hardware Installation
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer.
2. Unplugthepower cord andremoveyour computer's
cover.
3. Using the jumper setting on the Ultra ATA/ATAPI
device, set the device to Master. Read the Ultra
ATA/ATAPI device's user's manual for more
information. Important: Your device must be set to
Master in order for it to work properly through the
SATA-to-IDE Adapter.
4. Connect the SATA-to-IDE Adaptertothe Ultra ATA/
ATAPI device, refer to Figure 2 and 3.
Figure 3
Figure 2
4
5. Connect the SATA data cable to the SATA-to-IDE
Adapter, refer to Figure 4 and 5.
Figure 4 Figure 5
6. Connect the "Y" split power cable to the SATA-to-
IDE Adapter, refer to Figure 6 and 7.
Figure 6 Figure 7
7. Connect the other end of the SATA data cable to an
available Serial ATA port on the Serial ATA host
adapter or motherboard.
5
8. Connect the "Y" split power connector to power the
Ultra ATA/ATAPI device, refer to Figure 8.
Figure 8
9. Connect the other end of the “Y”split power cable
to the system power source.
10. Hardware installation is now complete.
11. Replace thecomputercover andreconnectthe power
cord.
Windows Driver Installation
No driver installation needed.
6
Blank Page
7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyour questions could be just a few clicksaway. Youcan also submit
questions online and a technical support analysts will promptly
respond.
SIIGoffers alifetime manufacturerwarranty withthis product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyour purchase has passed the store's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
SATA-to-IDEAdapterisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksof
SIIG,Inc. Microsoft,WindowsandWindowsVistaareeitherregisteredtrademarksortrademarksof
MicrosoftCorporationintheUnitedStatesand/orothercountries. Pentiumisa registered trademark
of Intel Corporation. Other names used in this publication are for identification only and may be
trademarksof their respective companies.
August, 2009 Copyright ©2009 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCI & ISA serial and parallel
ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),
networking, sound cards, and other accessories. SIIG is the premier
one-stop source of upgrades.
SIIGproducts offercomprehensive usermanuals,many user-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
PRODUCT NAME
SATA-to-IDE Adapter
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
Phone: 510-657-8688
