SIIG SATA-to-IDE Adapter Manuel utilisateur

SATA-to-IDEAdapter

Quick Installation Guide

04-0476A

Introducing the SATA-to-IDE Adapter

The SATA-to-IDE Adapter allows you to connect existing

Ultra ATA 150/133/100/66 hard disk drive and ATAPI

devices to the latest Serial ATA host adapter.

Features and Benefits

• Quickly converts older IDE/Ultra DMA devices for

use with newer Serial ATA controllers

• L-shape compact design to reduce interference with

other devices

• Connects directly to an IDE drive —no expansion

slot required

• Compliant with Serial ATA 1.0a specification

• Supports ATA/ATAPI Ultra DMA data transfer

rates up to 150MB/s

• Compliant with ATA/ATAPI PIO modes 0 to 4

• Connects large Ultra ATA 133/100/66 hard disks to

the latest Serial ATA hosts

• Works with ATAPI optical storage devices such as

CD-ROM,CD-RW,DVD-ROMandDVD-RW(upto

16x)

Serial Number Sticker

For future product return or exchange, this serial number

is required. Please keep it for your reference.

System Requirements

• Pentium®or equivalent PC with an available

Serial ATA port

• Windows®2000/XP (32-/64-bit)/Server 2003

(32-/64-bit)/Vista (32-/64-bit)

PackageContents

•SATA-to-IDE Adapter

• SATA data cable

• "Y" split power cable

• Shielding sponge

• Quick Installation Guide

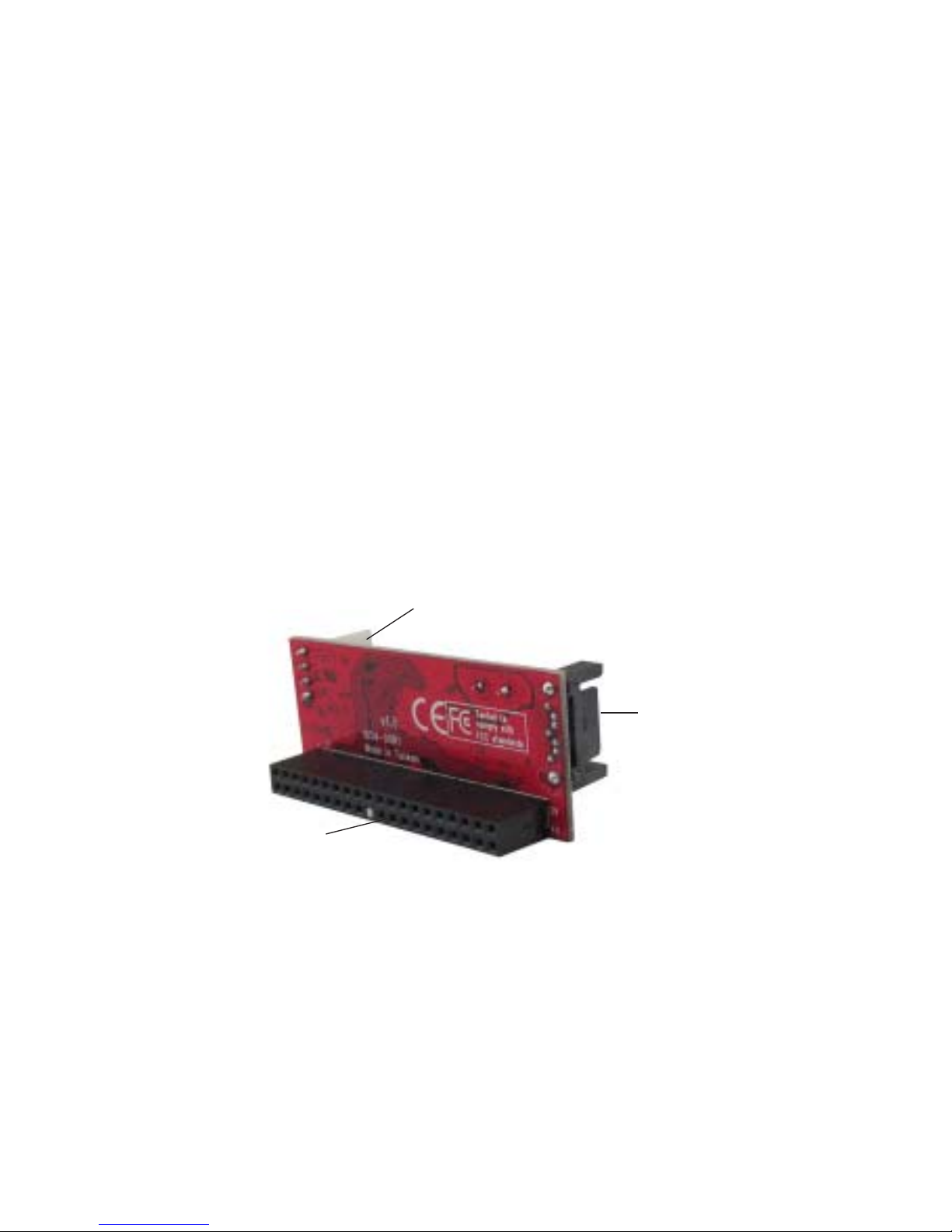

Board Layout

SATA

connector

Power supply connector

IDE connector

Figure 1: Layout

Hardware Installation

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

1. Turn OFF the power to your computer.

2. Unplugthepowercordandremoveyour computer's

cover.

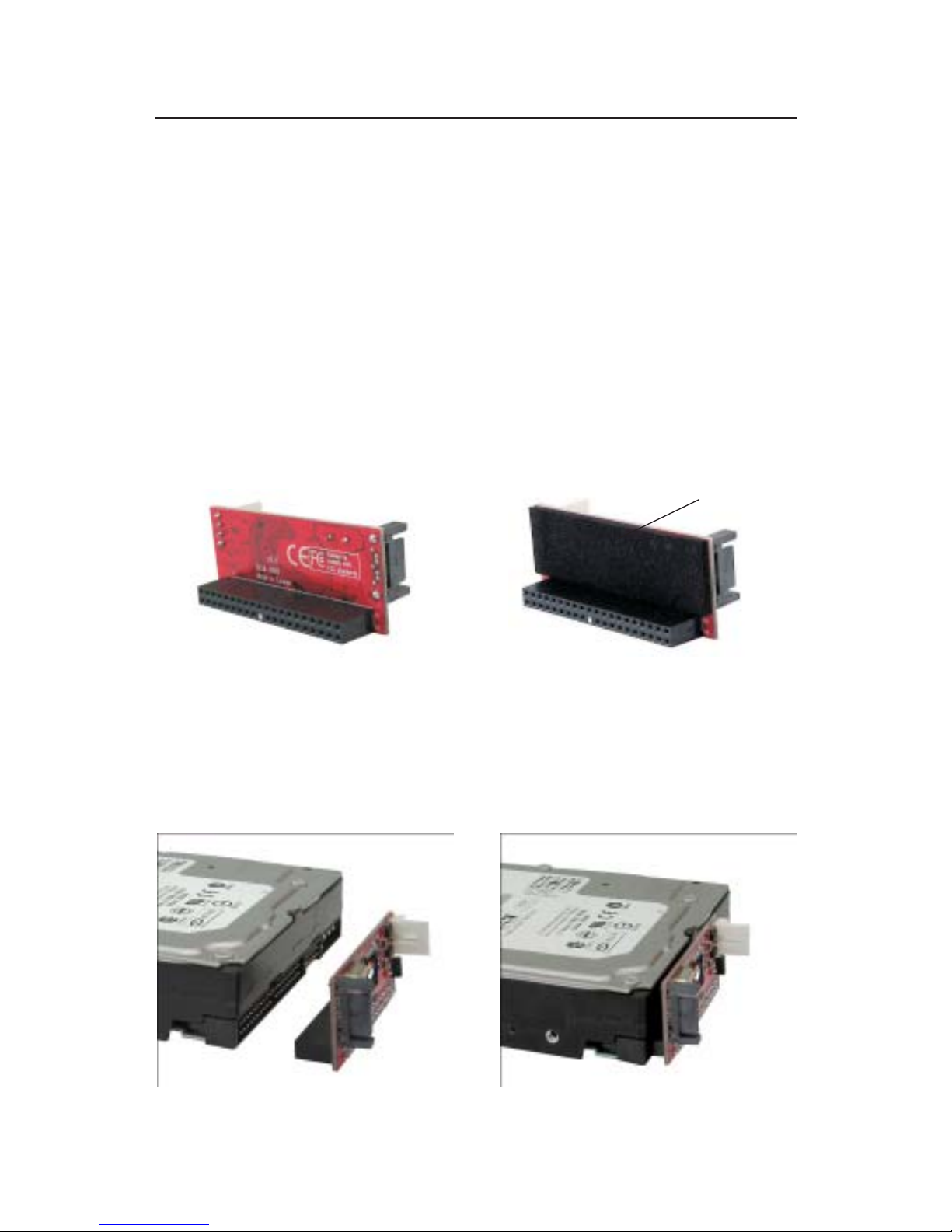

3. Attach the Isolation sponge to the SATA-to-IDE

Adapter, refer to figure 2and 3. This step is optional.

Figure 4 Figure 5

4. Connectthe SATA-to-IDE Adapter to the Ultra ATA/

ATAPI device, refer to figure 4 and 5.

Figure 3: After

attaching sponge

Figure 2: Before

sponge

Sponge

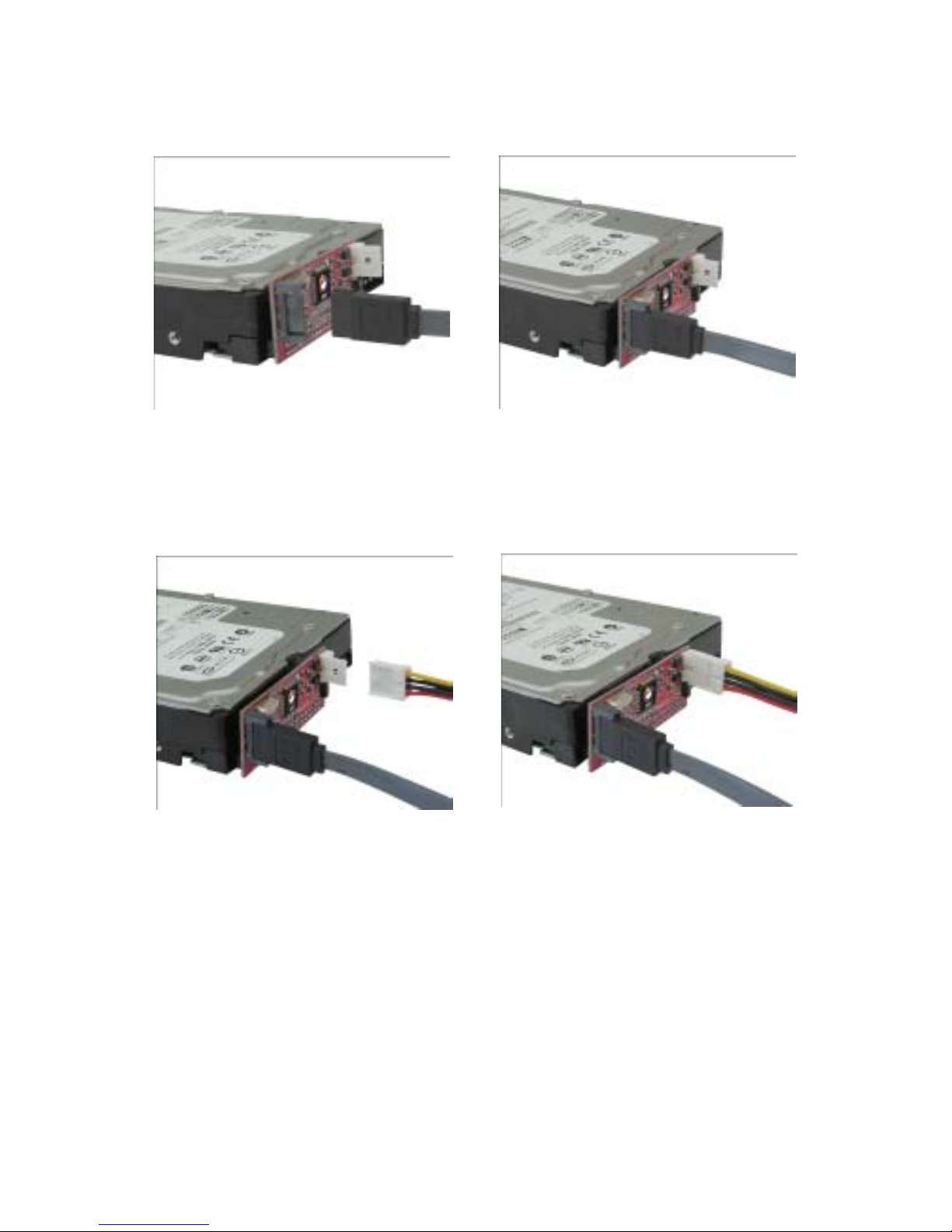

5. Connect the SATA data cable to the adapter, refer to

figure 6 and 7.

Figure 6 Figure 7

6. Connect the "Y" split power cable to the adapter,

refer to figure 8 and 9.

Figure 8 Figure 9

7. Connect the other end of the SATA data cable to the

SATA port on the SATA host adapter or

motherboard.

8. Connect the "Y" split power connector to power the

IDE drive, refer to figure 10.

Figure 10

9. Connect the other end of the “Y”split power cable

to the system power source.

10. The hardware installation is completed now.

11. Replace the computer cover and reconnect the

power cord.

Windows Driver Installation

No driver installation needed.

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyour questions could be just a fewclicksaway. You can also submit

questions online and a technical support analysts will promptly

respond.

SIIGoffers alifetime manufacturerwarranty withthis product. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyourpurchase has passed the store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

SATA-to-IDEAdapterisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksof

SIIG,Inc. Microsoft,WindowsandWindowsVistaareeitherregisteredtrademarksortrademarksof

MicrosoftCorporationintheUnitedStatesand/orothercountries. Pentiumisa registered trademark

of Intel Corporation. Other names used in this publication are for identification only and may be

trademarksof their respective companies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCI & ISA serial and parallel

ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),

networking, sound cards, and other accessories. SIIG is the premier

one-stop source of upgrades.

SIIGproducts offercomprehensive usermanuals,many user-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

SATA-to-IDE Adapter

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA
