SignaMax 065-7714HSFPTB Manuel utilisateur

Hardened Managed Ethernet Switch

This Gigabit Ethernet SFP media converter is a plug-and-play device. Connect the supplied AC

to DC power adaptor to the receptacle on the rear panel of the Gigabit Ethernet media converter,

and then attach the plug into a standard AC outlet with a voltage range from 100 to 240V AC.

DIP Switch

DIP

switch

Up (Default Setting) Down

Left-hand

side

The fiber port auto detects

full and half duplex

Forces the fiber port to full

duplex mode

Right-hand

side

Disable LFS Enable LFS LFS:

Link fault signaling

function

The 1000BaseT and 1000BaseSX/LX Connectors

The 1000BaseT

Connection

The following lists the pinouts of the

1000BaseT port.

The 1000BaseSX/LX

Connection

The SFP socket accepts standard Gigabit

Ethernet Small Form-factor Pluggable (SFP)

modules of various types and spectra.

The Port Status LEDs

ription

DIP switch configuration for Link Fault Signaling

enable/disable and fiber auto/force mode.

Signamax™Connectivity Systems

Hardened Managed Ethernet Switch

Model - 065-7714HSFPTB

User’s Guide

Hardened Managed Ethernet Switch

Quick Start Guide

This quick start guide describes how to install and use the

Hardened Managed Ethernet Switch. This is the switch of

choice for harsh environments constrained by space.

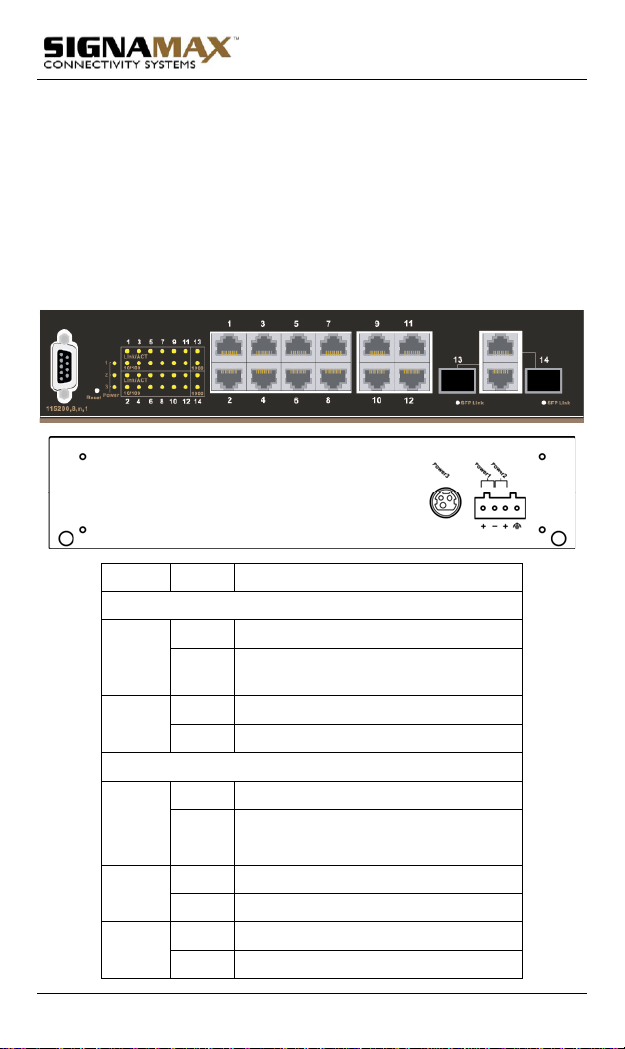

Physical Description

The Port Status LEDs and Power Inputs

LED State Indication

10/100BaseTX

Steady A valid network connection established.

Link/ACT

Flashing

Transmitting or receiving data.

ACT stands for ACTIVITY.

Steady Communication speed is 100Mbps.

10/100

Off Communication speed is 10Mbps.

10/100/1000BaseTX, 1000BaseSX/LX

Steady A valid network connection established.

Link/ACT

Flashing

Transmitting or receiving data.

ACT stands for ACTIVITY.

Steady Communication speed is 1000Mbps.

1000

Off Communication speed is 10/100Mbps.

Steady A valid network connection established.

SFP Link

Off No valid network connection established.

Hardened Managed Ethernet Switch

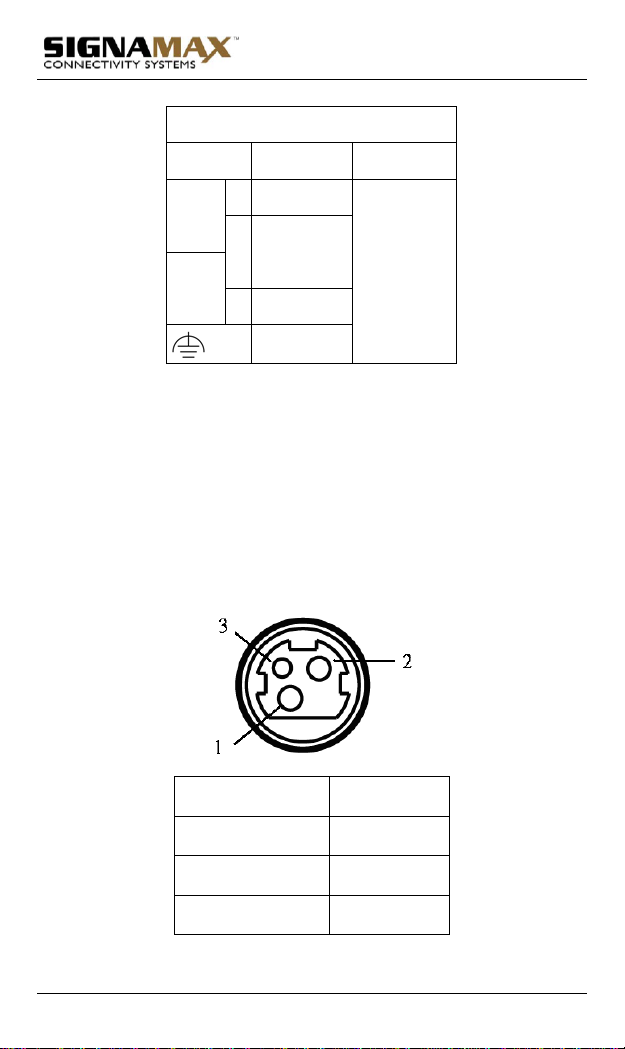

Power Input Assignment

Power3 12VDC DC Jack

＋12-32VDC

Power1

－Power Ground

Power2

＋12-32VDC

Earth Ground

Terminal Block

There are two pairs of power inputs can be used to power up this switch.

Redundant power supplies function is supported.

Options A-Terminal Block power supplies, part numbers: DC-1824-30W;

DC-1824-60W; DC-1824-75W; DC-1824-120W

Options B- DC Jack power supply

※Signamax strongly recommends the use of a terminal block power

supply; however, a jack for power is also provided. Please see the

pinout chart below for use when wiring a power jack for this equipment:

Output No. Name

PIN 1 V+

PIN 2 GND

PIN 3 NC

Hardened Managed Ethernet Switch

Functional Description

Meets NEMA TS1/TS2 Environmental requirements such as

temperature, shock, and vibration for traffic control equipment.

Meets EN61000-6-2 EMC Generic Standard Immunity for industrial

environment.

Manageable via SNMP, Web-based, Telnet, and RS-232 console port.

Support 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation:

10/100/1000Mbps, full/half-duplex; Auto MDI/MDIX.

1000Base-SX/LX: Multi mode or Single mode SC type; WDM Single

mode SC type.

Support 8192 MAC addresses. Provides 2M bits memory buffer.

Operating voltage and Max. current consumption: 1.25A @ 12VDC,

0.625A @ 24VDC. Power consumption: 15W Max.

Power Supply: Redundant DC Terminal Block power inputs or 12VDC

DC JACK with 100-240VAC external power supply.

-40℉to 167℉(-40℃to 75℃) operating temperature range.

Tested for functional operation @ -40℉to 185℉(-40℃to 85℃).

Supports Din-Rail, Panel, or Rack Mounting installation.

Hardened Managed Ethernet Switch

Console Configuration

Connect to the switch console:

Connect the DB9 null-modem or cross over cable to the RS-232 serial

port of the device and the RS-232 serial port of the terminal or computer

running the terminal emulation application. Direct access to the

administration console is achieved by directly connecting a terminal or a

PC equipped with a terminal-emulation program (such as

HyperTerminal) to the switch console port.

Configuration settings of the terminal-emulation program:

Baud rate: 115,200bps

Data bits: 8

Parity: none

Stop bit: 1

Flow control: none.

Press the “Enter” key. The Command Line Interface (CLI) screen should

appear as below:

Logon to Exec Mode (View Mode):

At the “switch_a login:” prompt just type in “root” and press <Enter> to

logon to Exec Mode (or View Mode). And the “switch_a>” prompt will

show on the screen.

Logon to Privileged Exec Mode (Enable Mode):

Hardened Managed Ethernet Switch

At the “switch_a>” prompt just type in “enable” and press <Enter> to

logon to Privileged Exec Mode (or Enable Mode). And the “switch_a#”

prompt will show on the screen.

Logon to Configure Mode (Configure Terminal Mode):

At the “switch_a#” prompt just type in “configure terminal” and press

<Enter> to logon to Configure Mode (or Configure Terminal Mode). And

the “switch_a(config)#” prompt will show on the screen.

Hardened Managed Ethernet Switch

Web Configuration

Login the switch:

Specify the default IP address (192.168.1.10) of the switch in the web

browser. A login window will be shown as below:

Enter the factory default login ID: root.

Enter the factory default password (no password).

Then click on the “Login” button to log on to the switch.

Hardened Managed Ethernet Switch

Preface

This manual describes how to install and use the Hardened

Managed Ethernet Switch. This switch introduced here is

designed to deliver full scalability with SNMP/RMON

web-based management functions by providing:

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

Features on the Hardened Managed Ethernet Switch

Illustrative LED functions

Installation instructions

Management Configuration

SNMP, DHCP, IGMP…

Specifications

Hardened Managed Ethernet Switch

Table of Content

DIP Switch .................................................................................. 1

The 1000BaseT and 1000BaseSX/LX Connectors..................... 1

The Port Status LEDs................................................................. 1

Description ......................................................................... 1

Quick Start Guide .................................................................................................................... 2

Physical Description..........................................................2

The Port Status LEDs and Power Inputs .................................... 2

Functional Description...................................................... 4

Console Configuration.......................................................5

Web Configuration............................................................ 7

Preface .................................................................................................................................... 9

Table of Contents .................................................................................................................. 10

Product Overview .................................................................................................................. 13

Hardened Managed Ethernet Switch............................. 13

Package Contents............................................................. 13

Product Highlights........................................................... 14

Basic Features........................................................................... 14

Management Support................................................................ 15

Front Panel Display......................................................... 16

Physical Ports................................................................... 17

Switch Management ........................................................ 17

Web-based browser interface ................................................... 18

Administration console via RS-232 serial port (CLI)............... 18

External SNMP-based network management application ........ 18

Installation ............................................................................................................................. 19

Selecting a Site for the Switch......................................... 19

Connecting to Power........................................................ 19

DC Terminal Block power input.............................................. 19

12VDC DC Jack....................................................................... 19

Hardened Managed Ethernet Switch

Connecting to Your Network.......................................... 20

Cable Type & Length............................................................... 20

Cabling ..................................................................................... 20

Switch Management .............................................................................................................. 21

Management Access Overview....................................... 21

Administration Console (CLI)........................................21

Direct Access............................................................................ 22

Modem Access ......................................................................... 22

Web Management............................................................23

SNMP-Based Network Management............................. 23

Protocols........................................................................... 24

Management Architecture.............................................. 24

Web-Based Browser Management........................................................................................ 25

SNMP & RMON Management............................................................................................... 26

Overview........................................................................... 26

SNMP Agent and MIB-2 (RFC 1213)............................ 26

RMON MIB (RFC 1757) and Bridge MIB (RFC 1493)27

RMON Groups Supported........................................................ 28

Bridge Groups Supported......................................................... 29

Web-Based Browser Management........................................................................................ 30

Logging on to the switch..................................................30

Understanding the Browser Interface............................ 31

Trunking........................................................................... 45

STP.................................................................................... 48

VLAN................................................................................ 56

QoS.................................................................................... 61

SNMP................................................................................ 64

Other Protocols................................................................ 68

Command Line Console Management .................................................................................. 72

Table des matières

Autres manuels SignaMax Routeur réseau

SignaMax

SignaMax 065-7404GATB Manuel utilisateur

SignaMax

SignaMax 065-7403HTB Manuel utilisateur

SignaMax

SignaMax 065-7341G Manuel utilisateur

SignaMax

SignaMax 065-7012G Manuel utilisateur

SignaMax

SignaMax 065-7940 Manuel utilisateur

SignaMax

SignaMax 065-1530 Manuel utilisateur

SignaMax

SignaMax 065-7532PoE Manuel utilisateur

SignaMax

SignaMax 065-7734 Manuel utilisateur

SignaMax

SignaMax 065-7408 Manuel utilisateur

SignaMax

SignaMax 065-7861 Manuel de programmation

SignaMax

SignaMax C-300 Series Manuel utilisateur

SignaMax

SignaMax 500-7624FE2GC Manuel utilisateur

SignaMax

SignaMax 065-7405TB Manuel utilisateur

SignaMax

SignaMax 065-7032 Manuel utilisateur

SignaMax

SignaMax 065-7700 Manuel utilisateur

SignaMax

SignaMax 065-7530 Manuel utilisateur

SignaMax

SignaMax 065-7841 Manuel utilisateur

SignaMax

SignaMax 065-7007A Manuel utilisateur

SignaMax

SignaMax 065-7418POETB Manuel utilisateur

SignaMax

SignaMax 065-7851 Manuel utilisateur

SignaMax

SignaMax 065-7408PTB Manuel utilisateur

SignaMax

SignaMax 065-7508 Manuel utilisateur

SignaMax

SignaMax 065-7840 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
