SignalFire RANGER Wall Mount Manuel utilisateur

Rev 1.1

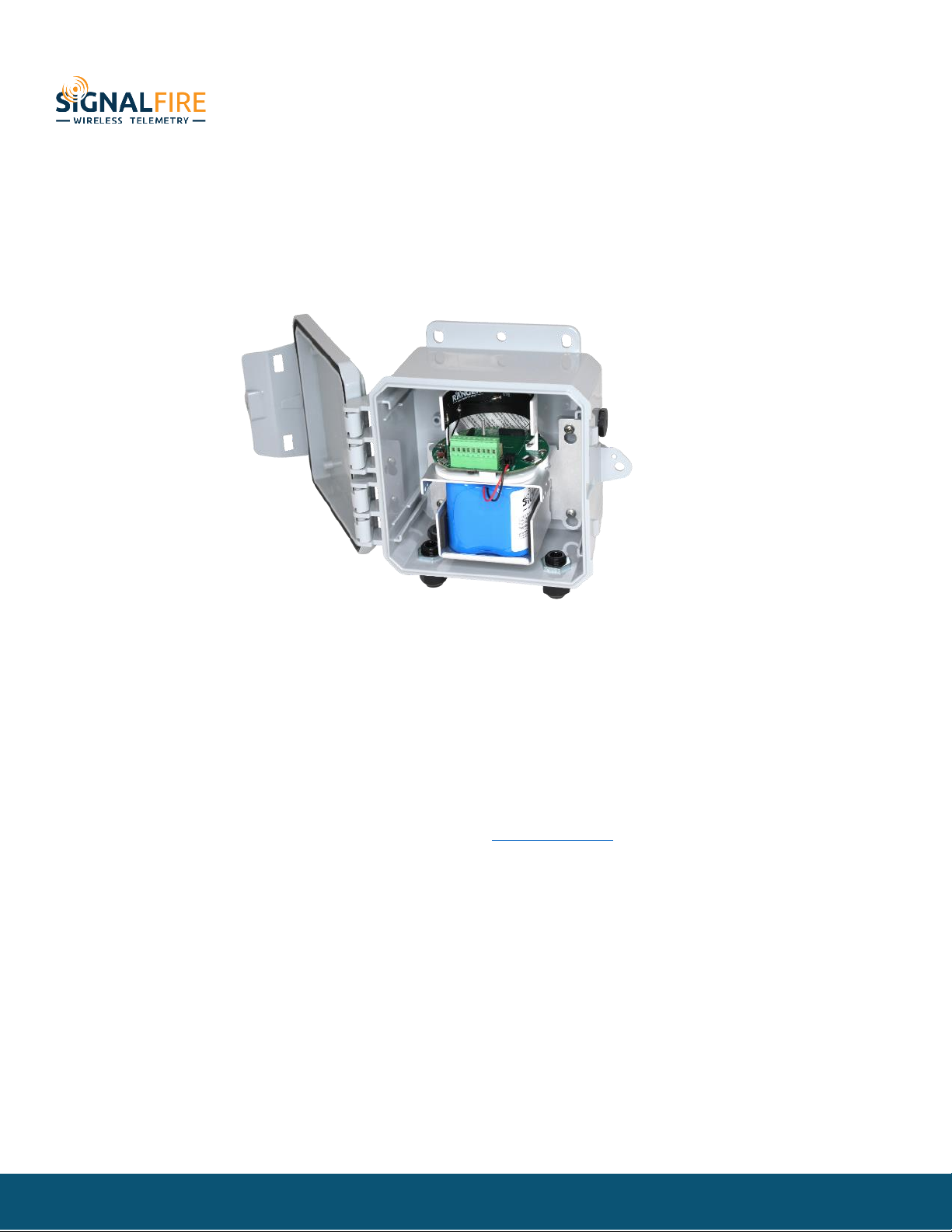

RANGER Wall Mount Manual

The RANGER Wall Mount version is designed to allow for wall mount installations and to provide

environmental protection for the RANGER

-Dual digital inputs report state, total counts, and input frequency. K-Factor configurable for Flow

Totalizing

-SPDT Latching relay for local on/off control

-Configurable from the SignalFire Cloud website signal-fire.cloud

-SignalFire Cloud allows for data visualization, trending, and alarming

-Supports MQTT Sparkplug B communication protocol for connection to other servers

-Compact and simple to install and maintain

-Local configuration and diagnostics available using the micro-USB port and the SignalFire RANGER

ToolKit PC software

-Expansion modules for additional I/O (2AI/1DI, Modbus, HART, SDI-12)

-Internal backlog of a minimum of 200,000 datapoints in the event of loss of signal. Backlog will be

automatically sent when the RANGER reconnects

-Can be field converted to support an external antenna

-Class 1 Division 2 certified

SignalFire Telemetry

Rev 1.1

Specifications

Enclosure Size

Polycarbonate 7.8” tall × 8.27” wide x 4” deep

IP68 rated

2.1Lbs (1kg)

Power Source

Internal Lithium battery pack (SignalFire Part Number: 4DPak)

Optional solar or external DC power options also available

Temperature

Rating

RANGER SIM Slot

RANGER Local

config port

RANGER Analog

Input

RANGER Digital

Inputs

RANGER Relay

Output

RANGER Sensor

Power Output

-40°C to +85°C

4FF Nano SIM card (LTE Cat M SIM and data plan required)

Standard micro-USB connector

Provides 13Vdc/18Vdc, (selectable) to attached 4-20mA / 1-5Vdc sensor. One analog input

built in. Up to three with additional 2AI/1DI module.

Two digital inputs. Three with additional 2AI/1DI module. Dry Contact or 30 Volts Max

(push-pull), 2kHz max. Capable of reporting on state change

Latching Relay. 2A @ 30VDC, 0.3A @ 110VDC, 0.5A @ 125VAC

Selectable 13Vdc / 18Vdc. 60mA max power output

Compliance

•Contains FCC ID: 2ANPO00NRF9160 and IC ID: 24529-NRF9160

•PTCRB and Verizon Network Certified

•Certified for use in Class I, Division 2, Groups A, B, C, D areas. Temperature Code T5

EXi [EXi]

•[UL 121201:2017 Ed.9+R:26Aug2019], [CSA C22.2#213:2017 Ed.3+U1;U2]

•IEC 62638-1:2014 (2nd Ed), EN 62368-1:2014+A11:2017

Rev 1.1

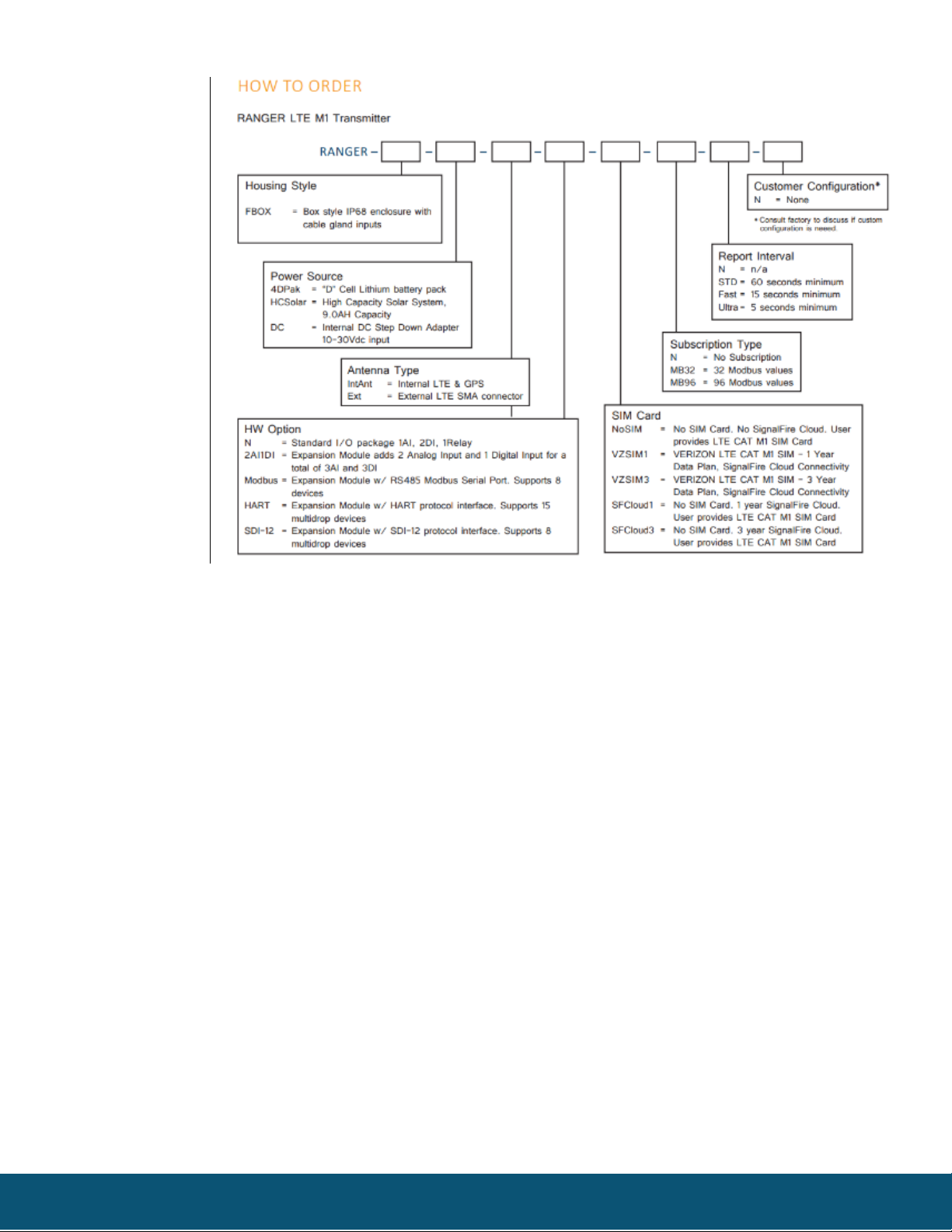

Model Numbers




4
Rev 1.1
Table of Contents
Specifications ..........................................................................................................................................................................2
Table of Contents....................................................................................................................................................................4
Hazardous Location Certification............................................................................................................................................5
Dimensions.............................................................................................................................................................................. 6
Connections and Components................................................................................................................................................7
Sensor Connections.................................................................................................................................................................8
Analog Input........................................................................................................................................................................ 8
Digital Inputs.......................................................................................................................................................................9
Relay Output .....................................................................................................................................................................10
2AI/1DI..............................................................................................................................................................................11
Modbus RS-485.................................................................................................................................................................12
HART..................................................................................................................................................................................13
SDI-12................................................................................................................................................................................14
RTD....................................................................................................................................................................................15
Power Options ......................................................................................................................................................................16
Lithium Battery Pack (4DPak)............................................................................................................................................16
DC-DC converter ...............................................................................................................................................................16
HC-Solar System................................................................................................................................................................16
Internal Lithium Battery Replacement..............................................................................................................................16
Mounting and Care ...............................................................................................................................................................17
External Antenna Conversion ...............................................................................................................................................18
Cloud Setup and Information................................................................................................................................................20
Technical Support and Contact Information.........................................................................................................................21
Revision History ....................................................................................................................................................................21




Rev 1.1

Hazardous Location Certification

The RANGER is rated Class 1 Division 2 non-incendive when powered by its internal battery pack.

or its internal DC-DC converter. The HCSolar unit is not C1D2 certified so it is for general purpose

areas only.

WARNING: EXPLOSION HAZARD. DO NOT REMOVE OR REPLACE COMPONENTS UNLESS

POWER HAS BEEN DISCONNECTED OR THE AREA IS FREE OF IGNITIBLE CONCENTRATIONS.

AVERTISSEMENT : RISQUE D'EXPLOSION . NE PAS RETIRER OU REMPLACER LES

COMPOSANTS QUE L’ALIMENTATION EST DÉBRANCHÉ OU ZONE EST LIBRE DE

CONCENTRATIONS IGNITIBLE.

WARNING – EXPLOSION HAZARD Substitution of components may impair

suitability for Class I, Division 2

AVERTISSEMENT - RISQUE D'EXPLOSION. La substitution de composants peut rendre ce

materiel inacceptable pour les emplacements de classe I, division 2

WARNING – EXPLOSION HAZARD Do not disconnect while circuit is live unless area

is known to be nonhazardous

AVERTISSEMENT - RISQUE D'EXPLOSION. Ne débranchez pas lorsque le circuit est en

direct , sauf si la zone est connue pour être nonhazardous

WARNING – All wiring methods must be in accordance with the NEC

AVERTISSEMENT - Toutes les méthodes de Essorez doivent être en conformité avec la NEC

WARNING - EXPLOSION HAZARD. Do no remove or replace while circuit is live

unless the area is free of ignitable concentrations.

AVERTISSEMENT - RISQUE D'EXPLOSION. Ne pas enlever ou remplacer pendant que le

circuit est vivant à moins que la zone soit exempt de concentrations ignitibles.

WARNING – EXPLOSION HAZARD. Do not remove or replace lamps, fuses, or plug-in

modules (as applicable) unless power has been disconnected or the area is free of

ignitable concentrations.

AVERTISSEMENT - RISQUE D'EXPLOSION. Ne retirez ni ne remplacez les lampes, les

fusibles ou les modules enfichables (le cas échéant) à moins que l'alimentation ait été

coupée ou que la zone soit exempte de concentrations inflammables.

Rev 1.1

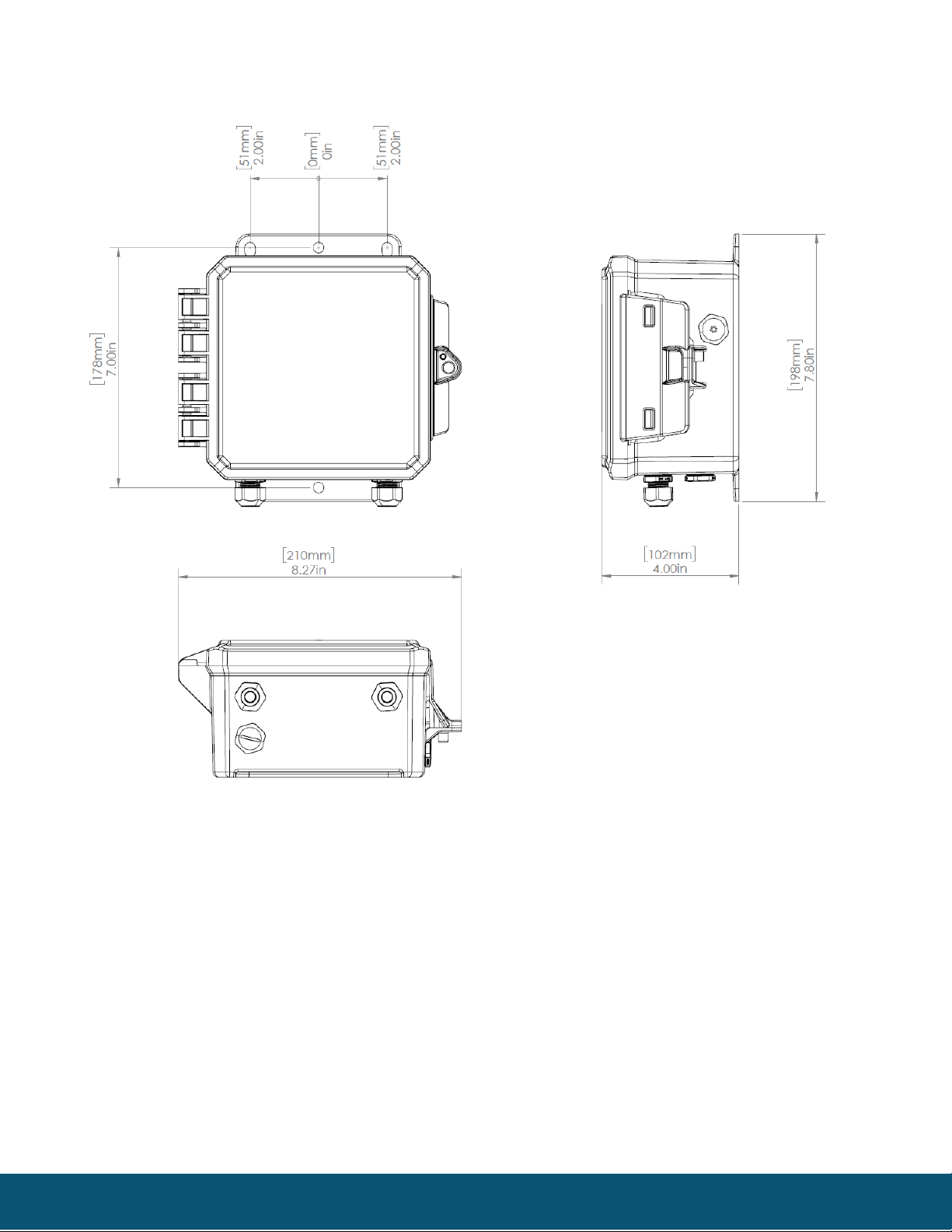

Dimensions

Rev 1.1

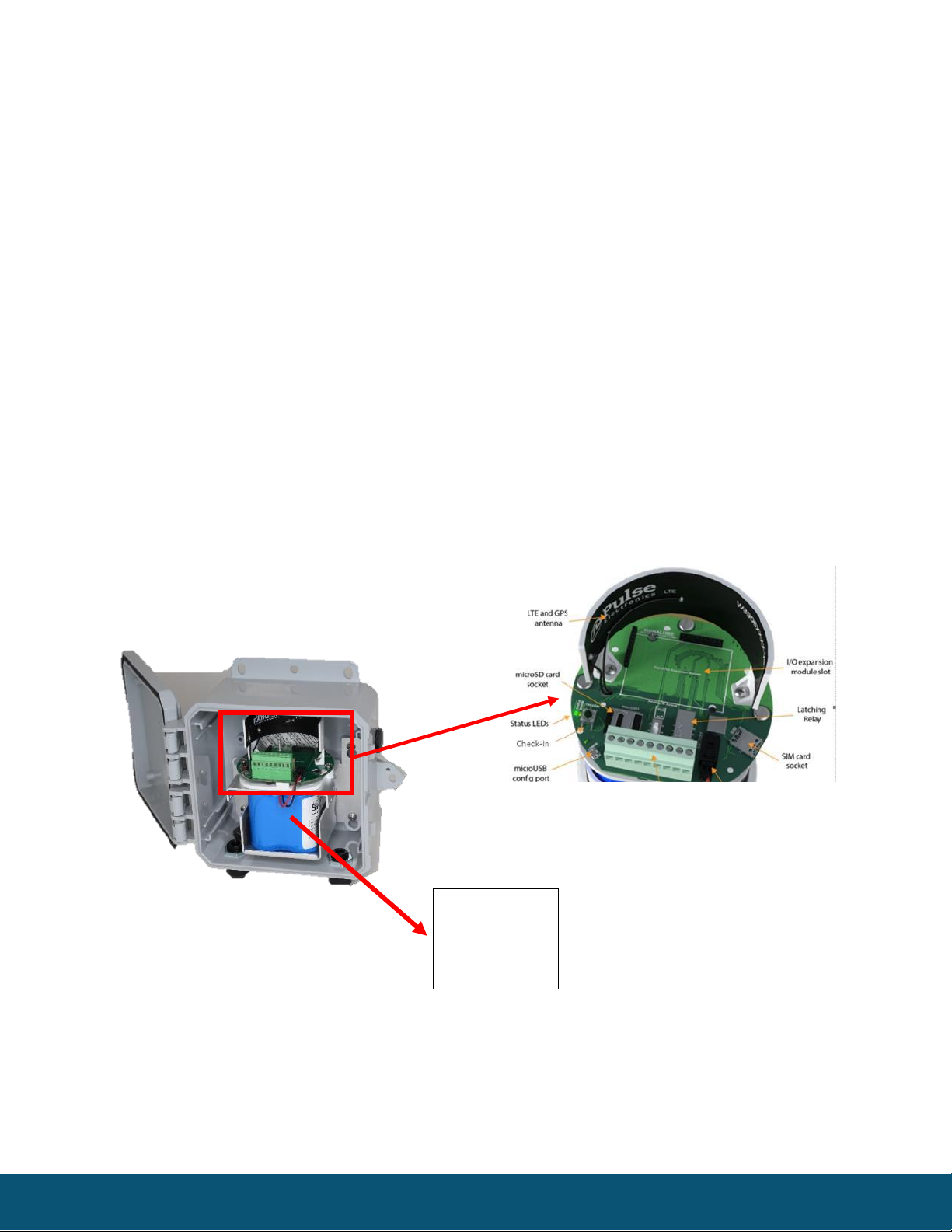

Connections and Components

STATUS LED

-The STATUS LED (green) will flash 3 times on a successful data transmission to the server

ERROR LED

-The ERROR LED (red) will blink 3 times to indicate that an attempted data transmission failed

Check-in Button

-If this button is pressed the RANGER will blink the green or red status LED 3 times to indicate the status

of the last transmission to the server. If the Checkin button is pressed and held for more than 1 second,

the RANGER will take readings from the attached sensors and send the readings to the server.

SignalFire Expansion Module

-The SignalFire Expansion Module slot is used for additional sensor support. Available expansion cards

are 2AI/1DI, Modbus, and HART.

RANGER Internal components

Battery pack

secured inside

battery

compartment

Rev 1.1

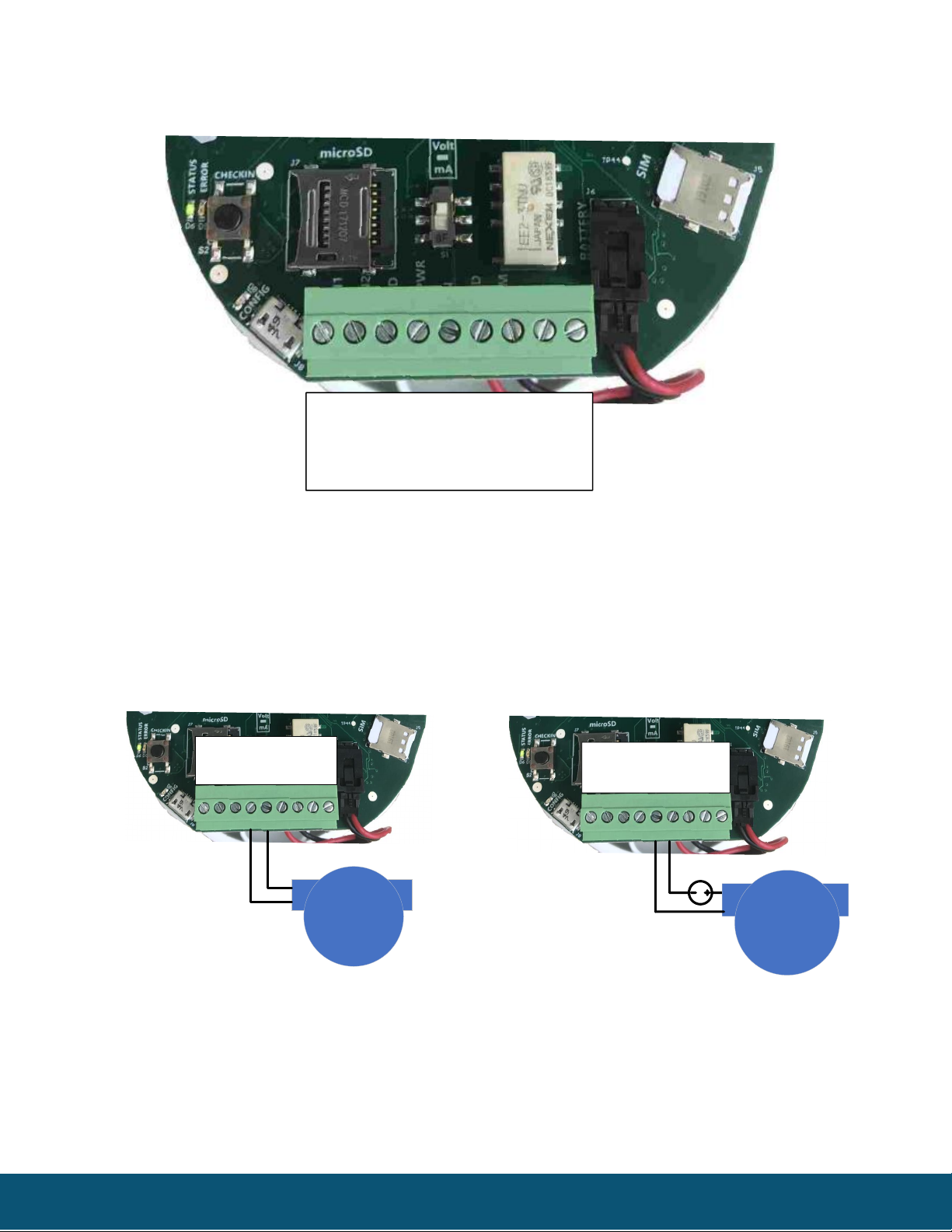

Sensor Connections

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

Screw Terminal Connections

Analog Input

The analog input provides 13V/18V (selectable in software, see page 11) to the attached sensor. The analog

input can operate in either current (4-20mA), or voltage (1-5V). The input mode must be set by the slide switch.

Slide the switch up to Volts for a voltage input, or down to mA for a current input.

4-20mA Wiring Diagram

Sensor powered by RANGER

Sensor powered by external source

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

4-20mA Transmitter

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

4-20mA Transmitter

Rev 1.1

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

4-20mA Transmitter

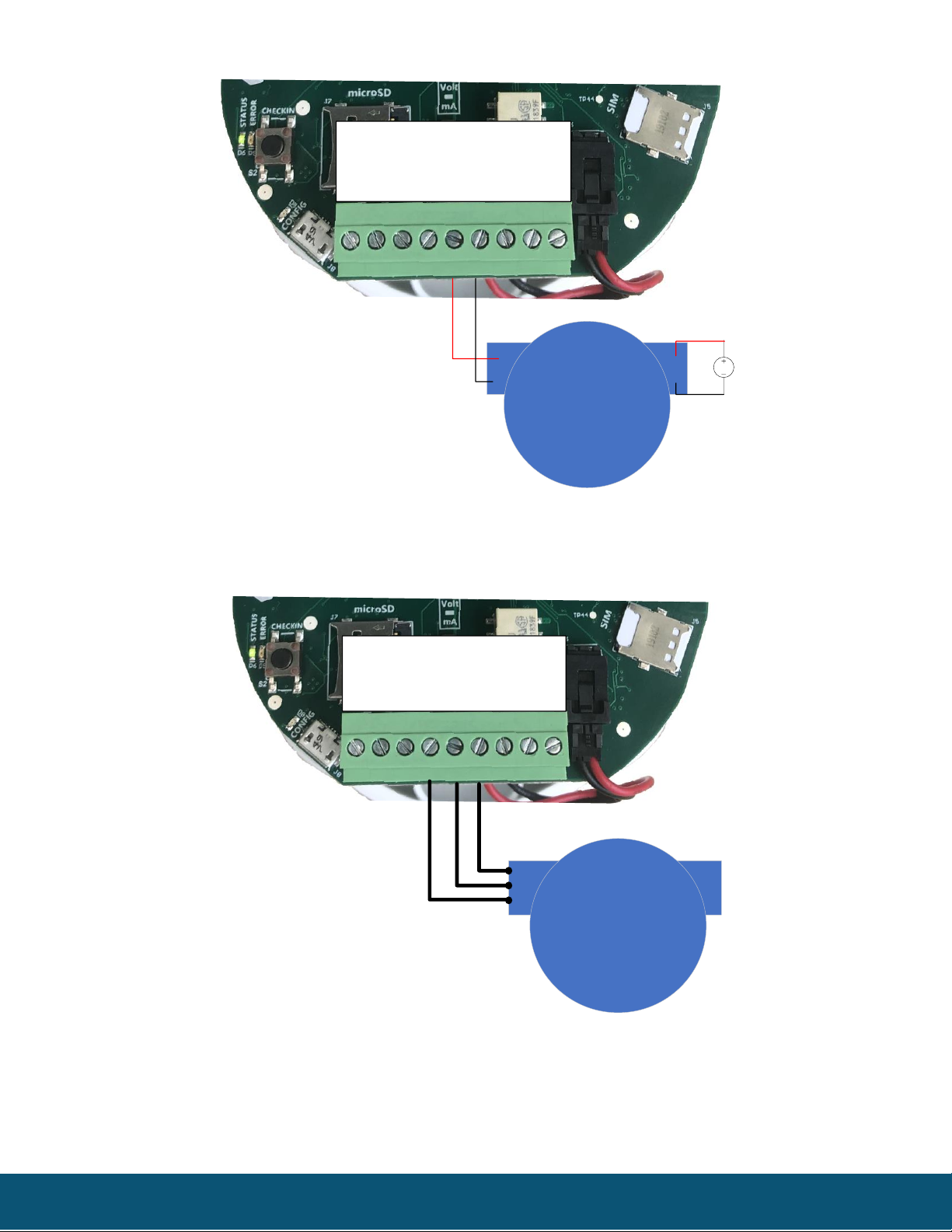

Sensor powered by Active Loop

1-5V Wiring Diagram

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

1-5V Sensor

Vout

Digital Inputs

The digital inputs (2 total) can be dry contact or voltage (must be push-pull, 30Vdc max). Be sure to connect

the ground bus from the module to either the ground of the voltage pulse device or the dry contact.

Rev 1.1

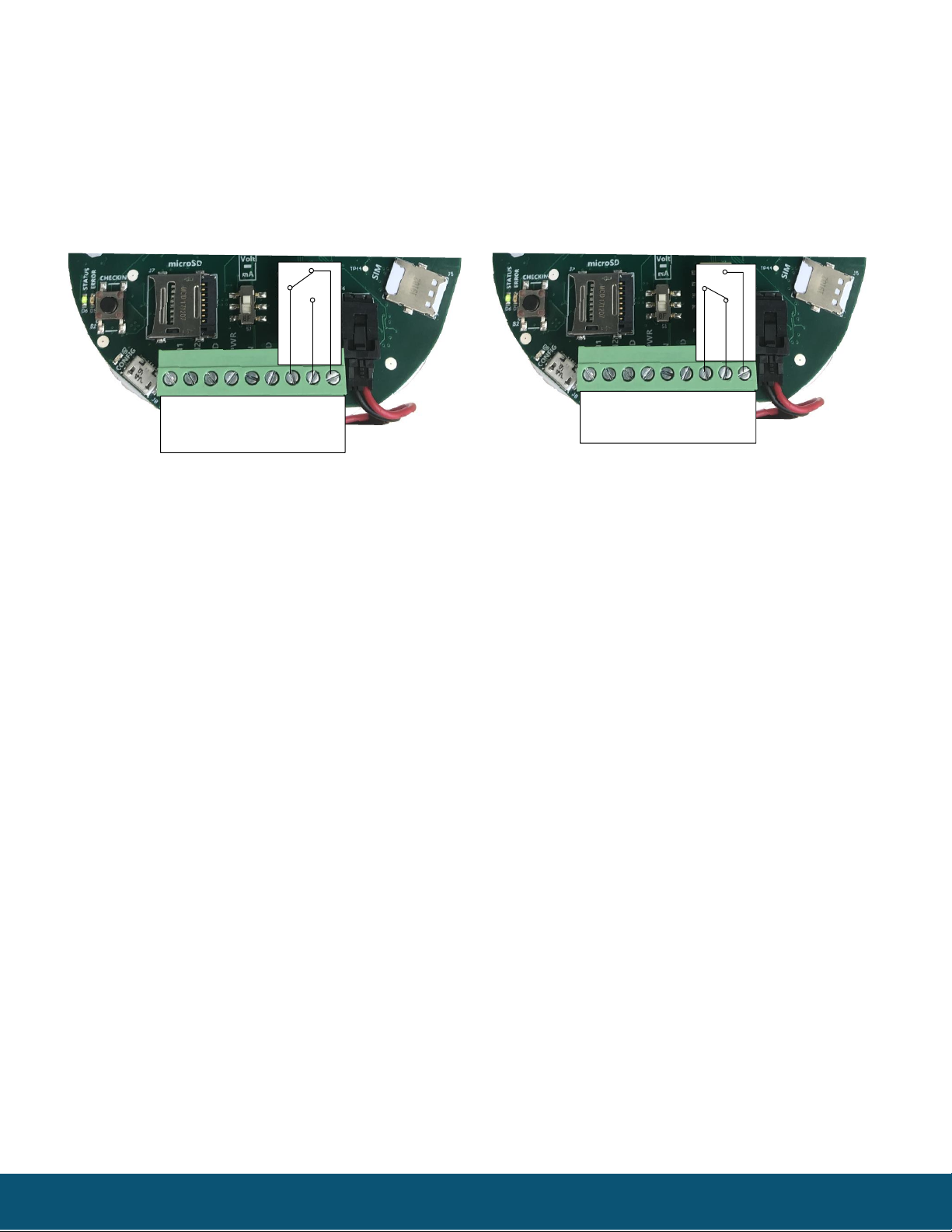

Relay Output

The RANGER has a single latching SPDT relay which may be controlled remotely from the server or by using the

RANGER’s internal relay control logic. The Relay will connect the COM terminal to NC when de-energized and

the COM will be connected to the NO terminal when energized

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

DIN1

DIN2

GND

A_PWR

AIN

GND

COM

Relay Energized (COM connected to NC)

Relay De-Energized (COM connected to NO)
