2CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
!!!
______

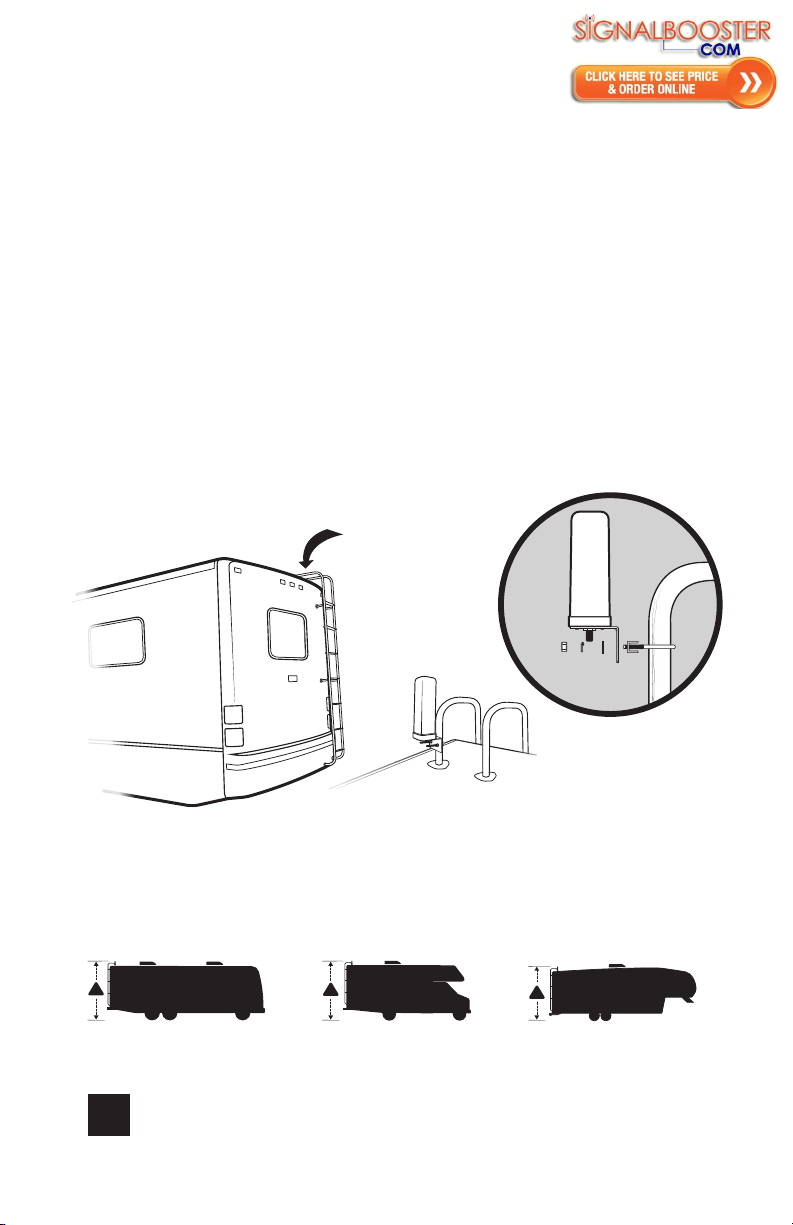

Step 1: Mount Outside
Antenna
Determine where you want to have the outside antenna on
your RV. Mount outside antenna to a pole or ladder so that the
entire outside antenna is above the roof line of the RV and
clear of other metal obstructions.
NOTE: Keep in mind to stay below the max height limit allowed by law, which
varies from state to state (generally 14’ in western states and 13’6” in
eastern states).
NOTE: This must be in a location within reach of the booster with the
20’ coax cable (installed in Step 4).
good outside
antenna location
DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 3
______

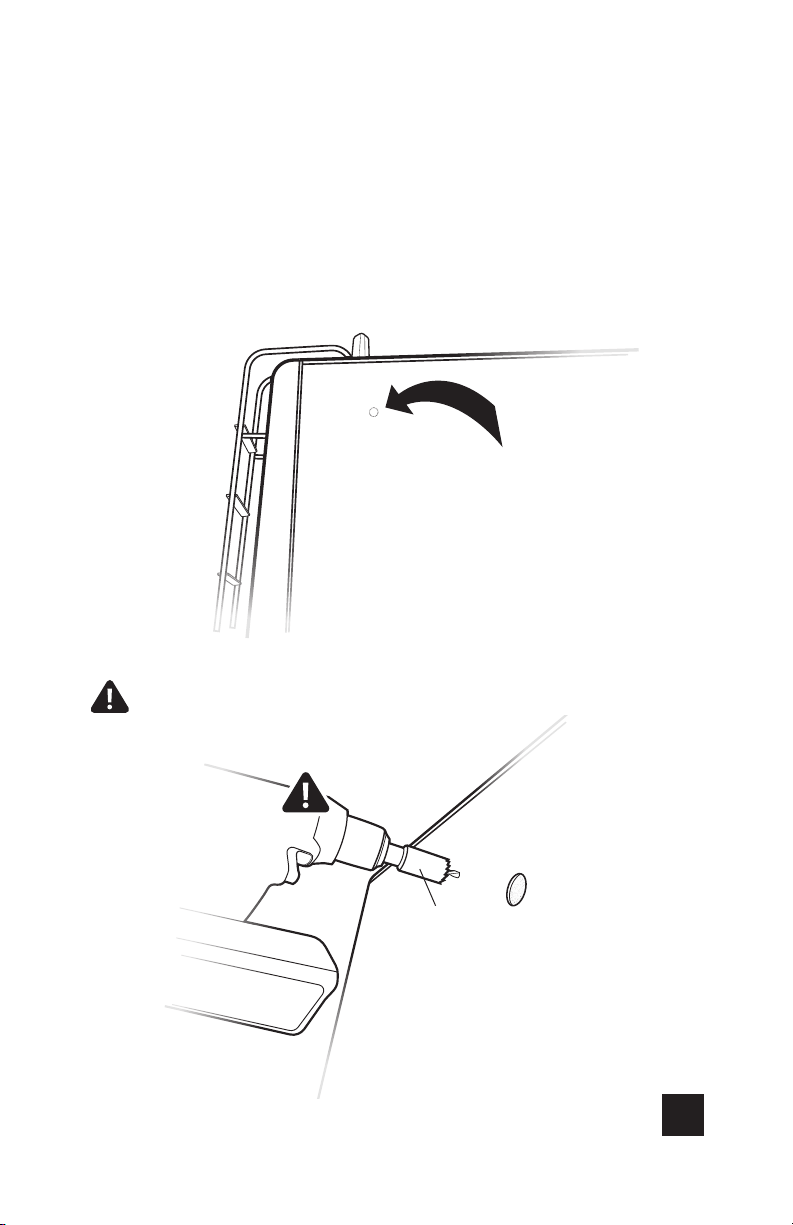

Step 2: Drill Hole
Drill a 1 inch hole toward the top of the RV that goes into the
desired location. Do not put this hole on the top of the RV.
WARNING: Be sure to stay clear of any power, pipes, etc. that may
be damaged.
1 inch bit
4CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
______

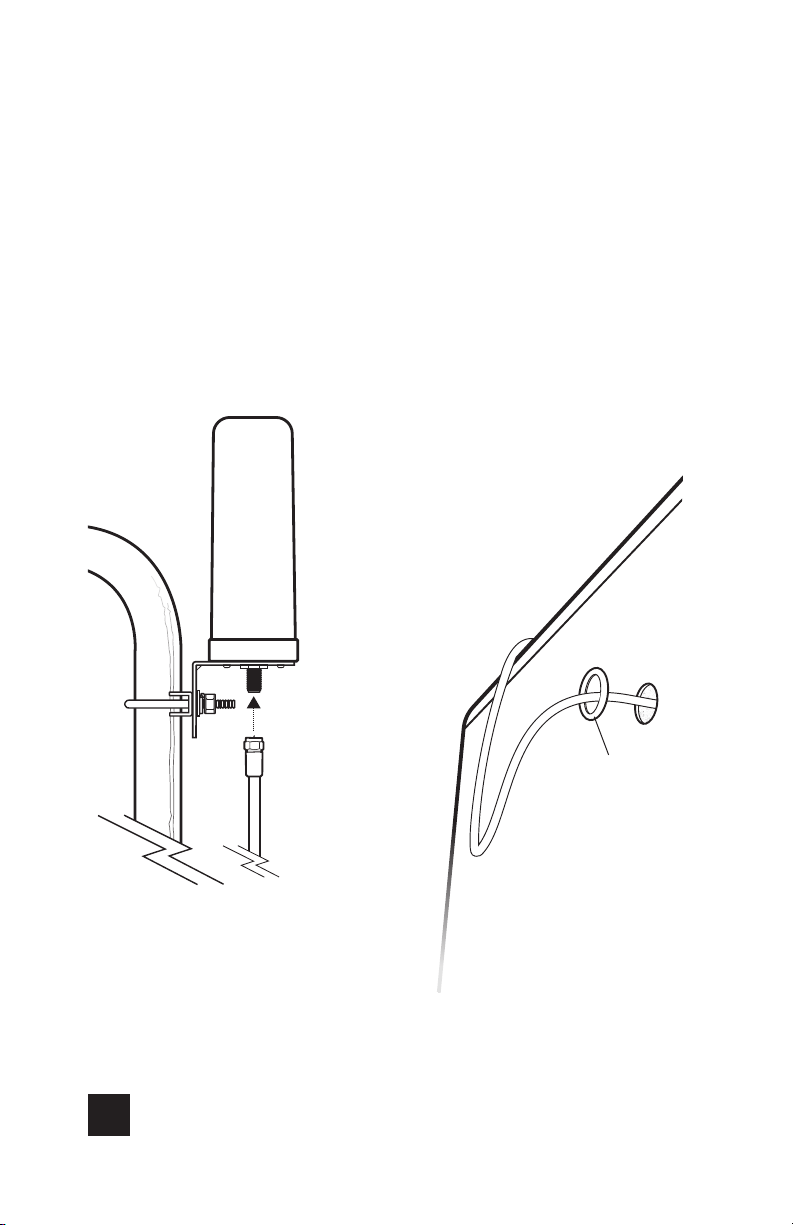

Step 3: Connect Cable To
Outside Antenna
Connect the RG-6 cable to the outside antenna and route
through the rubber ring of the cable entry cover, then into the
newly drilled hole.
rubber ring of the
cable entry cover
DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 5
______

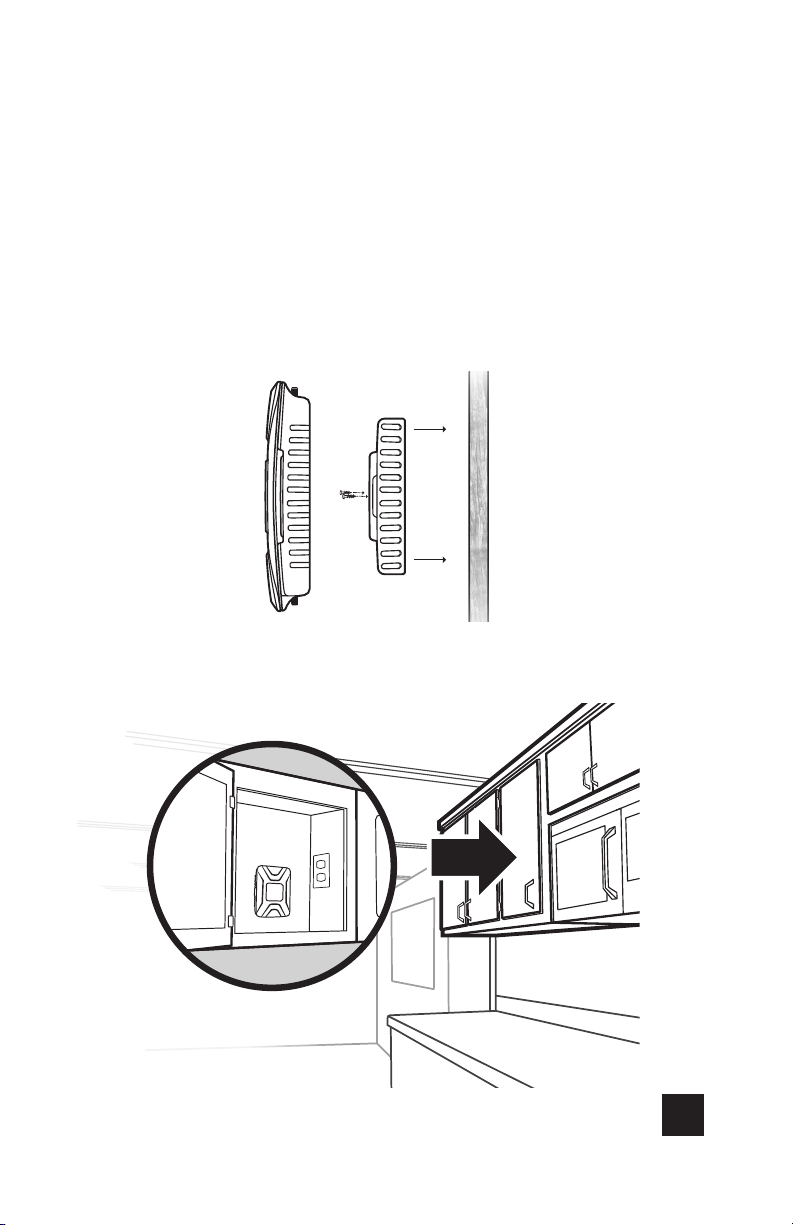

Step 4: Booster Location
Find a location to place the booster, then mount
by removing the bracket from back side of booster
and fasten to desired surface. Snap booster back
into bracket.
good booster
location
NOTE: We recommend in a cabinet near a power source. Be sure it’s in a location that
the 20’ RG-6 cable can reach.
6CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
______
Step 5: Connect Outside
Antenna Cable To Booster
Fasten the end with smaller SMA connection to the ‘Outside
Antenna’ port on the booster.
be sure to
hand tighten only
DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 7
______

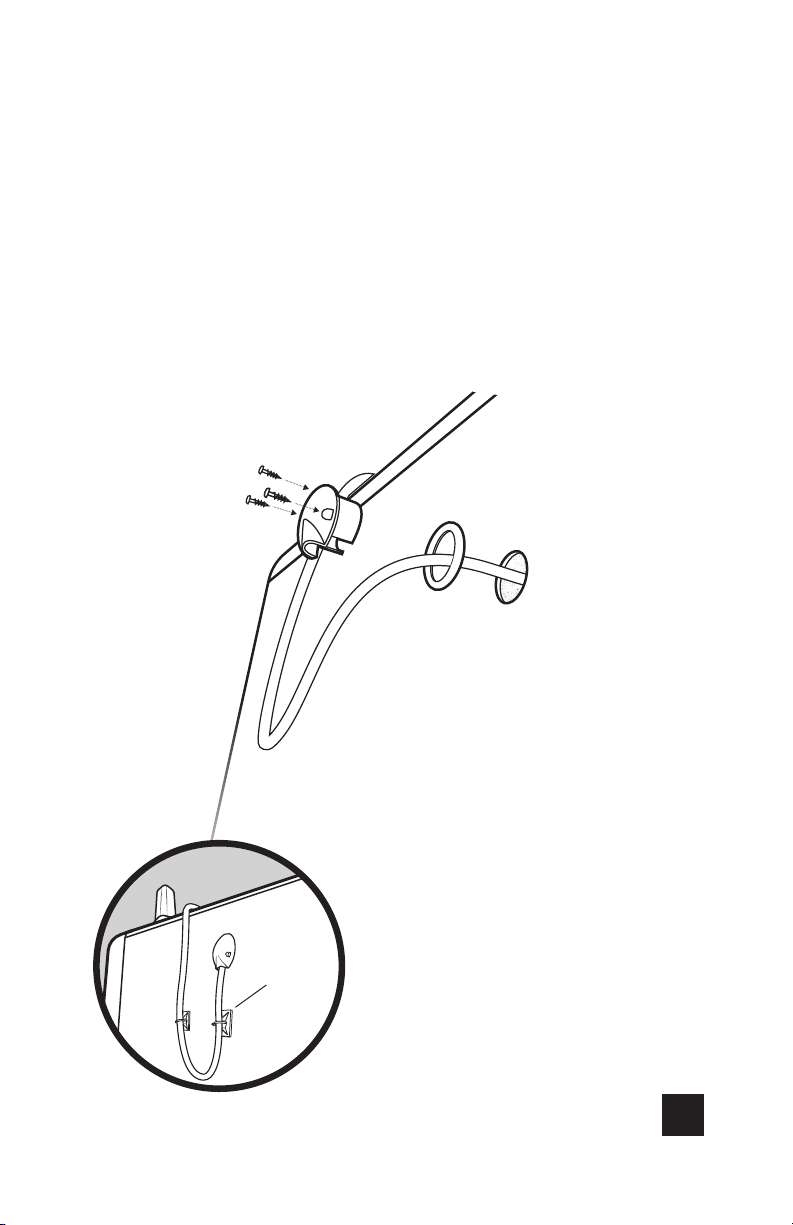

Step 6: Mount Cable Entry
Cover
Make sure cable is through the rubber gasket and place the
cable entry cover into the entry hole like shown & fasten cover
to side of RV. Use the cable mounts and ties to secure to the RV.
NOTE: We recommend putting a loop
going up to the cable entry hole to prevent
moisture from entering the RV. We strongly
recommend using an RTV sealant from the
inside to prevent moisture, insects, & other
undesired things from entering the RV.
cable
mounts
8CELL PHONE SIGNAL BOOSTER DRIVE 4G-X RV
______
Step 7: Connect Inside
Antenna Cable To Booster
Connect the 13’ RG-58 cable to the ‘Inside Antenna’ port on
the booster. Route the cable where you want to receive the
boosted signal. Connect the inside antenna to the cable.
Inside
Antenna
best when used within
4-10 feet of cellular device
DRIVE 4G-X RV CELL PHONE SIGNAL BOOSTER 9
______

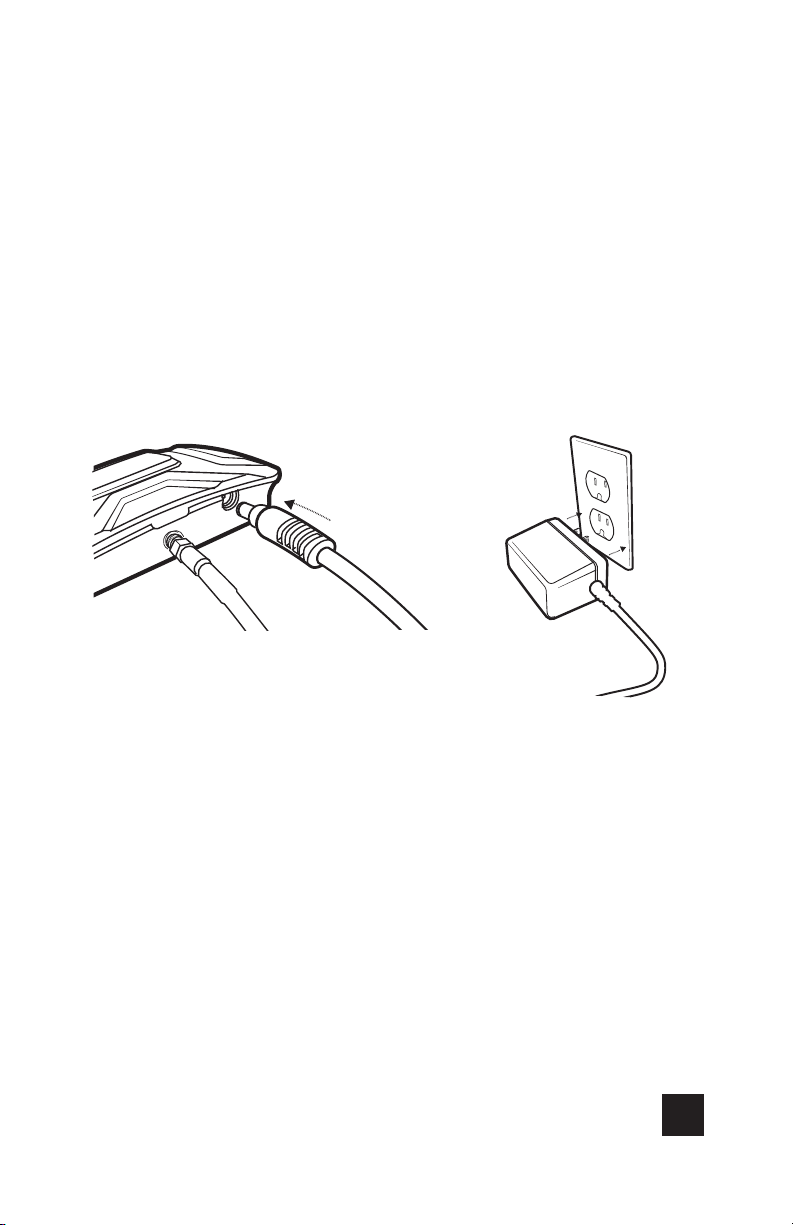

Step 8: Power Up The
Booster
Connect power cable to booster, then into 110V Wall plug
and enjoy!
NOTE: We’ve included a fused 12V hardwire power supply option as well.
