Smartpone X-treme PQ17

User manual

Dear Client! Thank you for purchasing Sigma

mobile product!

Please read this manual before using the device to ensure safe and proper use and

prevent it from damages.

Software, design features and content of manual may be changed to improve

the product without a prior notice.

Manufactures and distributors are not liable for case damages as well as the

damages caused due to incorrect or improper exploitation.

Package Contents:

Smartphone Sigma mobile X-treme PQ17

Network charger

USB-cable

Headset

Manual

Warranty Card

Size: 140*75*14 mm

The manufacturer reserves the right to change complement, specifications and

appearance.

Specifications

OC ANDROID 6.1

Popular operating system for smartphones, the

ability to install applications.

Screen

4,0” resolution 800*480.

CPU

МТК6580, 4 cores to 1,3 GHz*.

Camera

5 Megapixel on the back and 2 Megapixel on the

front side of device to take photos and record

video.

Memory

Operational –1 GB, built –8 GB**. The possible

storage extension by micro-SD cards up to 32 GB.

Dual SIM, 3G

2 SIM cards that support 3G technology –for using

Internet and to make calls.

WI-FI 802.11 B/G/N

Connection Interface to the wireless network

GPS

The ability to determine the location and to use

navigation programs.

Battery

2500 мАh., removable

* The frequency of the processor program may be limited to lower values.

** The actual memory size may be less due to the pre-installed operating

system and applications.

Table of contents

Safety and security.....................................................................................4

START .........................................................................................................5

Buttons and ports..................................................................................6

Standby mode .......................................................................................7

Button to additional menu ....................................................................7

Connection to 3G network ....................................................................7

Indicator icons.......................................................................................7

Charging the battery .............................................................................9

Installing a SIM-card and SD card ........................................................10

Main techniques.......................................................................................11

Touchscreen usage..............................................................................11

Operate with fingers ...........................................................................11

Screen turning .....................................................................................12

Notifications ........................................................................................12

Home screen .......................................................................................13

Account settings..................................................................................14

Files transferring .................................................................................15

Device securing ...................................................................................15

Settings.....................................................................................................16

Connections.........................................................................................16

Device..................................................................................................18

Personal...............................................................................................19

System.................................................................................................21

CONNECTION ...........................................................................................22

Phone ..................................................................................................22

Contacts ..............................................................................................23

Message ..............................................................................................24

Programs ..................................................................................................26

Internet ...............................................................................................26

Email....................................................................................................26

Camera ................................................................................................27

Gallery .................................................................................................29

Google programs.................................................................................29

Troubleshooting .......................................................................................30

Safety and security

Do not disassemble device and do not repair it by yourself.

Permitted outside temperature operating mode: -20 to 50*C.

Storage temperature:-5 to +45*C.

Relative humidity: 5% to 90%, non-condensing (25 ° C).

Avoid the contact with fire to avoid explosion or fire.

Do not expose the device or the battery to very cold or very hot temperatures.

Do not drop device and avoid its hitting by other objects.

Do not expose the smartphone to the heavy mechanical impact.

Avoid contacts with sources of electromagnetic radiation.

For cleaning device do not use chemicals or cleaning means; always turn the

device off before cleaning.

Do not disconnect device from the PC while formatting and copying files.

When using the device as a removable disk always follow the instructions. Any

false step may lead to loss of files.

Create a backup copy of important data on the PC, as the device repair or other

causes may result the data loss.

Use only accessories recommended by the manufacturer.

To avoid of getting heavy metals, acids, lye in water or soil, causing significant

damage to the environment, utilize used battery according to the law. The legal

liability arises in case of infraction about the utilization norms.

The phone does not contain harmful substances

The spent battery pack at the end of service life, dispose of in accordance with

law. With the failure of the legislation on the disposal of legal liability arises.

HEADSET USAGE

For safety do not use headset while driving the car or bicycle.

Reduce the volume passing roadway.

Using the headset, do not listen to music at a high volume for a long time –

reversely, it may lead to the hearing problems.

Stop using the headset or reduce the volume if you hear the ringing in ears.

START

Turn on: Press and hold a few seconds power button. Wait for the download

process and lock screen appearance.

Turn off: Press and hold for four seconds power button until the switching off

interface appears. Choose the button, which confirms the switching off. The

device turns off

Buttons and ports

Power

Plug of the microUSB

Volume +/-

Main camera

Front camera

Flash

Plug of the headset

Battery cover

Standby mode

In operation mode the short pressing on the power button leads the device to the

standby mode, the screen goes dark.

The repeated short pressing on the power button leads the device out from the

standby mode; the lock screen is showed on the display.

To unlock the screen, you may swipe from the bottom in any part of the screen.

It is possible to protect yourself from unauthorized access in several ways:

- Locking by the graphical key;

- Locking by the password or PIN;

- Locking by voice.

Button to additional menu

On the main screen and in the different programs might be the icon .

By pressing on it, the additional menu is opened for additional configuration and

management.

Connection to 3G network

To activate 3G* insert SIM-card of mobile operator in special slot on the

smartphone. Only after these actions turn on the phone, search 3G signal appears

automatically.

* Turn off the connection to Wi-Fi before running the 3G function (if the phone

was connected via Wi-Fi).

Attention: To avoid SIM-card damages turn off the phone before changing and removing SIM-card. Use

standard SIM-cards accurately (SIM/Micro-SIM). It is not recommended to use SIM-cards adapter. Insert and

remove the SIM-card without effort. Mechanical damage is not a guarantee case.

Indicator icons

The icons displayed at the top of the screen provide information about the status

of the device. The icons listed in the table below are most common.

No signal

Signal strength

Roaming (outside of normal service area)

GPRS network connected

EDGE network connected

UMTS network connected

HSDPA network connected

HSPA+ network connected

Wi-Fi connected

Bluetooth feature activated

GPS activated

Call in progress

Missed call

Synced with the web

New text or multimedia message

Alarm activated

Mute mode activated

Vibration mode activated

Flight mode activated

Error occurred or caution required

Battery power level

Charging the battery

Charge the battery before using it for the first time.

Use only Sigma mobile approved chargers, batteries, and cables. Unapproved

chargers or cables can cause the battery to explode or damage the device.

When the battery power is low, the battery icon appears as empty.

If the battery is completely discharged, the device cannot be turned on

immediately when the charger is connected. Allow a depleted battery to charge

for a few minutes before turning on the device.

If you use multiple apps at once, network apps, or apps that need a connection

to another device, the battery will drain quickly. To avoid losing power during a

data transfer, always use these apps after fully charging the battery.

Charging steps

Connect the USB cable to the USB power adaptor, and then plug the end of the

USB cable into the multipurpose jack.

Connecting the charger improperly may cause serious damage to the device. Any

damage caused by misuse is not covered by the warranty.

The device may be used while charging; in that case charging time is prolonged.

If the device receives an unstable power supply while charging, the touchscreen

may not function. If this happens, unplug the charger from the device.

While charging, the device and the charger may heat up. This is normal and should

not affect the device’s lifespan or performance. If the battery gets hotter than

usual, the charger may stop charging.

If the device is not charging properly, take the device and the charger to a Sigma

mobile Service Centre.

After fully charging, disconnect the device from the charger. First unplug the

charger from the device, and then unplug it from the electric socket.

To save energy, unplug the charger when not in use. The charger does not have a

power switch, so you must unplug the charger from the electric socket when not

in use to avoid wasting power. The charger should remain close to the electric

socket and easily accessible while charging.

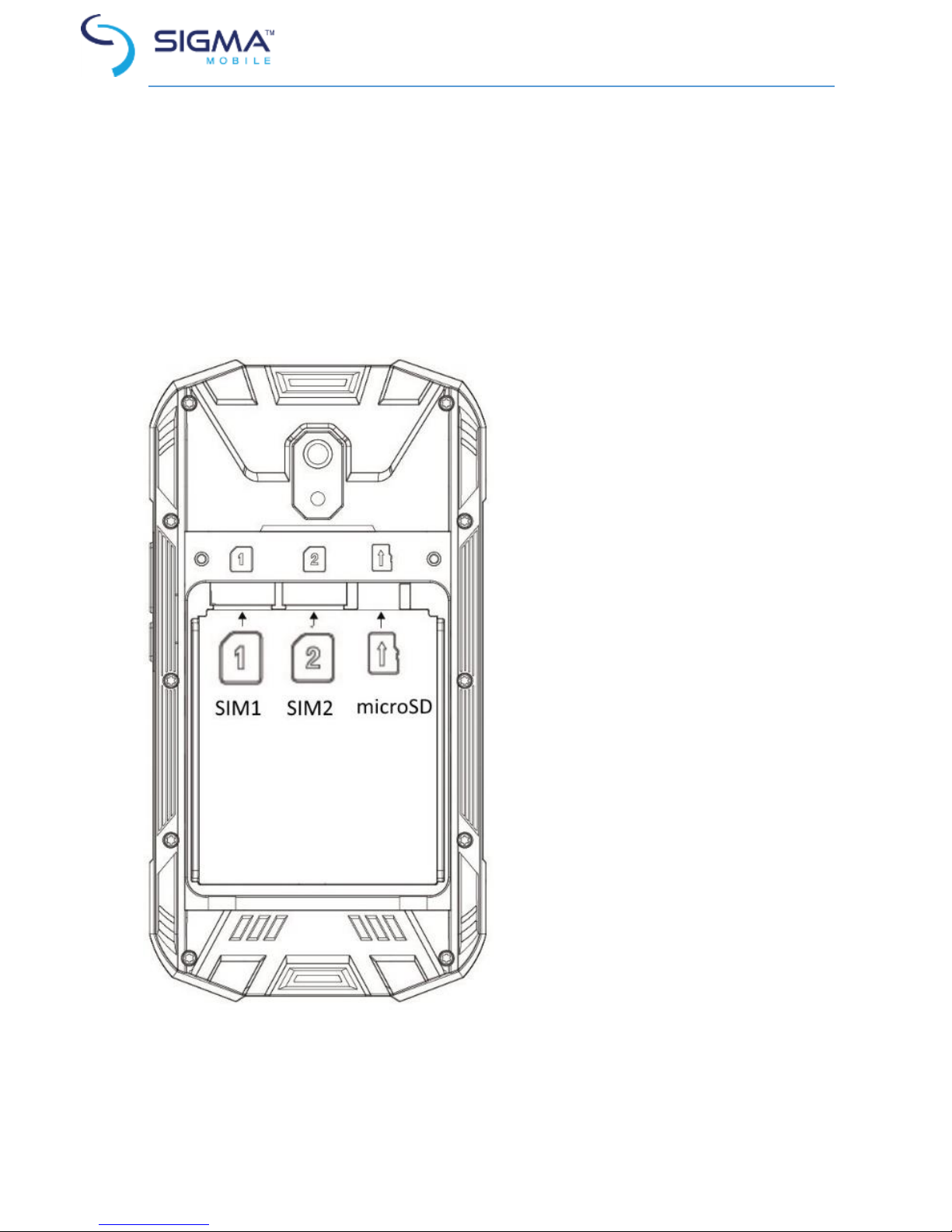

Installing a SIM-card and SD card

Unscrew the screws

and remove the battery

compartment cover.

Remove the battery

Insert SIM-card with

contacts facing down.

Insert microSD card

Insert the battery, close

the cover and tighten the screws

carefully.

Attention! Do not insert the memory card in slot

for the SIM-card. If the memory card stuck in the

slot for SIM-card, take the device to service

center Sigma mobile for its safe removal. Be

careful not to lose the SIM-card and do not let

others use it. Sigma mobile is not liable for any

damages or inconvenience caused by lost or

stolen cards.

Close cover of the

SIM/microSD card

Installing a memory card

Your device accepts memory cards

with maximum capacities of 32 GB.

Depending on the memory card

manufacturer and type, some memory cards may not be compatible with your

device.

Table des matières

Autres manuels Sigma mobile Téléphone portable

Sigma mobile

Sigma mobile X-treme DT68 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ52 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme IT67 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme 3SIM Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ36 Manuel utilisateur

Sigma mobile

Sigma mobile X-style 28 flip Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ39 Manuel utilisateur

Sigma mobile

Sigma mobile X-Style S5502 Manuel utilisateur

Sigma mobile

Sigma mobile Comfort 50 elegance3 SIMO Manuel utilisateur

Sigma mobile

Sigma mobile X-TREME PQ38 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme IT67m Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ37 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PA68 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ54 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme ST68 Manuel utilisateur

Sigma mobile

Sigma mobile Comfort 50 Retro Manuel utilisateur

Sigma mobile

Sigma mobile Smartphone X-treme PQ53 Manuel utilisateur

Sigma mobile

Sigma mobile Comfort 50 Slim Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ29 Manuel utilisateur

Sigma mobile

Sigma mobile Comfort 50 CF211 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ20 Manuel utilisateur

Sigma mobile

Sigma mobile Comfort 50 Shell DUO Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ39 Manuel utilisateur

Sigma mobile

Sigma mobile X-treme PQ27 Plus Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
