SIGLENT SSU5000A Series Manuel utilisateur

SSU5000A Series

Mechanical Switch

UserManual

EN03B

SSU5000A Series User Manual

int.siglent.com 1

Category

1Copyright and statement.....................................................................................2

2General safety summary .....................................................................................3

3General Care and Cleaning................................................................................. 4

4General inspection...............................................................................................5

5Preparing for use .................................................................................................6

5.1 Dimensions.....................................................................................................................6

5.2 Connect to DC power supply..........................................................................................6

5.3 Front panel......................................................................................................................7

5.4 RF connectors................................................................................................................8

5.5 Rear panel......................................................................................................................9

5.6 User interface.................................................................................................................9

6Firmware operation............................................................................................ 10

6.1 Switch status change....................................................................................................10

6.2 Firmware upgrade ........................................................................................................ 11

7Remote control................................................................................................... 12

8Product certification.......................................................................................... 15

9For more product information .......................................................................... 15

SSU5000A Series User Manual

2 int.siglent.com

1 Copyright and statement

Declaration

SIGLENT products are protected by patent law worldwide.

SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at

the company’s sole decision.

Information in this publication replaces all previously corresponding material.

Any method of copying, extracting or translating the contents of this manual is not allowed without the

permission of SIGLENT.

Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD.

SSU5000A Series User Manual

int.siglent.com 3

2 General safety summary

Carefully read thefollowing safety precautions to avoid any personal injury or damage to the instrument

and any products connected to it. To avoid potential hazards, please use the instrument as specified:

Only qualified technicians can carry out maintenance of the product.

Only the power cord designed for the instrument and authorized by the local country could be

used.

The instrument is grounded through the protective earth conductor of the power cord. To avoid

electric shock, please make sure the instrument is grounded correctly before connecting its input

or output terminals.

The potential of the signal wire ground is equal to the earth, so do not connect the signal wire to a

high voltage.

To avoid fire or electric shock, please look over all ratings and safety labels on the instrument.

Before connecting the instrument, please read the manual carefullyto gain more information about

the ratings.

Do not touch exposed contacts or components when the power is on.

To avoid short-circuiting to the interior of the device or electric shock, please do not operate the

instrument in a humid environment.

To avoid damage to the device or personal injury, it is important to operate the device away from

an explosive atmosphere.

To avoid the influence of dust and moisture in the air, please keep the surface of the device clean

and dry.

SSU5000A Series User Manual

4 int.siglent.com

3 General Care and Cleaning

Care:

Do not store or leave the instrument in direct sunshine for extended periods.

To avoid damage to the instrument or probes, please do not expose them to fog, liquid, or solvents.

Cleaning:

Please perform the following steps to clean the instrument and probes.

1. Disconnect the instrument from all power sources and then clean it with a soft damp cloth.

2. Clean the loose dust on the outside of the instrument and probe with a soft cloth.

To avoid damage to the surface of the instrument and probe, please do not use any corrosive liquid or

chemical cleansers.

Make sure that the instrument is completely dry before restarting it to avoid potential short circuits or

personal injury.

SSU5000A Series User Manual

int.siglent.com 5

4 General inspection

1. Inspect the shipping container:

Keep the shipping container or cushioning material until the contents of the shipment have been

completely checked and the instrument has passed both electrical and mechanical tests. The

consigner or carrier will be responsible for damages to the instrument resulting from shipment.

SIGLENT will not provide free maintenance or replacement.

2. Inspect the instrument:

If the instrumentis found to be damaged, defective, or fails in electrical or mechanical tests, please

contact SIGLENT.

3. Check the accessories:

Please check the accessories according to the packing list. If the accessories are incomplete or

damaged, please contact your SIGLENT sales representative.

SSU5000A Series User Manual

6 int.siglent.com

5 Preparing for use

5.1 Dimensions

SSU5264A

SSU5266A

Front View (unit: mm)

Top View (unit: mm)

5.2 Connect to DC power supply

The equipment accepts 12V, 2A, DC power supply. Please use the power adapter provided in the

accessory to connect the instrument to the power source

SSU5000A Series User Manual

int.siglent.com 7

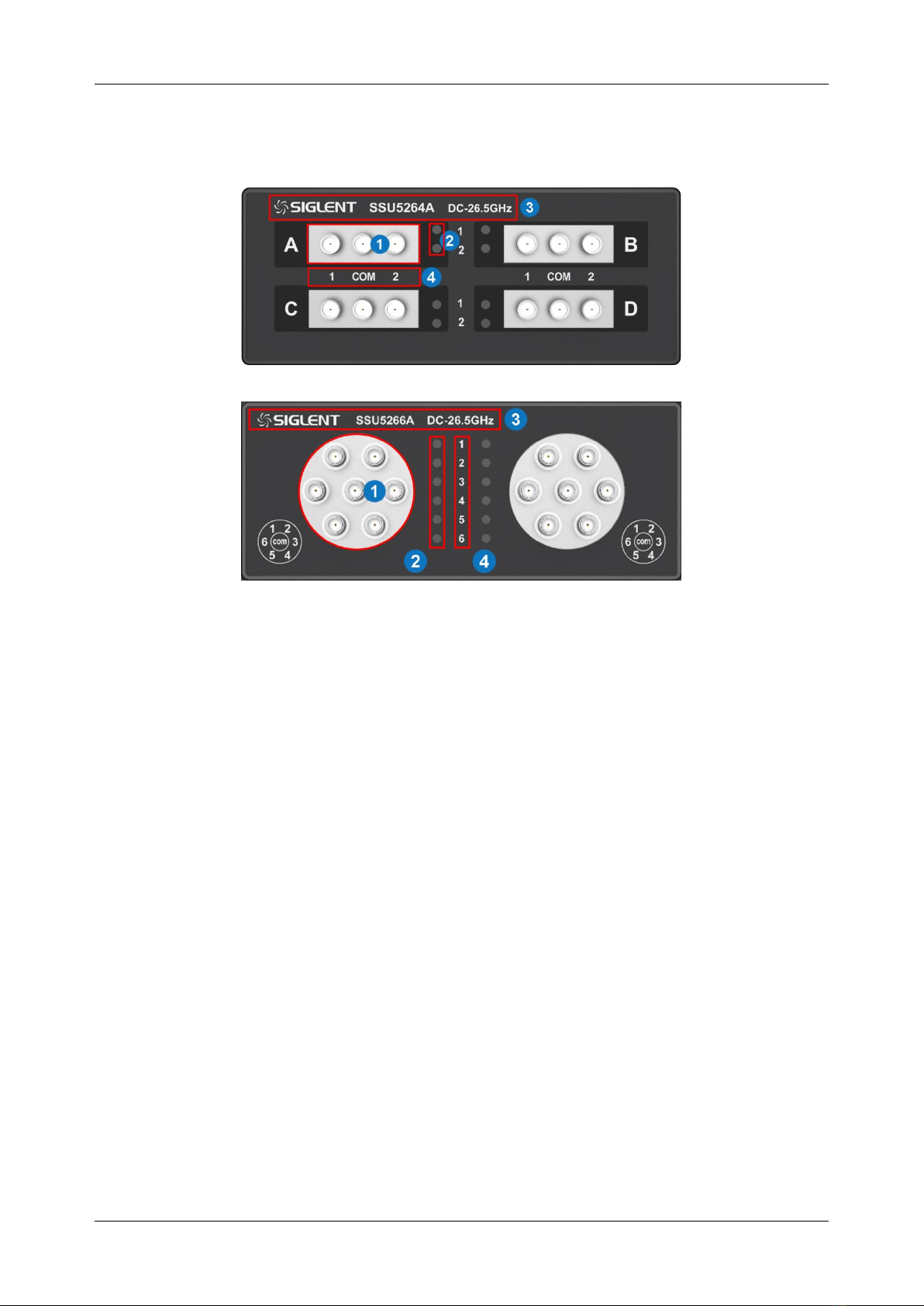

5.3 Front panel

SSU5264A

SSU5266A

1. RF connectors.

SPDT RF ports and SP6T RF ports.

2. Indicator Lights.

Indicate which port the middle port links to.

3. Model name.

Model name and operation frequency.

4. Illustration.

Illustration of the indicator lights.

SSU5000A Series User Manual

8 int.siglent.com

5.4 RF connectors

Front panel RF connectors (SSU5264A)

There are 4 groups of RF connectors. Every group is an independent SPDT.

When a SPDT is configurated, the middle connect will be link to left of right connect. And the indicator

light will turn green 1 (Left) or green 2 (right).

Front panel RF connectors (SSU5266A)

There are 2 groups of RF connectors. Every group is an independent SP6T.

The middle connector of the SP6T switch can be configured to connect to one of the six surrounding

connectors.At this time, the connected connector indicator light lights up.
