SDG1000 Service Manual I

SDG1000 Series

Function/Arbitrary Waveform Generator

Service Manual

SM0201-E01C

Guaranty and Declaration

Trademark Information

SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD

Declaration

⚫SIGLENT products are protected by patent law in and outside of P.R.C.

⚫SIGLENT reserves the right to modify or change parts of or all the

specifications or pricing policies at company’s sole decision.

⚫Information in this publication replaces all previously corresponding

material.

⚫Any way of copying, extracting or translating the contents of this manual is

not allowed without the permission of SIGLENT.

⚫SIGLENT will not be responsible for losses caused by either incidental or

consequential in connection with the furnishing, use or performance of this

manual as well as any information contained.

Product Certification

SIGLENT guarantees this product conforms to the national and industrial

standards in china as well as the ISO9001: 2008 standard and the ISO14001:

2004 standard. Other international standard conformance certification is in

progress.

SDG1000 Service Manual III

General Safety Summary

Carefully read the following safety precautions to avoid person injury and

prevent damage to the instrument or any products connected to it. To avoid

potential hazards, please use the instrument as specified.

Only qualified technician should perform service procedures

Use Proper Power Line

Use only the special power line of the instrument that approved by local state.

Ground the Instrument

The instrument grounds through the protective terra conductor of the power

line. To avoid electric shock, the ground conductor must be connected to the

earth. Make sure the instrument is grounded correctly before connect its input

or output terminals.

Connect the Signal Wire correctly

The potential of the signal wire is equal to the earth, so do not connect the

signal wire to a high voltage. Do not touch the exposed contacts or

components.

Look Over All Terminals’ Ratings

To avoid fire or electric shock, please look over all ratings and sign instruction

of the instrument. Before connecting the instrument, please read the manual

carefully to gain more information about the ratings.

Not Operate with Suspected Failures

If you suspect that there is a damage of the instrument, please let a qualified

service personnel check it.

Avoid Circuit or Components Exposed

Do not touch exposed contacts or components when the power is on.

Do not Operate in Wet/Damp conditions

Do not Operate in an Explosive Atmosphere

Keep the Surface of the Instrument Clean and Dry

Safety Terms and Symbols

Terms used on the instrument. Terms may appear on the instrument:

DANGER: Indicates an injury or hazard that may immediately happen.

WARNING: Indicates an injury or hazard that may not immediately happen.

CAUTION: Indicates a potential damage to the instrument or other property

that might occur.

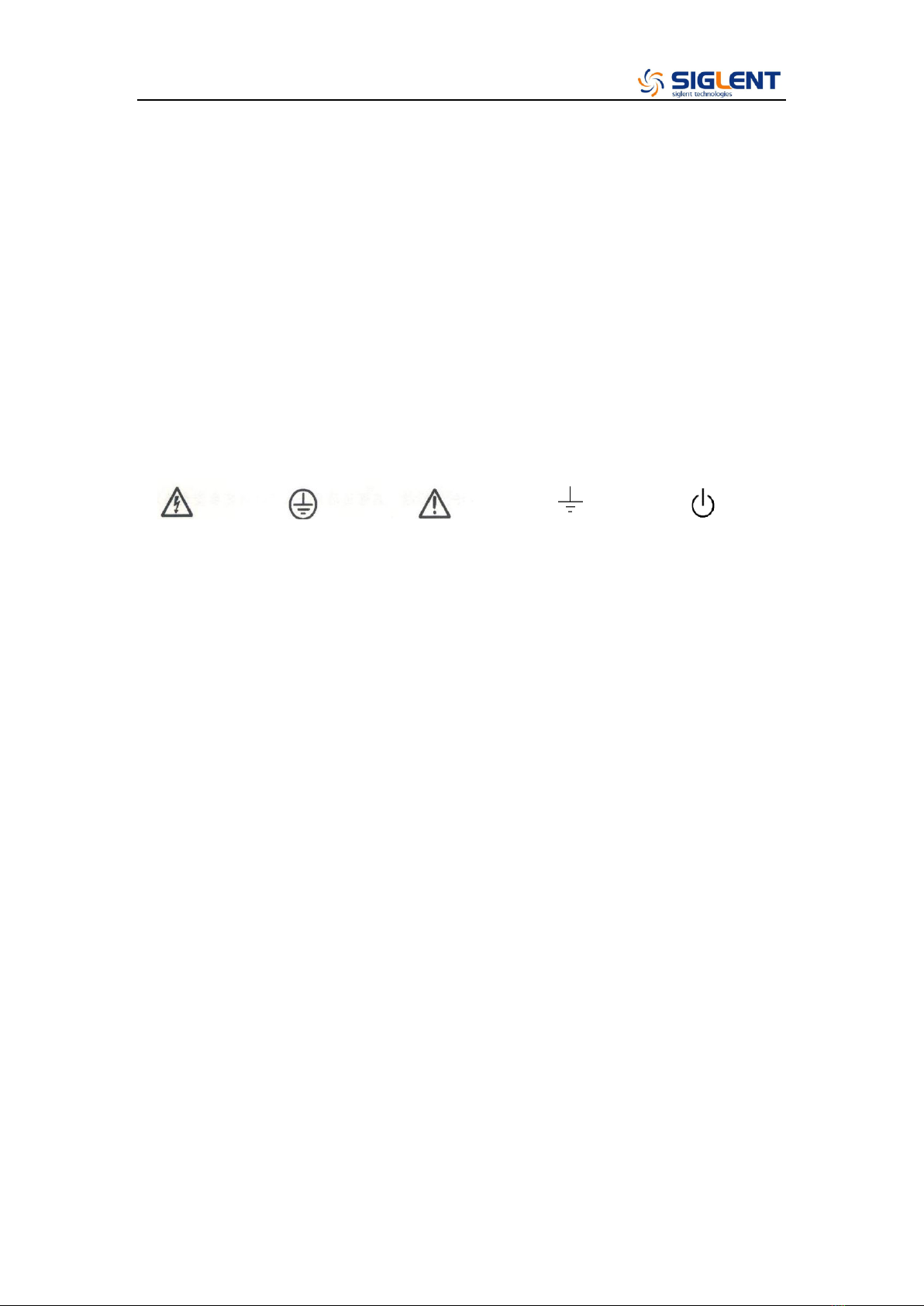

Symbols used on the instrument. Symbols may appear on the instrument:

Hazardous Protective Warning Earth Ground Power

Voltage Earth Ground Switch

SDG1000 Service Manual V

Overview for the Document

The document is for SDG1000 series arbitrary waveform generator, which will

be mostly written as generator for short in the following text. The main contents

described in this manual are:

SDG1000 Series Generator at a glance

This part introduces the main technology characteristics for SDG1000

generator.

The Front Panel at a glance

This part introduces briefly all the buttons and the knob on the front panel.

The Rear Panel at a glance

This part introduces all the ports for easy communication on the rear panel.

Specification

Chapter 1 lists the generator’s specifications.

Quick Start

Chapter 2 prepares the generator for use and helps you get familiar with a few

of its front-panel features.

Performance Verification Test

Chapter 3 provides performance verification test for the generator.

Assembly Procedures

Chapter 4 provides disassembly procedures for you to get an understanding of

the structure of the generator, thus to install or replace some needed modules,

or troubleshoot faults you encounter while operating it.

Troubleshooting

Chapter 5 provides troubleshooting procedures for the internal main board and

power supply board, as well as the quick guide for general troubles. Before any

operation, you should read the ESD Precautions to avoid personal injuries or

damages to the generator

Maintainance

Chapter 6 provides information on maintenance, daily care and unpacking

inspection of the instrument. The contact information is attached in the end in

case of some unsolvable troubles you encounter.

Convention for the whole Contents

All the description for function and performance in this document are according

to SDG1050 series generator, and apply to generator of the other types. The

SDS1000 series contains the following types:

Type

Analog Bandwith

Channel

SDG1005

5 MHz

SDG1010

10 MHz

SDG1020

20 MHz

SDG1025

25 MHz

SDG1050

50 MHz

SDG1000 Service Manual VII

SDG1000 Series at a Glance

The SDG1000 series is a direct digital synthesized waveform generator with

built-in arbitrary waveform and pulse capabilities. Its combination of excellent

system features, easiness in usage and versatile functions makes this

generator a perfect solution for your testing now and in the future.

Characteristics

⚫DDS technology provides precise, stable and low distortional output signal.

⚫3.5’TFT color LCD display.

⚫125MSa/s sampling rate, 14-bit resolution.

⚫Frequency characteristics:

Sine: 1μHz to 50 MHz

Square: 1μHz to 25 MHz

Ramp: 1μHz to 300 kHz

Pulse: 500μHz to 10MHz

White Noise: 50MHz bandwidth (-3dB)

Arbitrary: 1μHz to 5MHz

⚫5 standard waveforms: Sine, Square, Ramp, Pulse, Noise

⚫Self-defined arbitrary waveform

⚫Multiple modulation function, various modulated waveform: AM, DSB-AM,

FM, PM, ASK, FSK, Sweep and Burst.

⚫Multiple I/O: external modulation source, external 10 MHz reference input,

external trigger source, waveform output, synchronous signal output.

⚫Support USB storage device. Software updating could also be performed

using USB devices.

⚫Up to 16k sample points of internal waveform depth, which can rebuild or

simulate any complex waveform.

⚫Remote control is realized using the USB cable.

⚫Multiple interfaces: USB host & device

⚫Support the seamless connection with SIGLENT Series Digital

Oscilloscopes; Be able to directly read and rebuild the stored waveform in

the oscilloscopes.

⚫2 languages（English and Chinese）user interface and built-in help system.

Note: All the specifications described in this manual are according to

SDG1050.

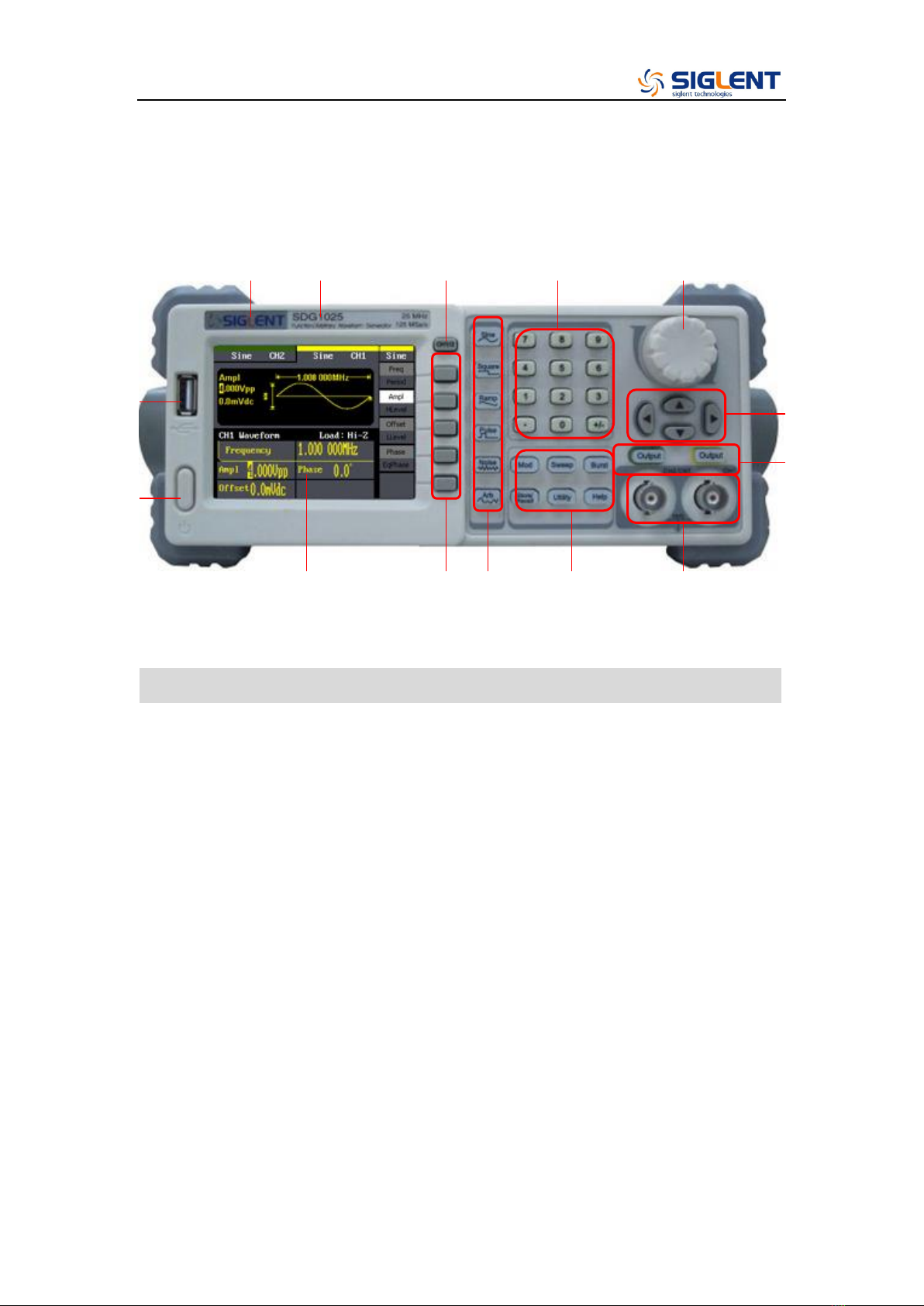

The Front Panel at a Glance

No.

Description

No.

Description

ON/OFF Switch

Direction Keys

USB Host

Output Control Keys

LOGO

BNC Connectors

Model

Function Keys

Menu ON/OFF Switch

Waveform Selection Keys

Digital Keypad

Menu Operation Keys

Universal Knob

LCD Display

14 13 12 11 10

3 4 5 6 7

SDG1000 Service Manual IX

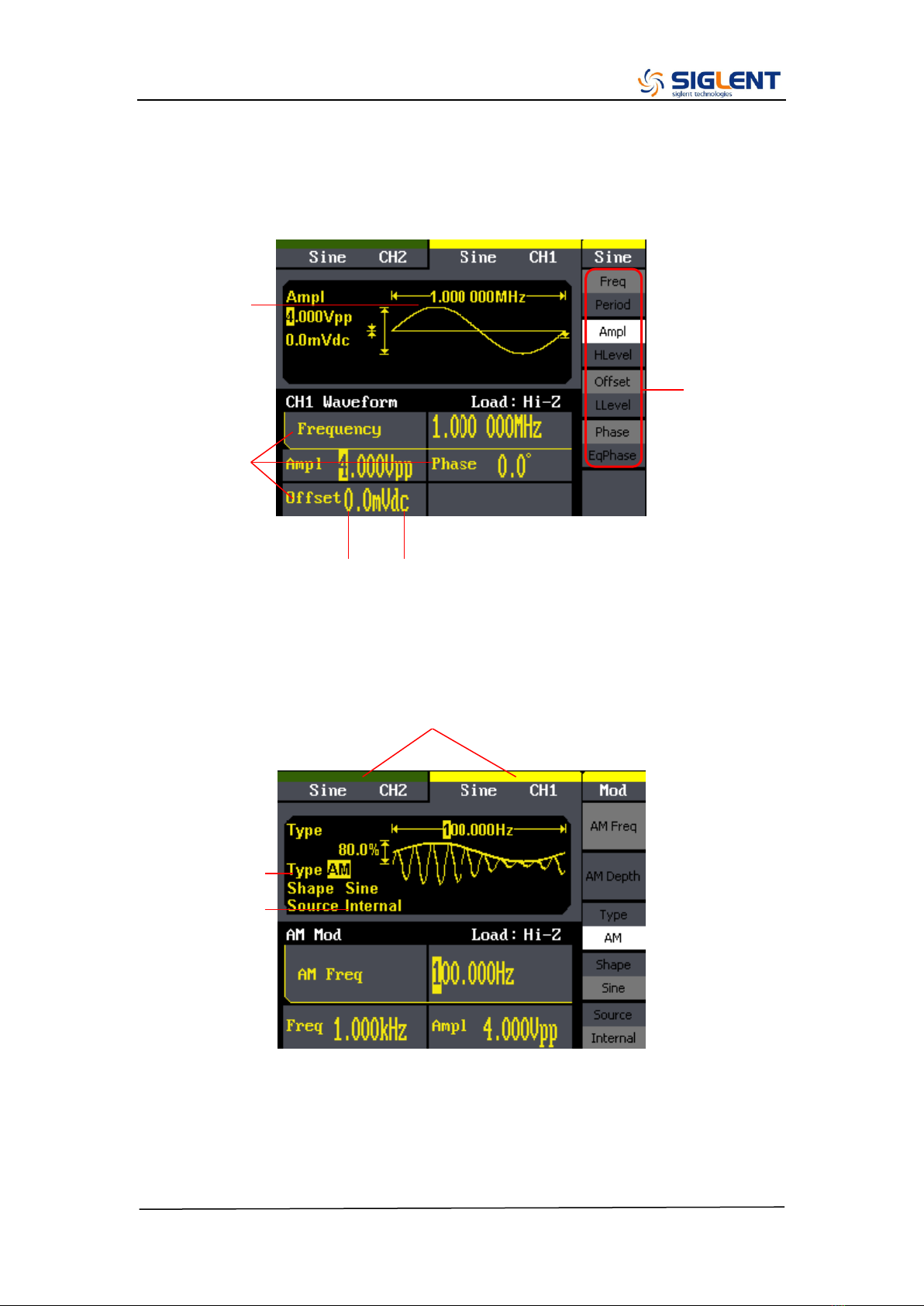

The Front Panel Display at a Glance

Output Status

Parameter

Name

Softkey

Parameter Unit

Value

Mod Information

Trigger Information

Channel Display Space

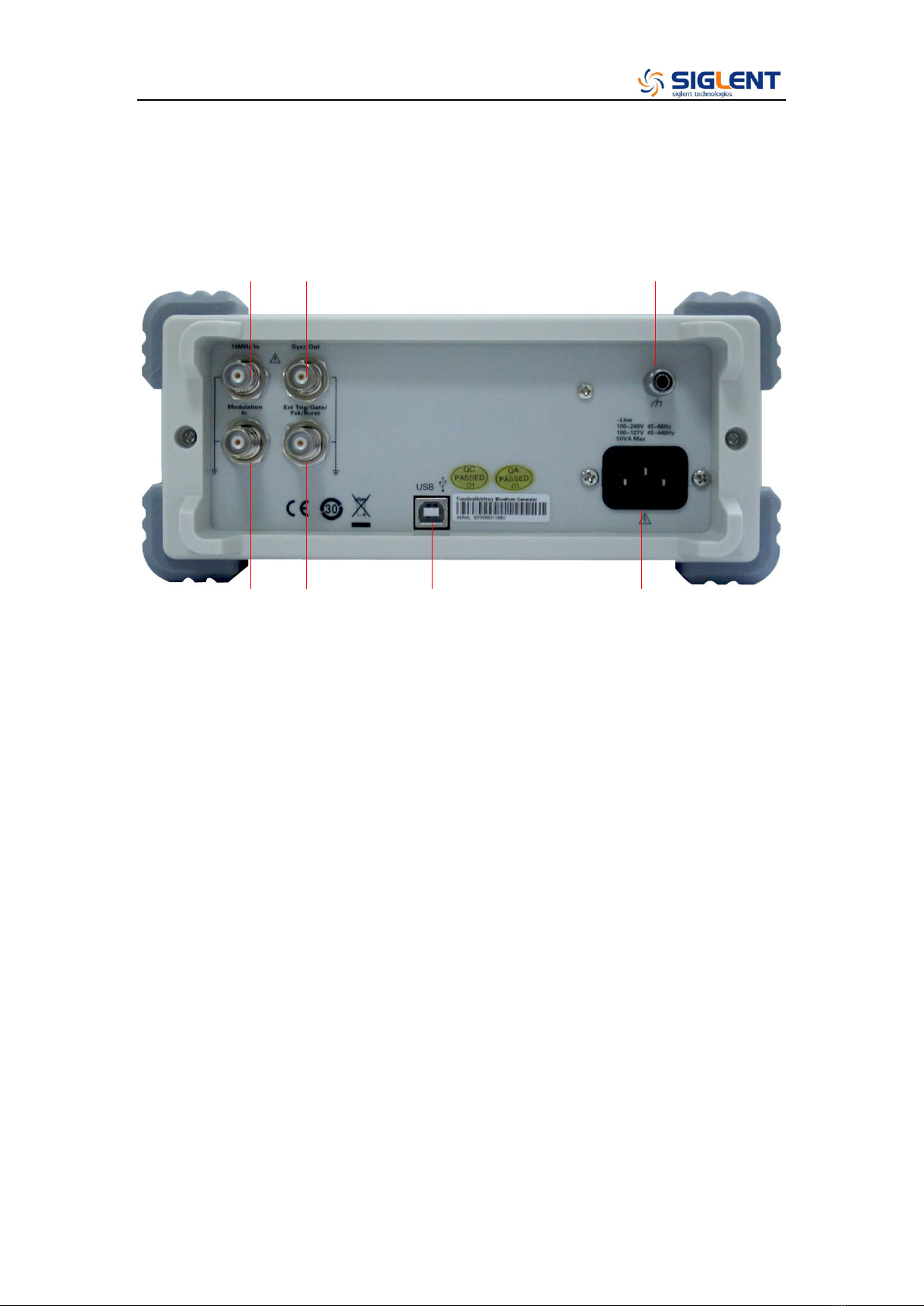

The Rear Panel at a Glance

1. External 10 MHz Reference Input Terminal

2. Sync Output Terminal

3. Chassis Ground

4. Power Socket

5. USB Device

6. Ext Trig/Gate/FSK/Burst Terminal

7. External Modulation Input Terminal

WARNING: For protection from electric shock, the power cord ground must not

be defeated. If only a two-contact electrical outlet is available,

connect the instrument’s chassis ground screw (see above) to a

good earth ground.

1 2 3

7 6 5 4
