S I G B E R G
A U D I O
INKOGNITO
10/12
USER MANUAL
WE CAN’T WAIT TO PLAY
YOUR FAVORITE MUSIC!
INTRODUCTION
Thank you for purchasing a Sigberg Audio product. We
have done our best to provide a high quality product
that will be yours to enjoy for many years to come.
Please read this manual carefully to ensure that you
get the most out of your investment! It includes
information about how to install, set up and care for
your subwoofer.
INKOGNITO 10 / 12 USER MANUAL © 2020 Sigberg Audio 3
INSTALLATION &
SETUP
For advice on optimal placement of
your subwoofer, please refer to the
articles section of our website:
www.sigbergaudio.no
ON-WALL
INSTALLATION
Start by carefully placing your subwoofer upside down (driver facing towards
the ceiling) on a soft surface like a rug or a sofa.
Install the bottom two feet (there are four included) by inserting them all
the way by hand. Make sure to include the nut and washer.
Install the subwoofer mount with the included bolts and locking washers.
Securely mount the included wall mounts with screws appropriate for the
material. Make sure the screws are of the right type and of appropriate
length to be able to carry the sustained weight of the subwoofer.
Recommended minimum 60 mm. If you have a drywall, consider locating
two studs – mount directly in drywall at your own risk. Also take the time to
measure carefully to ensure it is mounted completely level.
Carefully lift the subwoofer and hang it on the wall mount. Center it within
the wall mounts to minimize transfer of vibrations to the wall.
INKOGNITO 10 / 12 USER MANUAL © 2020 Sigberg Audio 5
FLOOR
INSTALLATION
Start by carefully placing your subwoofer upside down (driver facing towards
the ceiling) on a soft surface like a rug or a sofa.

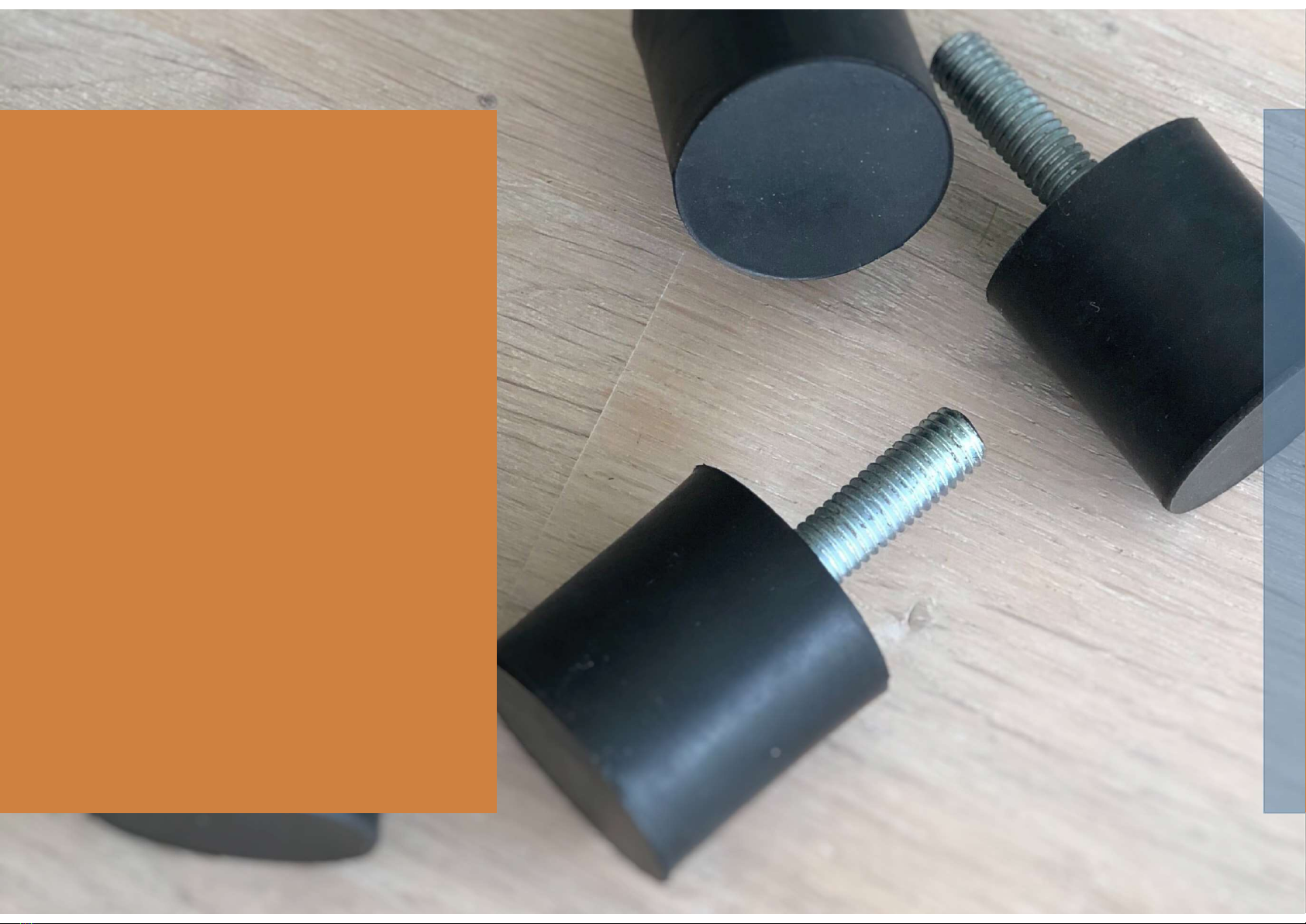

Install all four feet (included) by inserting them all the way by hand. Make
sure to include the washer and nut on each foot.
Carefully place the subwoofer on the floor at the location you want it.
Slightly adjust as necessary to compensate for uneven flooring, then tighten
the nut against the subwoofer.
INKOGNITO 10 / 12 USER MANUAL © 2020 Sigberg Audio 6

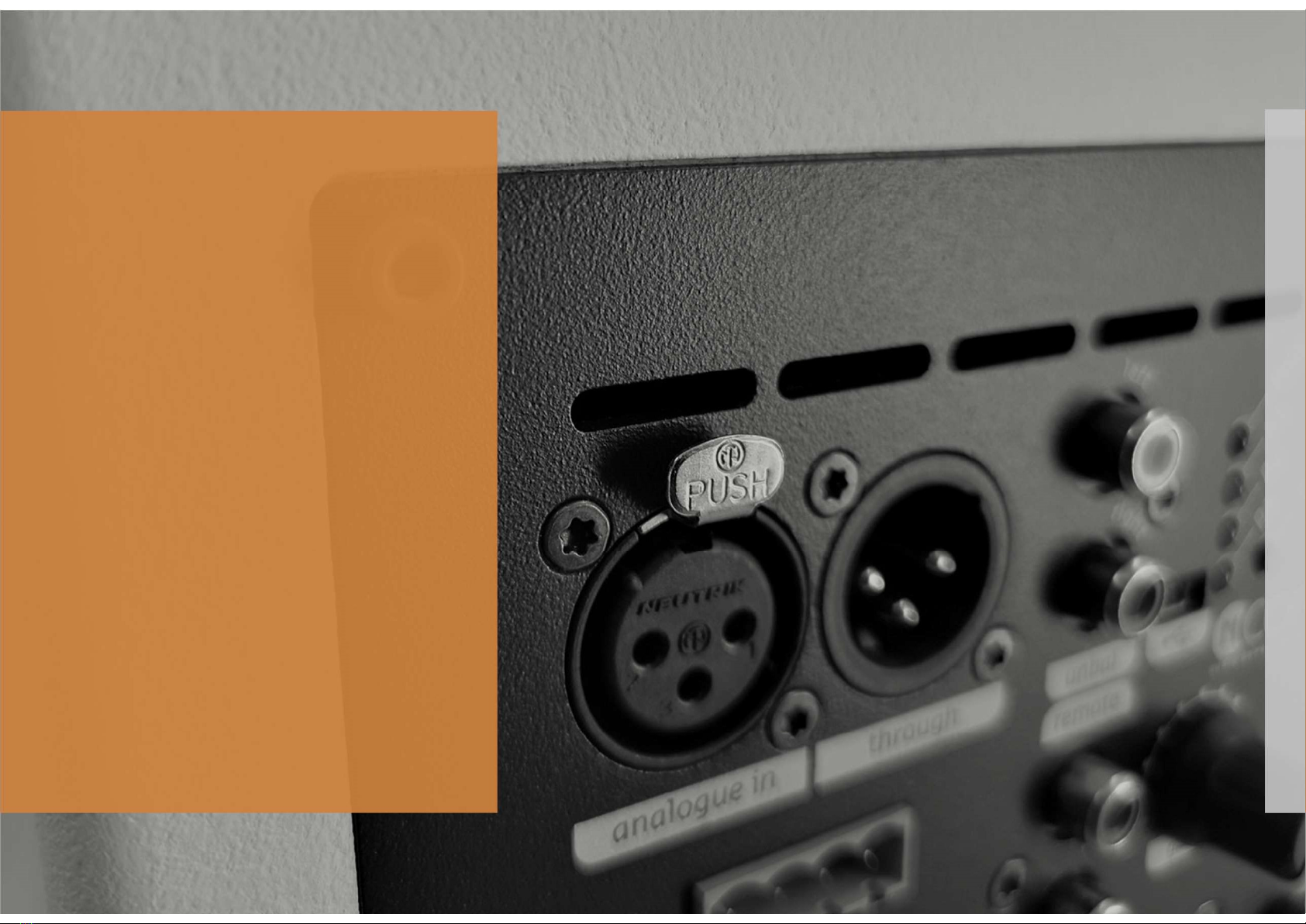

CONNECTIONS
Balanced (XLR) connection
Balanced analogue input and through output.
Unbalanced (RCA) connection
A stereo input signal is internally mixed to mono. For mono
use, simply connect only one of the channels (left or right) or
use anY-split.
High level input
The high level input can be used to connect to your existing
amplifier if no pre-out is available (use included adapter).
USB input
Connect your laptop to access the parametric EQ.
Otherwise for maintenance / service only.
USB audio not supported
INKOGNITO 10 / 12 USER MANUAL © 2020 Sigberg Audio 7
BASIC
OPERATIONS
BASIC
OPERATIONS
INKOGNITO 10 / 12 USER MANUAL © 2020 Sigberg Audio 9

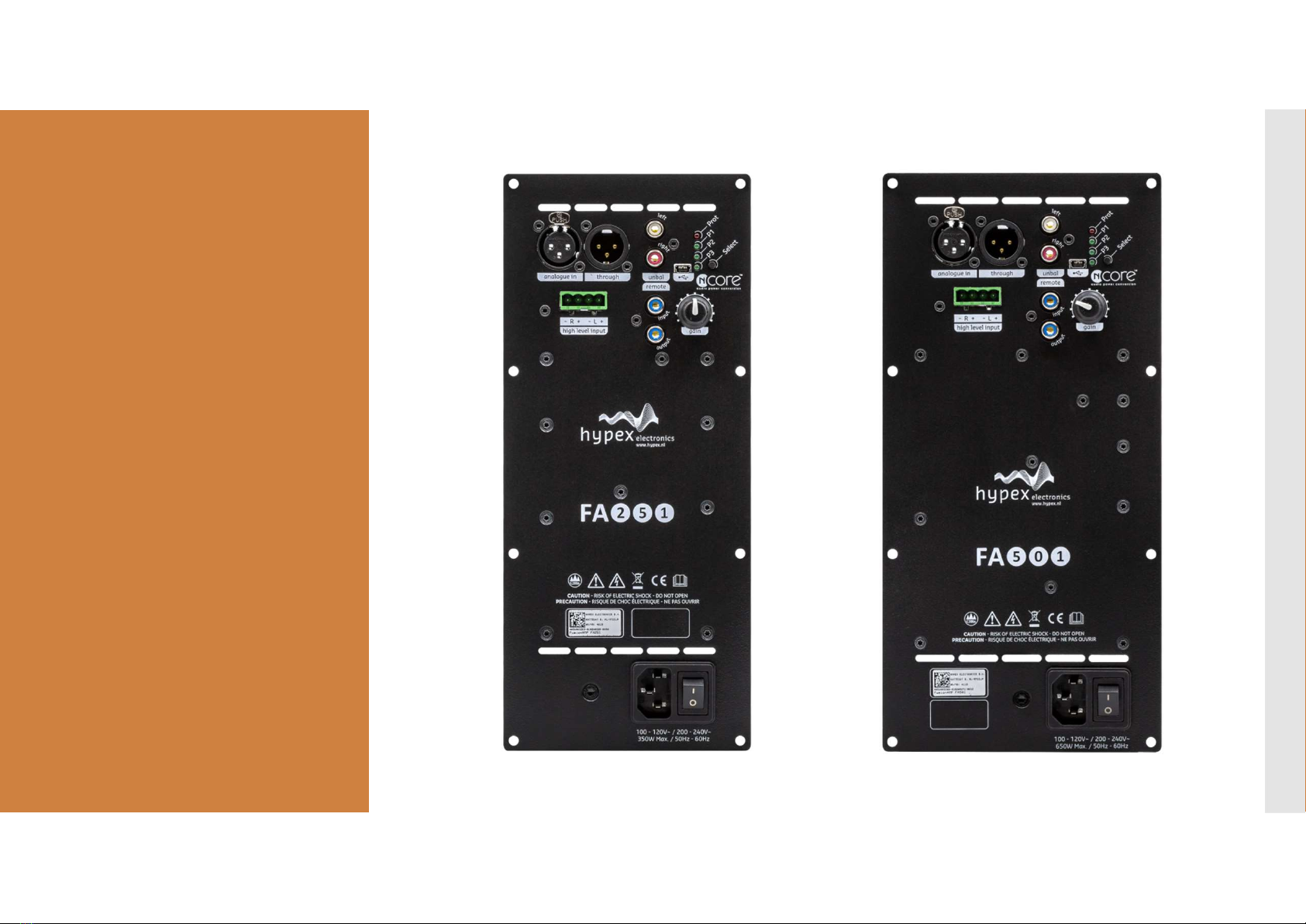

Amplifier overview
BASIC
OPERATIONS
Powering on and off
We recommend leaving the subwoofer on, unless it will not be used for an
extended period of time.
Gain
Default position is directly up (“12 O’clock”). The Gain can be offset up to 12dB
in each direction from the default position. Increase gain with care, as
distortion may occur if the input level is too high.
Presets
3 EQ presets are available to adjust the low frequency characteristics of the
sound (see next chapter for more information).
Click the “select” button on the back of the subwoofer to switch between
presets.
The green LED lights marked P1 / P2 / P3 will indicate the active setting.
INKOGNITO 10 / 12 USER MANUAL © 2020 Sigberg Audio 10
