Sierra Top-Trak 820 Series Manuel utilisateur

Series 820 Instruction Manual Table of Contents

IM-82-C 0-1

Sierra 820 Series

Top-Trakª Mass Flow Meters

Instruction Manual

Part Number IM-82

Revision C 06-99

5 Harris Court, Building L Monterey, CA 93940

(831) 373-0200 (800) 866-0200 Fax (831) 373-4402

http://www.sierrainstruments.com

Sierra Instruments b.v. Bolstoen 30A 1046 AV Amsterdam The Netherlands

+31(0)20-6145810 Fax +31(0)20-6145815

Table of Contents Series 820 Instruction Manual

0-2 IM-82-C

Customer Notice

Sierra Instruments, Inc. is not liable for any damage or personal injury, whatsoever,

resulting from the use of Sierra Instruments standard mass flow meters or control-

lers for oxygen gas. You are responsible for determining if this mass flow meter or

controller is appropriate for your oxygen application. You are responsible for

cleaning the mass flow meter or controller to the degree required for your oxygen

flow application.

No part of this publication may be copied or distributed, transmitted, transcribed, stored in

a retrieval system, or translated into any human or computer language, in any form or by

any means, electronic, mechanical, manual, or otherwise, or disclosed to third parties

without the express written permission of Sierra Instruments. The information contained in

this manual is subject to change without notice.

TRADEMARKS

Top-Trakª and Cal-Benchª are trademarks of Sierra Instruments, Inc. Other product and

company names listed in this manual are trademarks or trade names of their respective

manufacturers.

All Sierra products are Year 2000 compliant.

Series 820 Instruction Manual Table of Contents

IM-82-C 0-3

Table of Contents

Chapter 1 Introduction

Introduction.............................................................1-1

Using this Manual .................................................1-1

Safety Information.................................................1-2

Receipt of System Components..................................1-2

Technical Assistance ..............................................1-2

Top Trak Features......................................................1-3

The 820 Series Flow Sensing Principle .............................1-4

Chapter 2 Installation

Installation Overview ..................................................2-1

Installing the Transducer ..............................................2-2

Compression Fittings .............................................2-2

VCO Fittings .......................................................2-2

VCR Fittings .......................................................2-3

All 1/2-inch Size Connections....................................2-3

Wiring the Transducer.................................................2-4

Standard 0-5 VDC Output Signal Wiring.......................2-5

Optional 4-20 mA Output Signal Wiring........................2-5

Remote Display Installation...........................................2-6

Chapter 3 Operation

Transducer Operation..................................................3-1

Transducer Accuracy..............................................3-1

Referencing the Transducer to Non-Standard Conditions ....3-2

Transducer Over-Ranging ........................................3-2

Zero and Span Adjustments ......................................3-3

Chapter 4 Maintenance and Repair

Transducer Cleaning...................................................4-1

Flow Path Cleaning Model 822/824 .................................4-2

Inlet and Outlet Screens...........................................4-2

Laminar Flow Element............................................4-3

Flow Path Cleaning Model 826/827 .................................4-4

Laminar Flow Element............................................4-4

Flow Path Cleaning Model 822-S/824-S............................4-5

Laminar Flow Element............................................4-5

Sensor Cleaning and Inspection .................................4-8

Transducer Calibration ................................................4-9

Transducer Troubleshooting.................. ...................... 4-11

Returning Equipment to the Factory ............................... 4-12

Table of Contents Series 820 Instruction Manual

0-4 IM-82-C

Appendix A Conversion Formulas and Gas Tables

Appendix B Production Specifications

List of Figures

1-1. Top-Trak Features (Typical)..................................1-3

1-2. Flow Paths through the Transducer..........................1-4

1-3. Flow Measuring Principle.....................................1-4

2-1. Piping Requirements for 1/2-inch Size Connections.......2-3

2-2. Transducer D-Connector Pin Assignments .. ...............2-4

2-3. Standard 0-5 VDC Output Signal Wiring ...................2-5

2-4. Single Transducer Current Loop Connection...............2-5

2-5. Multiple Transducer Current Loop Connections ...........2-6

2-6. Mounting the Remote Display ................................2-6

4-1. Model 822/824 Flow Components...........................4-2

4-2. Correct LFE Position ..........................................4-3

4-3. Model 826/827 Flow Components...........................4-4

4-4. Low Flow Transducer LFE Cleaning........................4-5

4-5. Medium Flow Transducer LFE Cleaning ...................4-6

4-6. High Flow Transducer LFE Cleaning .......................4-7

4-7. Printed Circuit Board Component Locations ............. 4-10

Series 820 Instruction Manual Table of Contents

IM-82-C 0-5

Cautions

Caution! Only qualified personnel should install the transducer.

Caution! Do not supply +DC power at the D-connector while using a power supply at

the power jack. Both supplies may be damaged.

Caution! Operating a 12 VDC transducer at 24 VDC will cause equipment damage.

Caution! Only qualified personnel should perform transducer service, calibration or

troubleshooting procedures.

Caution! When using toxic or corrosive gases, purge the unit thoroughly with inert

dry gas before disconnecting from the gas line.

Caution! Printed circuit boards are sensitive to electrostatic discharge. To avoid dam-

aging the board, follow these precautions to minimize the risk of damage:

· before handling the assembly, discharge your body by touching a grounded,

metal object

· handle all cards by their edges unless otherwise required

· when possible, use grounded electrostatic discharge wrist straps when handling

sensitive components

Table of Contents Series 820 Instruction Manual

0-6 IM-82-C

Series 820 Instruction Manual Chapter 1 Introduction

IM-82-C 1-1

Chapter 1 Introduction

This instruction manual covers the installation, operation and main-

tenance of SierraÕs 820 Series product line including the following

Top-TrakªModels:

· 822 Mass Flow Meter with display (nylon flow body)

· 824 Mass Flow Meter without display (nylon flow body)

· 826 Hi-Flow Meter with display (aluminum flow body)

· 827 Hi-Flow without display (aluminum flow body)

· 822-S Mass Flow Meter with display (stainless steel flow body)

· 824-S Mass Flow Meter without display (stainless steel flow body)

SierraÕs Top-TrakªMass Flow Meters are designed for precise

measurement of gas mass flow. The 820 Series offers a broad range

of sizes and process connections for flexibility and versatility. The

primary standard calibration ensures starting point accuracy and

NIST traceability. The meterÕs 0-5 VDC or 4-20 mA output signal is

provided for recording, data-logging or control. The optional dis-

play reads the mass flow rate directly in engineering units or per-

centage of full scale.

Using This Manual

This manual is organized into four chapters:

· Chapter 1 includes the introduction and theory of operation

· Chapter 2 provides installation and wiring instructions

· Chapter 3 describes transducer operation and features

· Chapter 4 covers maintenance, calibration and troubleshooting

Gas tables and conversion formulas are found in Appendix A.

The product specifications and dimensional drawings are found

in Appendix B.

Throughout this manual, we use the word transducer as a generic

term to represent all models of SierraÕs 820 Series Top-Trak

Mass Flow Meters.

Chapter 1 Introduction Series 820 Instruction Manual

1-2 IM-82-C

Safety Information

Caution and warning statements are used throughout this book to

draw your attention to important information.

Warning! Caution!

This statement appears with information that

is important to protect people and equipment

from damage. Pay very close attention to all

warnings that apply to your application.

This statement appears with information that is

important for protecting your equipment and per-

formance. Read and follow all cautions that ap-

ply to your application.

Receipt of System Components

When receiving a Sierra transducer, carefully check the outside

packing carton for damage incurred in shipment. If the carton is

damaged, notify the local carrier and submit a report to the factory or

distributor. Remove the packing slip and check that all ordered com-

ponents are present and match your specifications (as ordered).

Make sure any spare parts or accessories are not discarded with the

packing material. Do not return any equipment to the factory without

first contacting Sierra Customer Service.

Technical Assistance

If you encounter a problem with your transducer, review the configu-

ration information for each step of the installation, operation and set

up procedures. Verify that your settings and adjustments are consis-

tent with factory recommendations. Refer to Chapter 4, Trouble-

shooting, for specific information and recommendations.

If the problem persists after following the troubleshooting procedures

outlined in Chapter 4, contact Sierra Instruments by fax or by E-mail

(see inside front cover). For urgent phone support you may call (800)

866-0200 or (831) 373-0200 between 8:00 a.m. and 5:00 p.m. PST.

In Europe contact Sierra Instruments bv at +31 20 6145810. When

contacting Technical Support, make sure to include this information:

· the flow range, serial number, Sierra order number and

model number (all marked on the transducer nameplate)

· the problem you are encountering and any corrective action

taken

· application information (gas, pressure, temperature, pipe and

fitting configuration)

Series 820 Instruction Manual Chapter 1 Introduction

IM-82-C 1-3

Top-Trak Features

Standard Top-Trak Mass Flow Meters require a 12 to 15 VDC exter-

nal power source (24 VDC input power optional). The transducerÕs

0 to 5 VDC output signal allows for flow recording, data-logging or

control. A 4 to 20 mA output signal is optionally available. Input

power and output signal connections are made via the 9-pin sub-type

D-connector located on the side of the transducer. An additional input

power jack is located just below the D-connector. (It is important to

connect input power at only one location.)

The transducer shown below is a typical example of a 822 Series

Top-Trak Mass Flow Meter. Other models may vary slightly in their

appearance but are operationally equivalent.

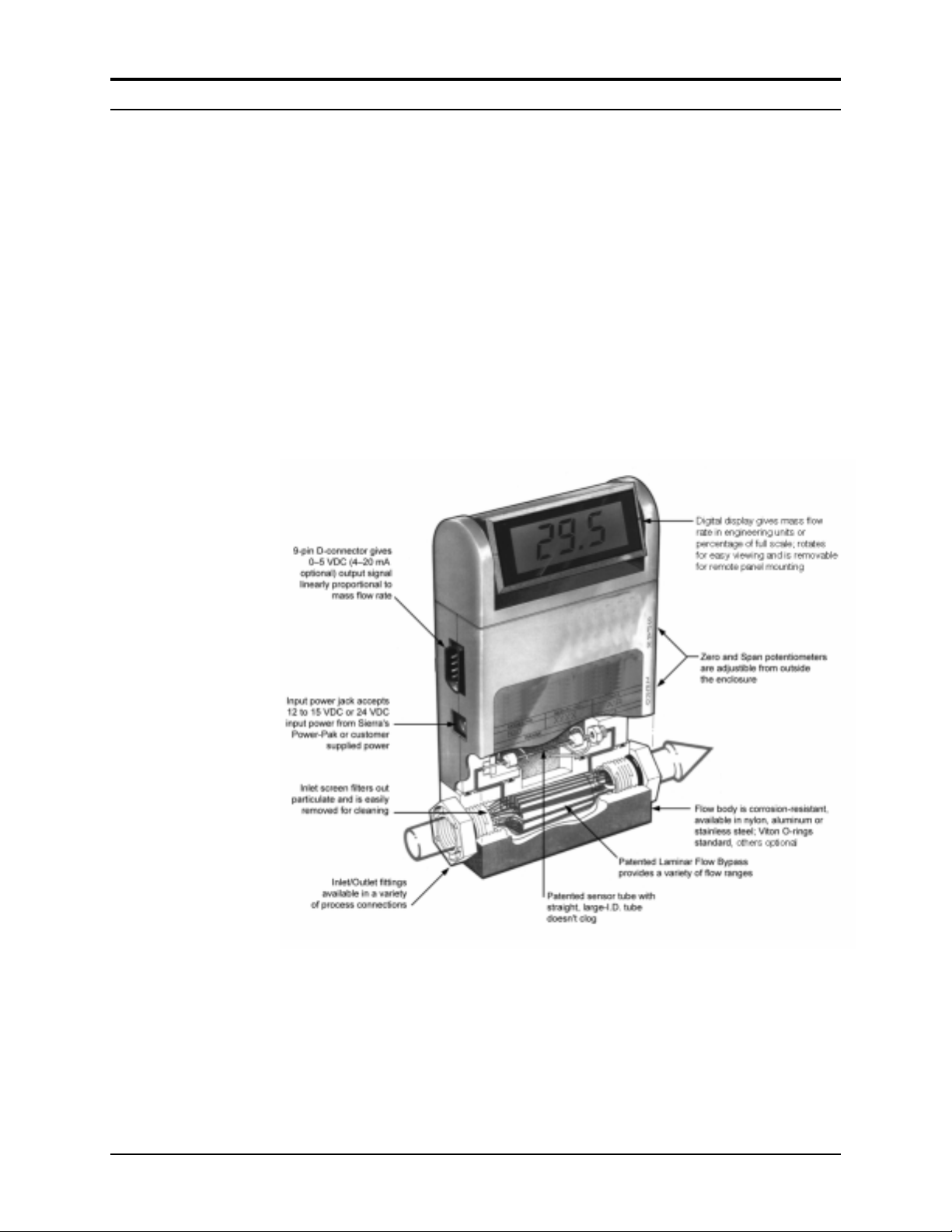

Figure 1-1. Top-Trak Features (Typical)

Chapter 1 Introduction Series 820 Instruction Manual

1-4 IM-82-C

The 820 Series Flow Sensing Principle

The operating principle of Top-Trak transducers is based on heat

transfer and the first law of thermodynamics. During operation

process gas enters the instrumentÕs flow body and divides into two

flow paths, one through the sensor tube, the other through the lami-

nar flow element bypass. The laminar flow bypass generates a pres-

sure drop, P1ÐP2, forcing a small fraction of the total flow to pass

through the sensor tube (m1).

Figure 1-2. Flow Paths through the Transducer

Two resistance temperature detector (RTD) coils around the sensor

tube direct a constant amount of heat (H) into the gas stream. In ac-

tual operation, the gas mass flow carries heat from the upstream coil

to the downstream coil. The resulting temperature difference (DT) is

detected by the RTD coils and gives the output signal. Since the

molecules of the gas carry away the heat, the output signal is linearly

proportional to gas mass flow.

Figure 1-3. Flow Measuring Principle

Autres manuels pour Top-Trak 820 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sierra Instrument de mesure

Sierra

Sierra InnovaMass 241i Manuel utilisateur

Sierra

Sierra InnovaMass 241 series Manuel utilisateur

Sierra

Sierra InnovaSonic 210 Manuel utilisateur

Sierra

Sierra RedySmart Series Manuel utilisateur

Sierra

Sierra RedyCompact Series Manuel utilisateur

Sierra

Sierra QuadraTherm 640i Series Manuel utilisateur

Sierra

Sierra InnovaSonic 203 Manuel utilisateur

Sierra

Sierra FastFlo 620S Manuel utilisateur

Sierra

Sierra Smart-Trak IM-100 Series Manuel utilisateur

Sierra

Sierra TM500 Manuel utilisateur

Sierra

Sierra SmartTrak C100 Manuel utilisateur

Sierra

Sierra 830 Series Manuel utilisateur

Sierra

Sierra Accu-Mass 730 Manuel utilisateur

Sierra

Sierra 780S Series Flat-Trak Manuel utilisateur

Sierra

Sierra 780 Series Manuel utilisateur

Sierra

Sierra HART 600 Series Manuel utilisateur

Sierra

Sierra Innova-Sonic 205 Manuel de programmation

Sierra

Sierra RedyIndustrial Series Manuel utilisateur

Sierra

Sierra Innova-Flo 220 Series Manuel utilisateur

Sierra

Sierra InnovaMass 240i Series Manuel utilisateur

Sierra

Sierra Side-Trak 830 Series Manuel utilisateur

Sierra

Sierra Top-Trak 820 Series Instructions d'utilisation d'origine

Sierra

Sierra Smart-Trak 100 series Manuel utilisateur

Sierra

Sierra InnovaSonic 205i Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
