Siemens RDF300 Series Manuel utilisateur

Facts

HVAC Products

April 2009

No. 32X049EN

32, Room thermostats

Sales release new RDF/RDU

Product No. (ASN):

RDF300

RDF300.02

RDF300.02/SL

RDF340

RDU340

Target audience:

Product Managers

Sales Managers

Sales Staff

Support Staff

Extension of semi flush-

mounted room

thermostat range

For 2-pipe and 4-pipe fan coil / compressor and

single-duct VAV applications.

RDF300...

RDF300.02/SL

RDF340

RDU340

32X049EN - April 2009 – HVAC Products 2

Contents

Introduction.............................................................................................................................................3

Product range .........................................................................................................................................4

Product replacement...............................................................................................................................5

Sales release..........................................................................................................................................5

Documentation........................................................................................................................................5

Functions, features and benefits.............................................................................................................6

Technical data.......................................................................................................................................12

Peripheral devices and accessories .....................................................................................................14

32X049EN - April 2009 – HVAC Products 3

Extension of semi flush-mounted room temperature

controller range

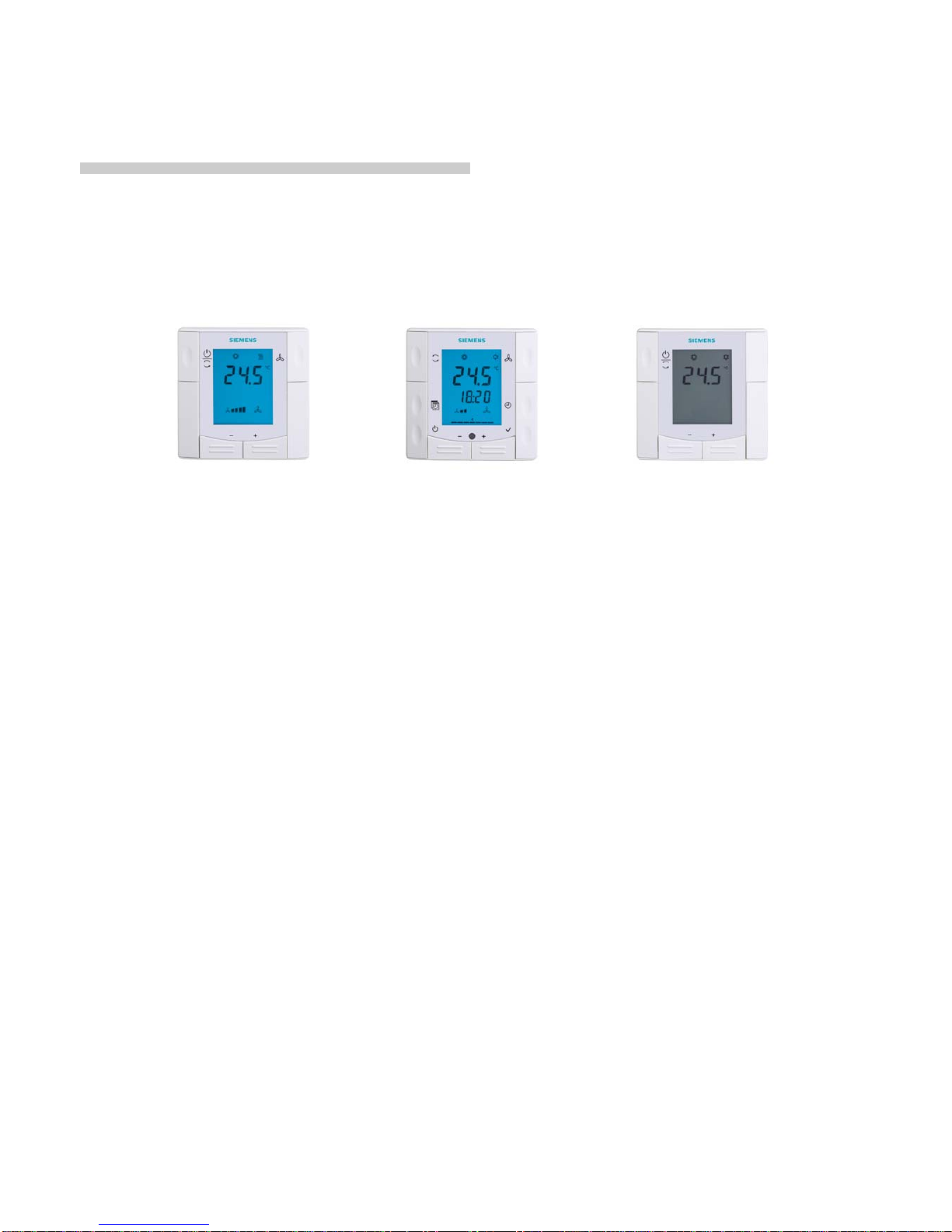

Introduction

2 years ago, Siemens introduced the first semi flush-mount room temperature controllers RDF310 and

RDF410. Customer feedback is very positive and sales volumes are exceeding expectations resulting in

the development of a range extension, which is now available as room temperature controllers

RDF300…, RDF340 and RDU340.

The new semi flush-mount room temperature controllers RDF (phase 2) come with the same stylish and

slim look & feel of the already introduced semi flush-mount RDF (phase 1), but with additional features

and benefits. These include additional applications and multifunctional inputs. This makes these new

products especially suitable for hotel guest rooms, offices and apartments.

New applications:

•Fan coil units

- 2-pipe or 4-pipe on/off fan coil units / compressors in DX type equipment

- 2-pipe on/off and electric heater fan coil units / compressors in DX type equipment

- 2-pipe with 3-position valve fan coil units

•VAV / CAV systems

- Single-duct

- Single-duct and electric heater

New main features:

•Single- or 3-speed automatic or manual fan with advanced fan control function

•2 multifunctional inputs for external sensor, keycard or contact switch, etc.

•Modulating control outputs (DC 0…10 V signal)

•Automatic or manual heating / cooling changeover

•Temperature limitation for underfloor heating

•Minimum and maximum limitation of air flow signal (DC 0…10 V output)

•AC 230 V or AC 24 V operating voltage

The semi flush-mount room temperature controllers are designed to fit into an 86 x 86 x 47 mm conduit

box with fixing centers 60.3 mm (reference BS 4662 / IEC 60670). Optional conduit boxes (ARG71) are

also available as accessory items. Another accessory is the plastic mounting bracket (ARG70.3) for

conduit boxes with insufficient depth. The ARG70.3 mounting bracket is mounted between the wall and

the temperature controller to increase the headroom in the box by 10 mm.

Release of the next phase (phase 3) of the semi flush-mount room temperature controller range

extension is scheduled for the 3nd quarter of 2009 and will include variants with time program and

Konnex field bus communication.

32X049EN - April 2009 – HVAC Products 4

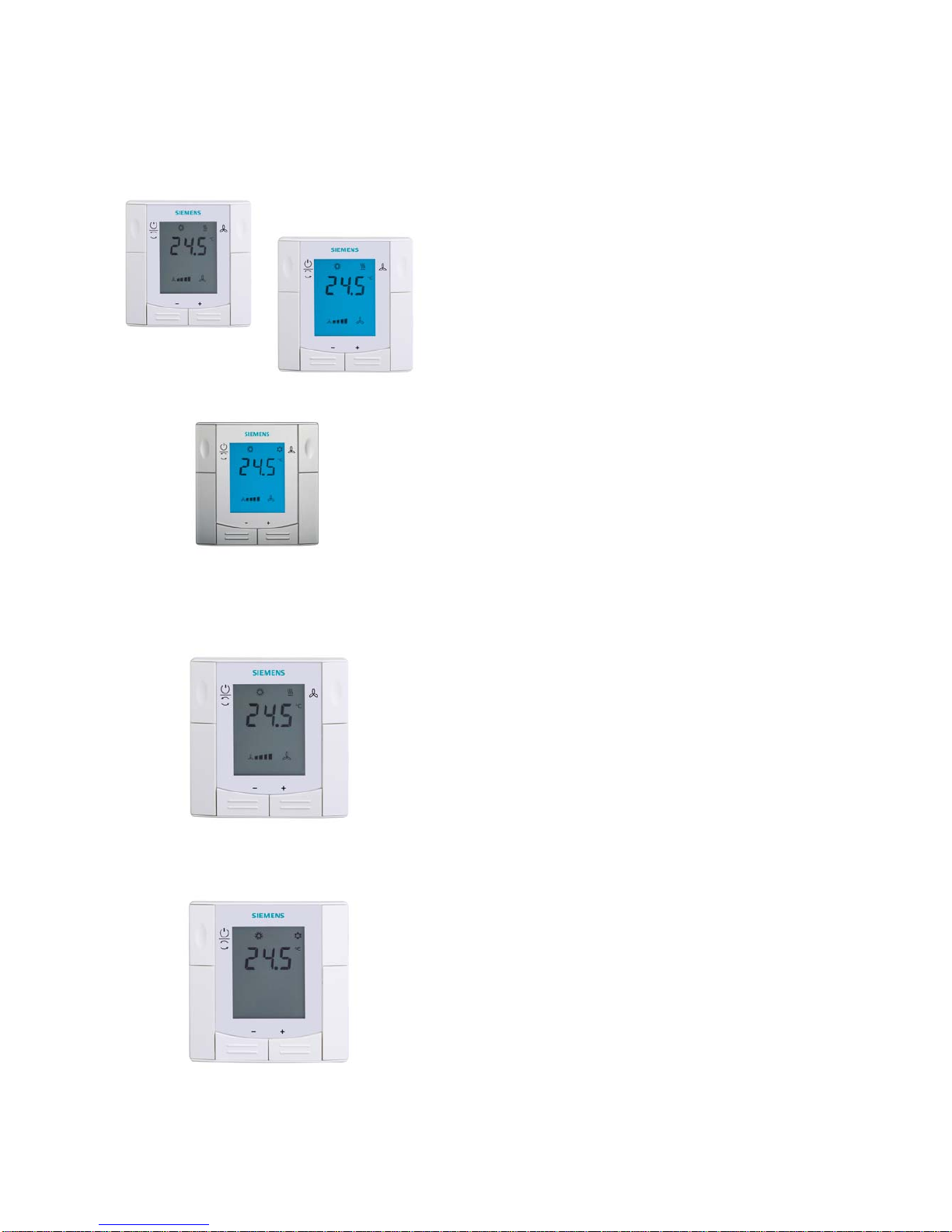

Product range

RDF300… – room temperature controllers for fan coil units and

DX type equipment

RDF340 – room temperature controller for fan coil units with

DC 0…10 V control valves

RDU340 – room temperature controller for VAV / CAV systems

Main features of RDF300:

•Slim, stylish and semi flush-mount design

•Large display

•Applications:

- 2-pipe on/off

- 4-pipe on/off

- 2-pipe on/off with electric heater

- 2-stage heating

- 2-pipe with 3 position control valve

•On/off and modulating PI/P-control

•2 multifunctional inputs for energy saving and

maintenance options

•Single- or 3-speed fan control (automatic / manual)

•Minimum and maximum setpoint limitation

•Temperature limitation for underfloor heating

•AC 230 V operating voltage

Additional features of RDF300.02..

•Backlit LCD

•Silver color (RDF300.02/SL)

RDF300

RDF300.02

Main features:

•All features of RDF300

•Applications:

- 2-pipe with DC 0…10 V control valve

- 4-pipe with DC 0…10 V control valve

- 2-pipe with DC 0…10 V control valve and

electric heater (with additional converter)

•AC 24 V operating voltage

RDF300.02/SL

Main features:

•Slim, stylish and semi flush-mount design

•Large display

•Applications:

- Single-duct

- Single-duct with electric heater (on/off)

•Modulating PI/P-control with DC 0…10 V output signal

•2 multifunctional inputs for energy saving and

maintenance options

•Minimum and maximum setpoint limitation

•Adjustable minimum and maximum limitation of output

signal DC 0…10 V

•AC 24V operating voltage

32X049EN - April 2009 – HVAC Products 5

Product replacement

The RDF300…, RDF340 and RDU340 room temperature controllers do not replace existing products.

Sales release

The RDF300, RDF300.02, RDF300.02/SL, RDF340 and RDU340 are open for ordering and available

from DC Nuremberg.

Documentation

The data sheets and basic documentation are available :

Products Documentation Document no.

Data sheet N3076

Basic documentation CE1P3076

Mounting / Installation instructions M3076

Operating instructions CE1B3076

CE declaration CE1T3076

RDF300… / RDF340…

Environmental product declaration CE1E3076

Data sheet N3078

Basic documentation CE1P3078

Mounting / Installation instructions M3078

Operating instructions CE1B3076

CE declaration CE1T3076

RDU340

Environmental product declaration CE1E3076

The new RDF are easy-to-understand devices that do not require special training. People familiar with

the existing RDF will easily understand the functionality of the new semi flush-mounted room

temperature controllers.

For questions please get in touch with:

George Voulvoutzis, Product Manager in Greece, phone +30 210 6864177, e-mail:

[email protected]

For questions relating to technical topics about the AcvatixTM range of valves and actuators, please get in

touch with :

Georgios Leonardos, phone +30 210 6864961, e-mail: [email protected]

Konstantinos Lontidis, phone +30 2310 479482, e-mail: [email protected]

Kind regards

Siemens A.E.

Industry Sector

Building Technologies Division

HVAC Products

George Voulvoutzis George Kottaras

Product Manager Division Regional Head HVP

32X049EN - April 2009 – HVAC Products 6

Functions, features and benefits

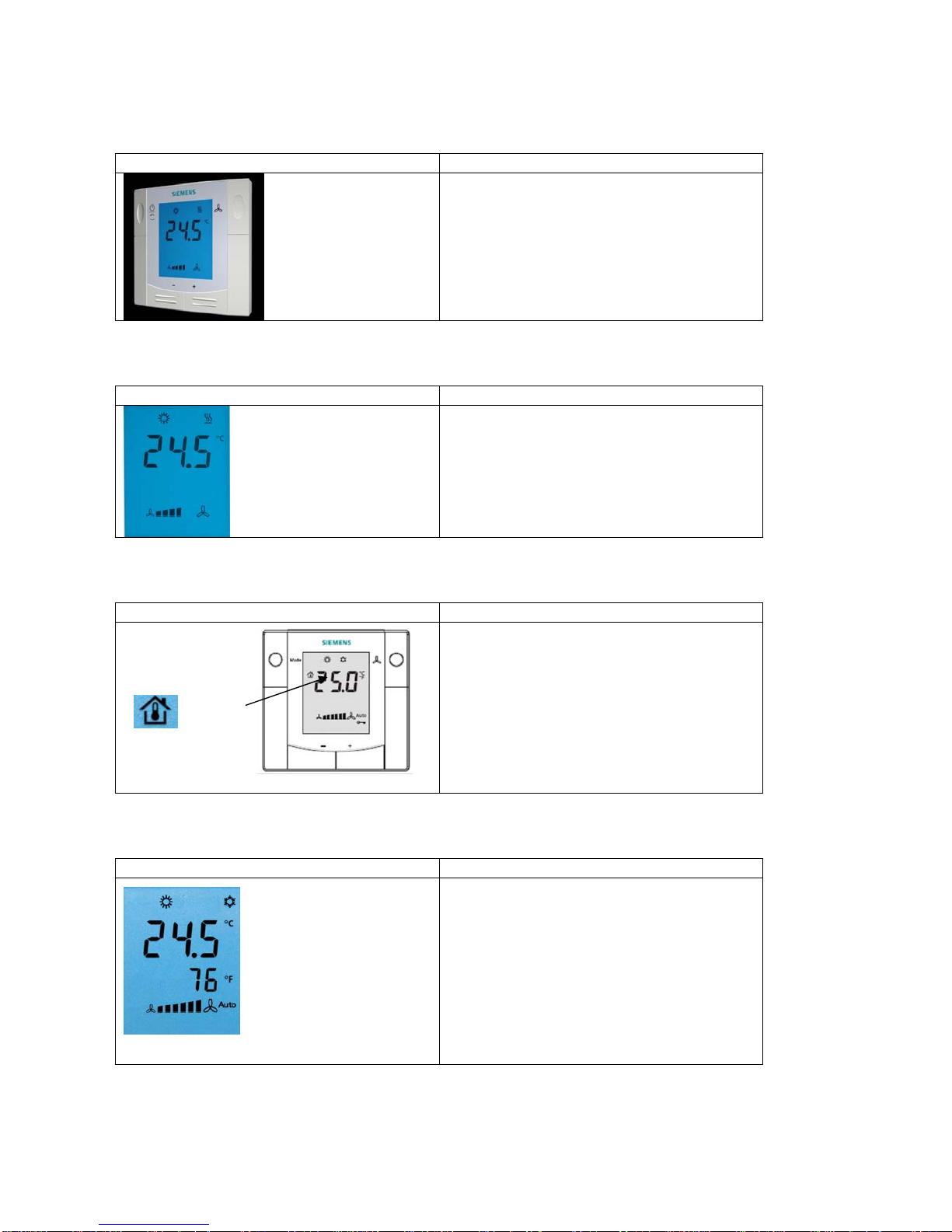

Slim and stylish thanks to semi flush-mounted design

Features / functions Benefits

The new semi flush-mounted room

temperature controllers offer a very slim,

modern and stylish look.

The ergonomic user interface with a large

display and push buttons make this

controller especially user-friendly.

A variant in silver is available as an option.

Backlit LCD (optional)

Features / functions Benefits

The backlit LCD with soft blue color

improves readability in dark environments

and at night.

Display of setpoint or current room temperature

Features / functions Benefits

As an alternative to displaying the current

room temperature, the RDF / RDU can be

configured to display the setpoint only.

This simplifies user operation and

particularly interesting for hotel rooms.

Concurrent display of degree C and F

Features / functions Benefits

Showing the setpoint 24.5 oC and 76 oF simultaneously

The room temperature controller can

display the temperature both in degree

Celsius and Fahrenheit. This is especially

helpful in hotels with guests from overseas.

Current

room temperature

32X049EN - April 2009 – HVAC Products 7

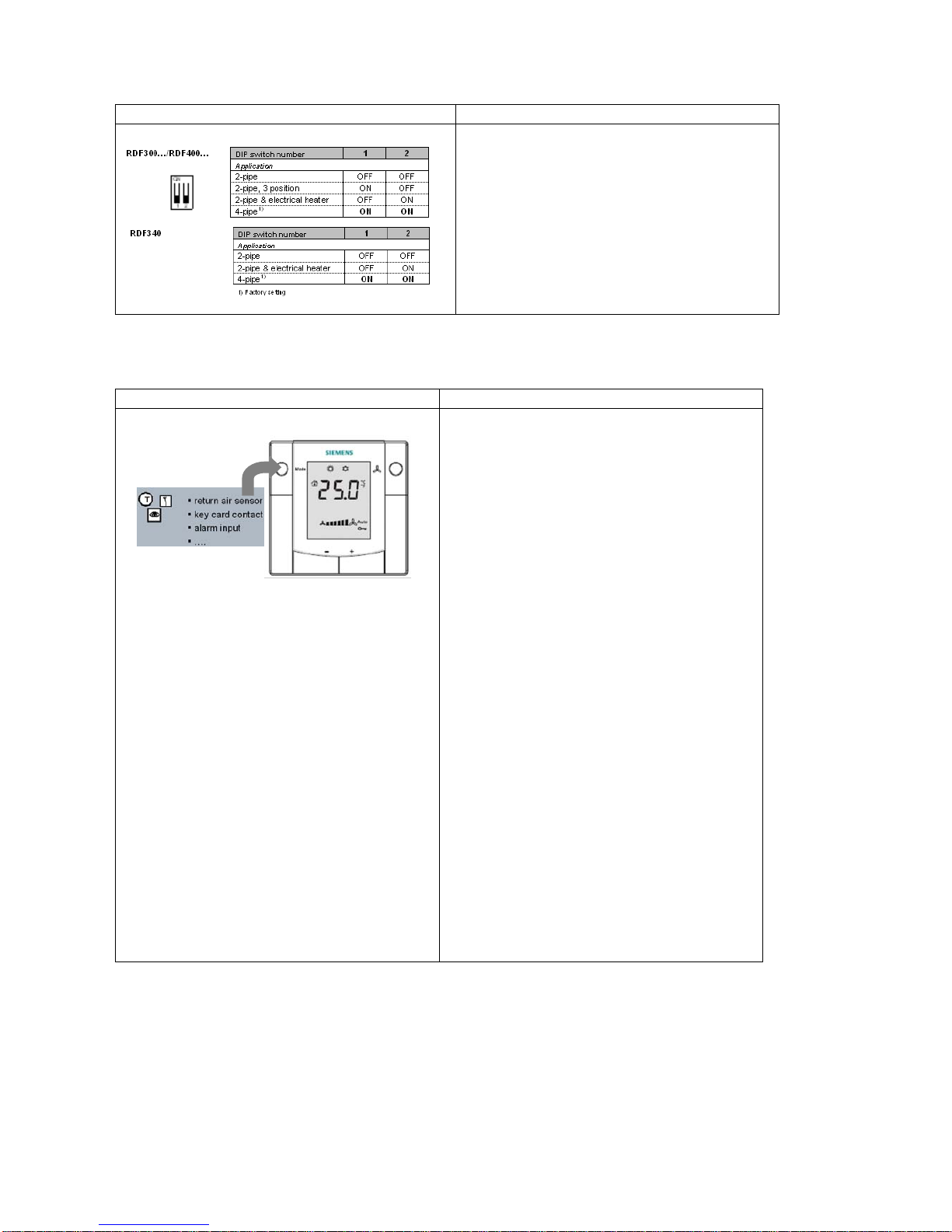

Numerous applications in one model

Features / functions Benefits

One model (ASN) offers numerous

applications easily selected via DIP switch.

This reduces the number of ASNs and

simplifies ordering and stocking.

Multifunctional inputs

Features / functions Benefits

2 multifunctional inputs with freely

assignable functions:

oExternal / return air sensor for

temperature acquisition at an

alternative location

oHeating / cooling changeover sensor:

Automatic changeover for more

convenience

oOperating mode switchover contact:

A useful function for hotel rooms with

keycard, commercial buildings with

time clock, etc. that helps save energy

when the specific area is not in use.

oDewpoint sensor input:

In connection with a dewpoint sensor

to prevent condensation and to avoid

damage to the building on chilled

ceiling applications.

oElectric heater enable contact:

Enabling / disabling of electric heater

from remote for tariff regulation, energy

saving purposes, etc.

oFault input contact:

Digital input to signal faults and

maintenance reminder (e.g. filter

cleaning) to help extend the life of

equipment.

32X049EN - April 2009 – HVAC Products 8

Single- or 3-speed fan control (automatically or manually)

Features / functions Benefits

Automatic fan mode allows the room

temperature controller to automatically

vary the fan speed depending on setpoint

and current room temperature, thereby

improving comfort and saving energy.

Manual fan mode allows a constant fan

speed setting (low, medium, high) selected

by users based on their needs.

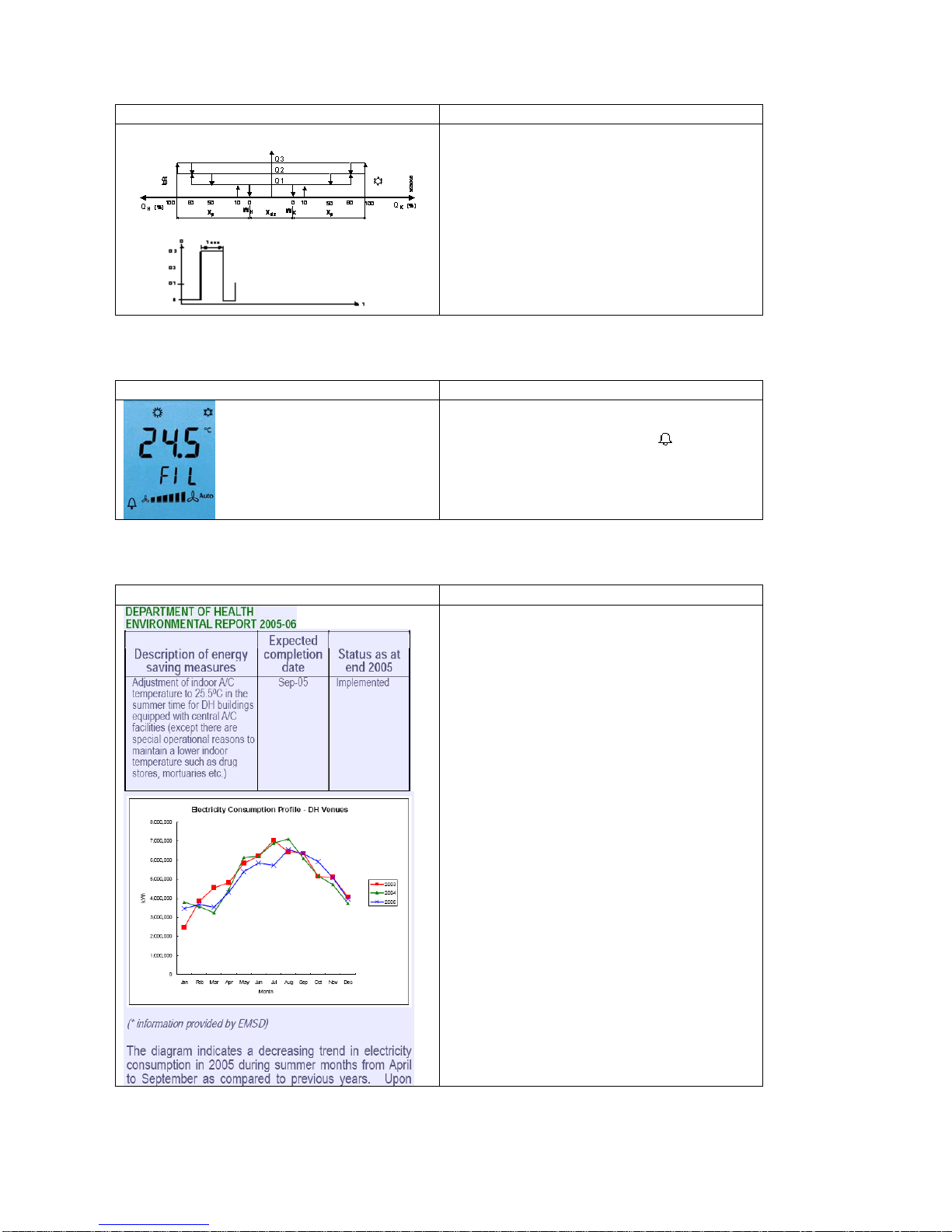

Clean fan filter reminder

Features / functions Benefits

When the fan operating hours reach the

preset time, a “FIL” message appears

on the display.

This reminder helps you carry out regular

maintenance on the fan coil unit.

Setpoint limitation

Features / functions Benefits

Maximum and minimum setpoint limitation:

The adjustable range of the setpoint can

be limited. This is especially helpful in

public areas where energy consumption is

to be controlled, resulting in lower electrical

costs.

For example, the property manager can

set the minimum setpoint for cooling to

25 oC and the maximum setpoint for

heating to 18 oC in public areas of a

shopping mall or school. This allows for

better management of energy

consumption, thus reducing electrical

costs.

32X049EN - April 2009 – HVAC Products 9

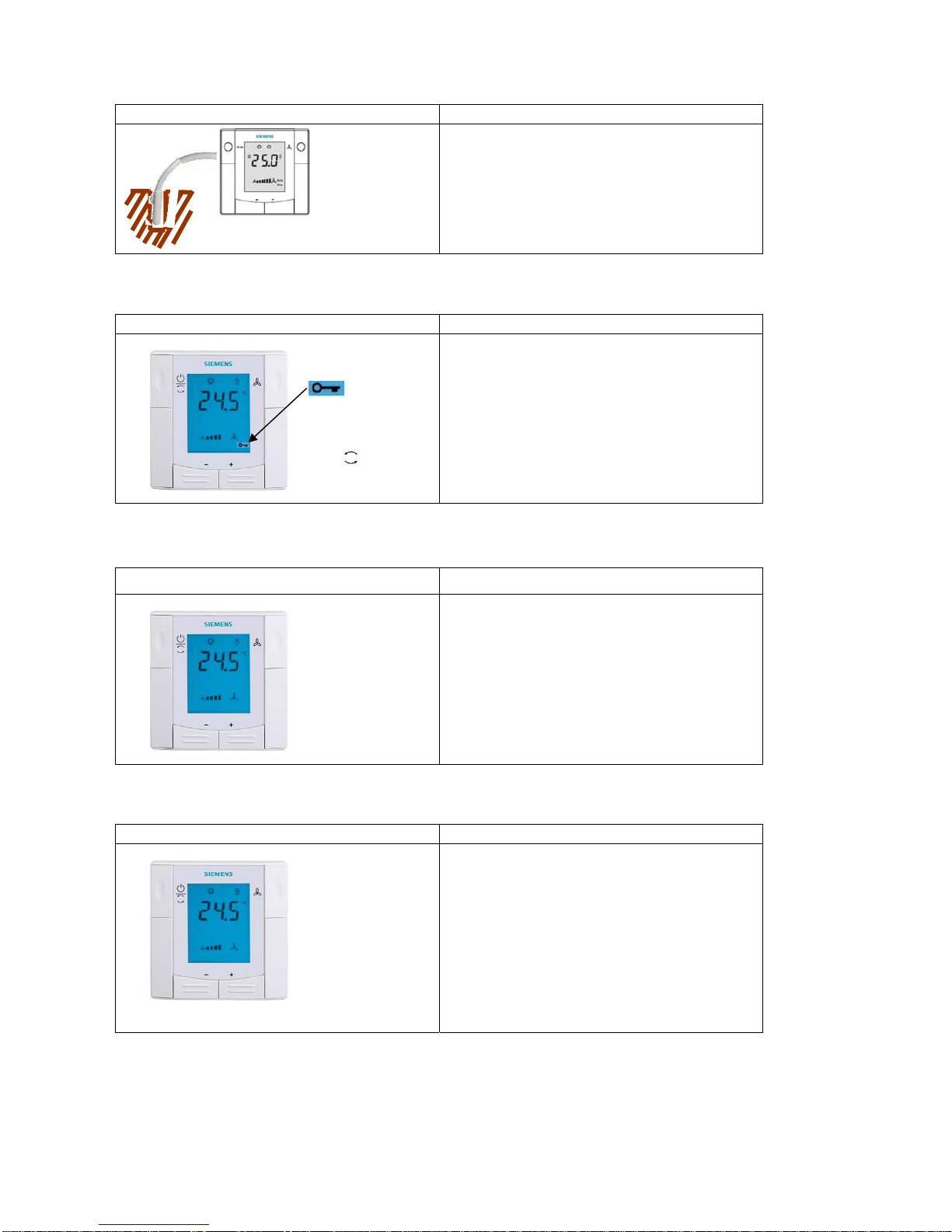

Temperature limitation for underfloor heating.

Features / functions Benefits

Function for underfloor heating.

A floor temperature sensor, connected to

the multifunctional input, monitors the floor

temperature.

This function improves comfort and

protects the floor on applications with floor

heating

Keypad lock

Features / functions Benefits

Automatic / manual lock of the keypad

helps prevent unauthorized readjustment

on the room temperature controller.

Adjustable control parameters

Minimum output ON time / OFF time (compressor short cycle protection)

Features / functions Benefits

The room temperature controller can

protect the compressor by limiting the

on/off switching cycle, thereby reducing

wear and tear and increase the lifetime of

the compressor. Simply speaking, we can

set a minimum on/off time via the control

parameters to control the opening and

closing actions if the user adjusts the

setpoint or heating / cooling mode

changeover incorrectly.

Features / functions Benefits

Many control parameters can be adjusted

to meet individual needs. This gives high

flexibility and enables the controller to

adapt to any type of application.

Keypad is locked.

Can be unlocked by

pressing the

operating mode

button for

7 seconds

32X049EN - April 2009 – HVAC Products 10

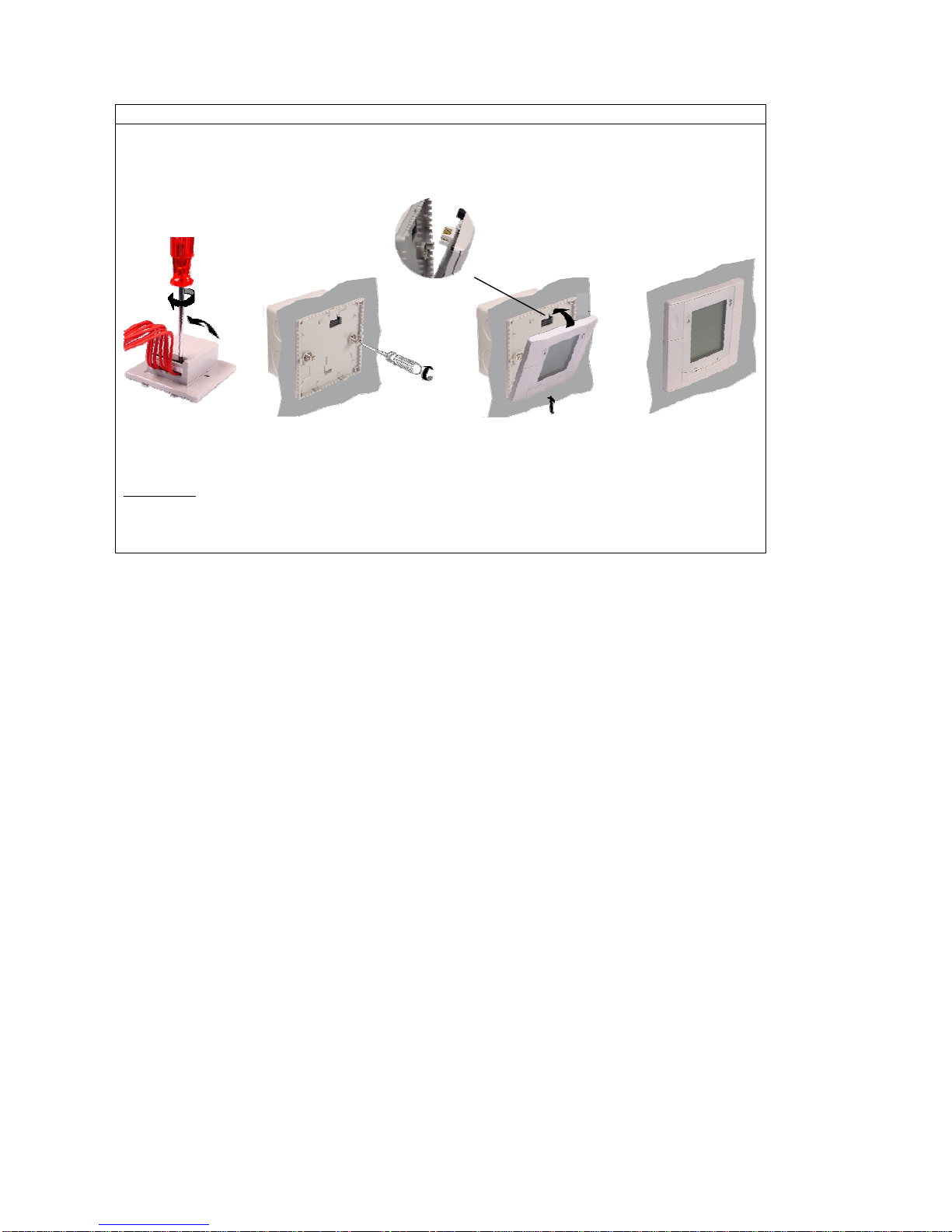

Easy to install

Features / functions

The temperature controller is fast-acting and easy to install: (1) wire, (2) mount and (3)

snap – no bothersome ribbon cable or dangerous opening with mains voltage.

Important: Please verify to ensure the controller fits respective conduit box. The

controller requires at least 53 mm (W) x 68 mm (H) x 46 mm (D) for mounting in the

rectangular conduit box with fixing center 60.3 mm.

(1) (2) (3)

Autres manuels pour RDF300 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Thermostat

Siemens

Siemens RDE100.1 Manuel utilisateur

Siemens

Siemens RDG100T/H Manuel utilisateur

Siemens

Siemens REV24 Manuel utilisateur

Siemens

Siemens RAG-ST.1 Manuel utilisateur

Siemens

Siemens RDE100 Series Manuel utilisateur

Siemens

Siemens RDF301 Manuel de l'opérateur

Siemens

Siemens RDB160BN Manuel de l'opérateur

Siemens

Siemens RDF800KN Manuel utilisateur

Siemens

Siemens G2255 series Manuel utilisateur

Siemens

Siemens RDG110 Manuel utilisateur

Siemens

Siemens RDG Series Guide de l'utilisateur

Siemens

Siemens RDG100 Series Manuel utilisateur

Siemens

Siemens RDS120 Manuel utilisateur

Siemens

Siemens RDG160TU Manuel utilisateur

Siemens

Siemens TH 192 DN Manuel utilisateur

Siemens

Siemens RDD100.1RF Manuel utilisateur

Siemens

Siemens POS8.4420/414 Manuel utilisateur

Siemens

Siemens RAA20 Manuel utilisateur

Siemens

Siemens RDG400KN Manuel de l'opérateur

Siemens

Siemens RDS110 Manuel utilisateur

Siemens

Siemens RDG100 Series Manuel utilisateur

Siemens

Siemens RDG100T Manuel utilisateur

Siemens

Siemens RDJ100RF/SET Manuel utilisateur

Siemens

Siemens RDD50.1 Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
