Setting up email alerts from

SITRANS RD500

Application examples

09/2020

AG030416

Introduction

Overview

Planning/configuring

Siemens AG

Division Process Industries and Drives

Postfach 48 48

90026 NÜRNBERG

GERMANY

Document order number: AG030416

Ⓟ10/2020 Subject to change

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent

damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert

symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are

graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will

be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to

property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by personnel qualified for the specific

task in accordance with the relevant documentation, in particular its warning notices and safety instructions.

Qualified personnel are those who, based on their training and experience, are capable of identifying risks and

avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical

documentation. If products and components from other manufacturers are used, these must be recommended

or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and

maintenance are required to ensure that the products operate safely and without any problems. The permissible

ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication

may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software

described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the

information in this publication is reviewed regularly and any necessary corrections are included in subsequent

editions.

Setting up email alerts from SITRANS RD500

Application examples, 09/2020, AG030416 3

Table of contents

1 Introduction ........................................................................................................................................... 4

1.1 Objective ............................................................................................................................. 4

1.2 Equipment........................................................................................................................... 4

1.3 Disclaimer............................................................................................................................ 4

2 Overview................................................................................................................................................ 5

3 Planning/configuring ............................................................................................................................. 6

3.1 How to set up the email service from Authsmtp.com............................................................ 6

3.2 How to set up the SITRANS RD500 email client ..................................................................... 8

3.3 How to register a whole domain with Authsmtp.com ........................................................... 9

Setting up email alerts from SITRANS RD500

4Application examples, 09/2020, AG030416

1Introduction

1.1 Objective

The objective of this application guide is to help the user become familiar with the steps

required to set up email alerts from SITRANS RD500, including instructions on using the

Authsmtp.com email service.

1.2 Equipment

Equipment Description

MLFB/A5E Number

SITRANS RD500

7ML5750-1AA00-0

External cellular Ethernet router

7ML1930-1GJ

Internal cellular modem

7ML1930-1EY

Authsmtp.com user account

1.3 Disclaimer

Note

While every effort is made to verify the following information, no warranty of accuracy or

usability is expressed or implied.

Setting up email alerts from SITRANS RD500

5Application examples, 09/2020, AG030416

2Overview

This guide will provide instructions for setting up an Authsmtp.com account and explain how

to configure the SITRANS RD500 email client.

Authsmtp is an email service that allows SITRANS RD500 to send alarms, data-logs, and other

reports to an email recipient.

No software programs are needed for any part of the installation process. Only a Web

browser is required to obtain an account from authsmtp.com for the email service.

This application guide assumes the user is already familiar with logging into SITRANS RD500.

Note

This application guide should be used in addition to the SITRANS RD500 operating

instructions.

Setting up email alerts from SITRANS RD500

6Application examples, 09/2020, AG030416

3Planning/configuring

3.1 How to set up the email service from Authsmtp.com

1. Go to www.authsmtp.com and select the Pricing tab to view the cost for the service.

2. Choose the plan which best suits your requirements and select Get Started.

3. Once you have set up an account with Authsmtp.com, you will receive an email with the

account login details.

4. Go to www.authsmtp.com and click Login to get started.

5. Click on From Addresses and then Address.

Planning/configuring

3.1 How to set up the email service from Authsmtp.com

Setting up email alerts from SITRANS RD500

Application examples, 09/2020, AG030416 7

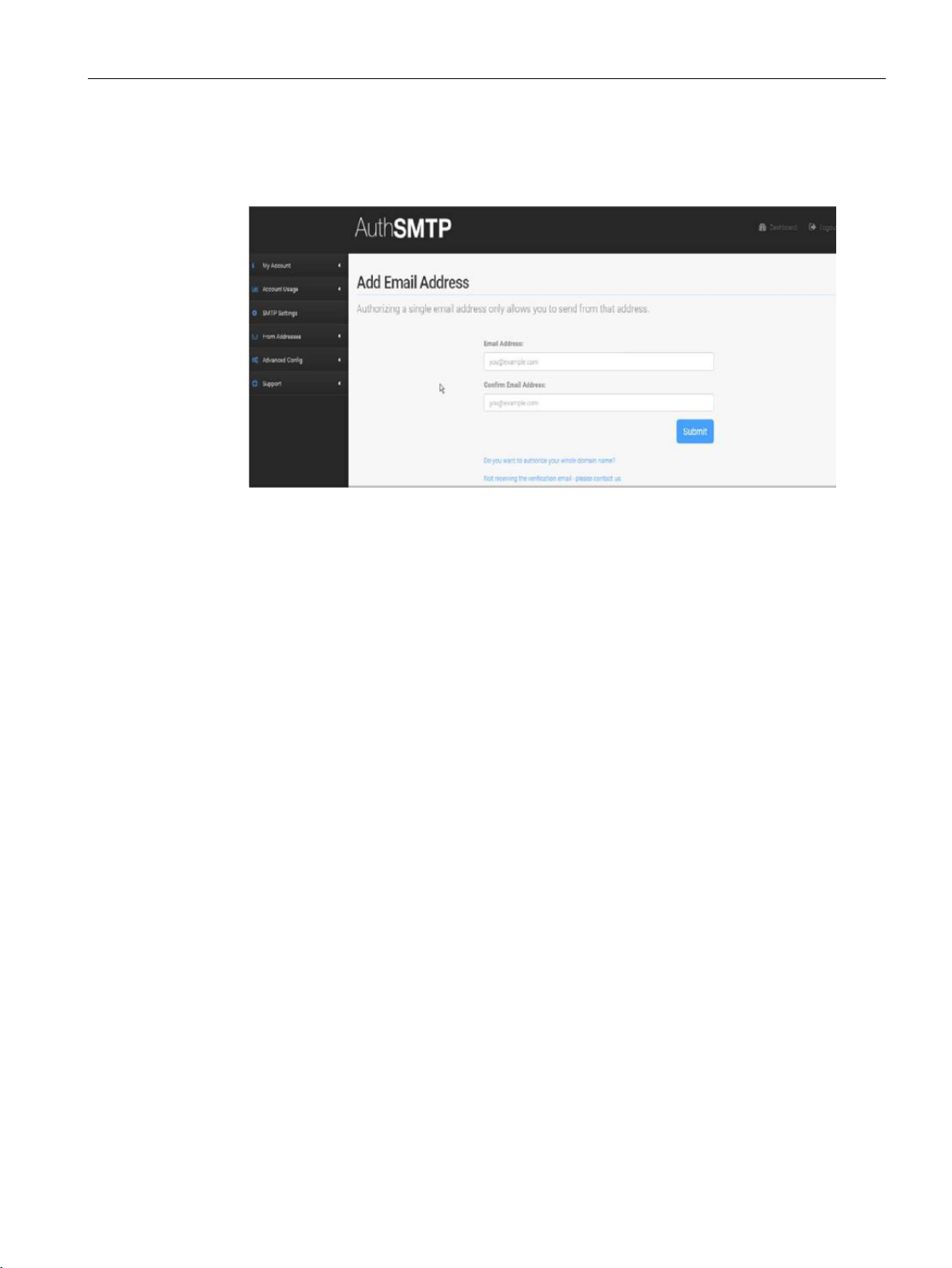

6. Enter the trusted email address you would like Authsmtp.com to accept. This will be

identical to the email address you will enter in the Reverse path field when setting up the

RD500 email client (see instructions below).

7. Click Submit. You will then receive an email to confirm that you have added a trusted email

address to your account. Open the email and click on the link to confirm.

8. Now log out of authsmtp.com.

You are now ready to use the email service.

Planning/configuring

3.2 How to set up the SITRANS RD500 email client

Setting up email alerts from SITRANS RD500

8Application examples, 09/2020, AG030416

3.2 How to set up the SITRANS RD500 email client

1. Log in to SITRANS RD500 and navigate to Configure > Network > tab.

2. Enter the DNS server IP address into the DNS server field and click Apply. For this example,

we will use the Google public DNS server IP address: 8.8.8.8.

Note

The DNS IP address is required in order for SITRANS RD500 to resolve the domain name

mail.authsmtp.com and recognize the IP address of the email server. The DNS IP address

may be different if you are using SITRANS RD500 on a company network.

3. Click the Email tab.

4. Enter the account details received from authsmtp.com, similar to the settings shown below:

Planning/configuring

3.3 How to register a whole domain with Authsmtp.com

Setting up email alerts from SITRANS RD500

Application examples, 09/2020, AG030416 9

5. Enter the contact information for those who should receive email alerts (alarms, reports, or

data-logs).

6. Check the Send Test Message box and click Apply to send a test email.

7. Recipients should check their email to confirm that the test message has been received.

3.3 How to register a whole domain with Authsmtp.com

It is also possible to register a whole domain with Authsmtp.com. Adding a whole domain

allows you to authorize many email addresses, with the same domain name, to send alerts

from SITRANS RD500.

Registering a whole domain is also useful if you have a number of sites set up to send email

from SITRANS RD500. Registering each domain name allows each site to send alerts from its

own email addresses.

1. Select the Register From Addresses tab. Then click Add Domain.

2. Enter the domain name you would like to register and click Submit.

3. A confirmation email will be sent to postmaster@yourdomain or admin@yourdomain.com.

Open this email and click the link to confirm your account.

When the domain is registered, any email address (reverse path) using your email address

domain name, @yourdomain.com, will be authorized to send email.
