Siemens QNA2 D Series Mode d’emploi

QNA2..D

Indoor air quality multi-sensor

Commissioning

A6V13589457_en--_b

Smart Infrastructure

2023-03-30

2 | 16

A6V13589457_en--_b

Table of Contents

1 Overview ................................................................................................................................................3

2 Notes ......................................................................................................................................................4

2.1 Safety ......................................................................................................................................................4

2.2 Display colors ..........................................................................................................................................4

2.3 Power button ...........................................................................................................................................4

2.4 Reset button ............................................................................................................................................5

3 BACnet IP setup.....................................................................................................................................6

3.1 Edit surface mount Ethernet and BACnet settings ....................................................................................6

4 BACnet MSTP setup ............................................................................................................................10

5 LoRaWAN setup...................................................................................................................................13

6 Appendix ..............................................................................................................................................15

6.1 Support..................................................................................................................................................15

6.2 Cyber security disclaimer .......................................................................................................................15

Overview

A6V13589457_en--_b

3 | 16

1 Overview

Multi-sensor tracks air quality and notifies users of any issues to create healthy, comfortable, and productive

indoor environments.

Notes

Safety

4 | 16

A6V13589457_en--_b

2 Notes

2.1 Safety

1. Do not disassemble or open IAQ Multi-sensor. This creates a risk of electrical shock and when connected to

power and immediately voids your warranty.

2. IAQ Multi-sensor is designed for commercial settings, indoors and in a dry location. Avoid contact with

liquids. Do not submerge IAQ Multi-sensor in liquid or attempt to clean it with liquids or solvents. To clean

IAQ Multi-sensor, disconnect from the power outlet and use a damp towel.

3. Do not insert objects in the openings or ventilation holes.

4. Maintain at least a 2-inch clearance for each vent hole when mounted near walls or any objects.

5. Do not replace the IAQ Multi-sensor battery, contact Siemens or authorized service provider to replace the

battery. Improper replacement or repair may damage the battery, cause overheating or injury. Properly

dispose or recycle the battery that must be recycled separately from household waste. Never incinerate the

battery.

2.2 Display colors

Color

Description

Green

Good air

Yellow

Fair air

Red

Poor air

White

Device setting, update

Blue

Surface mount not attached *

Note:

* To power on the sensor module, connect it to a surface mount powered by USB type C, PoE, or

AC/DC 12…24 V.

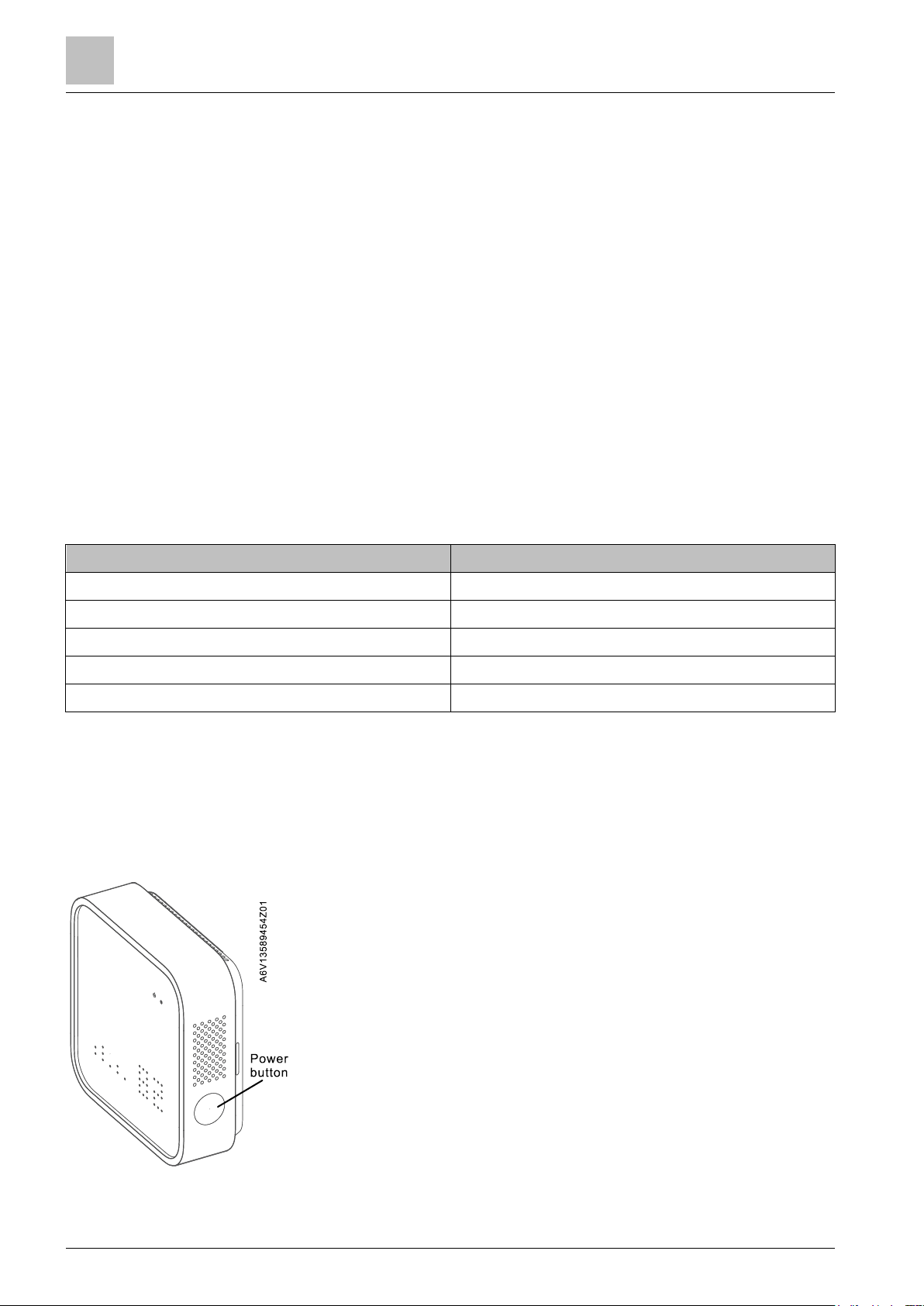

2.3 Power button

The power button turns power on/off the device.

●Press the button for 3 s to power on

●Press the button for 5 s to power off

Notes

Reset button

A6V13589457_en--_b

5 | 16

2.4 Reset button

The reset button resets or reboots the device.

●Press the button for 10 s until progress bar reaches the end to factory reset

●Press the button for 1 s to force reboot before progress bar reaches the end

BACnet IP setup

Edit surface mount Ethernet and BACnet settings

6 | 16

A6V13589457_en--_b

3 BACnet IP setup

3.1 Edit surface mount Ethernet and BACnet settings

Scenario 1: Edit the default configuration

First time configuration:

1. Connect the PC directly to the Ethernet port on the Surface Mount.

2. Switch on your Surface Mount to Mode 3 (static IP mode) and change PC IP address to 192.168.2.x.

3. From your PC, enter the factory default IP address 192.168.2.1 to access the BACnet IP Configuration page

(Surface Mount operates in DHCP Server Mode and assigns an IP address to your PC at this stage).

4. Select the appropriate settings from the configuration fields and confirm to save.

Note:

The Surface Mount is disconnected at this point but retains the settings and you can use Mode 3 (static IP

assignment - Scenario 2) or Mode 2 (IP address assigned via DHCP - Scenario 3) to access the configuration

page.

Scenario 2: Change a valid configured static IP address to a new address

To change the assigned IP address on the IAQ Multi-sensor + Surface Mount:

1. Connect the Surface Mount to the Local Area Network (LAN) and in Mode 3 (IP address statically assigned

and previously configured).

2. Enter the previously configured, static IP address from your PC or mobile device to access the BACnet IP

Configuration page. The PC or mobile device must be connected to the same LAN as the Surface Mount.

3. Enter the new IP address and save.

BACnet IP setup

Edit surface mount Ethernet and BACnet settings

A6V13589457_en--_b

7 | 16

Scenario 3: Change an invalid IP address to new, valid one

To change an invalid IP address to new valid one when users forget the IP address assigned to the IAQ Multi-

sensor + Surface Mount or enter an incorrect IP address:

1. To edit a static IP address, turn the Mode Selection Switch on your Surface Mount to Mode 2 (IP address

assigned via DHCP).

2. Connect the Surface Mount to the LAN using an RJ-45 cable.

3. From your PC or mobile device, access the router administrator page. The PC or mobile device must be

connected to the same LAN as the Surface Mount.

4. Identify the IP address currently assigned to your Surface Mount. You can search by device name, starting

with IAQ multi-sensor- and the last 6 characters of the device MAC (e.g. IAQ multi-sensor-xxxx, also known

as the "MAC NIC").

BACnet IP setup

Edit surface mount Ethernet and BACnet settings

8 | 16

A6V13589457_en--_b

5. Enter the IP address to access the BACnet IP Configuration page from the router administrator page device

list, and then navigate to the BACnet Settings page and choose Static IP Mode 3.

6. Enter a new IP address and save. Once you confirm the change, switch your Surface Mount back to Mode 3

(static IP mode).

BACnet IP setup

Edit surface mount Ethernet and BACnet settings

A6V13589457_en--_b

9 | 16

Configuration web page

●Data Connectivity Settings page

●BACnet Settings page

BACnet MSTP setup

10 | 16

A6V13589457_en--_b

4 BACnet MSTP setup

Proceed as follows:

1. Enter the IP address from the router administrator page device list to access BACnet MSTP Configuration

page and go to the BACnet Settings page.

2. Switch your Surface Mount back to Mode 2 (DHCP mode).

3. Select MS/TP and disable cloud connectivity.

4. Click Save & Apply.
