Siemens FN2012-A1 Mode d’emploi

FN2012-A1

Ethernet-Switch (modular)

Mounting

Installation

For UL portfolio

A6V10407862_d_en_

Building Technologies

2018-09-07 Siemens Industry, Inc.

Legal notice

2 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

Legal notice

Technical specifications and availability subject to change without notice.

Transmittal, reproduction, dissemination and/or editing of this document as well as

utilization of its contents and communication thereof to others without express

authorization are prohibited. Offenders will be held liable for payment of damages. All

rights created by patent grant or registration of a utility model or design patent are

reserved.

Issued by:

Siemens Industry, Inc.

Building Technologies Division

8 Fernwood Road

Florham Park, NJ 07932

Tel. +1 973-593-2600

www.sbt.siemens.com/FIS

Edition: 2018-09-07

Document ID: A6V10407862_d_en_--

3 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

Table of contents

1Ethernet switch (modular) FN2012-A1 .............................................................. 5

1.1 Description ............................................................................................................5

2Installation ........................................................................................................ 7

2.1 Installation in FS20/FS920 housing ......................................................................7

2.2 Installation in XLS housings ..................................................................................9

2.3 Installation of the Ethernet modules....................................................................10

3Views ............................................................................................................. 12

4Wiring............................................................................................................. 14

4.1 Wiring overview ...................................................................................................14

4.2 General wiring FS20/FS920................................................................................16

4.3 General wiring XLS .............................................................................................17

4.4 MoNet bus connection ........................................................................................18

4.5 Ethernet switch in the Ethernet network .............................................................19

4.6 Ethernet switch as a repeater .............................................................................21

5Jumper settings on the VN2001...................................................................... 23

6Pin assignments ............................................................................................. 25

6.1 'POWER' connector strip.....................................................................................25

6.2 'FAULT' connector strip.......................................................................................26

7Indicators........................................................................................................ 27

8Adjustment elements ...................................................................................... 30

9Technical data ................................................................................................ 32

10 FCC Statement............................................................................................... 33

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

4 | 34

Ethernet switch (modular) FN2012

Description

5 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

1Ethernet switch (modular) FN2012-A1

1.1 Description

The Ethernet switch (modular) FN2012 is intended exclusively for the operation of an

Ethernet network for the physical connection to voice and VoIP components for use in

fire detection.

The Ethernet switch supports the transmission of degraded mode signals system-wide

via Ethernet and an extension to the ground fault supervision for the electric Ethernet.

It also supports the physical connection to voice and VoIP components.

The Ethernet switch has two slots for optional Ethernet modules. Depending on the

application, the Ethernet switch is supplied via a 24 V input, via PoE using the Ethernet

module (electric), or via the connection module (MoNet) FCA2031.

Intended use

●Integrated switch for Ethernet backbone in FS20/FS920 and XLS fire detection

systems

●VoIP switch for Integrated Voice

●Integrated voice switch

●Operation as an Ethernet repeater

●Remote switch for external products, for example if a management station is

connected

Ethernet switch (modular) FN2012

Description

6 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

Properties

●Can be installed in approved FS20/FS920 housing

●Can be installed in approved XLS housing

●2x Ethernet ports for local Ethernet (panel-internal)

●2x Ethernet ports for external Ethernet (increased EMC safety and ground fault

supervision)

●MoNet bus connection for transmitting signals from the peripheral data bus and

SAFEDLINK degraded mode signals via the connection module (MoNet)

●Configurable via a 16-pin rotary switch

●1x dry contact relay output for fault signals

●Transmission of degraded mode signals from the system and the FCnet/C-WEB

network should the main CPU fail

●Several supply options

–Via the supply connection (redundant)

– Via PoE with optional Ethernet module (electric)

–Via MoNet bus

●2x slots for optional Ethernet modules (ring ports) – not included in scope of supply

–VN2001 Ethernet module (electric) for distances up to 330 ft/100 m

–VN2002 Ethernet module (MM), optical Ethernet module for distances up to

13123 ft/4 km with an 11 dBm loss 1

–VN2003 Ethernet module (SM), optical Ethernet module for distances up to

131233 ft/40 km with a 29 dBm loss 1

1The length is a guide value dependent upon the loss of the optical cable

Installation

Installation in FS20/FS920 housing

7 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

2Installation

2.1 Installation in FS20/FS920 housing

The Ethernet switch (modular) FN2012 can be installed in all FS20/FS920 housings

(1HU and 2HU). The example below illustrates installation in a fire control panel in the

housing (2HU).

If the Ethernet switch (modular) is used as a repeater, it is installed as a separate

component in an external housing (1HU).

Figure 1: Installing the Ethernet switch (modular) in housings (2HU)

Installation

Installation in FS20/FS920 housing

8 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

1Housing back box

2Ethernet switch (modular) with Ethernet modules installed

33x fixing screw

4Fixing slot in side tab

5Threaded standoffs on back box

1. Position the Ethernet switch (2) as shown.

2. Inserting the 3 fastening screws (3) into the side tabs (4) and screw the Ethernet

switch (2) to the threaded sleeves (5) in the back box (1).

3. Wire up the Ethernet switch according to the wiring information provided below.

Installation

Installation in XLS housings

9 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

2.2 Installation in XLS housings

Figure 2: Installing the Ethernet switch (modular) in XLS housings

1Housing back box

2Ethernet switch (modular) with Ethernet modules installed

33x fixing screw

4Fixing slot in side tab

5Threaded standoffs on back box

1. Position the Ethernet switch (2) as shown.

2. Inserting the 3 fastening screws (3) into the side tabs (4) and screw the Ethernet

switch (2) to the threaded sleeves (5) in the back box (1).

3. Wire up the Ethernet switch according to the wiring information provided below.

Installation

Installation of the Ethernet modules

10 | 34

Building Technologies

A6V10407862_d_en_

Siemens Industry, Inc.

2018

2.3 Installation of the Ethernet modules

The FN2012 can be equipped with Ethernet modules, depending on the application. All

Ethernet modules are installed in the same way.

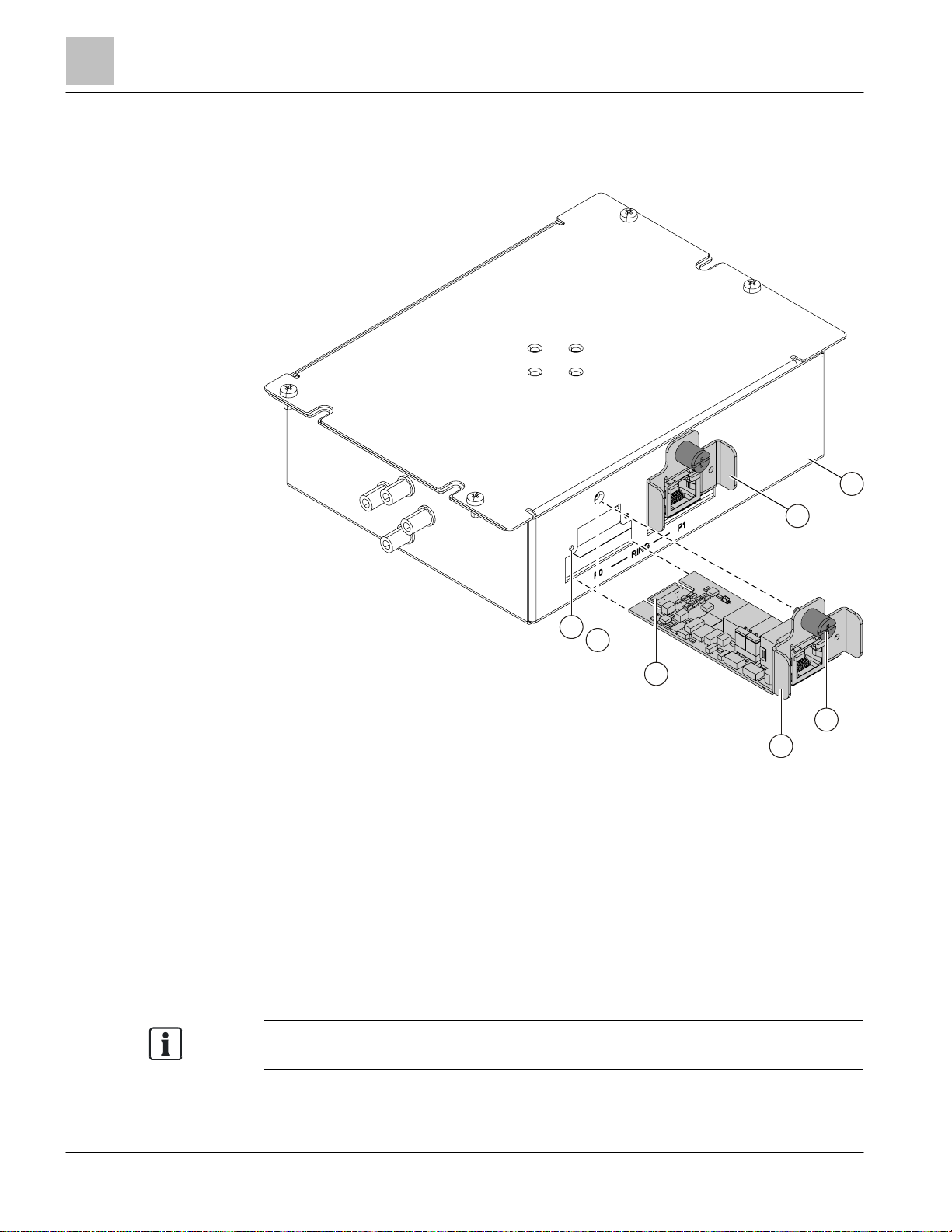

Figure 3: Installing the Ethernet module in the FN2012

1Ethernet switch (modular) FN2012

2Ethernet module installed

3Fastening screw with retention spring

4Ethernet module

5Plug contacts

6 Threaded hole for fastening

7Positioning aid

Before the Ethernet module (electric) VN2001 is installed, the jumper settings must

be plugged in as appropriate for how the module will be used.
