Quick Start Guide

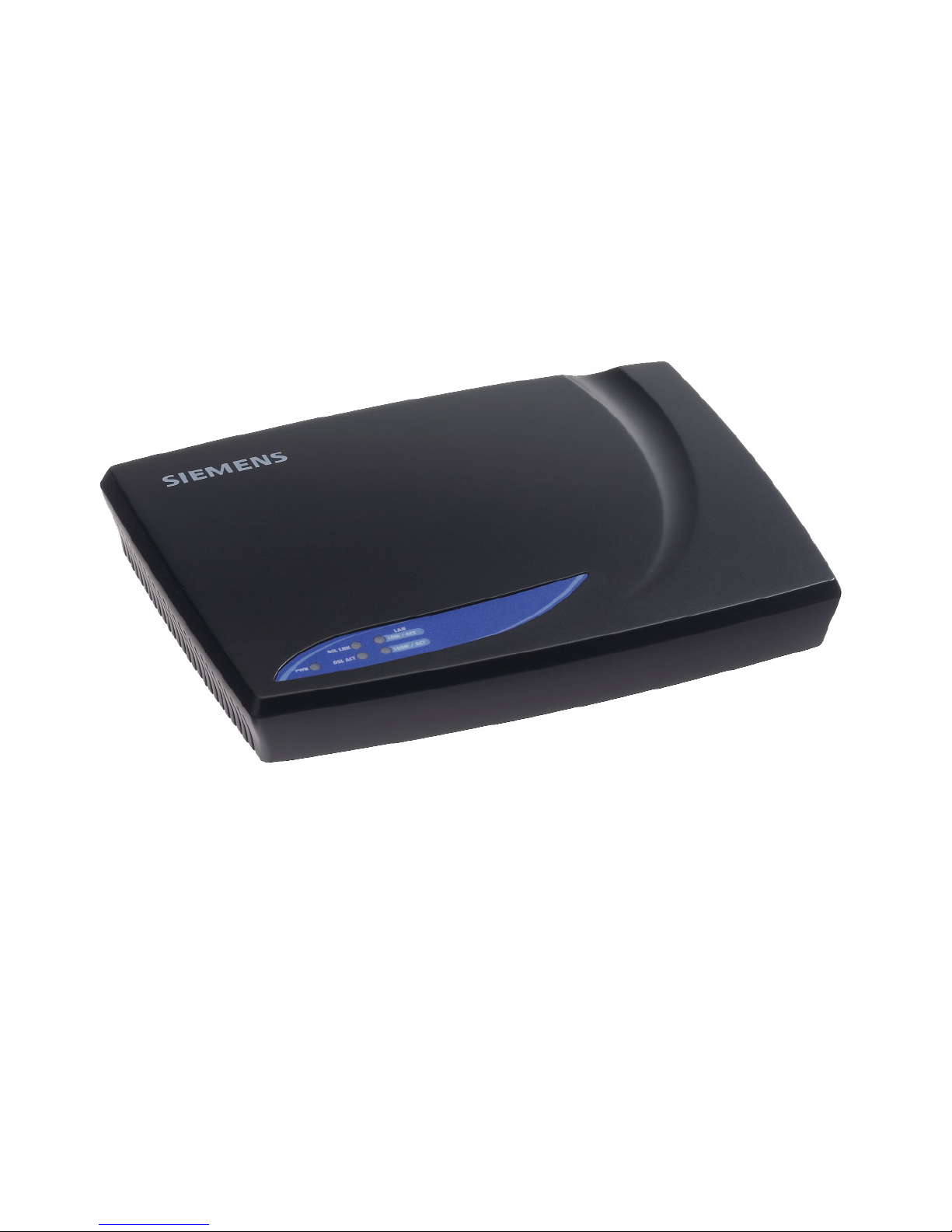

SIEMENS ADSL C-110
ADSL Router
• Do never open the housing!
• Use only the power supply provided with this device.
• Use only the cables provided with this device and do
not perform any modifications on them.
s
01-040610
2
Before you begin

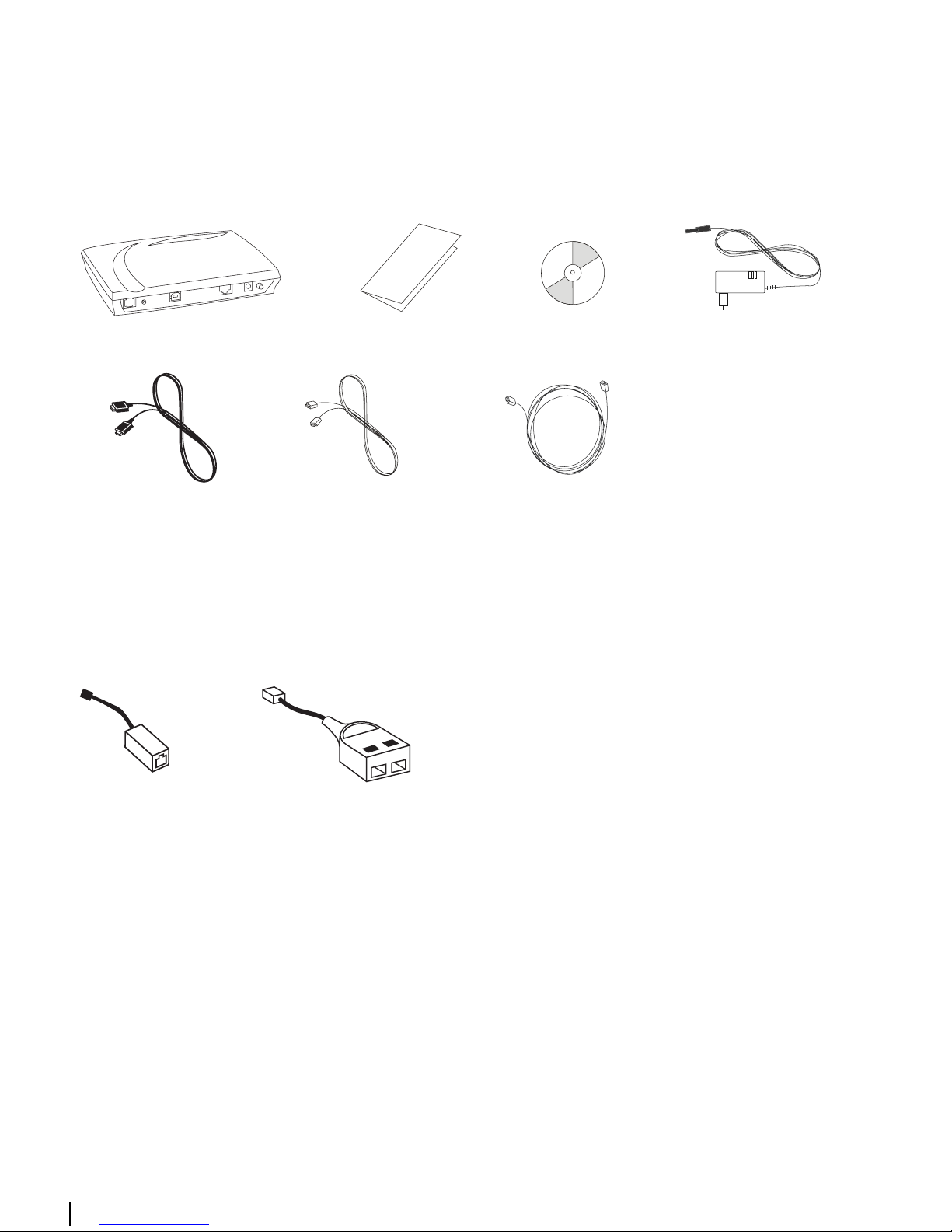

Verify that the following items came with your SIEMENS ADSL C-110 kit:
System Requirements
Before starting the installation of the SIEMENS ADSL C-110, make sure your computer is
equipped with:
• Internet Browser (Internet Explorer or Netscape Version 4 or higher)
• LAN interface (Ethernet Network interface card) with RJ45 socket
(Windows 95, NT4, 98, ME, 2000, XP, Mac OS 8.6, 9.x, 10.x, Linux)
or
• USB interface
(Windows 98 SE, ME, 2000, XP)
ADSL cable Ethernet cable
(silver) (light gray)
Optional:
Your service provider may include Stand-alone Line Filter(s) and Y-Line Filter(s). If you have
received any of these items, follow the instructions provided in this guide for basic installation.
If you need further assistance installing these items, please contact your service provider.
SIEMENS ADSL C-110 Quick Start Guide CD-ROM Power supply
USB cable
(beige)
Stand-alone
Line Filter
Y-Line Filter
3
Step 1:
Install the Line Filter
Stand-alone Line Filter
For each device that shares the phone line as your ADSL account:
1. Unplug the device’s cord from the phone jack.
2. Plug the filter into the phone jack.
3. Plug the phone cord (or other device cord)
into the filter.
Devices such as fax machines or phones that share the same phone line as your ADSL account
require a line filter, which protects your phone or fax from ADSL frequencies. Filters can be in
the form of a stand-alone Line Filter or a Y-Line Filter. The Y-Line Filter can be used if your
ADSL modem will share the same phone jack with another device.
Y-Line Filters
If your SIEMENS ADSL C-110 and another device will share the same phone jack, install a
Y-Line Filter:
1. Unplug the device’s cord from the phone
jack.
2. Plug the Y-Line Filter into the phone jack.
3. Plug the phone cord (or other device cord)
into the ”PHONE” jack of your Y-Line Filter.
4. Plug the ADSL cord into the ”ADSL” jack of
your Y-Line Filter.
1.
2.2. 3.
2.
3.
4.
4
Step 2a:
Connect the SIEMENS ADSL C-110 via Ethernet interface
1a. With your computer off, plug the end of the ADSL cable (silver) into the Line port of your
SIEMENS ADSL C-110.
1b. Plug the other end of the cable into the phone jack.
2a. Connect the Ethernet cable (light gray) to the LAN port of your SIEMENS ADSL C-110.
2b. Connect the other end of the Ethernet cable to the LAN port of your computer.
3. Connect the power supply to your SIEMENS ADSL C-110.
4. Plug the power plug into a power outlet.
5. Turn your SIEMENS ADSL C-110 on by pushing on the power button.
6. Turn your computer on and wait until your operating system (OS) is started up.
7. Proceed with step 3. (Read first the introduction and continue then with the paragraph
related to your operating system).
ADSL cabel (silver) Ethernet cabel
(light gray) PC or Notebook
SIEMENS ADSL C-110
1.
2a.
2b.
3.
5.
1b
Y-Line Filter
5
Step 2b - part 1:
Connect the SIEMENS ADSL C-110 via USB
1a. With your computer off, plug the end of the ADSL cable (silver) into the Line port of your
SIEMENS ADSL C-110.
1b. Plug the other end of the cable into the phone jack.
2a. Connect the USB cable to the USB port on your computer.
2b. Do NOT connect the USB cable to your SIEMENS ADSL C-110 yet!
3. Proceed with step 2b - part 2.
PC or Notebook
USB cable (beige)
2a
SIEMENS ADSL C-110
2b
1a
ADSL cable (silver)
1b
Y-Line Filter
6
Step 2b - part 2:
Install the USB driver
The USB driver is only working on the following operating system (OS):
Windows 98 SE, Windows ME, Windows 2000 and Windows XP.
Windows 98 SE users need the Windows 98 SE CD-ROM to complete the
installation.
To install the USB driver proceed as follows:
1. Turn on your computer.
2. Insert the Siemens installation CD-ROM in your CD-ROM drive. Click on setup.exe in the
directory /USB driver on your Siemens installation CD-ROM.
Note for Windwos XP users: During installaion the following screen will appear
several times. Click always on Continue Anyway.
7

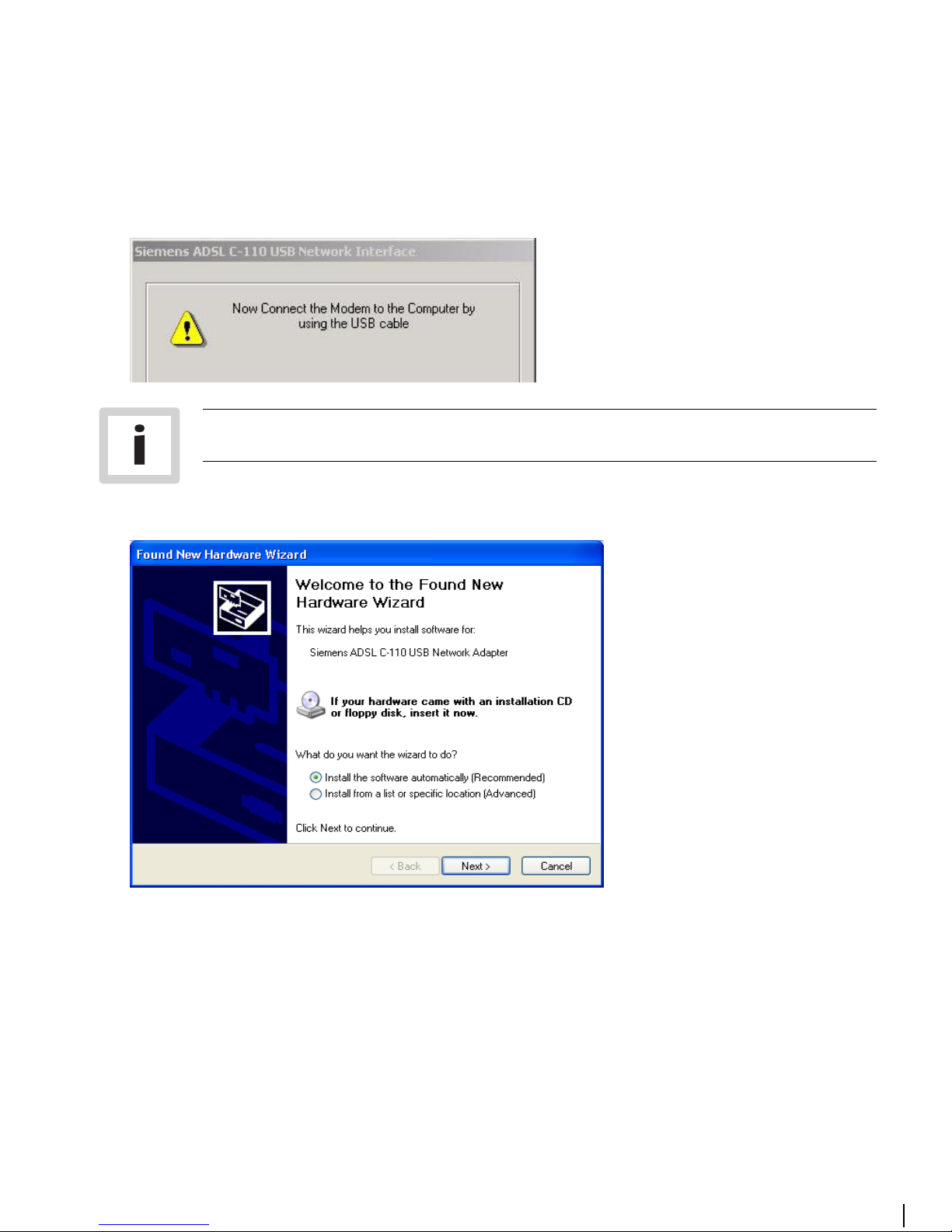

3. After a while the following windwo will apppear. Connect the USB cable to your SIEMENS
ADSL C-110. The driver will be installed automatically.
4. If the following window appears click on Next.
Note for Windows 98 SE users: If prompted, you need to insert the Windows 98
SE CD-ROM in your CD-ROM drive to complete the installation
8

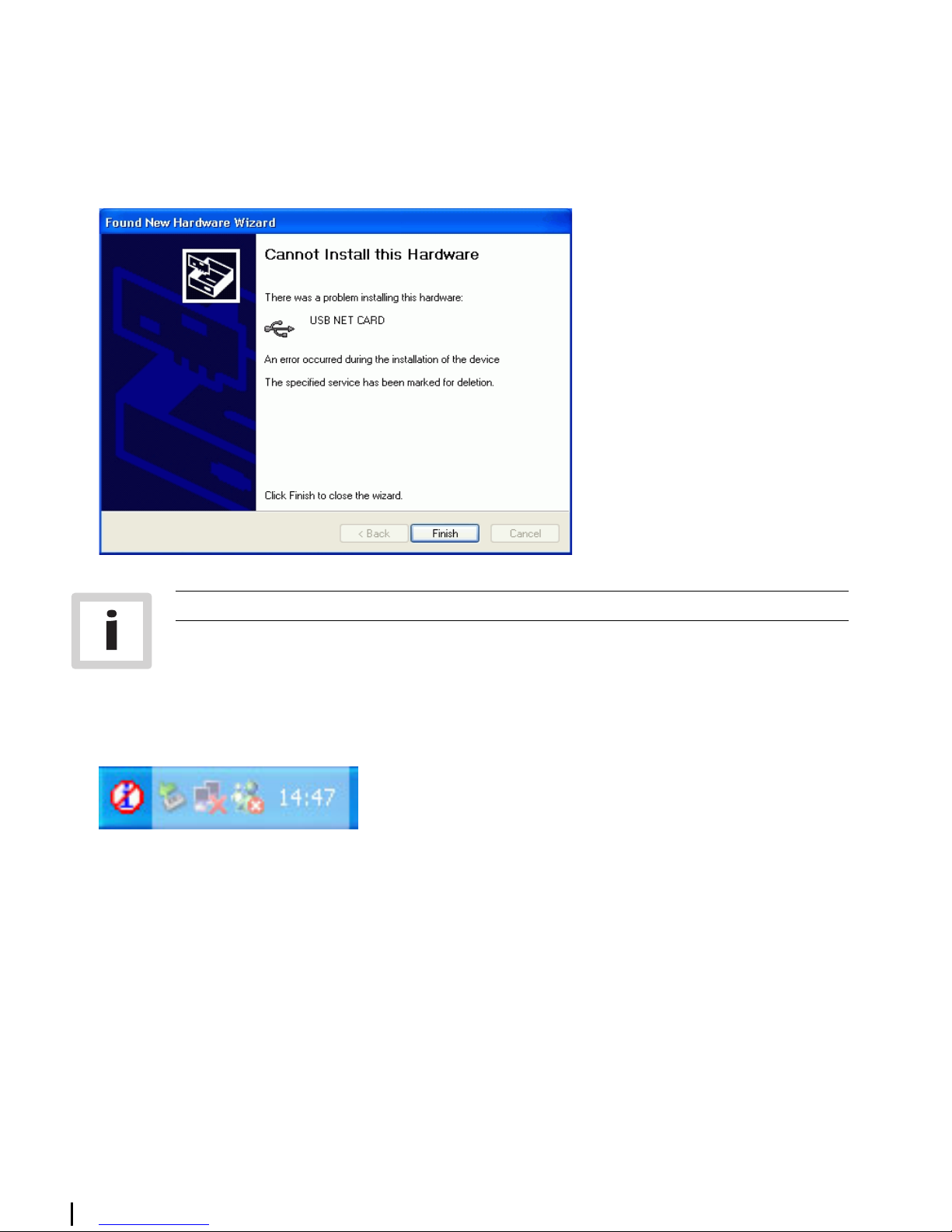

5. If the following window appears click on Finish.
6. After finishing the installation a new icon is displayed in the Taskbar.
7. Proceed with step 3. (Read first the introduction and continue then with the paragraph
related to your operating system).
Note for Windows XP users: You have to repeat step 4 and 5.
9
Step 3:
Configure the PC (TCP/IP settings)
Introduction
In step 3, you will configure your computer to communicate with the SIEMENS ADSL C-110.
To do this, you will need to configure your PC’s network settings to obtain an IP address auto-
matically. Computers use IP addresses to communicate with each other across a network or the
Internet.
Find out which operating system your computer is running, such as Windows 95, Windows 98,
Windows Me, Windows NT4, Windows 2000 or Windows XP or Macintosh OS 8.6, 9.x, 10.x.
You will need to know which operating system your computer is running. You can find out by
clicking on Start -> Settings. (If your Start menu doesn’t have a Settings option, you are run-
ning Windows XP. You can select the Control Panel directly from the Start menu.) Then, click on
Control Panel and double-click on the System icon.
Click the Cancel button when done.
Once you know which operating system you are running, follow the directions in this step
(Step 3a – 3e) for your computer’s operating system.
The next few pages tell you, step by step, how to configure your TCP/IP settings based on the
type of Windows operating system you are using. Once you’ve configured your computer,
continue with “Step 5: Configure the Internet Access on page 16.
10
Step 3b:
Configure the PC (TCP/IP settings)
for Windows NT4

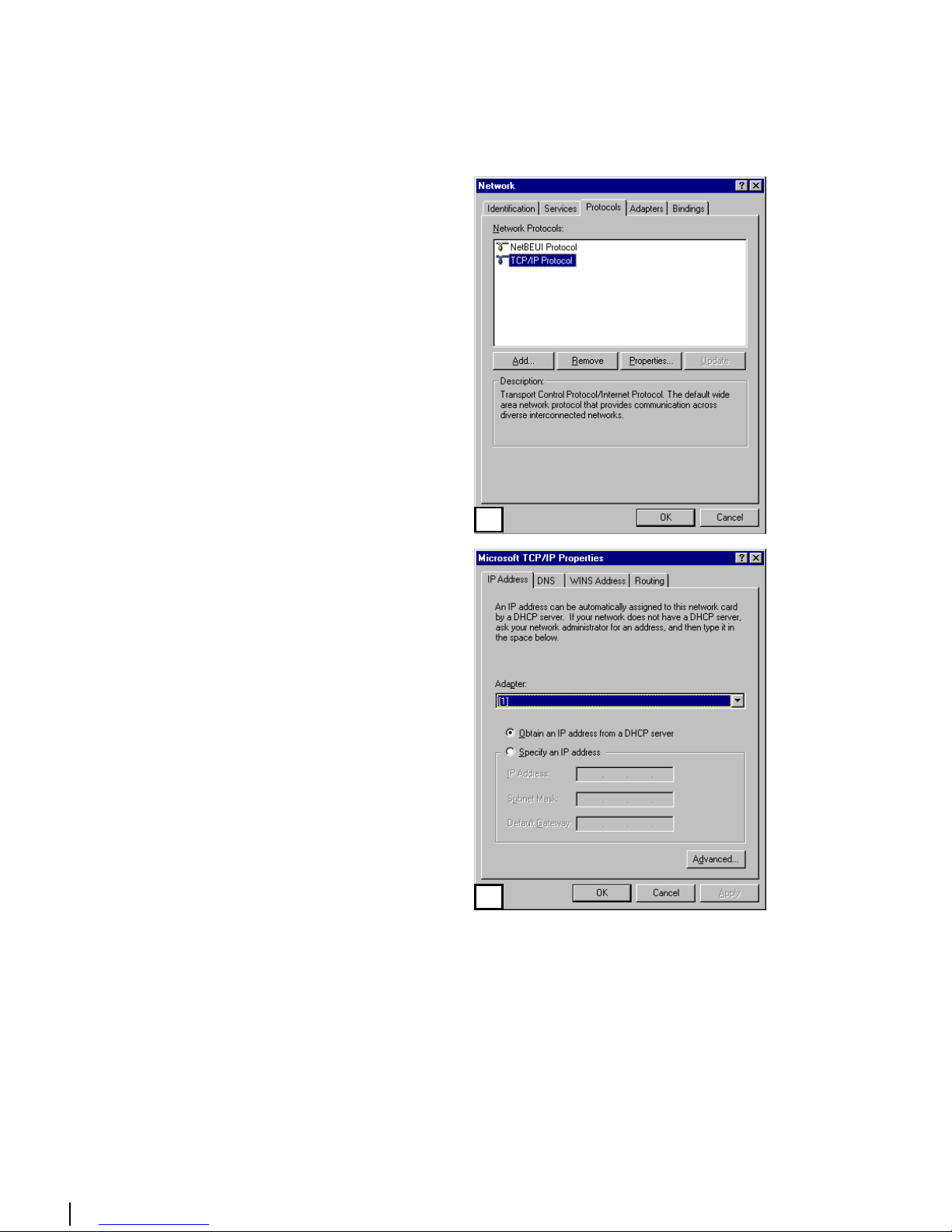

1. Click on Start -> Settings -> Control Panel.
Double-click on the Network icon. The
Network screen will appear.
2. Select the Protocol tab and highlight the
TCP/IP line. Click on Properties.
3. Select the IP Address tab and select Obtain
an IP address from a DHCP server and click
on OK on the subsequent screens to com-
plete the PC’s configuration.
4. When prompted with “Activate DHCP” dialog
box, click Yes.
5. Restart your computer.
6. Go to Step 5 on page 16 to complete the
configuration.
