Siemens SIMATIC ET 200SP Manuel utilisateur

Analog input module AI 8xU BA

(6ES7134-6FF00-0AA1)

___________________

SIMATIC

ET 200SP

Analog input module AI 8xU BA

(6ES7134-6FF00-0AA1)

Manual

03/2015

A5E349

41660-AA

Preface

Documentation guide

Product overview

Wiring up

Parameters/address space

Interrupts/diagnostics alarms

Technical specifications

Parameter data record

Representation of analog

values

Siemens AG

Division Digital Factory

Postfach 48 48

90026 NÜRNBERG

GERMANY

A5E34941660-AA

Ⓟ

03/2015 Subject to change

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent

damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert

symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are

graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will

be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to

property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by

personnel qualified

for the specific

task in accordance with the relevant documentation, in particular its warning notices and safety instructions.

Qualified personnel are those who, based on their training and experience, are capable of identifying risks and

avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical

documentation. If products and components from other manufacturers are used, these must be recommended

or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and

maintenance are required to ensure that the products operate safely and without any problems. The permissible

ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication

may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software

described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the

information in this publication is reviewed regularly and any necessary corrections are included in subsequent

editions.

Analog input module AI 8xU BA (6ES7134-6FF00-0AA1)

4Manual, 03/2015, A5E34941660-AA

Preface

Purpose of the documentation

This device manual complements the system manual ET 200SP distributed I/O system

(http://support.automation.siemens.com/WW/view/en/58649293).

Functions that generally relate to the system are described in this system manual.

The information provided in this manual and in the system/function manuals supports you in

commissioning the system.

Conventions

CPU: When the term "CPU" is used in this manual, it applies to the CPUs of the S7-1500

automation system as well as to the CPUs/interface modules of the ET 200SP distributed I/O

system.

STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the

configuration and programming software "STEP 7 (TIA Portal)".

Please also observe notes marked as follows:

Note

A note contains important information on the product described in the documentation, on the

handling of the product or on the section of the documentation to which particular attention

should be paid.

Security information

Siemens provides products and solutions with industrial security functions that support the

secure operation of plants, solutions, machines, equipment and/or networks. They are

important components in a holistic industrial security concept. With this in mind, Siemens’

products and solutions undergo continuous development. Siemens recommends strongly

that you regularly check for product updates.

For the secure operation of Siemens products and solutions, it is necessary to take suitable

preventive action (e.g. cell protection concept) and integrate each component into a holistic,

state-of-the-art industrial security concept. Third-party products that may be in use should

also be considered. You can find more information about industrial security on the Internet

(http://www.siemens.com/industrialsecurity).

To stay informed about product updates as they occur, sign up for a product-specific

newsletter. You can find more information on the Internet

(http://support.automation.siemens.com).

Analog input module AI 8xU BA (6ES7134-6FF00-0AA1)

Manual, 03/2015, A5E34941660-AA 5

Table of contents

Preface ................................................................................................................................................... 4

1 Documentation guide .............................................................................................................................. 6

2 Product overview .................................................................................................................................... 8

2.1 Properties..................................................................................................................................8

3 Wiring up .............................................................................................................................................. 10

3.1 Wiring and block diagram .......................................................................................................10

4 Parameters/address space ................................................................................................................... 12

4.1 Measuring types and ranges ..................................................................................................12

4.2 Parameters .............................................................................................................................13

4.3 Explanation of the parameters................................................................................................15

4.4 Address space ........................................................................................................................17

5 Interrupts/diagnostics alarms................................................................................................................. 18

5.1 Status and error displays ........................................................................................................18

5.2 Interrupts.................................................................................................................................20

5.3 Diagnostics alarms..................................................................................................................20

6 Technical specifications ........................................................................................................................ 21

6.1 Technical specifications ..........................................................................................................21

A Parameter data record .......................................................................................................................... 24

A.1 Dependencies when configuring with GSD file.......................................................................24

A.2 Parameter assignment and structure of the parameter data record.......................................25

B Representation of analog values ........................................................................................................... 29

B.1 Representation of input ranges...............................................................................................30

B.2 Representation of analog values in voltage measuring ranges..............................................31

Analog input module AI 8xU BA (6ES7134-6FF00-0AA1)

6Manual, 03/2015, A5E34941660-AA

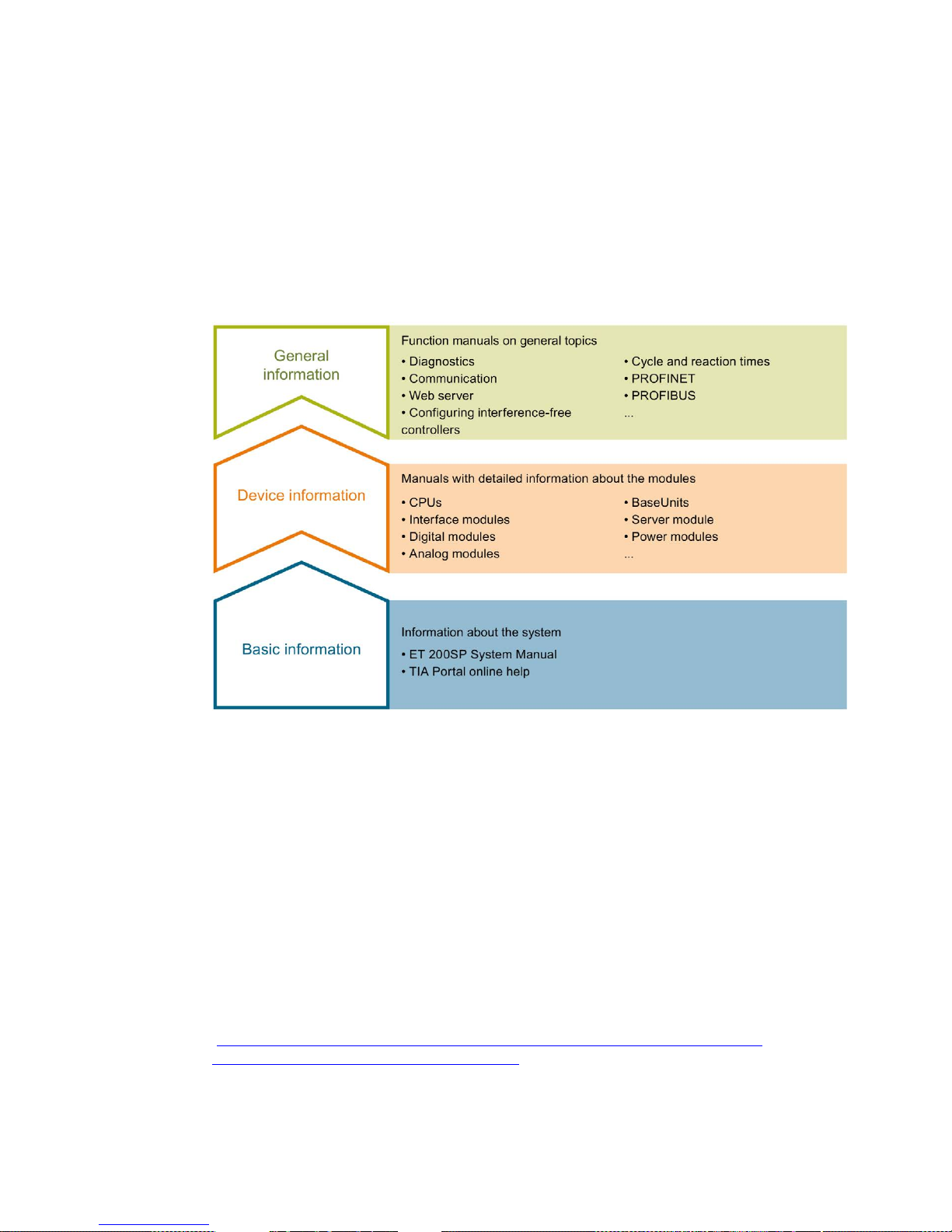

Documentation guide

The documentation for the SIMATIC ET 200SP distributed I/O system is arranged into three

areas.

This arrangement enables you to access the specific content you require.

Basic information

The system manual describes in detail the configuration, installation, wiring and

commissioning of the SIMATIC ET 200SP. distributed I/O system. The STEP 7 online help

supports you in the configuration and programming.

Device information

Product manuals contain a compact description of the module-specific information, such as

properties, terminal diagrams, characteristics and technical specifications.

General information

The function manuals contain detailed descriptions on general topics regarding the SIMATIC

ET 200SP distributed I/O system, e.g. diagnostics, communication, Web server, designing

interference-free controllers.

You can download the documentation free of charge from the Internet

(http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manual-

overview/tech-doc-et200/Pages/Default.aspx).

Changes and supplements to the manuals are documented in a Product Information.

Documentation guide

Analog input module AI 8xU BA (6ES7134-6FF00-0AA1)

Manual, 03/2015, A5E34941660-AA 7

Manual Collection ET 200SP

The Manual Collection contains the complete documentation on the SIMATIC ET 200SP

distributed I/O system gathered together in one file.

You can find the Manual Collection on the Internet

(http://support.automation.siemens.com/WW/view/en/84133942).

My Documentation Manager

The My Documentation Manager is used to combine entire manuals or only parts of these to

your own manual.

You can export the manual as PDF file or in a format that can be edited later.

You can find the My Documentation Manager on the Internet

(http://support.industry.siemens.com/My/ww/en/documentation).

Application examples

Applications examples support you with various tools and examples for solving your

automation tasks. Solutions are shown in interplay with multiple components in the system -

separated from the focus in individual products.

You can find application examples on the Internet

(http://support.industry.siemens.com/cs/ww/en/ps/ae).

CAx Download Manager

The CAx Download Manager is used to access the current product data for your CAx or CAe

systems.

You configure your own download package with a few clicks.

In doing so you can select:

●Product images, 2D dimension drawings, 3D models, internal circuit diagrams, EPLAN

macro files

●Manuals, characteristics, operating manuals, certificates

●Product master data

You can find the CAx Download Manager on the Internet

(http://support.industry.siemens.com/my/ww/en/CAxOnline).

TIA Selection Tool

With the TIA Selection Tool, you can select, configure and order devices for Totally

Integrated Automation (TIA).

This tool is the successor of the SIMATIC Selection Tool and combines the known

configurators for automation technology into one tool.

With the TIA Selection Tool, you can generate a complete order list from your product

selection or product configuration.

You can find the TIA Selection Tool on the Internet

(http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool).

Analog input module AI 8xU BA (6ES7134-6FF00-0AA1)

8Manual, 03/2015, A5E34941660-AA

Product overview

2.1

Properties

Article number

6ES7134-6FF00-0AA1

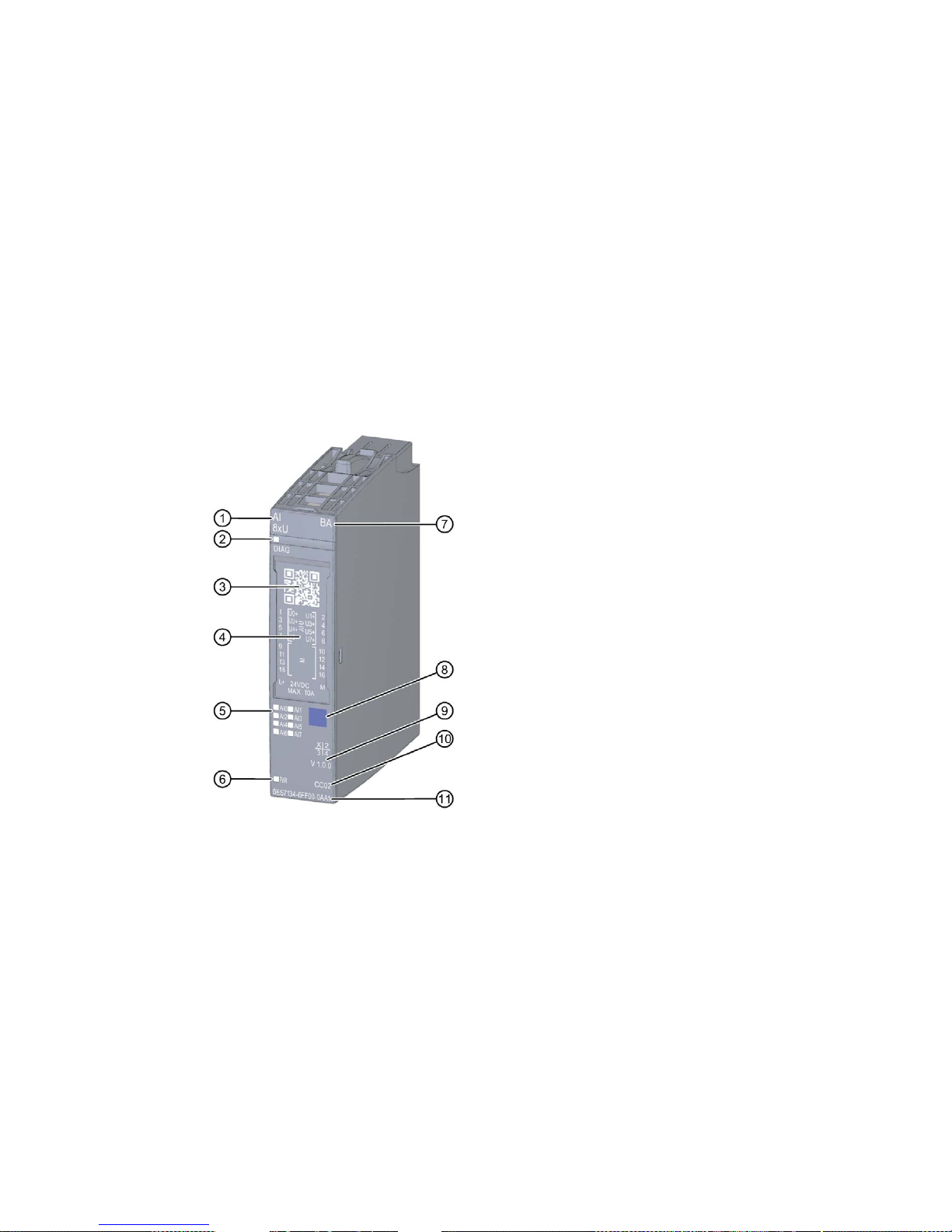

View of the module

①

Module type and name

⑦

Function class

②

LED for diagnostics

⑧

Color coding module type

③

2D matrix code

⑨

Function and firmware version

④

Wiring diagram

⑩

Color code for selecting the color identification labels

⑤

LEDs for channel status

⑪

Article number

⑥

LED for supply voltage

Figure 2-1 View of the AI 8×U BA module

Product overview

2.1 Properties

Analog input module AI 8xU BA (6ES7134-6FF00-0AA1)

Manual, 03/2015, A5E34941660-AA 9

Properties

The module has the following technical properties:

●Analog input module with 8 inputs (single-ended)

●Input ranges for voltage measurement:

–±10 V, resolution 16 bits including sign

–0 to 10 V, resolution 15 bits

●Cycle time of the module (all channels) 10 ms

●Configurable diagnostics (per module)

The module supports the following functions:

●Firmware update

●I&M identification data

●Reconfiguration in RUN

You can configure the module with STEP 7 (TIA Portal) and with a GSD file.

Accessories

The following accessories must be ordered separately:

●Labeling strips

●Color identification labels

●Reference identification label

●Shield connector

Manuels Système d'E/S populaires d'autres marques

WAGO

WAGO 750-344 Manuel utilisateur

Teknim

Teknim TWM-1887 Mode d’emploi

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuel utilisateur

BERGHOF

BERGHOF ECC DIO 16/16 Mode d’emploi

Advantech

Advantech PCM-27J3AU Manuel d'installation et d'exploitation

Festo

Festo CP-E08-M12-CL Manuel utilisateur

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuel utilisateur

Hitachi

Hitachi HX-RIO3 Series Manuel utilisateur

NUUO

NUUO SCB-A08 Manuel utilisateur

M-system

M-system R3Y-RS8 Manuel utilisateur

jablotron

jablotron JB-110N Manuel utilisateur

Omron

Omron SYSMAC C200H Manuel utilisateur

DOLD

DOLD SAFEMASTER M Manuel utilisateur

ABB

ABB OPT-MF-001 Manuel utilisateur

Omron

Omron SYSMAC C2000H Manuel utilisateur

Helmholz

Helmholz TB20 Manuel utilisateur

ICP DAS USA

ICP DAS USA tM-AD2 Manuel utilisateur

Automationdirect.com

Automationdirect.com DL305 Manuel utilisateur
