Siemens ACM-1 Manuel utilisateur

Installation Instructions

Model ACM-1

Audio Control Module

P/N 315-092083-10

Figure 1

ACM-1 PC Board

INTRODUCTION

The Model ACM-1 Audio Control Module

from Siemens Industry, Inc. is the master

control module for the MXLV audio system.

The module controls all Voice related func-

tions. It has two yellow LEDs—the TROUBLE

LED indicates ACM-1 troubles and the

TRANSMIT LED monitors network activity.

Refer to Figure 1 for the location of the

LEDs. (These troubles also appear on the

MKB-2 panel.)

ACM-1 has a supervised tone generator

which provides a variety of tones for use

with the system. Each system can have two

of the available tones. The tones are set

with CSG-M. If an application requires tone

backup, use the P6 connector on the

ACM-1 for the BTC-1 Backup Tone card.

(Refer to Figure 1.)

The ACM-1 occupies one network address.

The switch S102 shown in Figure 2 is used

to set the network address that was chosen

in CSG-M for the ACM-1 module.

OPERATIONS

1. The ACM-1 controls and supervises the

preamplifier circuit for the microphone

and wiring for the retractable cord. The

preamplifier circuit controls the volume

of any signal that enters the circuit.

2. When the microphone key is pressed,

the ACM-1 sends the preannounce tone

that was configured in CSG-M, making

the microphone the source for audio

channel 1.

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Building Technologies, Ltd.

Fire Safety & Security Products

2 Kenview Boulevard

Brampton, Ontario

L6T 5E4 Canada

refer to the MXLV Manual, P/N 315-

092036, and the VLM-1//VSM-1/VFM-1

Instructions, P/N 315-092064.

6. The ACM-1 controls the warden’s page

that comes from the TMM-1 Telephone

Master module. When activated, the

warden’s page becomes the audio

source for selected speaker zones.

INSTALLATION

Remove all system power before instal-

lation, first battery and then AC. (To

power up, connect the AC first, then the

battery.)

To set the network address of the

module:

1. Remove the ACM-1 from its protective

bag.

2. Refer to the CSG-M configuration

printout for the address of the ACM-1

module.

3. Set the ACM-1 address on switch S102.

(Refer to Figure 2 for the location of

S102.)

3. The ACM-1 also controls a small local

speaker in the MMM-1 module. Any

of several signals available in the

System can be sent to this speaker if

selected in CSG-M.

4. Three supervised riser circuits provide

low power audio signals to the OCC-1 to

be sent to power amplifiers. The ACM-1

can also connect these risers to an

auxiliary non-emergency signal source

for use in non-emergency audio

applications.

5. The Audio Control module communi-

cates with the VSM-1 Voice Switch

modules, the VLM-1 Voice LED

modules, and the VFM-1 Fan Control

modules that are part of the system.

The VSM-1 modules provide firefighters

with a means of controlling nonautomatic

functions of the MXLV system.

The VLM-1 modules provide status

indications of the System. The VFM-1

modules provide the system operator

with automatic and manual control and

annunciation of fan control functions for

building management. These functions

are set in CSG-M. For more information

about the VSM-1, VLM-1, and VFM-1,

Figure 2

Mounting the ACM-1

ON DIP

SWITCH S102

4. Find the correct setting for the ACM-1

address in Table 1 on page 6 of these

instructions and use dipswitch S102,

switches SW1 through SW8, to set the

address for the module.

NOTE: To open a dipswitch, press

down on the side of the

dipswitch marked OPEN. To

close a dipswitch, press down

on the side of the dipswitch

opposite the side marked

OPEN.

To open a slide switch, push

the slide to the side opposite

the side marked ON. To close a

slide switch, push the slide to

the side marked ON.

To mount the ACM-1 module:

The ACM-1 may be mounted in two differ-

ent locations in the enclosure, depending on

whether or not there is an MKB-2 in the

enclosure. (In some cases an MHD-3 is

used instead of the MKB to enable the use

of more VSMs in a system.)

1. When an MKB-2 is in the top

position of the system enclosure:

a. Mount the ACM-1 module on the

back of the MKB-2 front panel,

below the ANN-1 module. Check

that the ribbon cable connector P1 is

in the upper left corner of the board

before mounting.

b. With the board in that position, place

the module over the five threaded

mounting spacers. (See Figure 2.)

c. Fasten the module in place with the

No. 6 screws provided.

2. When an MHD-3 is used in the top

position of the enclosure (instead of

an MKB-2):

a. Mount the ACM-MPT bracket on the

4 studs located in the lower right

hand corner of the MME-3 backbox.

(These are the same studs used for

a TSP-40 printer.) Secure the

bracket with the four nuts provided.

(See Figure 3.)

b. Be sure that P1 is in the upper right

hand corner of the ACM. (Refer to

Figure 3.) Mount the ACM-1 PC

board over the six threaded mount-

ing spacers.

c. Fasten the module in place with the

five No. 6 screws provided (one of

the spacers is used for support).

(Refer to Figure 3.)

Figure 3

Alternate Mounting of ACM-1

Figure 4

Wiring an ACM-1 that is Mounted on an MKB-2

To wire the ACM-1:

The ACM-1 can be wired in two different

configurations: One wiring configuration is

used if an MMB (or PSR) supplies the

power and data communications (See

Figure 4).

The other wiring configuration is used

where a PS-5N7 supplies the power and

data communications, as in a remote

expander board (See Figure 5).

The wiring information below is unaffected

by whether the ACM-1 module is in the

upper or lower position of the enclosure.

CAUTION:

Remember that all cables that con-

nect to the ACM-1 are polarized

and connect in one way only. DO

NOT FORCE THEM. The location

of pin 1 on a connector is indicated

by marks on the pin or by color

tracers on the wires. In Nos.1 and

2 below, be sure the black tracer

wire is close to the 1.

1. To wire the ACM-1 in an enclosure

that has an MMB or a PSR (Refer to

Figure 4):

a. Connect the long 15-ribbon cable

(P/N 555-192238) from the MMB, P8

(or PSR-1, P5) to P5 on the ACM-1.

b. Connect the short 15-conductor

ribbon cable (P/N 555-192242) from

ANN-1, P3 to P4 on the ACM-1.

c. Connect the 14-conductor ribbon

cable (P/N 555-192236) from

TMM-1, P3 to P1 on the ACM-1, if

used.

d. Connect the 50-conductor ribbon

cable (P/N 555-192201) from

TBM-2, P3 to P2 on the ACM-1.

e. Connect the 5-conductor wire cable

(P/N 600-190220) from TBM-2, P2

to P3 on the ACM-1.

f. P6 on the ACM-1 is connected to an

optional BTC-1 module, if used.

g. If an MMM-1 is used, connect the 9-

conductor cable attached to the

MMM-1 to P7 on the ACM-1.

P5 to MMB-2/-3,P8

or to PSR-1,P5

or to PIM-1,P1

Ribbon Cable

P/N 555-192238

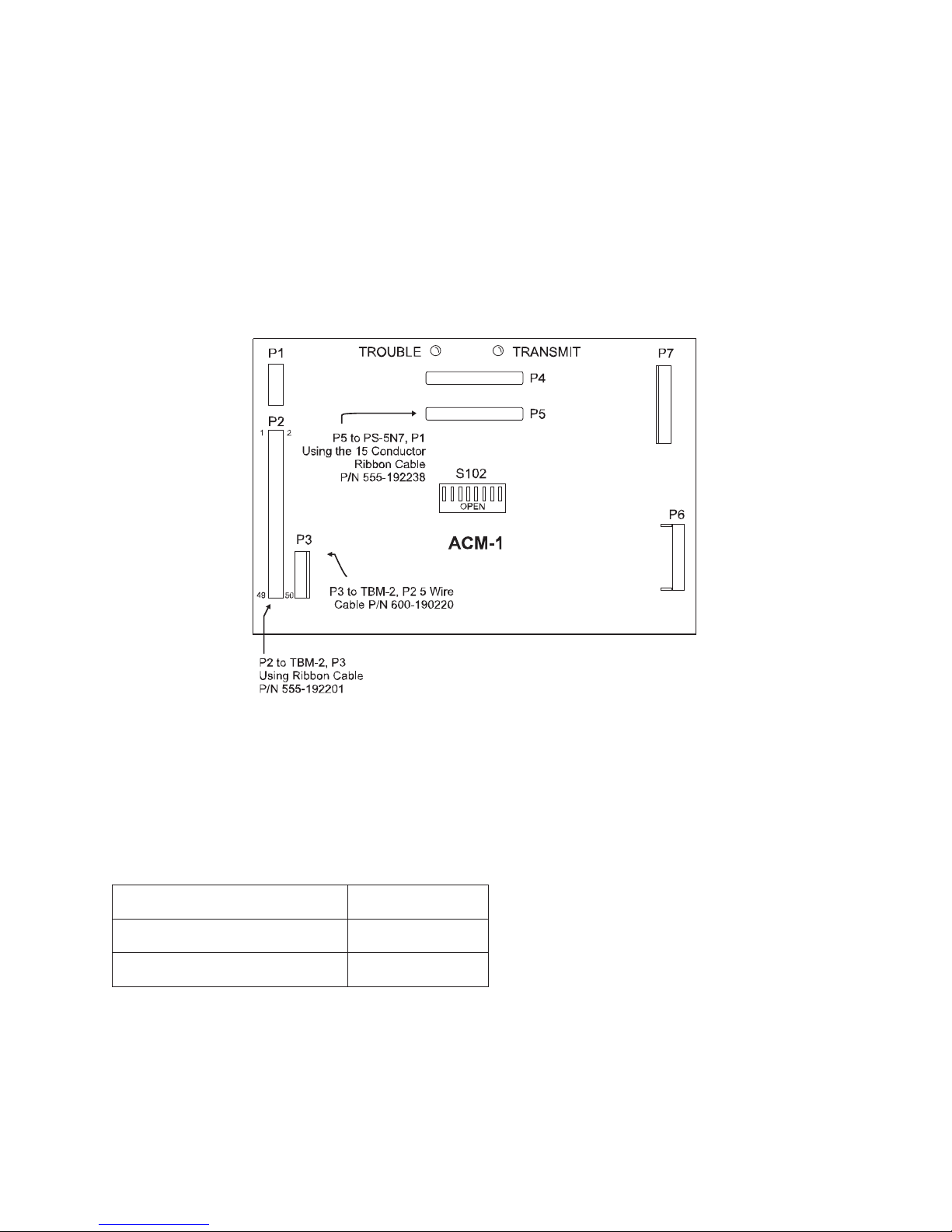

Figure 5

Wiring an ACM-1 in a Remote Expander Enclosure

2. To wire an ACM-1 module when

PS-5N7 is used to supply power and

for data communication (instead of

an MMB or a PSR):

a. Connect the long 15-conductor

ribbon cable (P/N 555-192238) from

the PS-5N7, P1 to P5 on the ACM-1.

b. Connect the 50-conductor ribbon

cable (P/N 555-192201) from

TBM-2, P3 to P2 on the ACM-1.

c. Connect the 5-conductor wire cable

(P/N 600-190220) from TBM-2, P2

to P3 on the ACM-1.

For additional information on the MXL/MXLV System,

refer to the MXL/MXLV Manual, P/N 315-092036.

ELECTRICAL RATINGS

tnerruCeludoMCDV5evitcAAm671

tnerruCeludoMCDV42evitcAAm58

tnerruCeludoMCDV42ybdnatSAm921

TA B L E 1

NETWORK ADDRESS PROGRAMMING

ADDR 87654321 ADDR 87654321 ADDR 87654321 ADDR 87654321

000 ILLEGAL 064 OXOOOOOO 128 XOOOOOOO 192 XXOOOOOO

001 ILLEGAL 065 OXOOOOOX 129 XOOOOOOX 193 XXOOOOOX

002 ILLEGAL 066 OXOOOOXO 130 XOOOOOXO 194 XXOOOOXO

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

030

031

032

033

034

035

036

037

038

039

040

041

042

043

044

045

046

047

048

049

050

051

052

053

054

055

OOOOOOXX

OOOOOXOO

OOOOOXOX

OOOOOXXO

OOOOOXXX

OOOOXOOO

OOOOXOOX

OOOOXOXO

OOOOXOXX

OOOOXXOO

OOOOXXOX

OOOOXXXO

OOOOXXXX

OOOXOOOO

OOOXOOOX

OOOXOOXO

OOOXOOXX

OOOXOXOO

OOOXOXOX

OOOXOXXO

OOOXOXXX

OOOXXOOO

OOOXXOOX

OOOXXOXO

OOOXXOXX

OOOXXXOO

OOOXXXOX

OOOXXXXO

OOOXXXXX

OOXOOOOO

OOXOOOOX

OOXOOOXO

OOXOOOXX

OOXOOXOO

OOXOOXOX

OOXOOXXO

OOXOOXXX

OOXOXOOO

OOXOXOOX

OOXOXOXO

OOXOXOXX

OOXOXXOO

OOXOXXOX

OOXOXXXO

OOXOXXXX

OOXXOOOO

OOXXOOOX

OOXXOOXO

OOXXOOXX

OOXXOXOO

OOXXOXOX

OOXXOXXO

OOXXOXXX

067

068

069

070

071

072

073

074

075

076

077

078

079

080

081

082

083

084

085

086

087

088

089

090

091

092

093

094

095

096

097

098

099

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

OXOOOOXX

OXOOOXOO

OXOOOXOX

OXOOOXXO

OXOOOXXX

OXOOXOOO

OXOOXOOX

OXOOXOXO

OXOOXOXX

OXOOXXOO

OXOOXXOX

OXOOXXXO

OXOOXXXX

OXOXOOOO

OXOXOOOX

OXOXOOXO

OXOXOOXX

OXOXOXOO

OXOXOXOX

OXOXOXXO

OXOXOXXX

OXOXXOOO

OXOXXOOX

OXOXXOXO

OXOXXOXX

OXOXXXOO

OXOXXXOX

OXOXXXXO

OXOXXXXX

OXXOOOOO

OXXOOOOX

OXXOOOXO

OXXOOOXX

OXXOOXOO

OXXOOXOX

OXXOOXXO

OXXOOXXX

OXXOXOOO

OXXOXOOX

OXXOXOXO

OXXOXOXX

OXXOXXOO

OXXOXXOX

OXXOXXXO

OXXOXXXX

OXXXOOOO

OXXXOOOX

OXXXOOXO

OXXXOOXX

OXXXOXOO

OXXXOXOX

OXXXOXXO

OXXXOXXX

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

XOOOOOXX

XOOOOXOO

XOOOOXOX

XOOOOXXO

XOOOOXXX

XOOOXOOO

XOOOXOOX

XOOOXOXO

XOOOXOXX

XOOOXXOO

XOOOXXOX

XOOOXXXO

XOOOXXXX

XOOXOOOO

XOOXOOOX

XOOXOOXO

XOOXOOXX

XOOXOXOO

XOOXOXOX

XOOXOXXO

XOOXOXXX

XOOXXOOO

XOOXXOOX

XOOXXOXO

XOOXXOXX

XOOXXXOO

XOOXXXOX

XOOXXXXO

XOOXXXXX

XOXOOOOO

XOXOOOOX

XOXOOOXO

XOXOOOXX

XOXOOXOO

XOXOOXOX

XOXOOXXO

XOXOOXXX

XOXOXOOO

XOXOXOOX

XOXOXOXO

XOXOXOXX

XOXOXXOO

XOXOXXOX

XOXOXXXO

XOXOXXXX

XOXXOOOO

XOXXOOOX

XOXXOOXO

XOXXOOXX

XOXXOXOO

XOXXOXOX

XOXXOXXO

XOXXOXXX

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

XXOOOOXX

XXOOOXOO

XXOOOXOX

XXOOOXXO

XXOOOXXX

XXOOXOOO

XXOOXOOX

XXOOXOXO

XXOOXOXX

XXOOXXOO

XXOOXXOX

XXOOXXXO

XXOOXXXX

XXOXOOOO

XXOXOOOX

XXOXOOXO

XXOXOOXX

XXOXOXOO

XXOXOXOX

XXOXOXXO

XXOXOXXX

XXOXXOOO

XXOXXOOX

XXOXXOXO

XXOXXOXX

XXOXXXOO

XXOXXXOX

XXOXXXXO

XXOXXXXX

XXXOOOOO

XXXOOOOX

XXXOOOXO

XXXOOOXX

XXXOOXOO

XXXOOXOX

XXXOOXXO

XXXOOXXX

XXXOXOOO

XXXOXOOX

XXXOXOXO

XXXOXOXX

XXXOXXOO

XXXOXXOX

XXXOXXXO

XXXOXXXX

XXXXOOOO

XXXXOOOX

XXXXOOXO

XXXXOOXX

XXXXOXOO

XXXXOXOX

XXXXOXXO

XXXXOXXX

056 OOXXXOOO 120 OXXXXOOO 184 XOXXXOOO 248 ILLEGAL

057 OOXXXOOX 121 OXXXXOOX 185 XOXXXOOX 249 ILLEGAL

058 OOXXXOXO 122 OXXXXOXO 186 XOXXXOXO 250 ILLEGAL

059 OOXXXOXX 123 OXXXXOXX 187 XOXXXOXX 251 ILLEGAL

060 OOXXXXOO 124 OXXXXXOO 188 XOXXXXOO 252 ILLEGAL

061 OOXXXXOX 125 OXXXXXOX 189 XOXXXXOX 253 ILLEGAL

062 OOXXXXXO 126 OXXXXXXO 190 XOXXXXXO 254 ILLEGAL

063 OOXXXXXX 127 OXXXXXXX 191 XOXXXXXX 255 ILLEGAL

O = OPEN (or OFF) X = CLOSED ( or ON)

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Building Technologies, Ltd.

Fire Safety & Security Products

2 Kenview Boulevard

Brampton, Ontario

L6T 5E4 Canada

P/N 315-092083-10

Table des matières

Autres manuels Siemens Contrôleurs

Siemens

Siemens SIRIUS 3RM10 Series Manuel utilisateur

Siemens

Siemens 3RA2220 Manuel utilisateur

Siemens

Siemens SIMOTION Manuel utilisateur

Siemens

Siemens GLB111.9E/MO Manuel utilisateur

Siemens

Siemens 7SR224 Manuel d'utilisation et d'entretien

Siemens

Siemens SINUMERIK 840D sl Manuel utilisateur

Siemens

Siemens 8MR2170 Manuel utilisateur

Siemens

Siemens DXR2.E10PL-102BK Manuel utilisateur

Siemens

Siemens LMV60.110A2 Manuel utilisateur

Siemens

Siemens SIMATIC ET 200SP Manuel utilisateur

Siemens

Siemens Simatic S7-1500 Manuel utilisateur

Siemens

Siemens OpenAir GND12x.1 Series Manuel de service

Siemens

Siemens Raja+ 3TE7431-2BC24-1A Series Mode d'emploi

Siemens

Siemens instabus Series Manuel utilisateur

Siemens

Siemens 5WG1 523-1AB04 Manuel utilisateur

Siemens

Siemens SIRIUS 3RW40 5 Manuel utilisateur

Siemens

Siemens SINAMICS S120 Document technique

Siemens

Siemens SIMODRIVE base line A Manuel utilisateur

Siemens

Siemens Desigo TRA QMX3.P36F Manuel utilisateur

Siemens

Siemens OpenAir GCA Series Manuel du propriétaire

Siemens

Siemens Flowrite 599 Series Manuel utilisateur

Siemens

Siemens Simatic S7-300 Manuel utilisateur

Siemens

Siemens Simatic S7 Series Manuel utilisateur

Siemens

Siemens Simatic S7-1500 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

3M MicroTouch EX113 Manuel utilisateur
