Siemens SIMATIC S5 Series Manuel utilisateur

Siemens AG

SIMATIC S5

3964(R) Driver

1 System Configuration....................................................................................................... 3

2 External Device Selection ................................................................................................ 7

3 Communication Settings .................................................................................................. 8

4 Setup Items ....................................................................................................................11

5 Cable Diagram ............................................................................................................... 15

6 Supported Device Addresses......................................................................................... 17

7 Device Code and Address Code.................................................................................... 18

8 Error Messages.............................................................................................................. 19

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 2

Introduction

This manual describes how to connect the Display and the External Device (target PLC).

In this manual, the connection procedure is described in the sections identified below:

1System Configuration

This section lists the types of External

Devices and SIO that you can connect.

)"1 System Configuration" (page 3)

2External Device Selection

Select a model (series) of the External

Device and its connection method.

)"2 External Device Selection" (page 7)

3Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)"3 Communication Settings" (page 8)

4Setup Items

This section describes communication

setup items on the Display.

Set the Display’s communication settings

in GP-Pro EX or in offline mode.

)"4 Setup Items" (page 11)

5Cable Diagrams

This section shows cables and adapters

for connecting the Display and the

External Device.

)"5 Cable Diagram" (page 15)

Operation

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The following section shows system configurations for connecting the Siemens AG External Device and the

Display.

Connection Configuration

• 1:1 Connection

Series CPU Link I/F SIO Type Setting

Example

Cable

Diagram

SIMATIC

S5 Series

90U

95U

100U

CP521 SI RS-232C

Setting

Example 1

(page 8)

Cable

Diagram 1

(page 15)

115U

135U

155U

CP524

CP525 RS-232C

115U(CPU 944)

135U/155U(CPU 928B) SI2 port on CPU unit RS-232C

• Set the execution time of the logic functions in the Display to “100 ms” or less. If the longer time is

set, an error may occur in the communication with the external device.

Display External Device

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 4

IPC COM Port

When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please

refer to the IPC manual for details.

Usable port

Series

Usable Port

RS-232C RS-422/485(4 wire) RS-422/485(2 wire)

PS-2000B COM1*1 , COM2,

COM3*1, COM4

*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.

PS-3450A, PS-3451A,

PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2

PS-3650A (T41 model),

PS-3651A (T41 model) COM1*1 --

PS-3650A (T42 model),

PS-3651A (T42 model) COM1*1*2, COM2 COM1*1*2 COM1*1*2

PS-3700A (Pentium®4-M)

PS-3710A

COM1*1, COM2*1,

COM3*2 , COM4

*2 Set up the SIO type with the DIP Switch. Please set up as follows according to SIO type to be used.

COM3*2 COM3*2

PS-3711A COM1*1, COM2*2 COM2*2 COM2*2

PS4000*3

*3 When making communication between an External Device and COM port on the Expansion slot,

only RS-232C is supported. However, ER (DTR/CTS) control cannot be executed because of the

specification of COM port.

For connection with External Device, use user-created cables and disable Pin Nos. 1, 4, 6 and 9.

Please refer to the IPC manual for details of pin layout.

COM1, COM2 - -

PL3000 COM1*1*2, COM2*1,

COM3, COM4 COM1*1*2 COM1*1*2

PE-4000B Atom N270 COM1, COM2 - -

PE-4000B Atom N2600 COM1, COM2 COM3*4 , COM4*4,

COM5*4, COM6*4

*4 Set up the SIO type with the BIOS. Please refer to the IPC manual for details of BIOS.

COM3*4, COM4*4,

COM5*4, COM6*4

PS5000 (Slim Panel Type

Core i3 Model) *5 *6 COM1, COM2*4 COM2*4 COM2*4

PS5000 (Slim Panel Type

Atom Model)

*5 *6

COM1, COM2*7 COM2*7 COM2*7

PS5000 (Enclosed Panel

Type)*8 COM1 - -

PS5000 (Modular Type

PFXPU/PFXPP)*5 *6

PS5000 (Modular Type

PFXPL2B5-6)

COM1*7 COM1*7 COM1*7

PS5000 (Modular Type

PFXPL2B1-4) COM1, COM2*7 COM2*7 COM2*7

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 5

DIP Switch settings (PL3000 / PS3000 Series)

RS-232C

*5 When setting up communication between an External Device and the RS-232C/422/485 interface

module, use the IPC (RS-232C) or PS5000 (RS-422/485) cable diagrams. However, when using

PFXZPBMPR42P2 in a RS-422/485 (4-wire) configuration with no flow control, connect 7.RTS+

and 8.CTS+, and connect 6.RTS- and 9.CTS-.

When using RS-422/485 communication with External Devices, you may need to reduce the

transmission speed and increase the TX Wait time.

*6 To use RS-422/485 communication on the RS-232C/422/485 interface module, the DIP Switch

setting is required. Please refer to "Knowledge Base" (FAQs) on the support site. (http://www.pro-

face.com/trans/en/manual/1001.html)

*7 Set up the SIO type with the DIP Switch. Please refer to the IPC manual for details of DIP Switch.

The BOX Atom has not a switch to set the RS-232C, RS-422/485 mode. Use the BIOS for the

setting.

*8 For the connection with the External Device, on the user-created cable read as if the connector on

the Display-side is a M12 A-coding 8 pin socket. The pin assignment is the same as described in

the cable diagram. For the M12 A-coding connector, use PFXZPSCNM122.

DIP Switch Setting Description

1OFF

*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.

Reserved (always OFF)

2OFF

SIO type: RS-232C

3OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

Settings FAQ ID

PFXZPBMPR42P2, RS422/485 change method FA263858

PFXZPBMPR42P2 termination resistor setting FA263974

PFXZPBMPR44P2, RS422/485 change method FA264087

PFXZPBMPR44P2 termination resistor setting FA264088

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 6

RS-422/485 (4 wire)

RS-422/485 (2 wire)

DIP Switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

DIP Switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available

8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available

9ON

RS (RTS) Auto control mode: Enabled

10 ON

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 7

2 External Device Selection

Select the External Device to be connected to the Display.

Setup Items Setup Description

Number of Devices/

PLCs Enter an integer from 1 to 4 to define the number of Devices/PLCs to connect to the display.

Manufacturer Select the manufacturer of the External Device to connect. Select "Siemens AG".

Series

Select the External Device model (series) and the connection method. Select "SIMATIC S5

3964(R)".

In System configuration, make sure the External Device you are connecting is supported by

"SIMATIC S5 3964(R)".

)"1 System Configuration" (page 3)

Port Select the Display port to connect to the External Device.

Use System Area

Check this option to synchronize the system data area of the Display and the device (memory)

of the External Device. When synchronized, you can use the External Device’s ladder

program to switch the display or display the window on the Display.

Cf. GP-Pro EX Reference Manual "LS Area (Direct Access Method Area)"

This feature can also be set in GP-Pro EX or in the Display's offline mode.

Cf. GP-Pro EX Reference Manual "System Settings [Display Unit] - [System Area]

Settings Guide"

Cf. Maintenance/Troubleshooting Guide "Main Unit - System Area Settings"

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 8

3 Communication Settings

This section provides examples of communication settings recommended by Pro-face for the Display and the

External Device.

3.1 Setting Example 1

GP-Pro EX Settings

Communication Settings

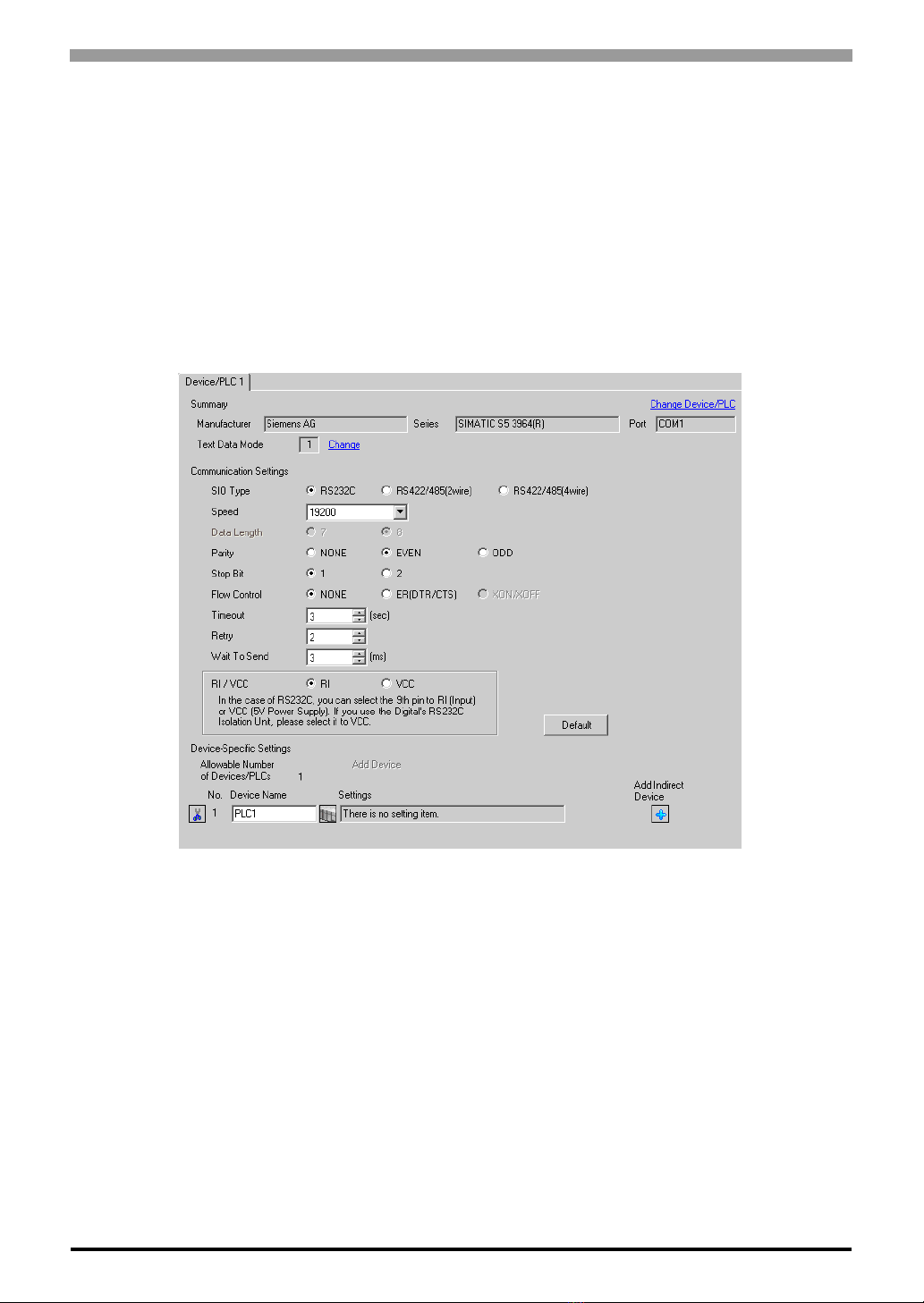

To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 9

External Device Settings

Use the program controller (SIMATIC PG615) to configure communication settings for the External Device.

Refer to your External Device manual for details.

1Set the RUN/STOP switch on the CPU unit to STOP.

2Turn the program controller power ON to check that it is configured as shown below.

3Define the BLOCK OB.

Press the ENTER key to move to the INIT.STATE menu.

4Select the INPUT menu.

5Select the INPUT PC menu.

6Select the DX.

7Press key 2.

8Press the ENTER key to display [KH•••KC].

9Press key 1 to display the first address [0000:KH=].

10 Set each address as shown below.

To move the address, press the down key.

11 After all addresses are set, press the ENTER key to display [OVERWRITE?].

12 Press the ENTER key to move to the INIT.STATE menu.

13 Define the BLOCK DB.

Press key 1 to move to the INPUT menu.

14 Select the INPUT PC menu.

15 Select the DB.

16 Press key 9.

17 Press the ENTER key to display [KH•••KC].

Setup Items Setting Value

ON-LINE YES

SYSTEM OP YES

WORD ADDR YES

• If there are any items set differently from the above settings, set the cursor to the item using

the up key or the down key and press key 1.

Address Setting Value Address Setting Value

0000 4D41 0008 0000

0001 534B 0009 0000

0002 5832 0010 0000

0003 0020 0011 0000

0004 4409 0012 0000

0005 0000 0013 0000

0006 0000 0014 4D00

0007 0000 0015 0020

SIMATIC S5 3964(R) Driver

GP-Pro EX Device/PLC Connection Manual 10

18 Press key 1 to display the first address [0000:KH=].

19 Set each address as shown below.

To move the address, press the down key.

20 After all addresses are set, press the ENTER key to display [OVERWRITE?].

21 Press the ENTER key to move to the INIT.STATE menu.

22 Once the communication settings are complete, set the RUN/STOP switch on the CPU to RUN.

Address Setting Value Address Setting Value

0000 0009 0006 0000

0001 0002 0007 0000

0002 0008 0008 0000

0003 0001 0009 0000

0004 0000 0010 0000

0005 0002

• If input was unsuccessful, press the CE key to clear, or press the BRK key to return to the

original menu.

• If the RUN/STOP switch on the CPU is not set to RUN, communication is not executed.

Autres manuels pour SIMATIC S5 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Contrôleurs

Siemens

Siemens SINAMICS S120 Manuel de la liste des pièces

Siemens

Siemens 7SR224 Manuel d'utilisation et d'entretien

Siemens

Siemens CP 1612 A2 Manuel utilisateur

Siemens

Siemens SINUMERIK 810DE Document technique

Siemens

Siemens Simatic S7-300 Manuel utilisateur

Siemens

Siemens OpenAir GLB Series Manuel utilisateur

Siemens

Siemens LMV27.100x2 Manuel de l'opérateur

Siemens

Siemens SINUMERIK 840D sl Manuel utilisateur

Siemens

Siemens ECOFAST Manuel utilisateur

Siemens

Siemens SQM50.261R1Z3 Manuel du propriétaire

Siemens

Siemens SQD Series Manuel utilisateur

Siemens

Siemens Micromaster Profibus Manuel utilisateur

Siemens

Siemens Automatic Star-Delta 3TE05 2AR0 Series Manuel utilisateur

Siemens

Siemens OpenAir GIB13.1 Series Manuel utilisateur

Siemens

Siemens SIRIUS 3RW40 2 Manuel utilisateur

Siemens

Siemens Acvatix G B111.9E/MO Series Manuel utilisateur

Siemens

Siemens ICP-B6 Manuel de service

Siemens

Siemens SINUMERIK 802D sl Manuel du propriétaire

Siemens

Siemens RDU340 Series Manuel de l'opérateur

Siemens

Siemens SSA911.01ZB Manuel utilisateur

Siemens

Siemens SIMATIC S7-1200 CP 1243-8 IRC Guide de l'utilisateur

Siemens

Siemens SIMATIC S5 Series Manuel utilisateur

Siemens

Siemens Powermite 599 Series Manuel du propriétaire

Siemens

Siemens SIMATIC S7 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

3M MicroTouch EX113 Manuel utilisateur
