Siemens SINUMERIK 828D Turning Manuel d'instructions

2018/9/17 Version: V1.4 Joseph.Sun

SIEMENS 828D/840D

OPC/UA Connection

2018/9/17 Version: V1.4 Joseph.Sun

Notice

The OPC UA components can be installed on PCU, NCU and PPU target

systems.

The following steps are necessary to do this:

1. Setting the license

2. Executing the OPC UA configuration dialog

3. Checking the HMI time

4. Performing a restart

In SIEMENS V4.05, there is no user account /password and does not

need to select signature & encryption. The access right of OPC/UA

application program (Client) is rights of local machine operator.

In SIEMENS V4.07, the user needs to use the user account /password

and there is no signature & encryption selection in the user interface.

The access right of OPC/UA application program (Client) is rights of

login account.

The user account/password is not allowed to remodify after setting

the login user account / password. Users can adopt the 3rd party

OPC/UA client software program to modify the user

account/password again.

2018/9/17 Version: V1.4 Joseph.Sun

STEP 0: Confirm the right as Manufacturer

The operation right is displayed at the bottom left of interface

menu.

2018/9/17 Version: V1.4 Joseph.Sun

STEP 1: Check SIEMENS CNC Version

The CNC V4.05 SP03 (or higher) version is needed when using

the OPC/UA services.

Recommend using V4.07 SP03

2018/9/17 Version: V1.4 Joseph.Sun

STEP 2: Check OPC/UA Licenses

Search “OPC UA”, check “6FC5800-0AP67-0YB0”option

and select it. If settings are all done, RESTART is necessary to

activate the new settings.

2018/9/17 Version: V1.4 Joseph.Sun

STEP 3: Setting Network & Firewall option

Setting Address type(Manual-off)

IP address assigned

Subnet mask assigned

2018/9/17 Version: V1.4 Joseph.Sun

Company network change:

Select S7 communication(TCP/102)

Select VNC access(TCP/5900)

Select SSH(TCP/22)

Select TCP/4840 (Additional ports)

If settings are all done, RESTART is necessary to activate the

new settings.

2018/9/17 Version: V1.4 Joseph.Sun

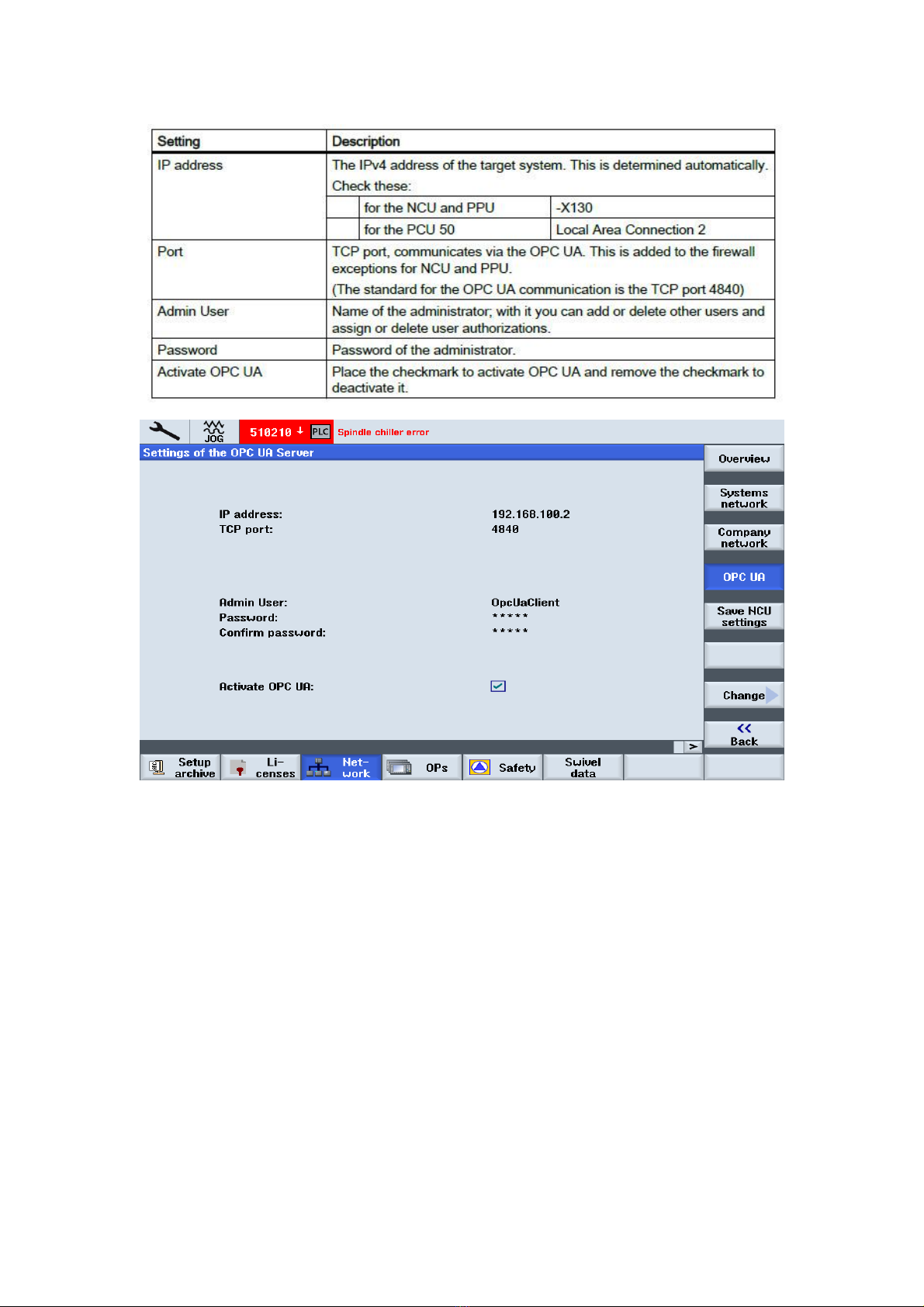

STEP 4: OPC/UA Setting

Setting Port 4840 (binary protocol)

Setting Admin User, default setting is “OpcUaClient”

Hint: Admin User can administrate all OPC/UA account

access right.

Setting & confirm Password(Setting Password is necessary )

Select Active OPC UA option.

2018/9/17 Version: V1.4 Joseph.Sun

2018/9/17 Version: V1.4 Joseph.Sun

STEP 5: Check HMI Date & Time

The date & time of OPC/UA must calibration as current date & time

If settings are all done, RESTART is necessary to activate the

new settings.

STEP 6: Confirm Network setting
