Siemens CF75 Guide de configuration

Company Confidential s Com

Page 1of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

Service Repair Documentation

Level 2.5 – CF75 / CF76

Release Date Department Notes to change

1.0 02.08.2005 ICM MP CC GRM T New document

Company Confidential s Com

Page 2of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

Introduction

This Service Repair Documentation is intended to carry out repairs on Siemens repair level

2.5Light. The described failures shall be repaired in Siemens authorized local workshops

only.

The level 2.5light (former Level 2.5 ) partners are obliged to repair boards, up to their repair

level, under consideration of the information given by level 2.5Light (former level 2.5) repair

instruction.

All repairs have to be carried out in an ESD protected environment and with ESD protected

equipment/tools. For all activities the international ESD regulations have to be considered.

Assembling/disassembling has to be done according to the latest CF75, CF76 Level 2

repair documentation. It has to be ensured that every repaired mobile Phone is checked

according to the latest released General Test Instruction document (both documents are

available in the Technical Support section of the C-market).

Check at least weekly C-market for updates and consider all CF75, CF76 related Customer

Care Information

CF75 Partnumber on IMEI label: S30880-S6010-#xxx

CF76 Partnumber on IMEI label: S30880-S6090-#xxx

, while # may be any letter (A-Z) and xxx may be any number from 100, 101, 102....

Scrap Handling: All Scrap information given in this manual are related to the

SCRAP-Rules and instructions.

Attention: - Consider the new "LEAD-FREE" soldering rules (available in the

communication market)

- Avoid excessive heat.

If you have any questions regarding the repair procedures or technical questions do not

hesitate to contact our technical support team in Kamp-Lintfort, Germany:

Tel.: +49 2842 95 4666

Fax: +49 2842 95 4302

E-mail: [email protected]

Company Confidential s Com

Page 3of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

Table of Content

1CF75, CF76 board layout ..............................................................................................................4

2Connector SIM Card Reader .........................................................................................................5

3Connector IO Jack.........................................................................................................................6

4Connector Board to Board.............................................................................................................7

5Connector Battery .........................................................................................................................8

6IRDA..............................................................................................................................................9

Company Confidential s Com

Page 4of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

1 CF75, CF76 board layout

Jigs, Tools and Working materials for all described repairs:

- hot air blower

- soldering gun

- tweezers

- flux

- solder

IRDA

Connector

BATTERY

Connector

BOARD TO BOARD

Connector

IO JACK

Connector

SIM CARD READER

Company Confidential s Com

Page 5of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

2 Connector SIM Card Reader

Fault Symptoms

Customer: GRT:

Handset does not accept SIM card SIM Card Problems

SIM Card Problems

Check the status of the

SIM card reader visually

okay

not okay

Watch for oxidation and

damaged pads of the SIM

card reader

SCRAP has to be

send separately to

WSC

- check for twisted or

bended contacts

- check for dry joints

Level 2 Repair

Exchange

SIM Card reader

Use the resistor test

function of a multimeter

to check connection

between spring

contacts and soldering

contacts. The value

must be ~0Ω

okay

not okay

okay

Connector SIM Card Reader

Use soldering iron to remove defective component. Avoid excessive heat! Watch surrounding components!

Resolder new component afterwards.

E-commerce order number: L50634-Z97-C406

E-commerce order name: CONNECTOR SIM CARD READER R65 (B)

Soldering temperature: ~ 360°C Tip Temp.

IRIS Diagnose Code: 43300 Interface/SIM Cardreader/Mechanical Damage

Company Confidential s Com

Page 6of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

3 Connector IO Jack

Fault Symptoms

Customer: GRT:

Charging Problems No connection to GRT

Problems with external loudspeaker or microphone when using a car kit Tbd.

Problems with accessories connected at the IO connector

Exchange

IO connector

okay

Check the status of the

IO connector visually

okay

not okay

Clean

IO connector

Check for dust inside

the IO connector

okay

not okay

- check for twisted or

bended contacts

- check for dry joints

Level 2 Repair

Use the resistor test

function of a multimeter

to check connection

between spring

contacts and soldering

contacts. The value

must be ~0Ω

okay

not okay

Watch for oxidation and

damaged pads of the

IO connector

not okay

IO connector Problems

SCRAP has to be

send separately to

WSC

Connector IO Jack

Use soldering iron to remove defective component. Avoid excessive heat! Watch surrounding components!

Resolder new component afterwards.

E-commerce order number: L36334-Z93-C303

E-commerce order name: IO-JACK SLIM 12-POL

Soldering temperature: ~ 360°C Tip Temp.

IRIS Diagnose Code: 46100 Interface/Charging Connector/Mechanical Damage

47300 Interface/Data Interface/Mechanical Damage

4B100 Interface/Headset Connector/Mechanical Damage

Company Confidential s Com

Page 7of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

4 Connector Board to Board

Fault Symptoms

Customer: GRT:

Display problems, like missing lines or columns on the LCD or

display contrast problems or illumination problems

Display problems

B to B connector Problems

Watch for oxidation and

damaged pads of the BtoB

connector

SCRAP has to be

send separately to

WSC

not okay

okay

Check the status of the

BtoB connector visually

okay

not okay

Level 2 Repair

Exchange

BtoB connector

- check for twisted or

bended contacts

- check for dry joints

Connector Board to Board

Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!

Resolder new component afterwards.

E-commerce order number: L36334-Z97-C341

E-commerce order name: CONNECTOR BOARD TO BOARD 30-POL

Soldering temperature: ~ 360°C TIP Temp.

IRIS Diagnose Code: 32100 Keys / Main / No Function

32200 Keys / Main / Reduced Functionality

36000 Keys / Illumination

Company Confidential s Com

Page 8of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

5 Connector Battery

Fault Symptoms

Customer: GRT:

Mobile does not switch on No connection to GRT

Battery connector

Problems

Check the status of the

battery connector visually

okay

not okay

Level 2 Repair

Exchange

Battery connector

- check for twisted or

bended contacts

- check for dry joints

Watch for oxidation and

damaged pads of the battery

connector

Use the resistor test

function of a multimeter

to check connection

between spring

contacts and soldering

contacts. The value

must be ~0Ω

not okay okay

okay

SCRAP has to be

send separately to

WSC

not okay

Connector BATTERY

Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!

Resolder new component afterwards.

E-commerce order number: L36334-Z97-C336

E-commerce order name: CONNECTOR BATTERY 3-POL R65

Soldering temperature: ~ 360°C Tip Temp.

IRIS Diagnose Code: 13000 Battery/Mechanical Damage

Company Confidential s Com

Page 9of 9

Service Repair Documentation

TI_Repair_L2,5L_CF75_CF76_R1.0

6 IRDA

Fault Symptoms

Customer: GRT:

IRDA does not work Tbd.

IRDA Problems

Watch for oxidation and

damaged pads of the IRDA

Diode

SCRAP has to be

send separately to

WSC

not okay

okay

Exchange

IRDA Diode

Check the status of the

IRDA Diode visually

okay

not okay - check for dry joints

Level 2 Repair

Irda Diode

Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!

Resolder new component afterwards.

E-commerce order number: L36197-F5008-F492

E-commerce order name: IRDA 115.2 KBIT

Soldering temperature: ~ 360°C Tip Temp.

IRIS Diagnose Code: 41100 Interfaces / IRDA / No Function

41300 Interfaces / IRDA / Mechanical Damage

Autres manuels pour CF75

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Téléphone portable

Siemens

Siemens Gigaset SL75 WLAN Manuel utilisateur

Siemens

Siemens CT56 Manuel utilisateur

Siemens

Siemens AX75 Manuel utilisateur

Siemens

Siemens C65 Manuel utilisateur

Siemens

Siemens A70 Manuel utilisateur

Siemens

Siemens Gigaset S56 Manuel utilisateur

Siemens

Siemens Xelibri Manuel utilisateur

Siemens

Siemens CX65 Manuel utilisateur

Siemens

Siemens C65 Manuel utilisateur

Siemens

Siemens A52 Manuel utilisateur

Siemens

Siemens S2588 Manuel utilisateur

Siemens

Siemens S42 Manuel utilisateur

Siemens

Siemens Gigaset S45 Manuel utilisateur

Siemens

Siemens CC75 Manuel utilisateur

Siemens

Siemens SL65 Manuel utilisateur

Siemens

Siemens SK65 Manuel utilisateur

Siemens

Siemens CX70 Manuel utilisateur

Siemens

Siemens M35i Manuel utilisateur

Siemens

Siemens A75 Manuel utilisateur

Siemens

Siemens GSM 900, GSM 1900 Manuel utilisateur

Siemens

Siemens optiPoint WL1 professional Manuel utilisateur

Siemens

Siemens SK65 Manuel utilisateur

Siemens

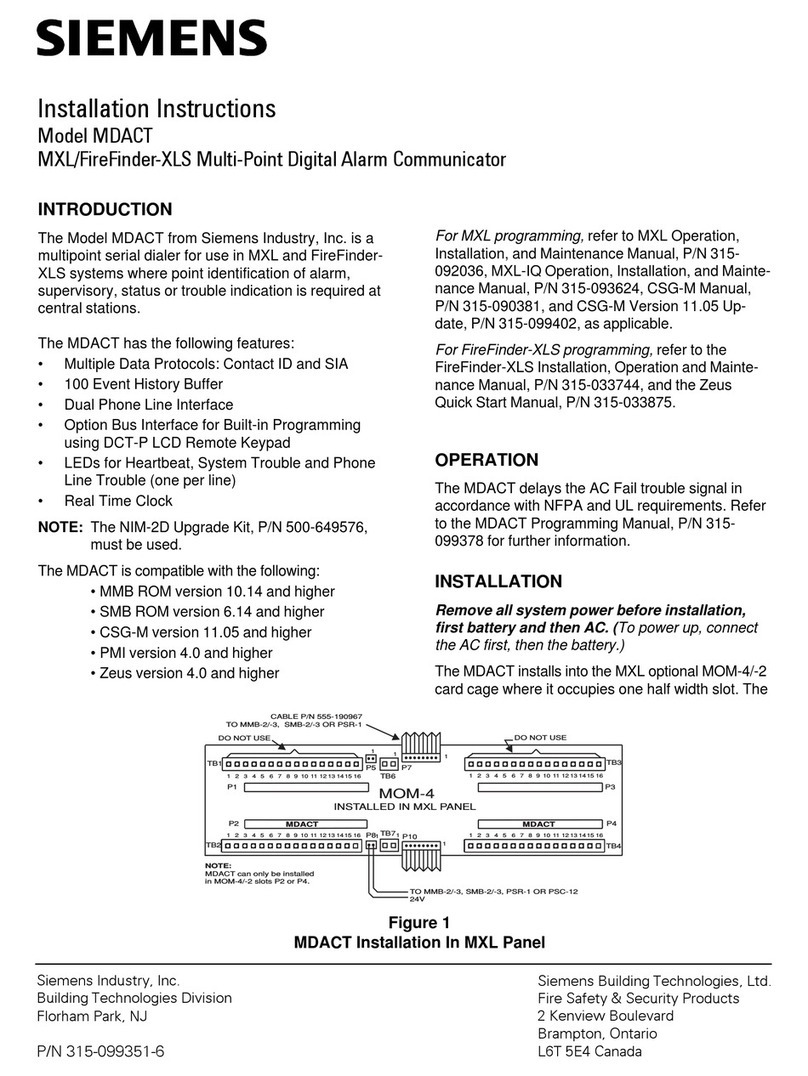

Siemens MDACT Manuel utilisateur
