Siding Tools Industries UBENCH-B Manuel utilisateur

Table Universelle

MANUEL D’UTILISATION

Universal bench

OWNER’S MANUAL

AVERTISSEMENT

Lire et comprendre toutes les directives. Le non-respect

des directives décrites ci-dessous peut causer des

blessures graves.

VEUILLEZ CONSERVER CES DIRECTIVES POUR

RÉFÉRENCE ULTÉRIEURE.

WARNING

Read and understand all instructions.

Failure to follow all instructions listed

below may result in serious bodily injury.

SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE.

UBENCH

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY! USING

THIS MACHINE WITH RESPECT AND CAUTION WILL CONSIDERABLY LESSEN THE

POSSIBILITY OF PERSONAL INJURY.

SAFETY RULES FOR THE UNIVERSAL BENCH.

1. READ AND UNDERSTAND THIS INSTRUCTION MANUALBEFORE OPERATING

THE UNIVERSAL BENCH.

2. The Universal Bench comes with a 1 year warranty from the date of

purchase on parts only (labor excluded). To activate your warranty, we

invite you to register on our website in the service tab at :

www.sidingtoolsindustries.com

If you are not thoroughly familiar with the operation of the Universal Bench,

obtain advice from a qualified worker or call 450-849-7840 or toll free

1-844-449-7840

Stay alert. Do not operate while under the influence of drugs, alcohol, or

medication.

Always wear safety approved eye protection with side shields (ANSI Z87.1)

Keep work area and free of debris.

Keep children and unauthorized persons away from the Universal Bench and

workarea.

Make sure the Universal Bench and the other tools are secured. Operate

only on a firm substrate or solid stand.

Always install the extension feet when using the Universal Bench

extensions.

10.

Always install the UniversalKut 12 drawer feet when cutting with the

UniversalKut12

11.

Always keep hands away from blade while operating or carrying.

12. Do not alter or misuse this tool. The Universal Bench is precision built;

modifications not specified in this manual may result in a dangerous

condition.

13.

Maintain the Universal Bench with care. Keep mechanism clean and in order.

14.

Use only recommended accessories. The use of improper accessories may

cause hazards or injury.

15.

Never leave the Universal Bench in inclement weather.

16. The Universal Bench have a capacity of 500 lbs (225 Kg). Do not exceed

this capacity.

17. The extensions have a capacity of 50 lbs (22.5 Kg). Do not exceed this

capacity. Always align the mass directly over the extension feet.

18.

Before using any tools associated or not to the Universal Bench, make sure

to read the owner’s manual and respect all safety rules.

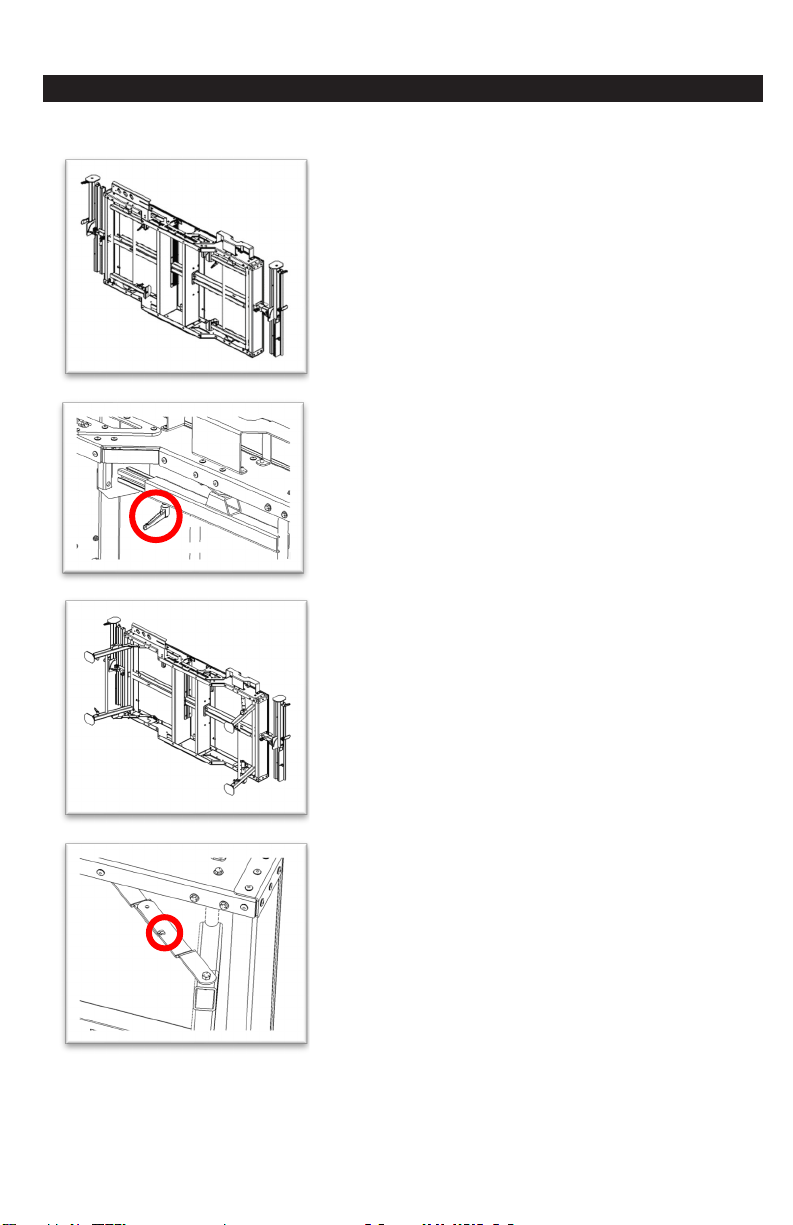

Preparation of the Universal Bench

1. Put the bench on the side.

Warning:

•Keep your hand out of reach of

pinch point.

•150 lbs (68kg) assembly.

•Use team lifting

2. Open the 2 sets of legs assembly.

2.1. To do so, loosen the handle

on the internal side of the legs

assembly.

2.2. Fully close the adjustable leg.

2.3. Repeat step 2.1. for the

second legs assembly.

Warning:

•Keep your hand out of reach of

pinch point.

3. Be sure to put the legs braces in

lock position (4x).

Warning:

•Keep your hand out of reach of

pinch point.

UBENCH SETUP

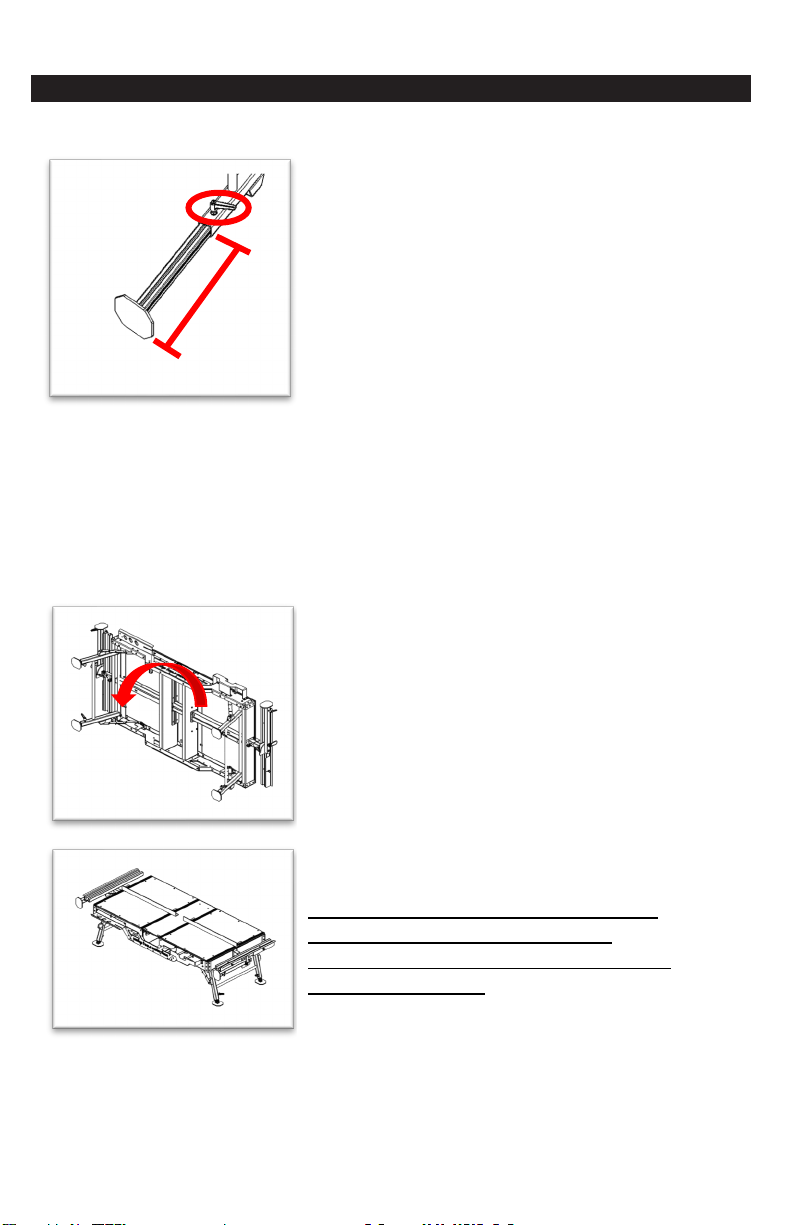

4. Adjust the bench height according

to the next specifications

(Dimensions may vary according

to the ground flatness):

4.1. ProKut 6 :

•A : Fully open

•Height : 33,25 in (845 mm)

4.2. UniversalKut 12 :

•A : Fully close

•Height : 21.50 in (546 mm)

Warning:

•Keep your hand out of reach of

pinch point.

•Be sure to firmly tight all 4 legs

assembly handles before the

next step.

5. Pull on the bench to put it on his

foots.

Warning:

•Keep your hand out of reach of

pinch point.

•150 lbs (68kg) assembly.

•Use team lifting

To store the bench, remove all tools

and equipment on the bench or

attached to it and repeat the previous

5 steps backward.

UBENCH SETUP

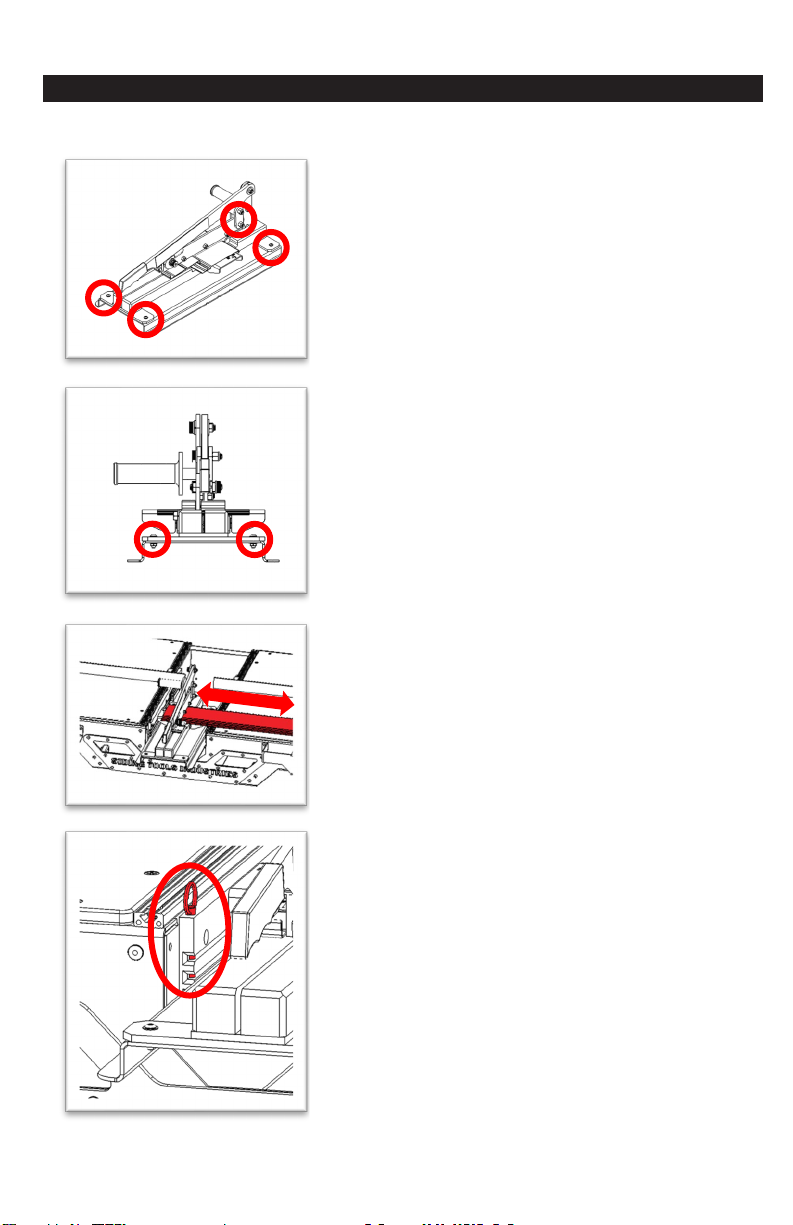

Installation of the ProKut 6 on the

Universal Bench

1. Put the ProKut 6 on the drawer

provided for that purpose.

2. Align the shelf holes with the

ProKut 6 foots holes (4x).

3. Attach the ProKut 6 to the drawer

with the hardware provided for that

purpose.

Warning:

•Torque : 55 in-lbs

•Keep your hand out of reach of

pinch point.

•Do not put your fingers against

the sharp edge of the blade at

any time.

4. Insert the drawer assembly on the

track.

4.1. The drawer got 8 heights

positions and 3 depths

positions.

5. Validate the height and the depth

of the ProKut 6 with a siding slide

test.

6. Lock the drawer assembly in place

with both quick pin

Warning:

•Keep your hand out of reach of

pinch point.

•Do not put your fingers against

the sharp edge of the blade at

any time.

PROKUT 6 SETUP

Installation of the UniversalKut 12

on the Universal Bench

1. Prepare the UniversalKut 12

1.1. Remove the 2 rear feet

bumpers

1.2. Remove the original front feet

assembly

•A 9/16¨ wrench and a 5/16¨

Allen key is required.

1.3. Prepare the UniversalKut 12

drawer.

•The UniversalKut 12 front

foot is already installed on

the drawer.

2. Put the UniversalKut 12 on the

drawer provided for that purpose.

Warning:

•Keep your hand out of reach of

pinch point.

•Do not put your fingers against

the sharp edge of the blade at

any time.

UKUT 12 SETUP

1.1

1.2

1.3

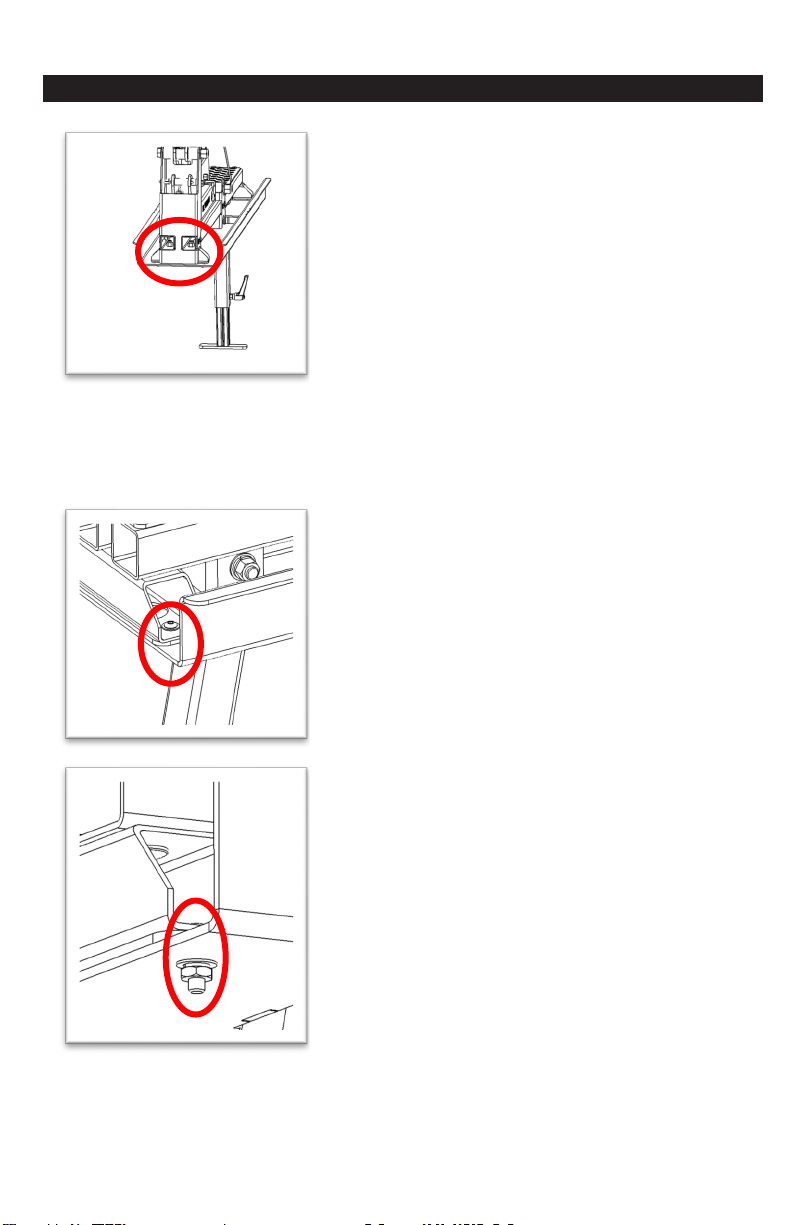

3. Attach the UniversalKut 12 to the

front feet of the drawer with the

original UniversalKut 12 hardware

provided for that purpose.

•A 9/16¨ wrench and a 5/16¨

Allen key is required.

Warning:

•Torque : 43 ft-lbs (516 in-lbs)

•Keep your hand out of reach of

pinch point.

•Do not put your fingers against

the sharp edge of the blade at

any time.

4. Attach the UniversalKut 12 to the

rear feet of the drawer with the

hardware provided for that

purpose.

•A 3/8¨ wrench and a 1/8¨

Allen key is required.

Warning:

•Torque : 55 in-lbs

•Keep your hand out of reach of

pinch point.

•Do not put your fingers against

the sharp edge of the blade

at any time.

UKUT 12 SETUP

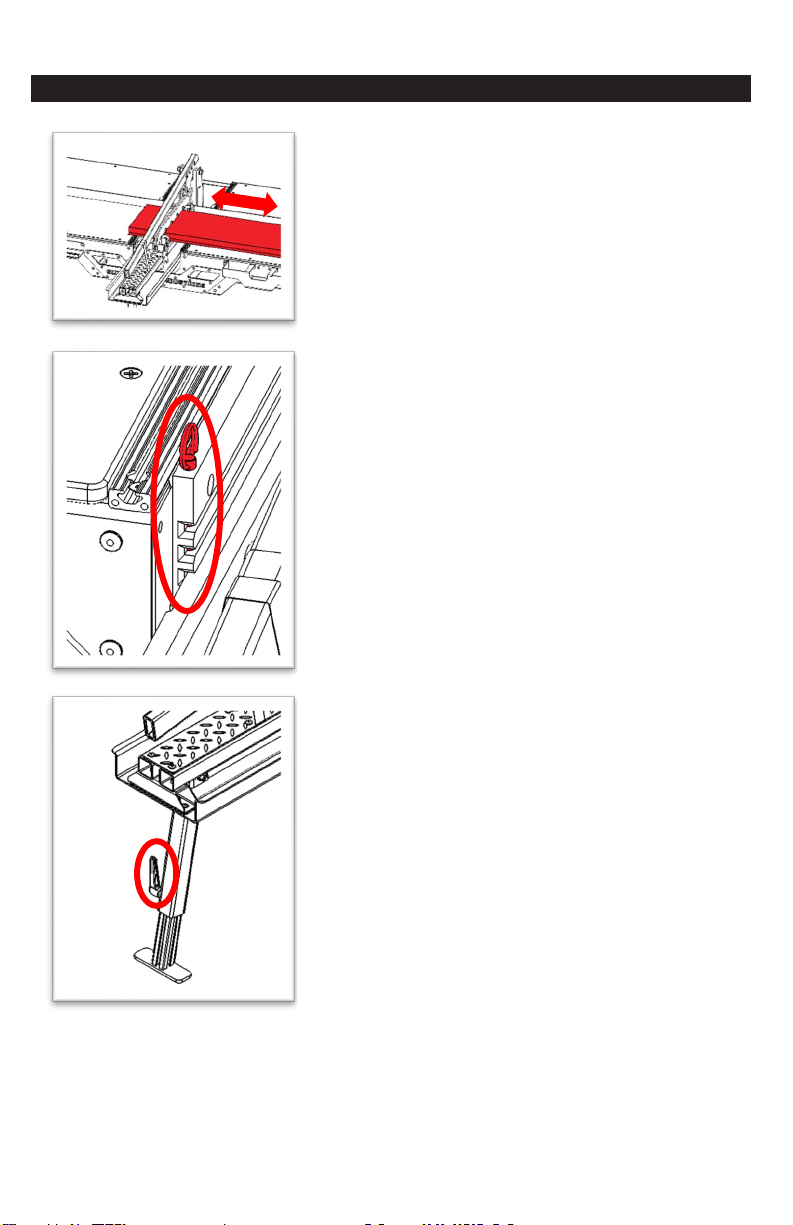

5. Insert the drawer assembly on the

track.

5.1. The drawer got 8 heights

positions and 3 depths

positions.

6. Validate the height and the depth

of the UniversalKut 12 with a

siding slide test.

7. Lock the drawer assembly in place

with both quick pin

Warning:

•Keep your hand out of reach of

pinch point.

•Do not put your fingers against

the sharp edge of the blade at

any time.

8. Adjust the drawer feet height so

the feet end touches the ground

and the drawer is leveled

correctly.

Warning:

•Keep your hand out of reach of

pinch point.

•Be sure to firmly tight the

drawer feet handles before the

next step.

•Do not put your fingers against

the sharp edge of the blade at

any time.

UKUT 12 SETUP

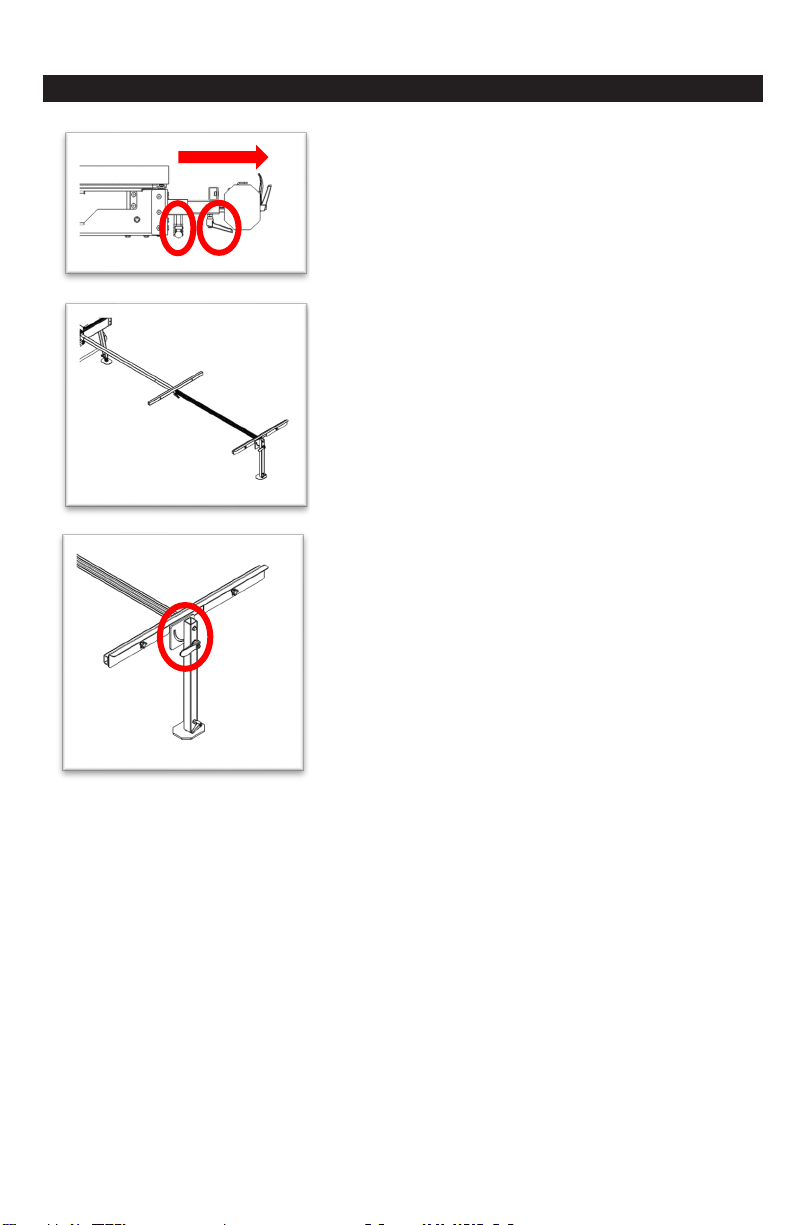

Adjustment of the Universal bench

extensions.

1. Loosen each handle under the

extensions.

2. Pull the extension at the desired

distance.

3. Tight each handle under the

extensions.

Warning:

•Keep your hand out of reach of

pinch point.

4. Loosen the handle on the

extension feet.

5. Rotate the extension feet to point

toward the ground.

6. Tight the handle on the extension

feet.

Warning:

•Keep your hand out of reach of

pinch point.

EXTENSIONS SETUP

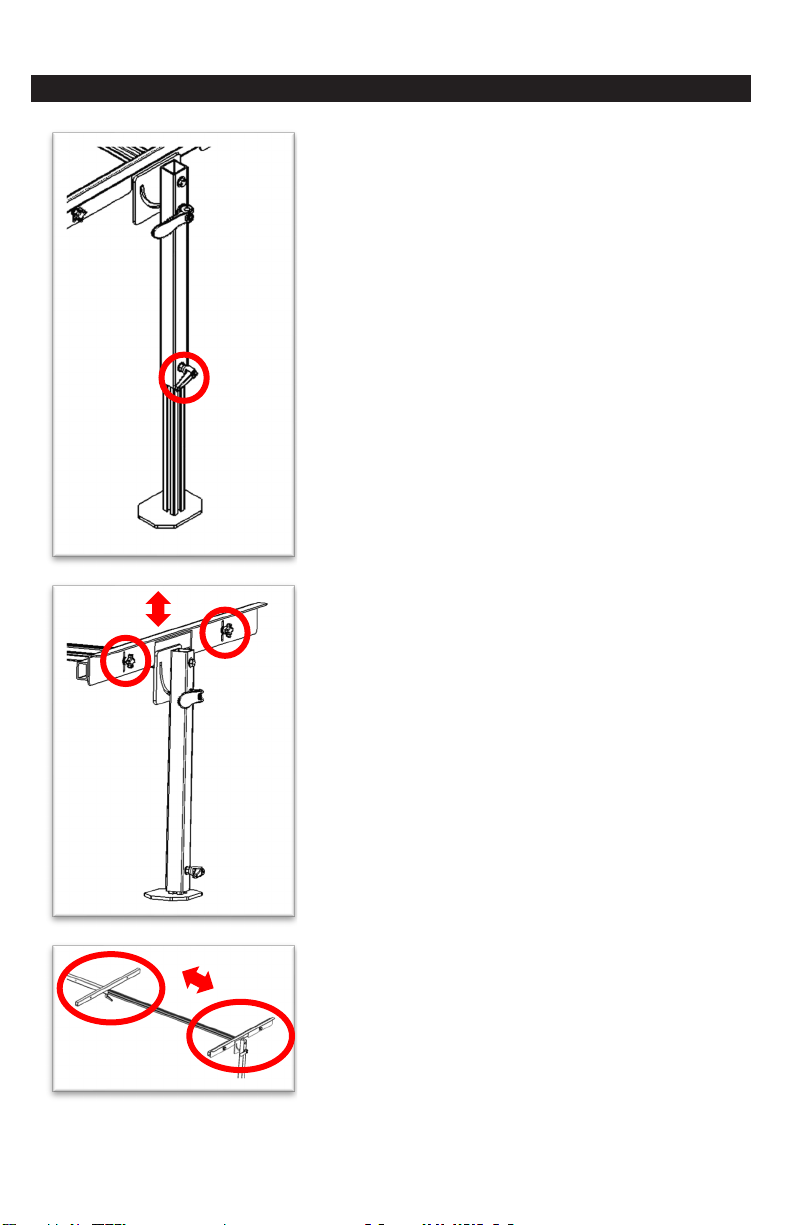

7. Adjust the extension feet height so

the feet end touches the ground

and the extension is leveled

correctly.

Warning:

•Keep your hand out of reach of

pinch point.

•Be sure to firmly tight the

extension feet handles before

the next step.

8. Validate the height of the

extension support with a siding

slide test.

Warning:

•Keep your hand out of reach of

pinch point.

9. The extension support can be

installed on the middle extension.

EXTENSIONS SETUP
