Sideline Power EVS Manuel
Hardware Setup
(EVS)

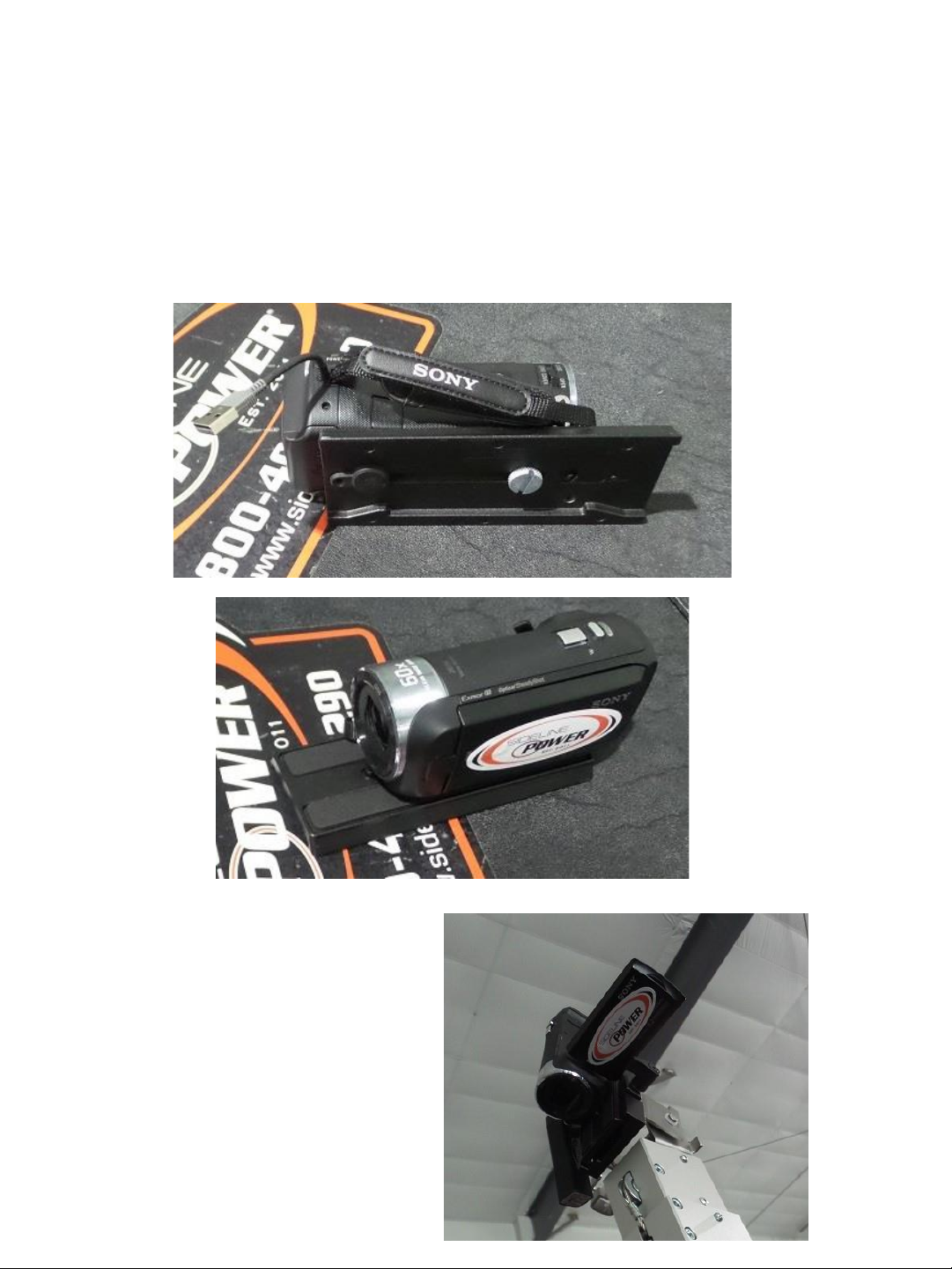

Step 1: Attach Camera
Remove Camera from Hardware Kit and attach to
the quick release plate with the provided screw
from the quick release assembly. Slide plate into
the housing on top of the tripod.
Make Sure the
Lens Cover is
OPEN.

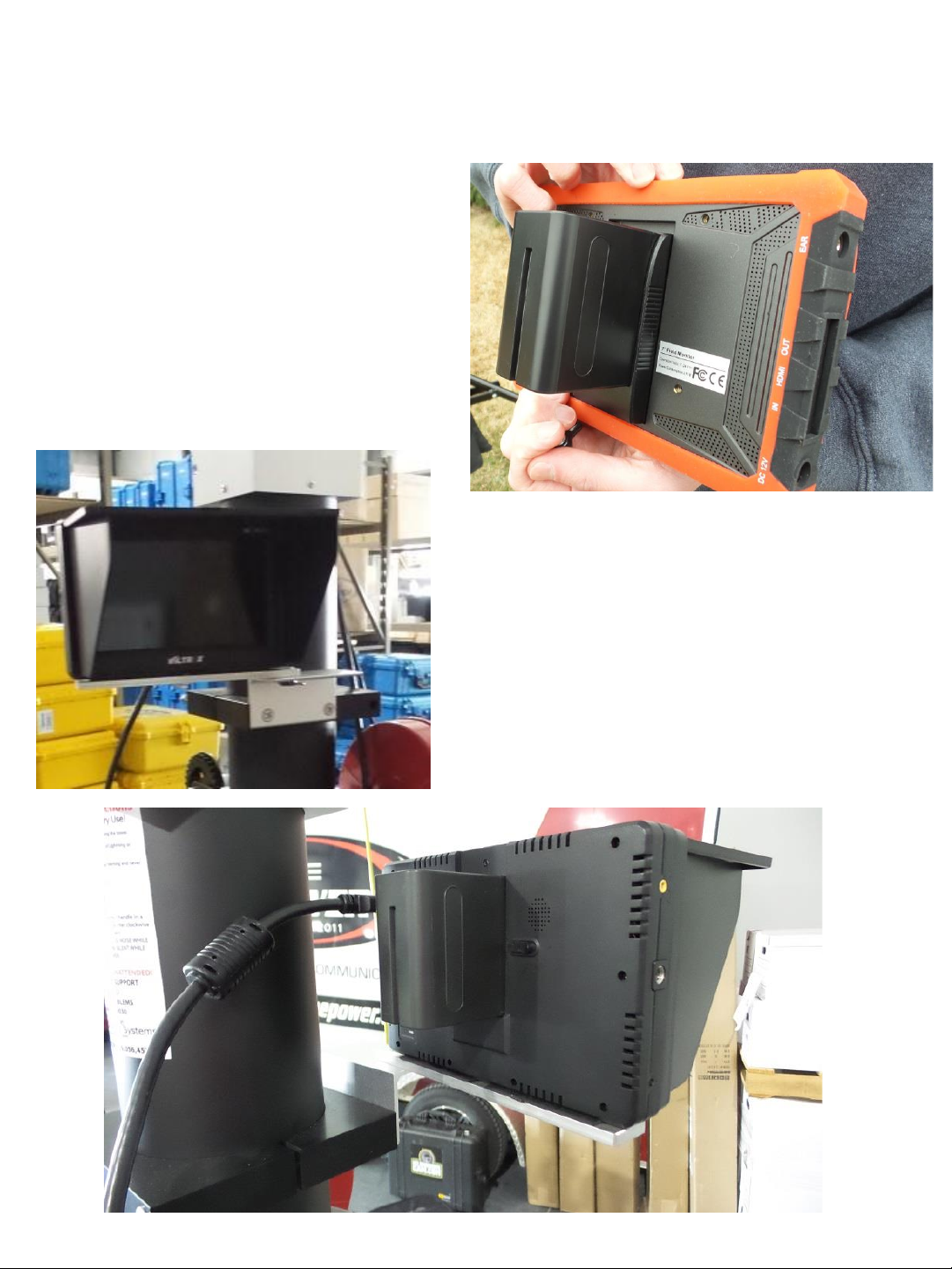

Step 2: Monitor
Remove the Monitor and
Monitor Battery from the
Hardware Kit. Attach the
Monitor battery to the back
side of the Monitor as
shown to the right.
On the Tower, find the Monitor
Attachment Plate. Insert the plate’s
mounting screw into the threaded
receiver on the bottom of the
monitor. Tighten securely.

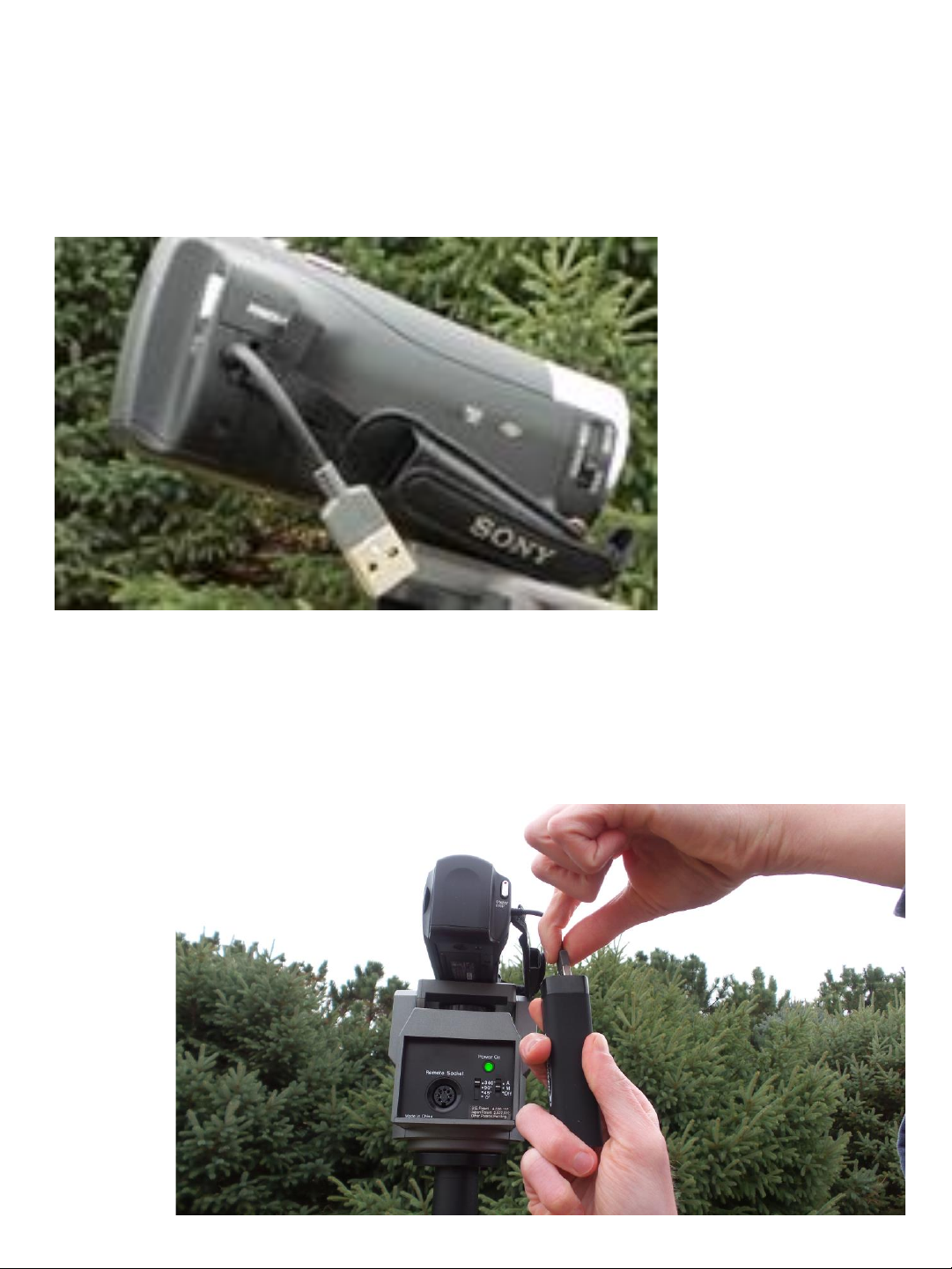

Step 3: PowerPack battery
On the right side of the camera, remove the USB charging
plug from its sheath on the camera hand strap.
Plug the USB Charging plug into the Sideline
Power External PowerPack Battery and let it hang
freely.

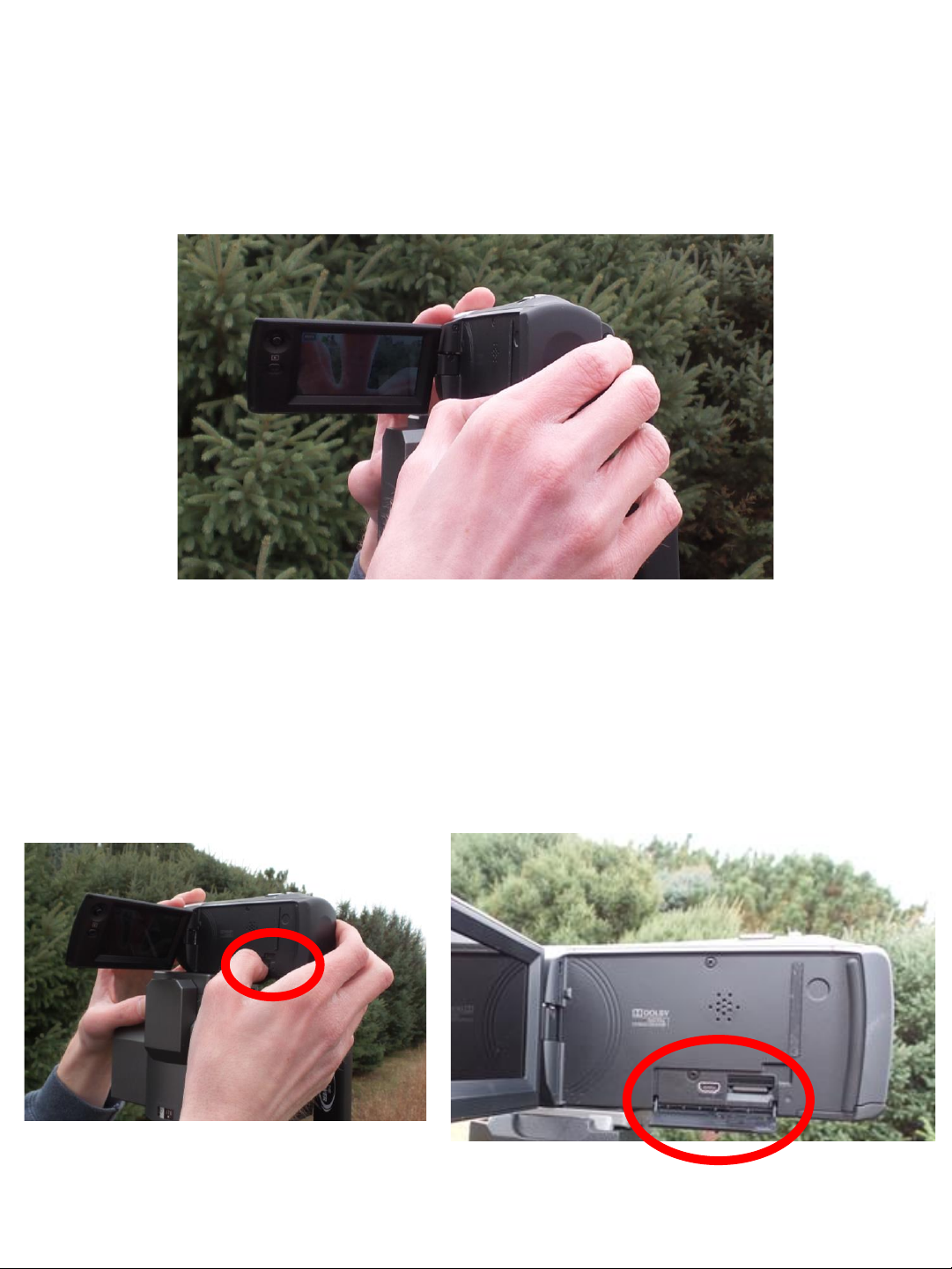

Step 4: Setting up Camera
Looking at the rear of the camera, locate the viewfinder
camera screen on the left side of the camera. Flip the camera
screen open to 90 degrees to power on the camera.
Open the the connections cover on the side of
the camera body to reveal Micro HDMI port.

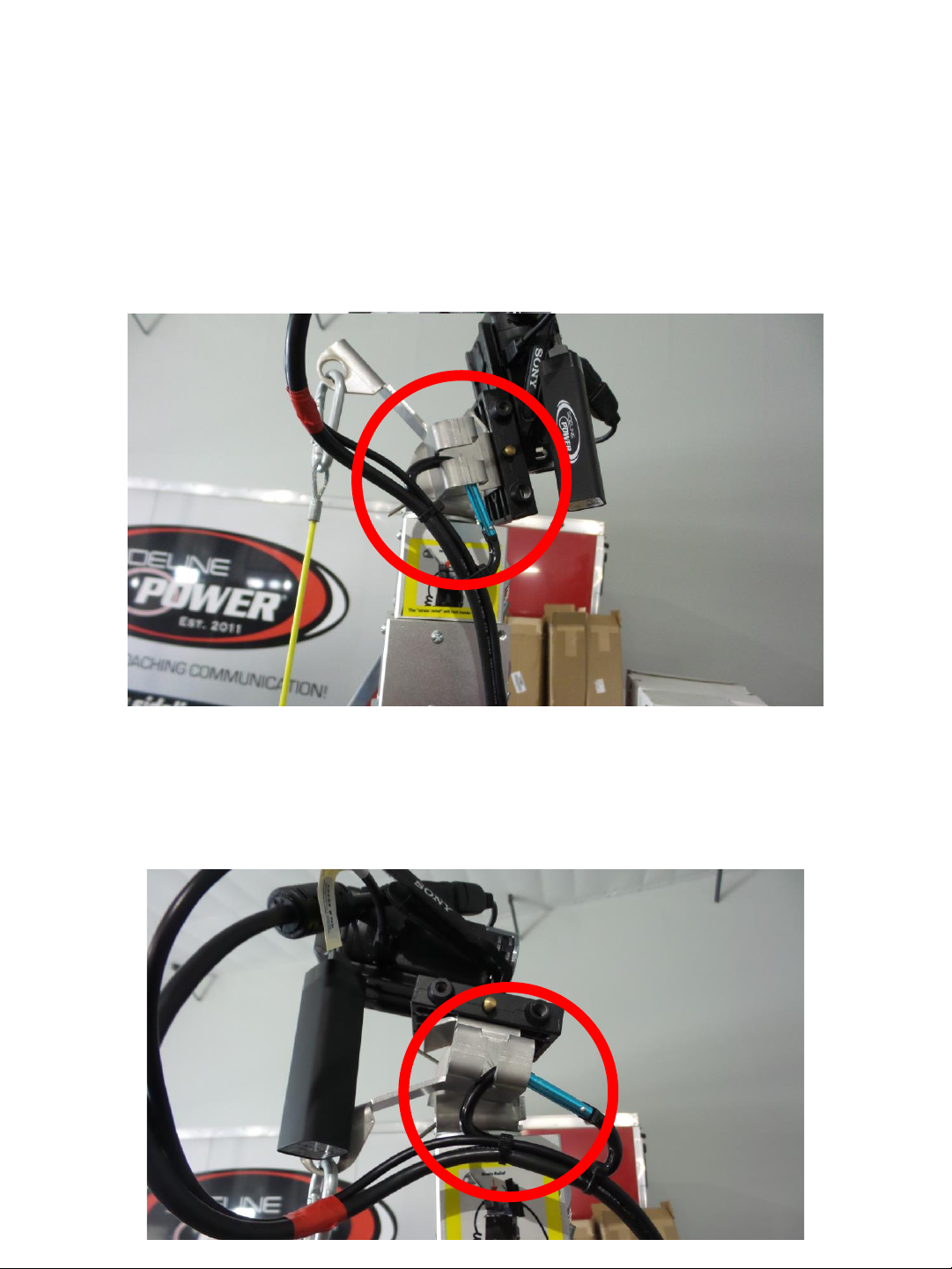

Step 5: Attaching Remote
Remove the Wired Remote and cable bundle from the
hardware kit and attach the carabiner to the tension
relief hook.
When connected, the carabiner should orient so the cord
ends are pointing up toward the camera assembly.

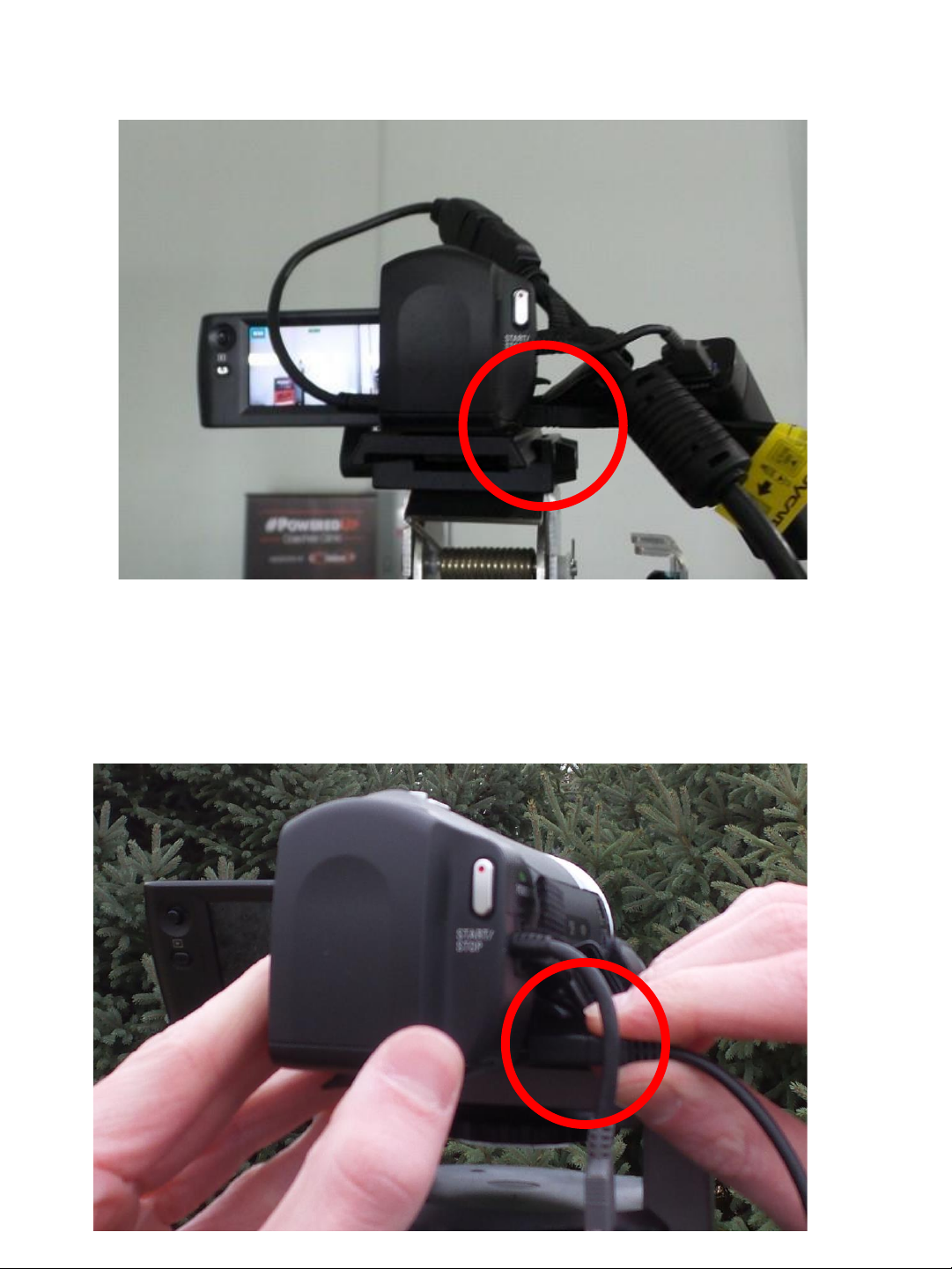

Step 6: Connecting Remote to Camera
CAREFULLY plug in the Budget Remote’s Multiport.
*FRAGILE PLUG-IN* On the right side of the camera
toward the back, open the flap to expose the MultiPort
plugin port. Plug the MultiPort cord into the MultiPort
plugin port.

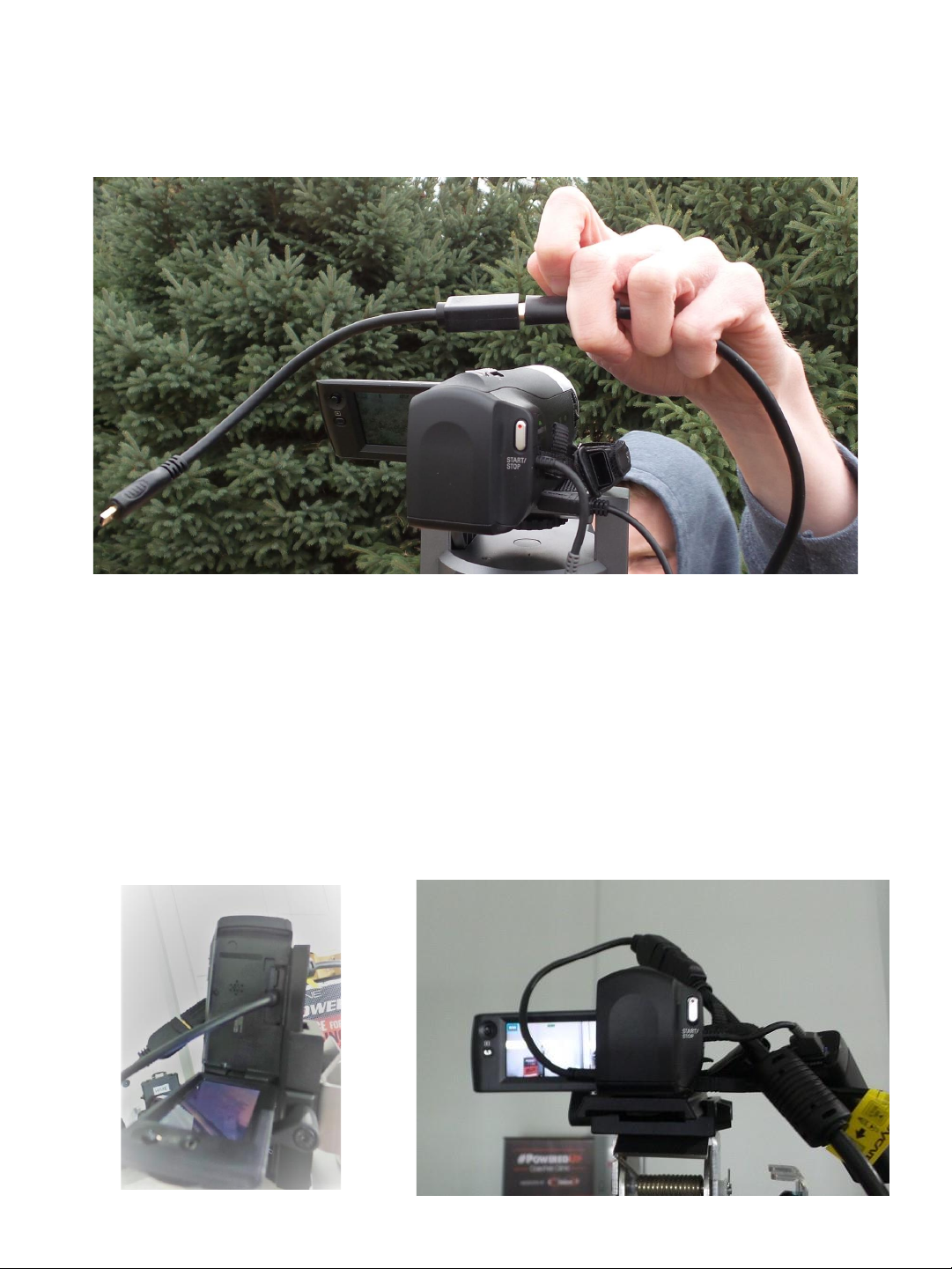

Step 7: Connecting HDMI Cable to Camera
CAREFULLY plug in HDMI cord
with Micro HDMI adapter.
*FRAGILE PLUG-IN* Run HMDI cord through the camera’s
hand strap, and then up and over the camera. Then the
Micro HDMI plug is inserted into the port we uncovered
earlier on the LEFT SIDE of the camera.

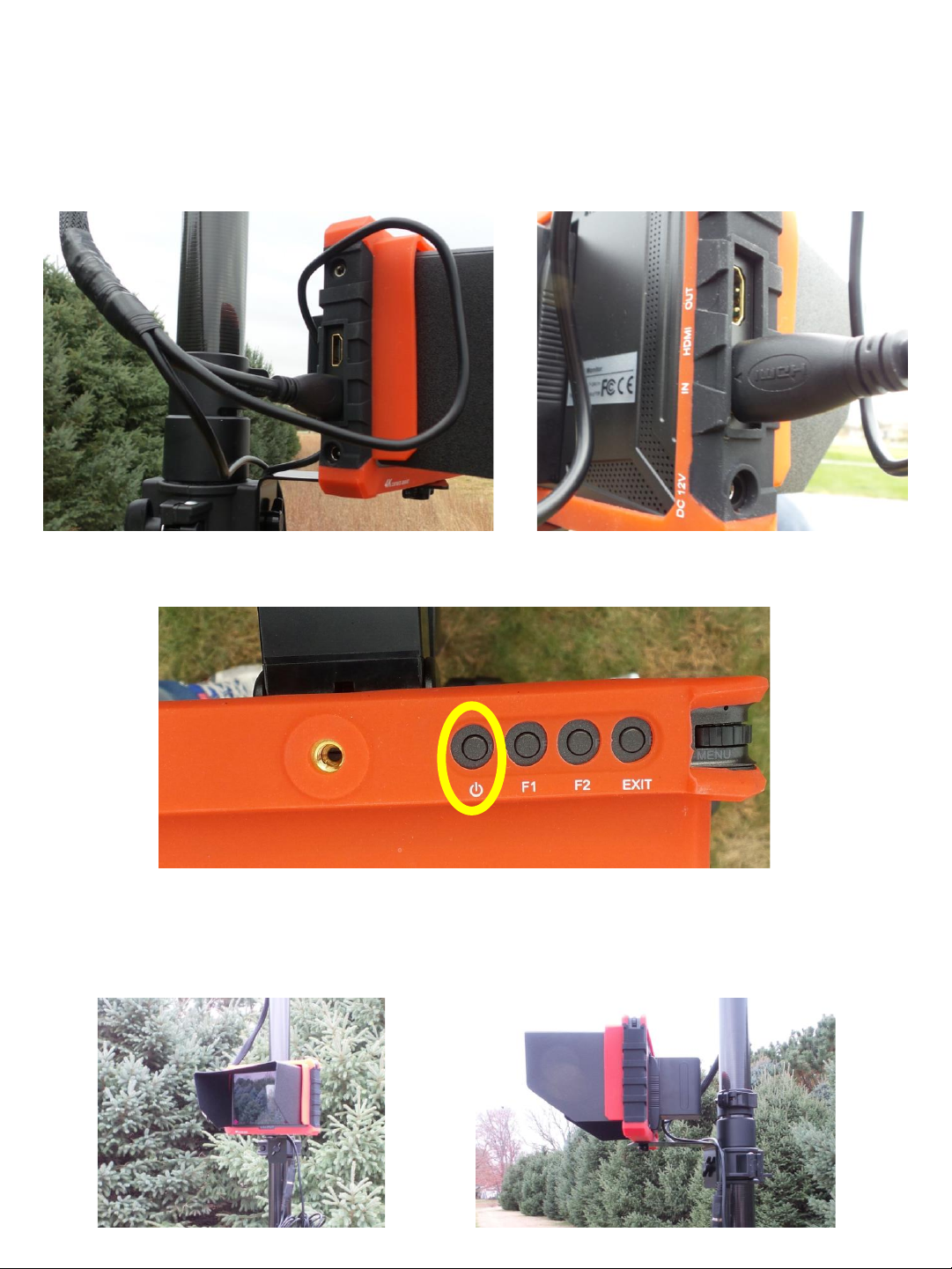

Step 8: Connecting the Monitor
After the mast has been extended to the desired height,
insert the HDMI plug into the monitor’s ‘HDMI IN’ port
Press and release the on/off button to power on the monitor.
If desired, attach the Monitor Sun Visor.

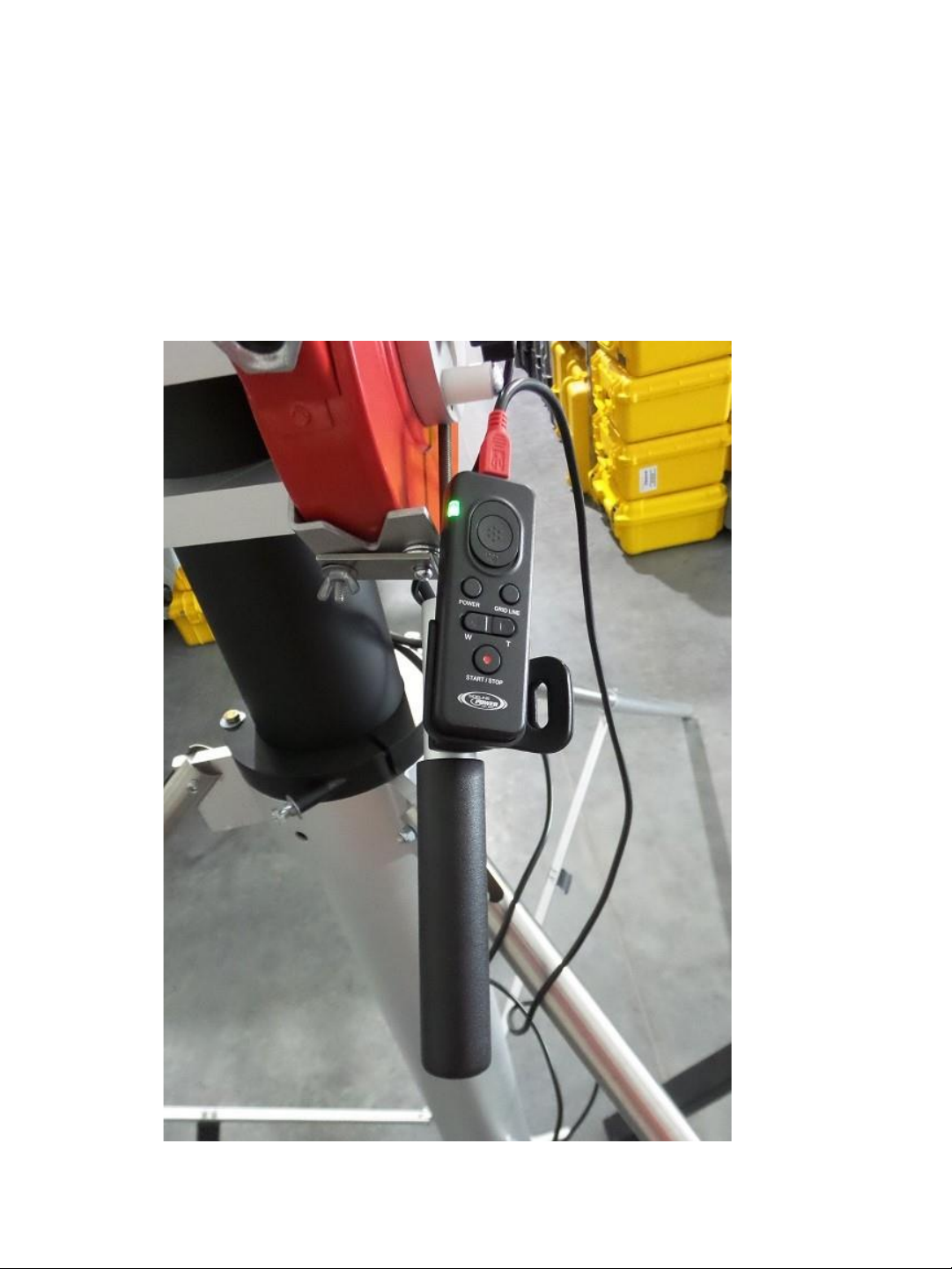

Step 9: Using Remote
Test camera functionality with the remote and make
sure camera zooms and records.
