SICK IDM140BT Series Manuel utilisateur









Trigger

Battery Cavity

End Cap

Reset Button

Tether Plate

Lanyard Catch

Retaining Screw

Host Interface Port

DC Power Jack

Upper Indicator

Lower Indicator

1. How to use this guide

This document provides a quick reference for installation and operation IDM

Bluetooth scanners. A complete user guide can be found on www.sick.com.

The document contains a collection of codes that allow you to configure the

IDM. Factory default values are marked with a ◆symbol. To configure the

device scan one or in some cases a sequence of codes. In some cases you

also need to scan option codes contained in the back of this quick start guide.

Eine deutsche Version der Kurzanleitung steht auf www.sick.com zur

Verfügung – for german version of quick start, check www.sick.com.

2. Getting familiar with your IDM scanner

IDM140BT Series Scanner IDM160BT Series Scanner

IDM140BT Smart Cradle IDM160-BT Smart Cradle

IDM140BT Charging Cradle IDM160-BT Charging Cradle

Status Indicator

Link Indicator

Beeper

Scan Window

Center Indicator

Side Indicators

Paging/Reset Button

USB 3.0 Bus Power Switch

Power Indicator

Reserved

USB 3.0 Bus Power Switch

Host Interface Port

DC Power Jack

3. Preparations before Using

Install the Battery

Charge the Battery

Use USB Bus Power

Ensure the battery contacts of the battery pack are facing the charging

contacts inside the battery cavity.

Slide the battery pack into the battery cavity until hearing a click sound

before locking it with the end cap. The scanner will give 4 beeps when the

battery pack is installed properly if the battery pack still has power.

Secure the end cap with the screw provided (IDM140BT) or via turning the

integrated thumb wheel (IDM160BT)

Plug the AC power plug into the appropriate AC wall socket.

Plug the DC power cord of the power supply unit into the DC power jack of

the cradle. The cradle will issue the power on beeps. The center (IDM140BT

cradle) or upper (IDM160BT cradle) indicator of smart cradle will give one

blue blink. The power indicator of charging cradle will turn steady blue.

Place the scanner on the cradle. The status indicator of scanner will turn

steady red if the battery is not fully charged. When the battery is fully

charged, the status indicator of scanner will flash green at regular interval.

Please charge the new battery pack for 8 hours prior to the first use.

If USB 3.0 is available in your host device, both battery charging and regular

operation can be supported by the USB Bus Power without using external

power supply.

If you want to use this feature, please slide the USB bus power switch to

“ON”. Then connect the cradle and host device via USB cable.

ou can use the overlapping battery label to pull out the batter

if needed.

4. Decide Your Radio Link Mode

The IDM Bluetooth image scanners provide several radio link modes to

communicate with most host devices. When the Bluetooth-enabled host

device is not available, it can work with the smart cradle in PAIR mode (one to

one connection) or PICO mode (multiple connections) to provide a

plug-and-play cordless migration of your existing non-Bluetooth-enabled IT

assets. Moreover, you are also able to use the scanner to work with

Bluetooth-enabled host devices via SPP master/slave modes and HID mode.

After losing the radio link, the scanner is capable of resuming the radio

connection automatically when it returns to the communication coverage. But

please note that this feature is not available in SPP slave mode. If you would

like to change the radio link mode, you have to scan the “Uninstall” command

to revert the scanner to uninstall state.

PAIR Mode - 1 scanner connected to one cradle

If the Bluetooth device is not available in your existing system, this is the

simplest plug-and-play solution. In this mode, one scanner can only work with

one smart cradle. The smart cradle not only provides the Bluetooth radio link

with the scanner, but also offers the legacy cabled interfaces to the host

device, including USB HID, USB COM, PS/2(DOS/V) Keyboard Wedge and

RS232 Serial.

PICO Mode – up to 7 scanners connected to one cradle

For the requirement of multiple connections, up to 7 scanners can be

connected to one smart cradle concurrently. If you would like to un-pair all

paired scanners and smart cradle, you can simply press and hold the

paging/reset button of the smart cradle for over 5 seconds. If you just want to

un-pair part of the paired scanners, please take those paired scanners to

scan the “Uninstall” command one by one.

HID Mode - HID communication directly to Bluetooth host without cradle

Through the most helpful HID service, the scanner can work like a Bluetooth

keyboard. In this mode, the scanner is discoverable by the radio connection

request issued by a remote host device. For security purpose, you will be

requested to input the PIN Code to establish the Bluetooth connection in

most time.

SPP Master/Slave Mode - Serial communication directly to Bluetooth

host without cradle

Through the standard SPP service, the scanner can work like a serial input

device. In SPP master mode, the scanner initiates the radio connection

request to a remote slave device. In SPP slave mode, the scanner is

discoverable by the radio connection request issued by a remote master

device.

4.1 Using IDM BT in PAIR Mode

Ensure the battery is fully charged. You may refer to the section of

Preparations before Using for details.

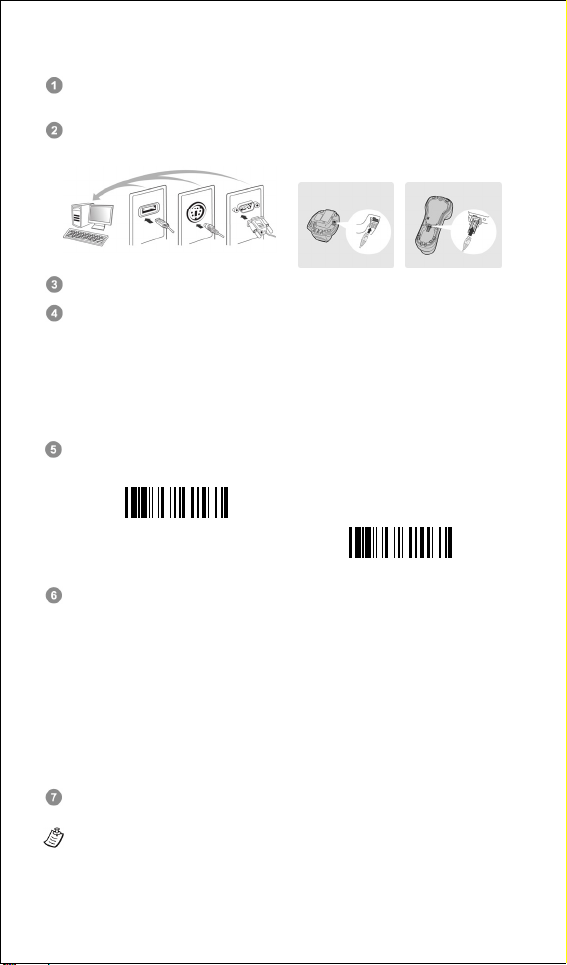

Please choose your desired interface cable, then plug it into the host

interface port of the smart cradle and connect it to the host device.

Turn on the power of your host device.

Please note that the scanner has been pre-paired already, if the scanner

is shipped together with the smart cradle. You will see the link indicator of

scanner gives 1 blue blink per 2.5 seconds and the centre (IDM140BT

cradle) or upper indicator (IDM160BT cradle) of smart cradle turns steady

blue. If the scanner and smart cradle just give alternating red and green

blinks (in “Uninstall” state), please follow steps 5-6 to establish the

connection between the scanner and the smart cradle.

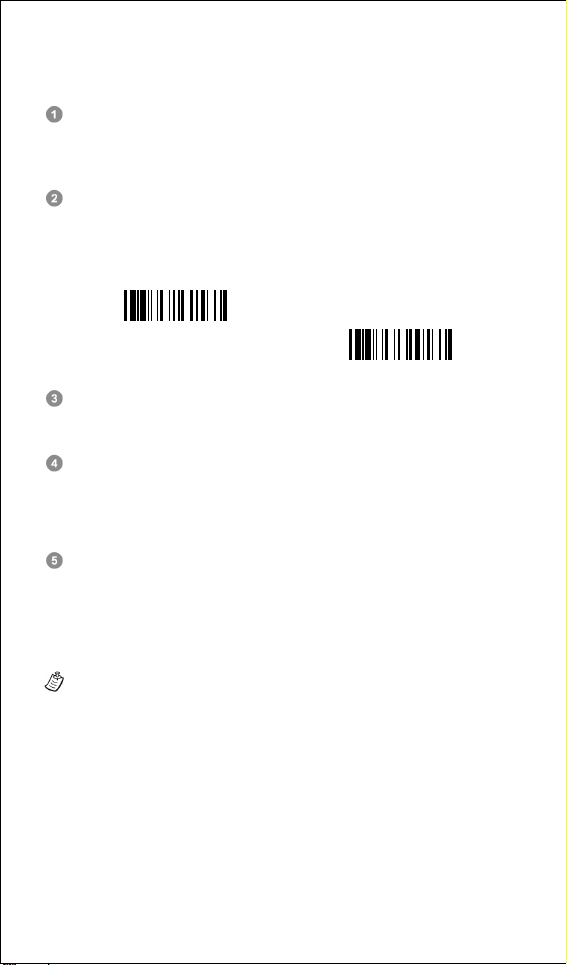

Scan “PAIR mode” command. The status indicator of scanner will turn

steady red.

Uninstall

PAIR Mode

Place the scanner on the smart cradle, then you will hear one short beep

to indicate the pairing process is activated. The scanner will give

continuous short clicks and the link indicator of scanner will flash blue

quickly during the pairing process. When you hear 4 beeps in ascending

tone, the pairing process is completed. You will see the link indicator of

scanner giving 1 blue blink per 2.5 seconds and the center/upper

indicator of the smart cradle turning steady blue.

If the scanner pairing process failed or it’s not placed on the smart cradle

within 20 seconds, you will hear 2 “Di-do Di-do” beeps to indicate pair

failure, the scanner will return to uninstall state automatically.

Scan the corresponding host interface quick set command to complete

the installation.

The default host interface of smart cradle is USB HID. If you want to set the

interface to USB COM, you have to install the USB virtual COM software driver

(available on www.sick.com) into your host device before using the scanner. All

host interface quick set codes can be found on page 13 of this guide.

USB

PS/2 RS232

4.2 Using IDM BT in PICO Mode

Ensure the battery is fully charged and choose your desired interface

cable, then plug it into the host interface port of the smart cradle and

connect it to the host device.

Turn on the power of your host device.

Ensure the side indicators (IDM140BT cradle) or lower indicator

(IDM160BT cradle) of the smart cradle give alternative red and green

blinks (in “Uninstall” state). If the smart cradle is paired with other

scanners, you can press and hold the paging/reset button for over 5

seconds to un-pair all paired scanners. Then the smart cradle will return

to uninstall state automatically.

Prepare the scanners you desire to pair with the smart cradle. Ensure the

status indicator of each scanner give alternative red and green blinks

(in “Uninstall” state). If the scanner is not in uninstall state, please scan

the “Uninstall” command to un-pair the scanner. Then scan the “PICO

mode” command, and the status indicator of scanner will turn steady red.

Uninstall

PICO Mode

Place the scanner on the smart cradle, then you will hear one short beep

to indicate the pairing process is activated. The scanner will give

continuous short clicks and the link indicator of scanner will flash blue

quickly during the pairing process. When you hear 4 beeps in ascending

tone, the pairing process is completed. You will see the link indicator of

scanner giving 1 blue blink per 2.5 seconds, the center/upper indicator

of the smart cradle turning steady blue and its side indicators (IDM140BT

cradle) or lower indicator (IDM160BT cradle) turning steady green.

If the scanner pairing process failed or it’s not placed on the smart cradle

within 20 seconds, you will hear 2 “Di-do Di-do” beeps to indicate pair

failure, the scanner will return to uninstall state automatically.

Please scan the corresponding host interface quick set command to

complete the installation. Then follow the same procedures to pair other

scanners with the smart cradle.

For your convenience, the smart cradle automatically assigns ID numbers to

each scanner. Once you completed all pairing processes, please scan the

“System Information” code to check the assigned ID number of each scanner.

USB

PS/2 RS232

4.3 Using IDM BT in HID Mode

Ensure the battery is fully charged. Power on the scanner within radio

range and ensure the status indicator of scanner gives alternating red

and green blinks (in “Uninstall” state). If the scanner is not in uninstall

state, please scan the “Uninstall” command first. Then scan the “HID

Mode” command, and the link indicator of scanner will give 3 blue blinks

per 2 seconds.

Uninstall

HID Mode

Execute the Bluetooth Discovery procedure to find all available Bluetooth

device list in your remote host. You will see ‘’IDMxxxBT-xxxx’’ is shown in

the list if the scanner is successfully discovered already.

Double click the “IDMxxxBT-xxxx” in the discovered Bluetooth device list.

If the PIN Code or Passkey is requested for security connection, please

enter “00000000” (default setting). You will see “Keyboard on

IDMxxxBT-xxxx”, and double click this HID service to establish the

connection between the scanner and the remote host device.

The scanner will give 4 beeps in ascending tone to indicate the radio is

connected. At the same time, the link indicator of scanner will give 1 blue

blink per 2.5 seconds to indicate the scanner is in radio-connected state.

Please note that if the scanner is not connected to the host device within

1 minute after scanning the “HID Mode” command, the scanner will go to

sleep automatically. You just need to press the trigger to wake up the

scanner to continue the installation.

1. The installation procedures vary on different remote host devices,

operating systems and the Bluetooth software drivers. Please consult

your professional IT consultant to obtain necessary support if any

problem has been encountered during the installation processes.

2. While using HID mode, beware of potential error in the data

transmission when radio link quality is poor. You are suggested to use

the scanner under the communication coverage all the time.

4.4 Using IDM BT in SPP Mode

Establish SPP Master Connection

Ensure the battery is fully charged. Please go to the folder of “Hardware”

located in Bluetooth Advanced Setting of the remote host device to check

its device MAC address. Then prepare a 12-character Code 128 barcode

of the remote host device MAC address, or follow the step 4 to input MAC

address by scanning 12 option codes (see back of quick start guide).

Ensure a virtual COM port is available in your remote host for connecting

the scanner. If not, please go to the folder of “Local Services” located in

Bluetooth Advanced Setting. Click the “Add Serial Services” to add one

more Bluetooth COM port.

Power on the scanner within radio range and ensure the status indicator

of scanner gives alternating red and green blinks (in “Uninstall” state).

If the scanner is not in uninstall state, please scan the “Uninstall”

command first. Then scan the “SPP Master Mode” command, and the

status indicator of scanner will turn steady red.

Uninstall

SPP Master Mode

Scan a 12-character MAC address barcode, or scan 12 option codes and

“FIN” command to confirm your inputs. The scanner will give continuous

short clicks and the link indicator of the scanner will flash blue quickly

during the radio connection process. If the PIN Code or Passkey is

requested for security connection, please enter “00000000” (default

setting).

The scanner will give 4 beeps in ascending tone to indicate the radio is

connected. At the same time, the link indicator of scanner will give 1 blue

blink per 2.5 seconds to indicate the scanner is in radio-connected state.

Please note that if the scanner failed to connect to the host device within

30 seconds, the link indicator will give 3 blue blinks per 2 seconds. But

the scanner is still continuing to discover the host device for another 30

seconds before go to sleep. In the interim, you still can scan “Uninstall”

command to revert the scanner to uninstall state. If the scanner goes to

sleep already, you just need to press the trigger to wake up the scanner to

continue the installation.

The installation procedures vary on different remote host devices,

operating systems and the Bluetooth software drivers. Please consult

your professional IT consultant to obtain necessary support if any

problem has been encountered during the installation processes.

Establish SPP Slave Connection

Ensure the battery is fully charged and a virtual COM port is available in

your remote host for connecting the scanner. If not, please go to the

folder of “Client Applications” located in Bluetooth Advanced Setting.

Click the “Add COM Port” to add one more Bluetooth COM port.

Power on the scanner within radio range and ensure the status indicator

of scanner gives alternating red and green blinks (in “Uninstall” state).

If the scanner is not in uninstall state, please scan the “Uninstall”

command first. Then scan the “SPP Slave Mode” command, and the link

indicator of scanner will give 3 blue blinks per 2 seconds.

Uninstall

SPP Slave Mode

Execute the Bluetooth Discovery procedure to find all available Bluetooth

device list in your remote host. You will see ‘’IDMxxxBT-xxxx’’ is shown in

the list if the scanner is successfully discovered already.

Double click the “IDMxxxBT-xxxx” on the discovered Bluetooth devices. If

the PIN Code or Passkey is requested for security connection, please

enter “00000000” (default setting). You will see “Serial Port on

IDMxxxBT-xxxx”, and double click this SPP service to establish the

connection between the scanner and the remote host device.

The scanner will give 4 beeps in ascending tone to indicate the radio is

connected. At the same time, the link indicator of scanner will give 1 blue

blink per 2.5 seconds to indicate the scanner is in radio-connected state.

Please note that if the scanner is not connected to the host device within

1 minute, the scanner will go to sleep. You can press the trigger to wake

up the scanner to continue the installation.

The installation procedures vary on different remote host devices,

operating systems and the Bluetooth software drivers. Please consult

your professional IT consultant to obtain necessary support if any

problem has been encountered during the installation processes.

5. Out-of-range Scanning

When the radio is connected between the scanner and the remote host

device, the scanner will transmit each scanned data right after scanning the

barcode. However, the scanner is preset for being unable to scan any

barcode data when it loses the radio connection with the remote host device.

If you enable the out-of-range scanning function, the scanner is able to

continue scanning barcode data while it is out of working range. All scanned

data will be temporarily stored into the memory buffer until radio link resumed.

Enable Out-of-range Scanning

Disable Out-of-range Scanning ◆

In case of the scanner is out of working range, you will hear 4 beeps in

descending tone to indicate the radio connection lost. The link indicator of

scanner will give 3 blue blinks per 2 seconds. Once the scanner is back to

working range, you will hear 4 beeps in ascending tone to indicate the radio

connection rebuilt and the scanner will give 1 blue blink per 2.5 seconds. At

the same time, all stored scanned data will be transmitted automatically right

after the radio link is resumed.

6. Presentation Scanning

The Presentation Scanning is designed for hand-free applications for user’s

convenience. If the “Presentation Scanning Auto-sense” function is enabled,

the scanner is capable of automatically switching to presentation mode when

you place it onto the Stand or cradle.

Enable Presentation Scanning Auto-sense

Disable Presentation Scanning Auto-sense ◆

Presentation scanning on cradle is only available for IDM140BT.

7. Paging Function

The paging function is helpful for you to locate the paired smart cradle or

scanner. If you would like to page the paired smart cradle, you can scan

“Paging” command. If you would like to page the paired scanner, you can

press the paging/rest button of the smart cradle no longer than 5 seconds.

Paging

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SICK Lecteur de codes-barres

SICK

SICK CLV63 Series Manuel utilisateur

SICK

SICK CLV 41 Series Manuel utilisateur

SICK

SICK Lector85x Manuel utilisateur

SICK

SICK ICR845-2 Manuel utilisateur

SICK

SICK CLV65 Series Manuel utilisateur

SICK

SICK CLV620 Manuel utilisateur

SICK

SICK ICR803 Manuel utilisateur

SICK

SICK CLV622 Manuel utilisateur

SICK

SICK CLV61 DualPort Series Manuel utilisateur

SICK

SICK CLV 45 Series Manuel utilisateur

SICK

SICK Lector 632 Manuel utilisateur

SICK

SICK CLV6 Series Manuel utilisateur

SICK

SICK Lector63x Flex C-mount Manuel utilisateur

SICK

SICK CLV61 DualPort Series Manuel utilisateur

SICK

SICK IDM1 Series Manuel utilisateur

SICK

SICK Lector85 Flex Series Manuel utilisateur

SICK

SICK CLV 420 Manuel utilisateur

SICK

SICK Advanced Series Manuel utilisateur

SICK

SICK CLV69x Manuel utilisateur

SICK

SICK CLV640 Manuel utilisateur

SICK

SICK IDM series Manuel utilisateur

SICK

SICK CLV60 series Manuel utilisateur

SICK

SICK ICD8 Series Manuel utilisateur

SICK

SICK ICR 84x Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur

Atid

Atid AT188N Plus Manuel utilisateur
