Sibata LD-5 Manuel utilisateur

PM2.5 Cyclone Particle Size

Selector For LD-5

OPERATIONMANUAL

CODE080000-251

Thank you for purchasing this product.

z This operation manual describes precautions that are important for preventing accidents as well

as the procedures used to handle the product.

z Read this operation manual thoroughly before use, and use the product correctly.

z After reading this operation manual, keep it handy for future reference.

- 3 -

Table of Contents

Using the Product Correctly and Safely............................................4

Calibration of the LD-5/LD-5R Digital Dust Indicator .......................4

1Overview .........................................................................................5

2Operating procedure......................................................................6

2-1 LD-5 .........................................................................................7

(1) Attachment of PM2.5 cyclone ............................................................. 7

(2) Switch the LD-5 power ON .................................................................8

(3) Background (BG) Measurement .........................................................9

(4) Sensitivity Correction........................................................................10

(5) Dust measurement ...........................................................................10

(6) Switch the LD-5 power OFF ............................................................. 11

2-1 LD-5R.....................................................................................12

(1) Attachment of PM2.5 cyclone ........................................................... 12

(2) Switch the LD-5R power ON............................................................. 13

(3) Background (BG) Measurement ....................................................... 14

(4) Sensitivity Correction........................................................................15

(5) Dust measurement ...........................................................................16

(6) Switch the LD-5R power OFF...........................................................17

3Cleaning of PM2.5 cyclone..........................................................18

4Specifications...............................................................................19

5Warranty........................................................................................19

- 4 -

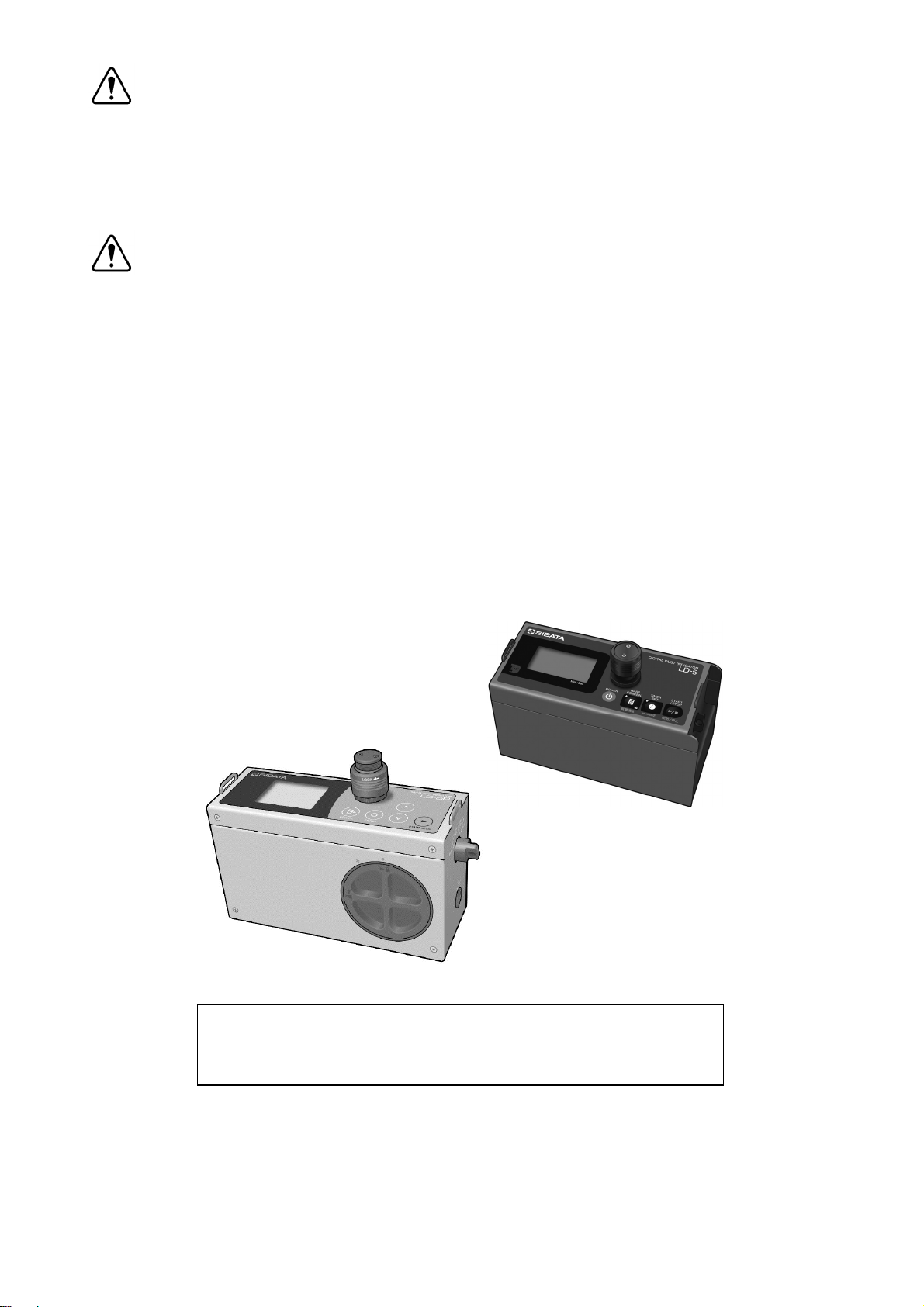

Using the Product Correctly and Safely

Read this operation manual and LD-5/LD-5R operation manual carefully to the end before

using the product and make sure it is used correctly. Also, keep this manual handy.

Calibration of the LD-5/LD-5R Digital Dust

Indicator

Before shipment, we have calibrated the digital dust indicator using standard particles, but

the measurement sensitivity may change due to contamination of the interior of the

detector that can occur during use, electrical or mechanical changes, or its maintenance

status.

Therefore, in addition to the daily maintenance of the dust indicator, we recommend that

calibration be performed annually to maintain its accuracy. To have the LD-5/LD-5R

digital dust indicator calibrated, be sure to send it with the PM2.5 cyclone particle size

selector for LD-5 removed and the LD-5/LD-5R accessory air sampling port attached. The

air sampling port is required for calibration, so store it and do not lose it.

To have the LD-5/LD-5R digital dust indicator calibrated, be

sure to send it with its accessory air sampling port attached.

- 5 -

1 Overview

The PM2.5 cyclone particle size selector for LD-5 is a cyclone-type particle sizer having

PM2.5 particle separation properties. It is used installed in our LD-5/LD-5R digital dust

indicator.

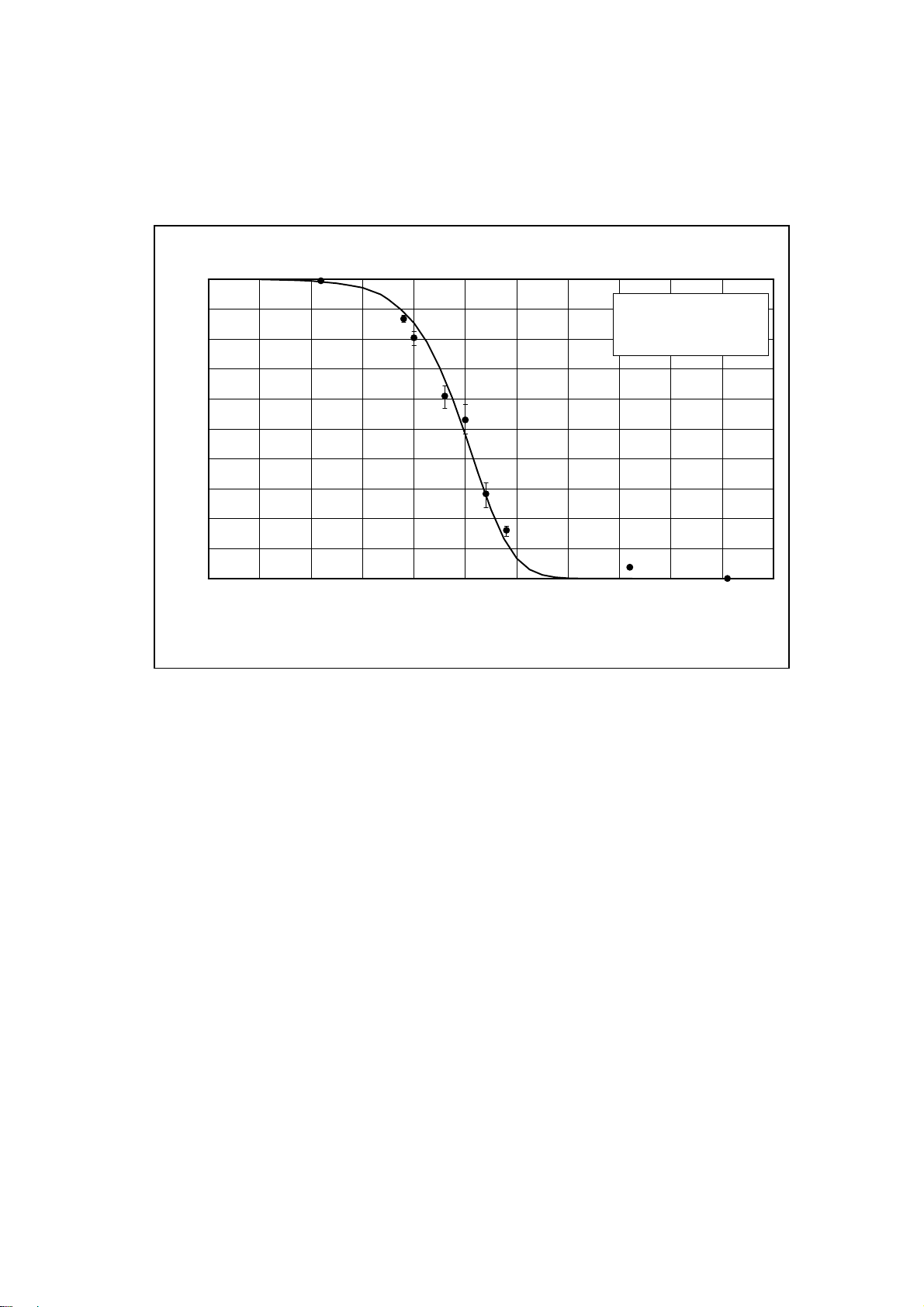

サイクロン分粒特性

100

0.00.51.01.52.02.53.03.54.04.55.05.5

粒径（μm）

通過効率（％）

ー WINS

●　PM2.5ｻｲｸﾛﾝLD-5用

Aerodynamic Diameter (μm)

Comparison for the penetration curve

for the US EPA WINS and the c

clone for the model LD-5

Penetration (%)

-US EPA WINS IMPACTOR

●PM2.5 cyclone particle size

selector for LD-5

- 6 -

2 Operating procedure

The following describes the method for installing the PM2.5 cyclone particle size selector

for LD-5 (hereafter, PM2.5 cyclone) in the LD-5/LD-5R digital dust indicator and the

basic operating procedure for the LD-5/LD-5R.

Before operating the LD-5/LD-5R, please read the LD-5/LD-5R Operation Manual to

check the method of operation and the cautions regarding operation.

(1) Attachment of PM2.5 cyclone

(2) Switch the LD-5/LD-5R power ON

The following describes the procedure for using dry-cell batteries as the power

source.

(3) Background (BG) Measurement

Background (BG) refers to default count when the detector is filled with clean air.

Background levels result in excessive dust measurement values. Before

measuring the dust, perform a BG measurement.

(4) Sensitivity Correction

Dust indicator measurement sensitivity can vary due to contamination inside the

detector and the electric or mechanical change. To correct for such variations, a

standard scattering plate is measured before dust measurements and then a

correction factor is calculated from preset values. Such a correction factor is

applied to subsequent measurement values to ensure that the instrument

maintains the same sensitivity level as when shipped from the factory or last

calibrated. Sensitivity correction is performed after the operations described in (3)

Background (BG) Measurement.

(5) Dust measurement

The following describes the procedure for performing a countdown timer

measurement for one minute.

(6) Switch the LD-5/LD-5R power OFF

- 7 -

2-1 LD-5

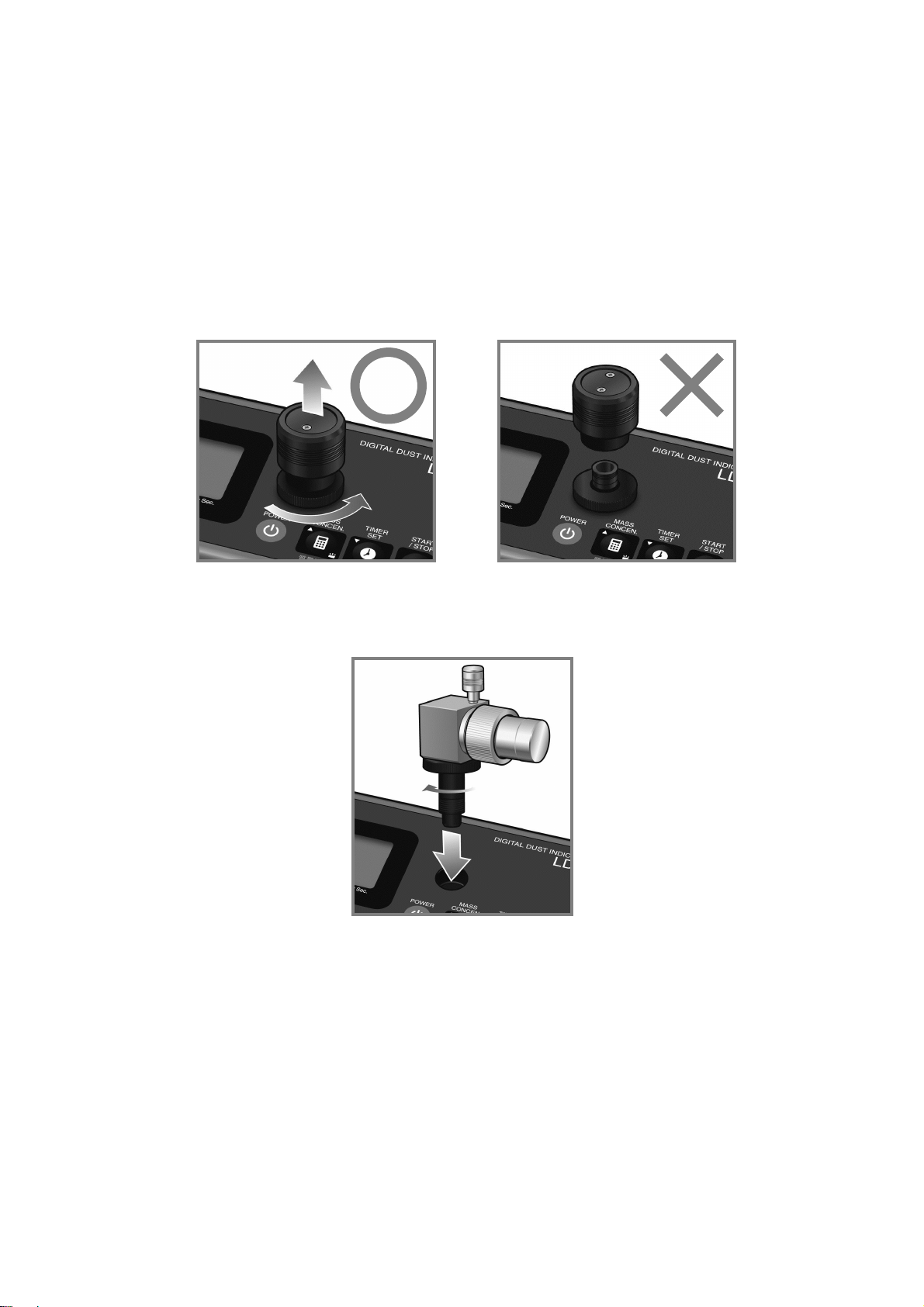

(1) Attachment of PM2.5 cyclone

zMake sure the LD-5 power is OFF before disconnecting the air sampling port.

1) Remove the air sampling port by turning as shown in the lower left figure. It is

possible to remove only the top part of the air sampling port, separating it into two

parts, as shown in the lower right figure. To attach the PM2.5 cyclone, turn and

remove the bottom part.

2) Attach the PM2.5 cyclone onto the LD-5 unit by turning as shown in a figure.

- 8 -

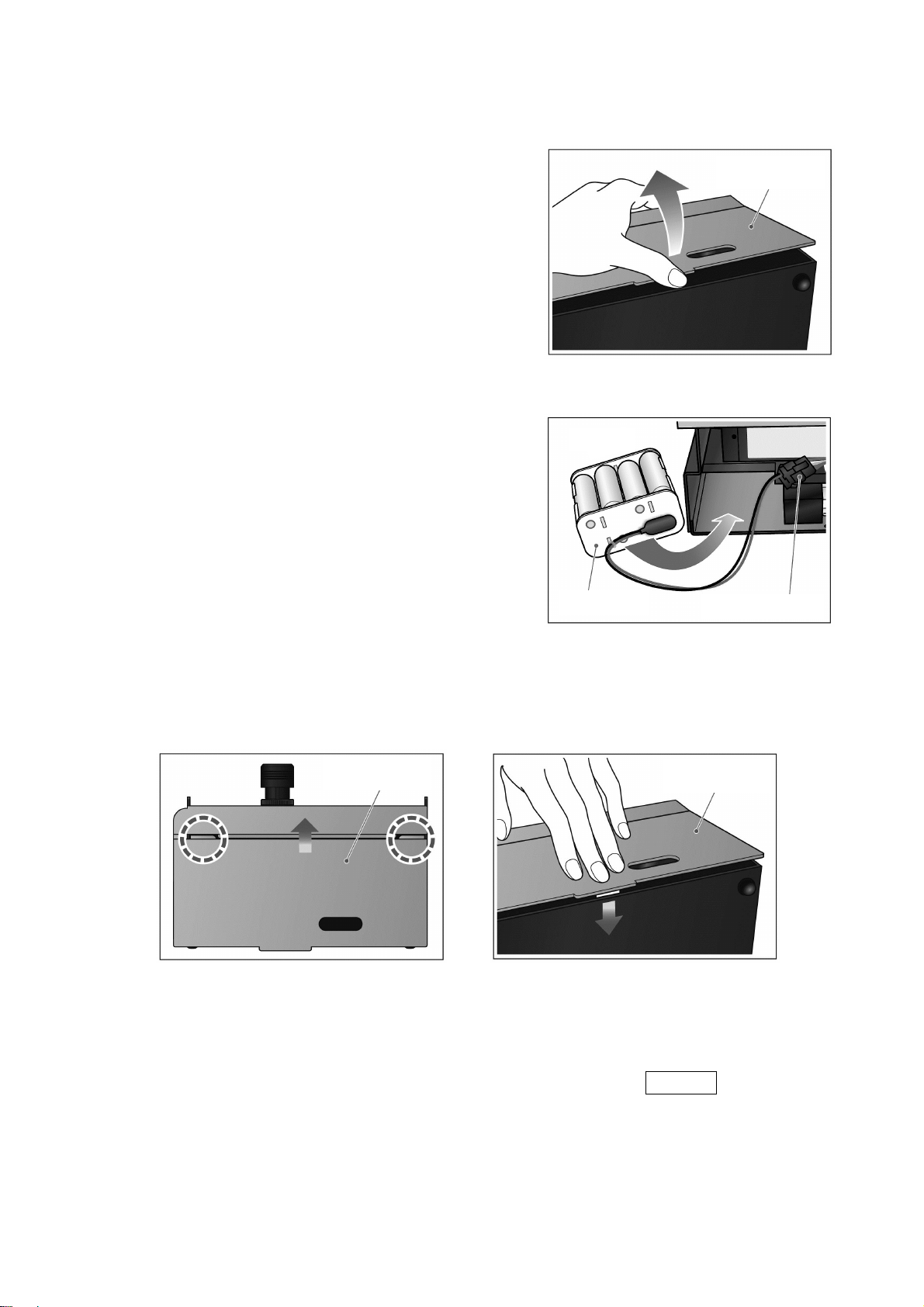

(2) Switch the LD-5 power ON

1) Make sure the LD-5 power is OFF, then

remove the battery holder panel by lifting the

protruding tab at the bottom of the panel, as

shown.

zHold the unit securely. Due to a stiff latch,

the battery holder panel may release

suddenly and be thrown from the unit.

2) Remove the battery case and install eight

AA size alkaline batteries.

3) Return the battery case to its original

position.

zInsert the battery case oriented as shown.

Inserting it upside down could cause a

malfunction.

4) Reinstall the battery holder panel by inserting the two upper tabs into the main unit.

Then press on the battery holder panel to latch it in place.

zPress on the panel until it clicks to ensure it latches securely. If not latched

securely, it could come off during operation and cause an accident.

5) When the dry-cell batteries have been installed, press the POWER switch to turn

on the LD-5 power. When the power supply is turned on, the screen is displayed.

Battery holder

anel

Battery case Battery connector

Top side

Battery holder

anel

Battery holder

anel

- 9 -

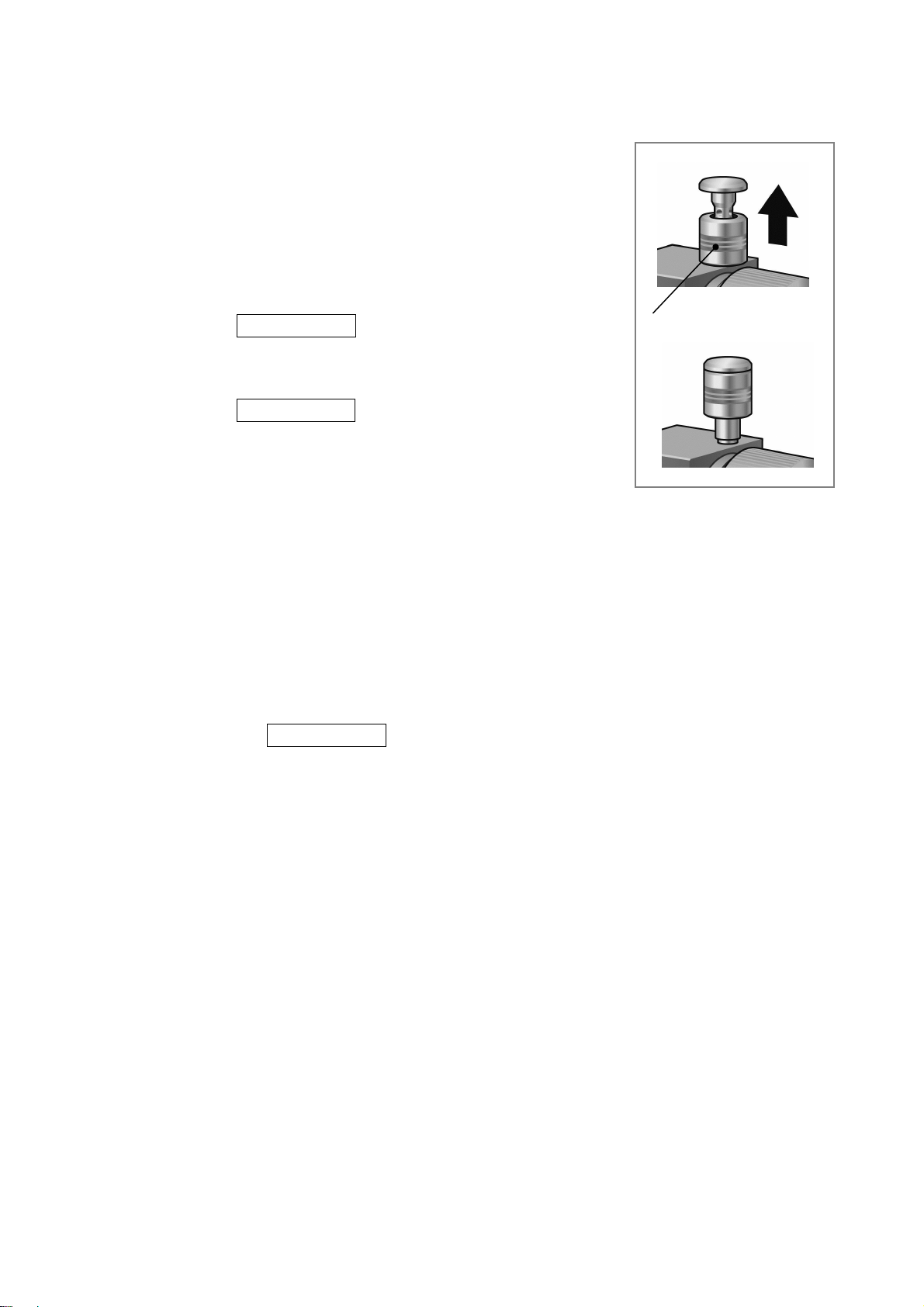

(3) Background (BG) Measurement

1) Turn the scattering plate knob to the [MEASURE]

position.

2) Lift up the cap to close the PM2.5 cyclone cap (see

figure on right).

3) Leave the instrument in this state for at least one minute.

(Switch the LD-5 power ON.)

4) Press the TIMER SET▼switch to set the

measurement time/mode display to [BG]. ("BG" is

displayed in the lower left of the screen. )

5) Press the START/STOP switch.

6) After waiting, the dust is measured for about six

seconds.

This BG measurement value will be cancelled starting

with the next concentration measurement.

zThe BG value cannot be set properly if it is measured with the cap opened.

Doing so could affect measurement results, such as causing the instrument

to continue displaying a measurement value of zero. If the BG value has

been measured with the cap opened, close the PM2.5 cyclone cap and

measure the value again.

zPressing the START/STOP switch during the six-second BG measurement

cancels the measurement and stops the BG value from being subtracted

from the next dust measurement (resulting in a measurement value

increased by the amount of the BG value).

PM2.5 cyclone cap

- 10 -

(4) Sensitivity Correction

1) Turn the scattering plate knob to the [SENSI. ADJ] position.

2) Confirm that [SPAN XXXCPM] appears in the lower left area of the screen.

The value displayed below [SPAN] is the standard scattering plate value for

calibration.

3) Leave the instrument in this state for at least one minute.

4) Press the START/STOP switch.

5) Measurement is performed for one minute.

6) The sensitivity correction value is calculated from measured values.

Sensitivity is automatically corrected starting with the next concentration

measurement.

7) Turn the scattering plate knob to the [MEASURE] position.

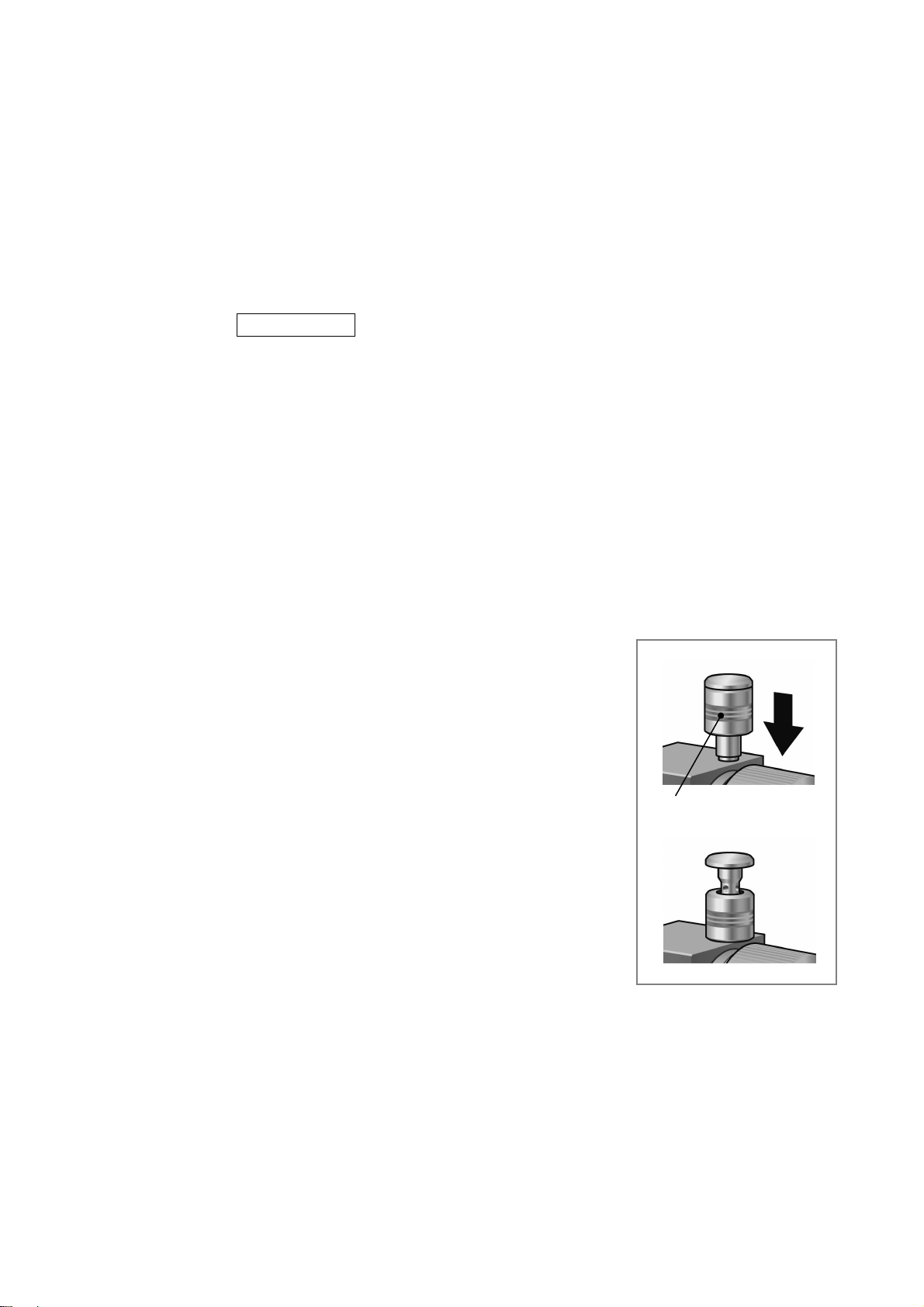

(5) Dust measurement

1) Turn the scattering plate knob to the [MEASURE]

position.

2) Lower the cap to open the PM2.5 cyclone (see figure

on right).

zMake sure the PM2.5 cyclone cap is completely

open before starting measurements.

After starting measurements (after pump intake

starts), if the cap is suddenly or not completely

opened, the pump speed (rpm) can become

unstable, resulting in a "TRBL" error display.

PM2.5 cyclone cap
