SIB Standalone Keypad Access Control Manuel utilisateur

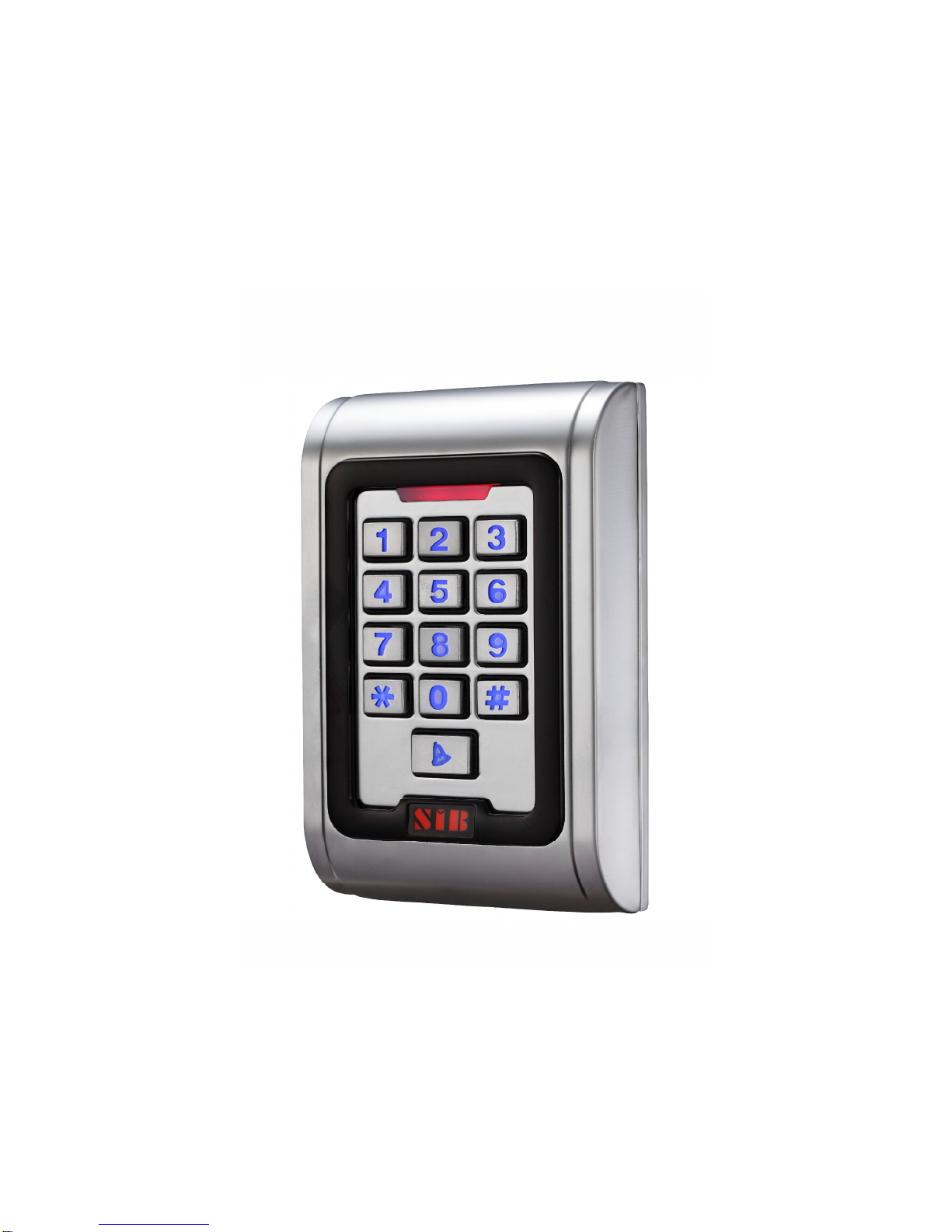

Standalone Keypad Access Control

User Manual

Please read the manual carefully before use this unit

1. Packing List

Name Quantity

Remarks

Keypad 1

User manual 1

Screw driver 1 Φ20mm×60mm,Special for keypad

Rubber plug 2 Φ6mm×30 mm, used for fixing

Self tapping screws 2 Φ4mm×28 mm, used for fixing

Star screws 1 Φ3mm×6mm, used for fixing

Please ensure that all the above contents are correct. If any are missing please notify the

supplier of the unit.

2. Quick Reference Programming Guide

To enter the programming mode * Master code #

999999 is the default factory master code

To exit from the programming mode *

Note that to undertake the following programming the master user must be logged in

To change the master code 0 New code # New code #

The master code can be 6 to 8 digits

To add a PIN user.

1 User ID number # PIN #

The ID number is any number between 1 & 2000. The

PIN is any four digits between 0000 & 9999 with the

exception of 1234 which is reserved. Users can be added

continuously without exiting programming mode

To add a card user 1 Read Card #

Cards can be added continuously without exiting

programming mode

To delete a PIN or a card user. 2 User ID number # for a PIN user or

2 Read Card # for a card user

Users can be deleted continuously without exiting

programming mode

To unlock the door for a PIN user Enter the PIN then press #

To unlock the door for a card user Present the card

3. Description

The unit is single door multifunction standalone access controller or a Wiegand output

keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh

environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated

case which is available in either a bright silver or matt silver finish. The electronics are

fully potted so the unit is waterproof and conforms to IP68. This unit supports up to 2000

users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports

125KHZ EM cards,13.56MHz Mifare cards. The unit has many extra features including

lock output current short circuit protection, Wiegand output , and a backlit keypad. These

features make the unit an ideal choice for door access not only for small shops and

domestic households but also for commercial and industrial applications such as factories,

warehouses, laboratories, banks and prisons.

4. Features

lWaterproof, conforms to IP68

lStrong Zinc Alloy Electroplated anti-vandal case

lFull programming from the keypad

l2000 uses, supports Card, PIN, Card + PIN

lCan be used as a stand alone keypad

lBacklight keys

lWiegand 26 output for connection to a controller

lAdjustable Door Output time, Alarm time, Door Open time

lVery low power consumption (30mA)

lFast operating speed, <20ms with 2000 users

lLock output current short circuit protection

lEasy to install and program

lBuilt in light dependent resistor (LDR) for anti tamper

lBuilt in buzzer

lRed, Yellow and Green LEDS display the working status

5. Specifications

Operating Voltage 9-28V DC

User Capacity 2000

Card Reading Distance 3-6 cm

Active Current ＜60mA

Idle Current 25±5 mA

Lock Output Load Max 3A

Alarm Output Load Max 20A

Operating Temperature -45℃～60℃

Operating Humidity 10%- 90% RH

Waterproof Conforms to IP68

Adjustable Door Relay time 0 -99 seconds

Adjustable Alarm Time 0- 3 minutes

Wiegand Interface Wiegand 26 bit

Wiring Connections Electric Lock, Exit Button, External Alarm

6. Installation

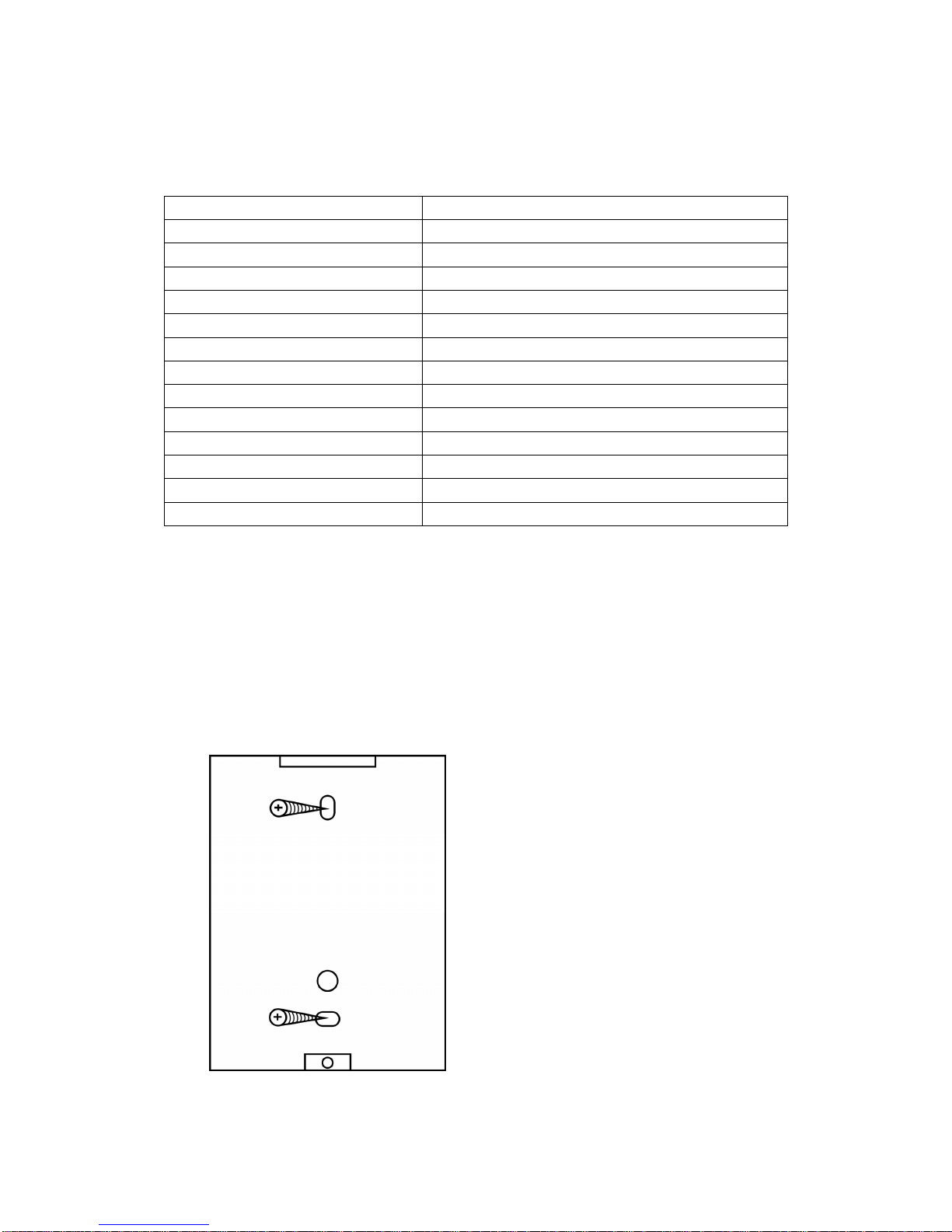

lRemove the back cover from the keypad using the supplied special screw driver

lDrill 2 holes on the wall for the Self tapping screws and I hole for the cable

lPut the supplied rubber bungs to into the two holes

lFix the back cover firmly on the wall with 2 Self tapping screws

lThread the cable through the cable hole

lAttach the keypad to the back cover.

7. Wiring

Colour Function Description

Pink BELL_A Doorbell button one end

Pale blue

BELL_B Doorbell button to the other end

Green D0 WG output D0

White D1 WG output D1

Grey ALARM Alarm negative(alarm positive connected 12 V+)

Yellow OPEN Exit button one end(the other end connected GND)

Brown D_IN Magnetic switch one end(the other end connected GND)

Red 12V+ 12V + DC Regulated Power Input

Black GND 12V - DC Regulated Power Input

Blue NO Relay normally-on end(Connect positive electric lock "-")

Purple COM Relay Public end, connect GND

Orange NC Relay Closed end(connect negative electric lock "-")

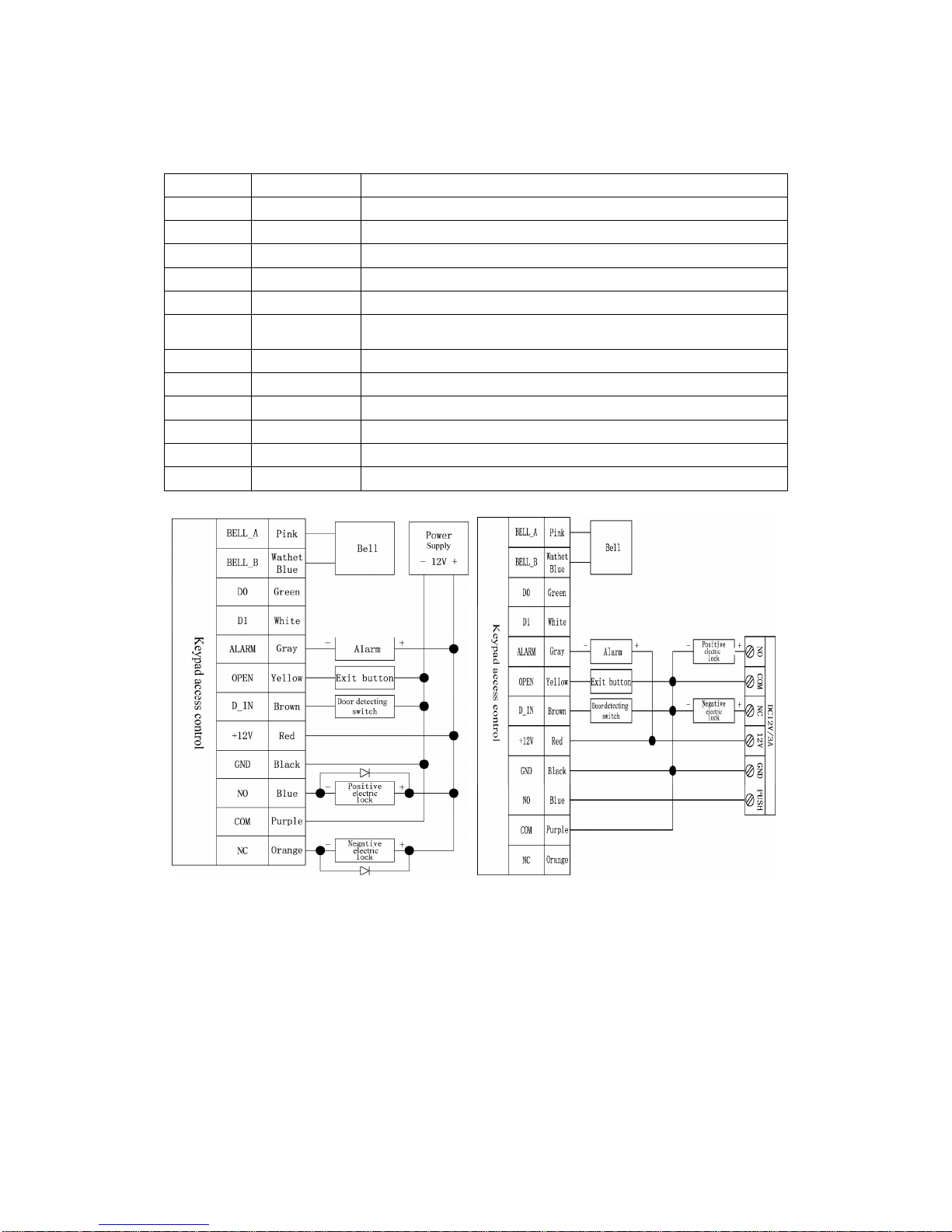

common power supply diagram special power supply diagram

8. To Reset to Factory Default

a. Disconnect power from the unit

b. Press and hold # key whilst powering the unit back up

c. On hearing two “Di” release # key, system is now back factory settings

Please note only installer data is restored, user data will not be affected

9. Anti Tamper Alarm

The unit uses a LDR (light dependent resistor) as an anti tamper alarm. If the keypad is

removed from the cover then the tamper alarm will operate.

10.Sound and Light indication

Operation Status Red Light

Green Light

Yellow Light

Buzzer

Power on - Bright - Di

Stand by Bright - - -

Press keypad - - - Di

Operation successful - Bright - Di

Operation failed - - - DiDiDi

Enter into programming mode

Bright - -

In the programming mode - - Bright Di

Exit from the programming

mode Bright - - Di

Open the door - Bright - Di

Alarm Bright - - Alarm

11. Detailed Programming Guide

11.1 User Settings

To enter the programming mode

* Master code #

999999 is the default factory master code

To exit from the programming mode *

Note that to undertake the following programming the master user must be logged in

To change the master code 0 New code # New code #

The master code can be 6 to 8 digits long

Setting the working mode:

Set valid card only users

Set valid card and PIN users

Set valid card or PIN users

3 0 # Entry is by card only

3 1 # Entry is by card and PIN together

3 2 # Entry is by either card or PIN (default)

To add a user in either card or PIN mode, i.e. in the 3 2 # mode. (Default setting)

To add a Pin user 1 User ID number # PIN #

The ID number is any number between 1 & 2000. The

PIN is any four digits between 0000 & 9999 with the

exception of 1234 which is reserved. Users can be added

continuously without exiting programming mode as

follows:

1 User ID no 1 # PIN # User ID no 2 # PIN #

To delete a PIN user 2 User ID number #

Users can be deleted continuously without exiting

programming mode

To change the PIN of a PIN user

(This step must be done out of

programming mode)

* ID number # Old PIN # New PIN # New PIN #

To add a card user (Method 1)

This is the fastest way to enter cards,

user ID number auto generation.

1 Read card #

Cards can be added continuously without exiting

programming mode

To add a card user (Method 2)

This is the alternative way to enter cards

using User ID Allocation. In this method a

User ID is allocated to a card. Only one

user ID can be allocated to a single card.

1 ID number # Read card #

User can be added continuously without exiting

programming mode

To add a card user (Method 3)

Card number is the last 8 digits printed

on the back of the card,

user ID number

auto generation

1 Card number #

User can be added continuously without exiting

programming mode

To add a card user (Method 4)

In this method a User ID is allocated to a

card number. Only one user ID can be

allocated to the card number

1 ID number. # Card number. #

User can be added continuously without exiting

programming mode

To delete a card user by card. Note users

can be deleted continuously without

exiting programming mode

2 Read Card #

To delete a card user by user ID. This

option can be used when a user has lost

their card

2 User ID #

To delete a card user by card number.

This option can be used when the user

want to make the change but the card

has lost

2 Card number #

Note users can be deleted continuously without

exiting programming mode

To add a card and PIN user in card and PIN mode (3 1 # )

To Add a card and Pin user

(The PIN is any four digits between 0000

& 9999 with the exception of 1234 which

is reserved.)

Add the card as for a card user

Press * to exit from the programming mode

Then allocate the card a PIN as follows:

* Read card 1234 # PIN # PIN #

To change a PIN in card and PIN mode

(Method 1) Note that this is done outside

programming mode so the user can

undertake this themselves

* Read Card Old PIN # New PIN # New PIN #

To change a PIN in card and PIN mode

(Method 2) Note that this is done outside

programming mode so the user can

undertake this themselves

* ID number # Old PIN # New PIN # New PIN #

To delete a Card and PIN user just delete

the card 2 User ID #

To add a card user in card mode (3 0 # )

To Add and Delete a card user The operating is the same as adding and deleting a card

user in 3 2 #

To delete All users

To delete ALL users. Note that this is a

dangerous option so use with care 2 0000 #

To unlock the door

For a PIN user Enter the PIN then press #

For a card User Read card

For a card and PIN user Read card then enter PIN #

11.2 Door Settings

Relay Output Delay Time

To set door relay strike time * Master code #4 0～99 # *

0-99 is to set the door relay time 0-99 seconds

Door Open Detection

Door Open Too Long (DOTL) warning. When used with an optional magnetic contact or built-in

magnetic contact of the lock, if the door is opened normally, but not closed after 1 minute, the inside

buzzer will beep automatically to remind people to close the door and continue for 1 minute before

switching off automatically.

Door Forced Open warning. When used with an optional magnetic contact or built-in magnetic contact

of the lock, if the door is forced open, or if the door is opened after 20 seconds ,the inside buzzer and

alarm output will both operate. The Alarm Output time is adjustable between 0-3 minutes with the

default being 1 minute.

To disable door open detection. (Factory

default) 6 0 #

To enable door open detection 6 1 #

Alarm output time

To set the alarm output time (0-3 minutes)

Factory default is 1 minute 5 0～3 #

Keypad Lockout & Alarm Output options. If there are 10 invalid cards or 10 incorrect PIN numbers

in a 10 minute period either the keypad will lockout for 10 minutes or both the alarm and the inside

buzzer will operate for 10 minutes, depending on the option selected below.

Normal status: No keypad lockout or

alarm (factory default) 7 0 # (Factory default setting)

Keypad Lockout 7 1 #

Alarm and inside buzzer operate 7 2 #

To remove the alarm

To reset the Door Forced Open warning Read valid card or Master Code #

To reset the Door Open Too Long warning

Close the door or Read valid card or Master Code #

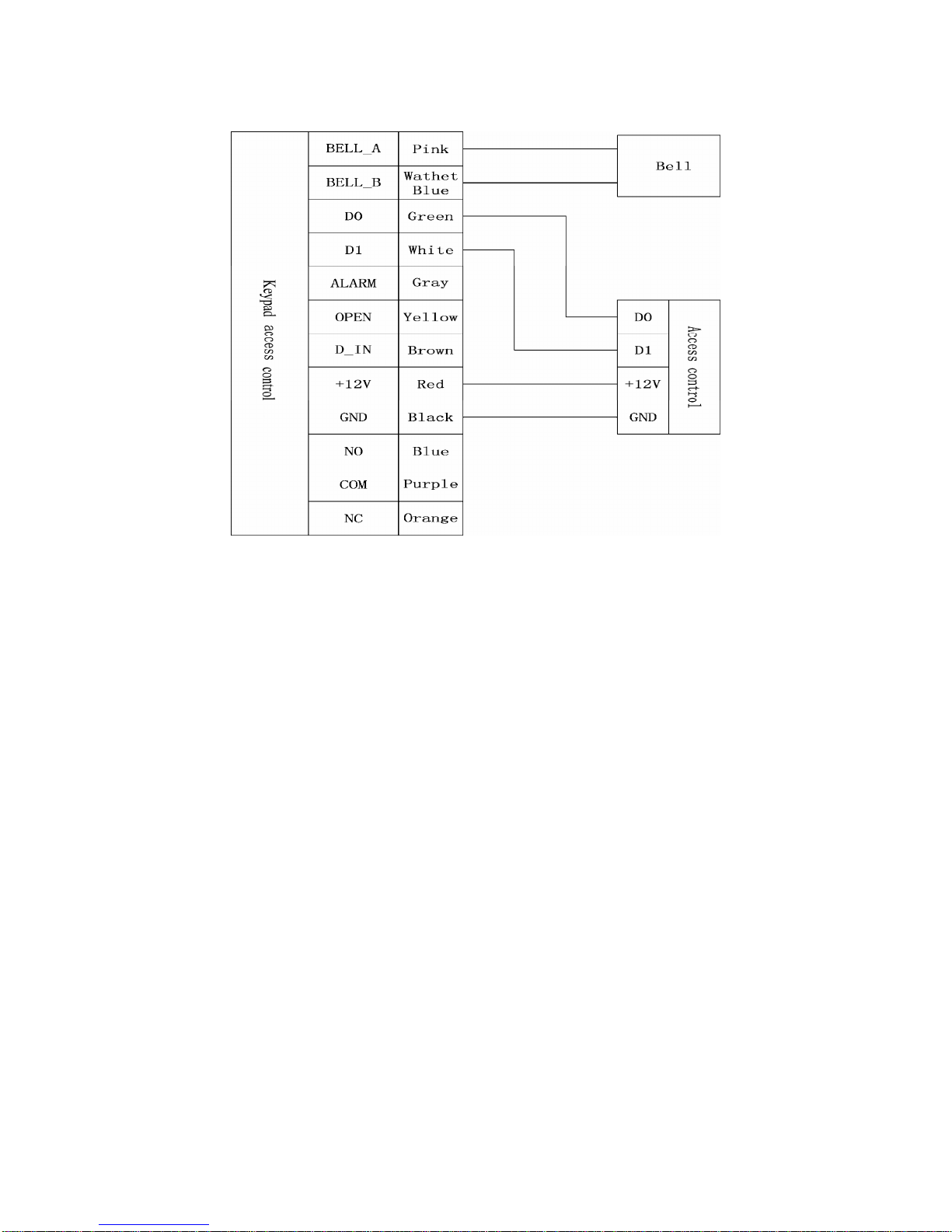

12.The unit operating as a Wiegand Output Reader

In this mode the unit supports a Wiegand 26 bit output so the Wiegand data lines can be

connected to any controller which supports a Wiegand 26 bit input.

Table des matières

Autres manuels SIB Clavier

SIB

SIB K35 Manuel utilisateur

Manuels Clavier populaires d'autres marques

BFT

BFT SELETTO Manuel utilisateur

Micro Id

Micro Id MP7G3BL Manuel d'instructions

WindowMaster

WindowMaster WLI 130 Manuel utilisateur

ACT

ACT ACT PRO 1030 Manuel utilisateur

Cardin

Cardin SSB Series Manuel utilisateur

Harman Kardon

Harman Kardon KP 1 Manuel utilisateur

Chamberlain

Chamberlain KPR2000 Guide de l'utilisateur

CYP

CYP CR-KP1 Manuel utilisateur

Aeware

Aeware k-35 Series Guide de référence

Aritech

Aritech CS-175 Series Manuel utilisateur

GE NetworX NX-1600E Series Manuel utilisateur

Lenze AC Tech

Lenze AC Tech MC SERIES Manuel utilisateur

Burg Wächter

Burg Wächter secuENTRY 7711 Manuel utilisateur

Aeware

Aeware in.k450 Manuel utilisateur

Lenze

Lenze EPM-H410 Manuel utilisateur

Toshiba

Toshiba RKP007Z Manuel utilisateur

Gemini

Gemini GEM-DXK1 KEYPAD Manuel utilisateur

Russound

Russound MDK-C5 Manuel d'utilisation
