Shure PG ALTA PGA181 Manuel utilisateur

27A27346 (Rev. 3)

PG ALT TM

A SERIES

WIRED MICROPHONE

PGA181

USER GUIDE

PGA181

Congratulations on the purchase of a new Shure PG Alta

series microphone. The PG Alta series delivers professional

quality audio at an affordable price, with solutions for

capturing nearly any source, including voice, acoustic

instruments, drums, and amplified electric instruments.

Suitable for live and studio applications, PG Alta microphones

are built to last, and meet the same rigorous quality testing

standards that make all Shure products trustworthy and

reliable.

General Rules for Use

• Do not cover any part of the microphone grille with your

hand, as this will adversely affect microphone performance.

• Aim the microphone toward the desired sound source

(such as the talker, singer, or instrument) and away from

unwanted sources.

• Place the microphone as close as practical to the desired

sound source.

• Work close to the microphone for extra bass response.

• Use only one microphone to pick up a single sound source.

• For better gain before feedback, use fewer microphones.

• Keep the distance between microphones at least three

times the distance from each microphone to its source

(“three to one rule”).

• Place microphones as far as possible from reflective

surfaces.

• Add a windscreen when using the microphone outdoors.

• Avoid excessive handling to minimize pickup of mechanical

noise and vibration.

Connecting to a Mixer or Computer

Cables

Use only balanced (three-conductor) cables. Otherwise,

the cable will not carry phantom power to the microphone.

If using an adapter for 6.5mm (1/4") inputs, it must have

tip-ring-sleeve (TRS) contacts.

Computer

To deliver audio directly to a computer, use a USB audio

interface with an XLR microphone input that provides

+48V phantom power, such as the Shure MVi.

USB

XLR

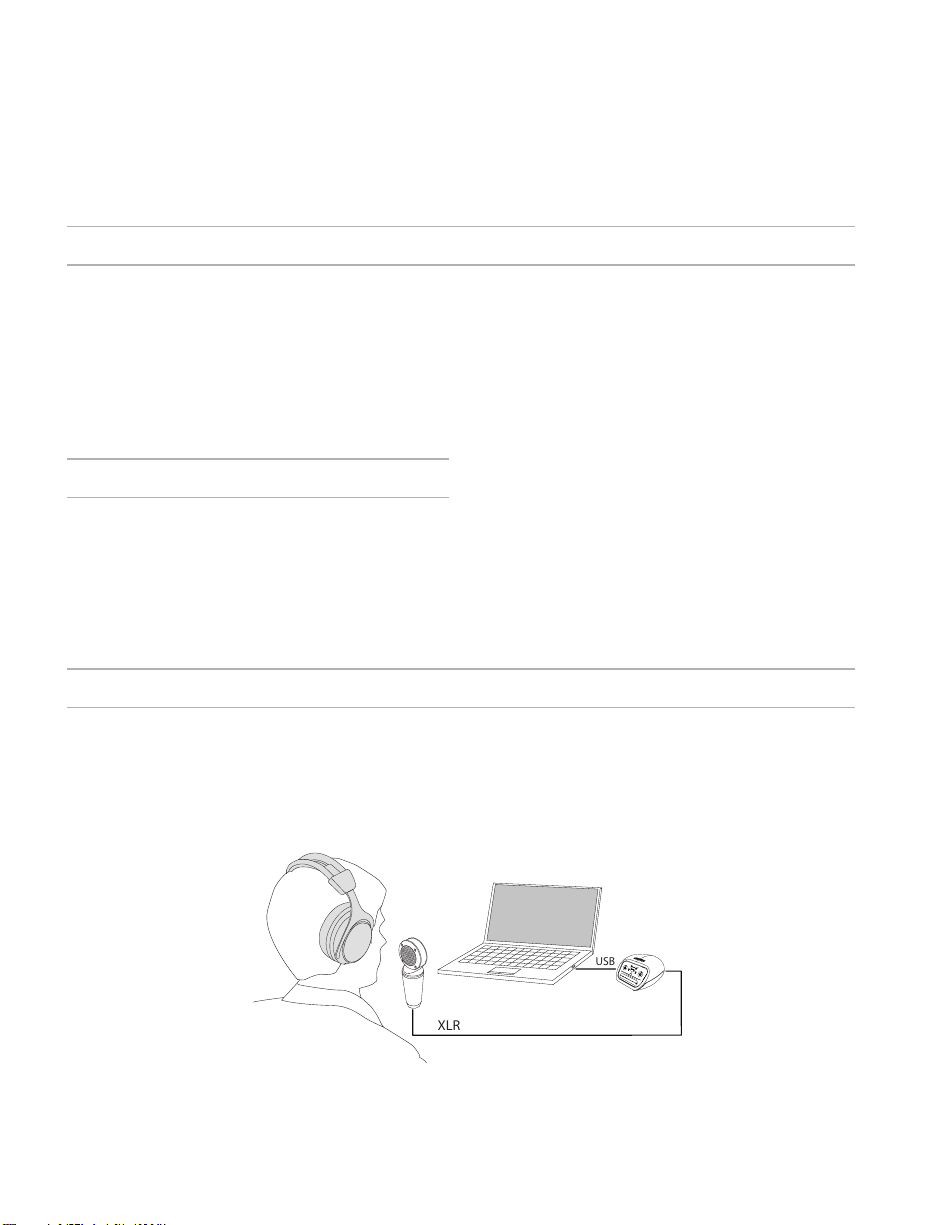

Connecting to a computer using the Shure MVi audio interface

PG Alta Microphones

Mixer

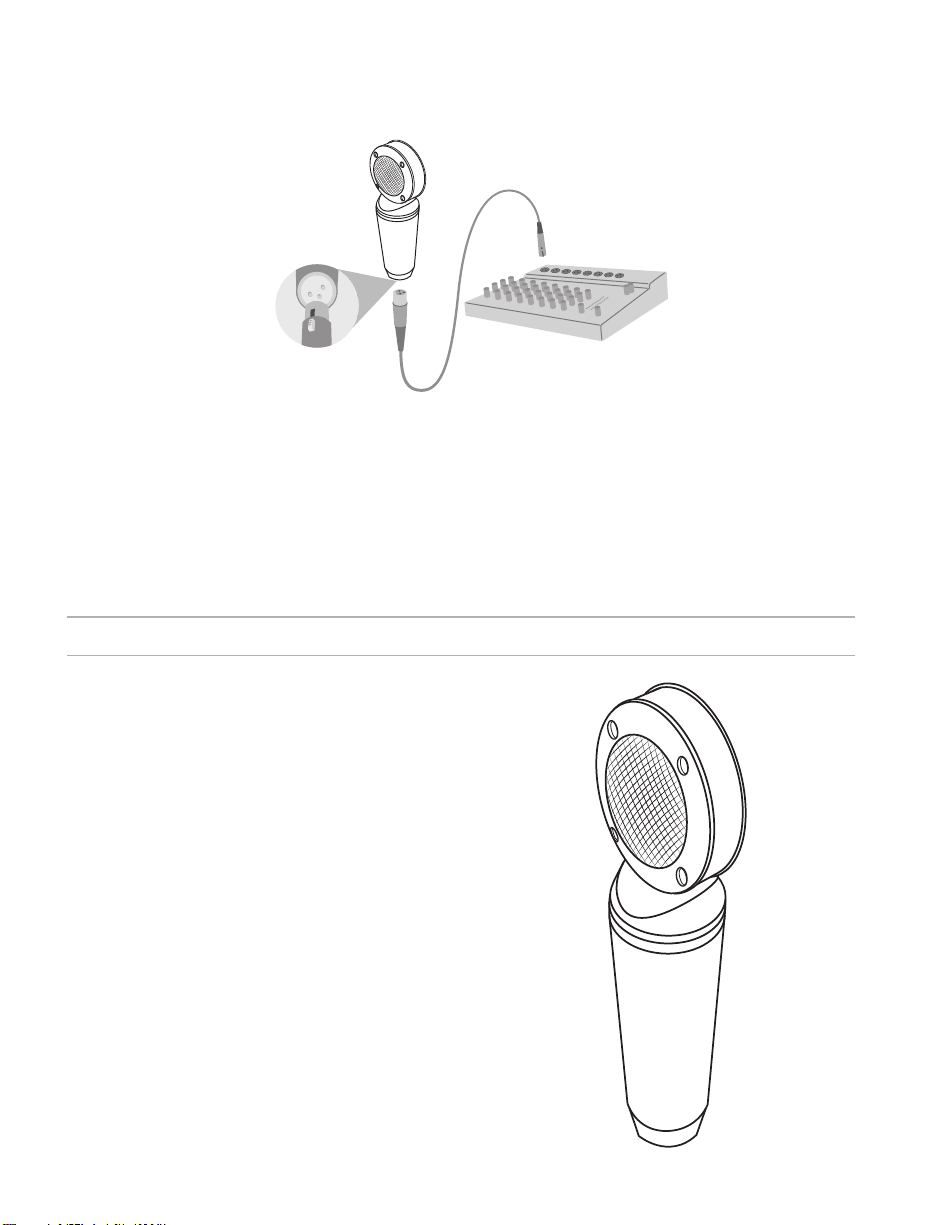

When connecting to a mixer, use only balanced, microphone-level inputs with phantom power. Most mixers have a switch

for phantom power, so make sure phantom power is on for that channel.

Phantom Power

All condenser microphones require phantom power to operate. This microphone performs best with a 48 V DC supply (IEC-

61938), but it can operate with lower voltages.

Phantom power is provided by the mixer or audio interface that the microphone is connected to, and requires the use of a

balanced microphone cable: XLR-to-XLR or XLR-to-TRS. In most cases, there is a switch or button to activate the phantom

power. See the user guide for the mixer or interface for additional information.

Positioning the Microphone

The front of the microphone is marked by several indicators:

four screws around the grille, the cardioid logo, and the

PGA181 model number. Position this side toward the sound

source.

Applications

The following table provides a basic starting point for several instruments. Shure offers additional educational publications on

microphone placement and recording techniques. Visit www.shure.com for more information.

Application Distance from source Tips

Voice 1-3 inches (2-8 cm) Use a pop filter (Shure PS-6) to prevent

plosives.

Acoustic guitar 6-12 inches (15-30 cm) Place near the sound hole for a full sound,

or near the 12th fret for a balanced, natural

sound.

Drums 3-6 feet (1-2 m) Place in front of the drum kit to capture more

of the kick drum, or as an overhead (above

the kit, facing down) to capture more cymbals.

Consider using additional Shure microphones

placed on individual drums for more mixing

flexibility and a thicker sound.

Amplifiers 1-6 inches (2-15 cm) Aim towards the center of the speaker for a

clear, aggressive sound, or towards the edge

of the speaker for a mellow sound.

Strings or horns 1-6 feet (30 cm - 2 m) For a single instrument, place the microphone

close to the source. For a horn or string

section, arrange players at an equal distance

from the microphone.

Full band 3-10 feet (1-3 m) Face the microphone towards the group,

centered between instruments.

Tip: Close microphone placement results in a full sound due to the proximity effect. Placing the microphone farther from the

source results in more room ambience.

Optional Accessories and Replacement Parts

7.6 m (25 ft.) Cable (XLR-XLR) C25J

5/8" to 3/8" Thread Adapter 31A1856

4.6 m (15 ft.) Cable (XLR-XLR) 95D2153

Wireless Microphone Clip WA371

Popper Stopper®Pop Filter with Metal Gooseneck and

Microphone Stand Clamp

PS-6

Foam Windscreen for all larger Shure "ball-type" Microphones

available in black, blue, gray, green, red and yellow

A58WS

Specifications

Type

Electret Condenser

Polar Pattern

Cardioid

Frequency Response

50 to 20,000 Hz

Output Impedance

at 1 kHz, open circuit voltage

120Ω,actual

Sensitivity

at 1 kHz, open circuit voltage

-38 dBV/Pa [1] (12.7 mV)

Maximum SPL

1 kHz at 1% THD, 1 kΩ load

138 dB SPL

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2

with respect to pin 3

Connector

Three-pin professional audio (XLR), male

Weight

383 g (0.8 lbs)

Housing

Cast Zinc

Power Requirements

48 V DC phantom power (4 mA)

[1] 1 Pa=94 dB SPL

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

0,61 m (2 ft.) from sound source

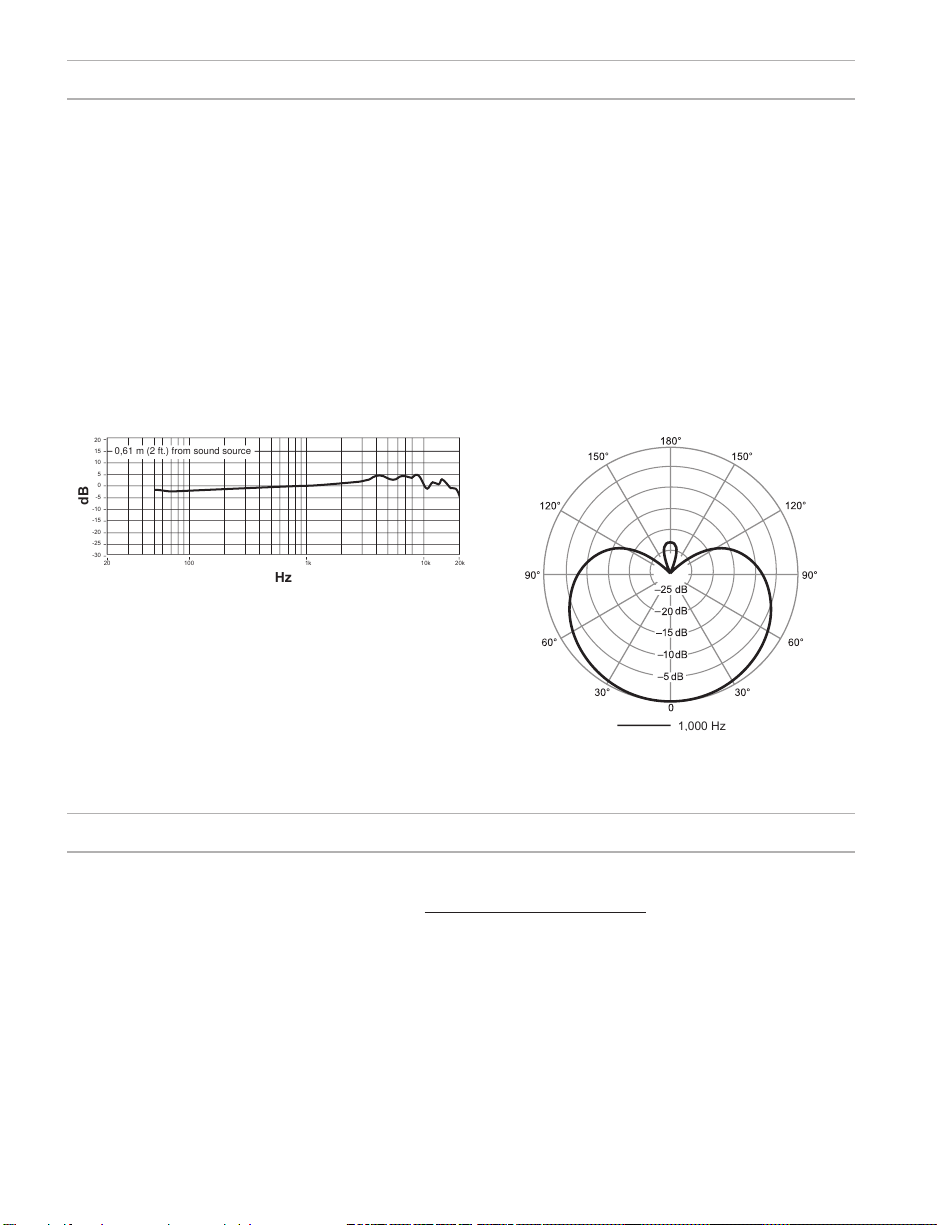

Frequency Response

1,000 Hz

Polar Pattern

Certifications

This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: 49-7262-92 49 0

Fax: 49-7262-92 49 11 4

Email: [email protected]

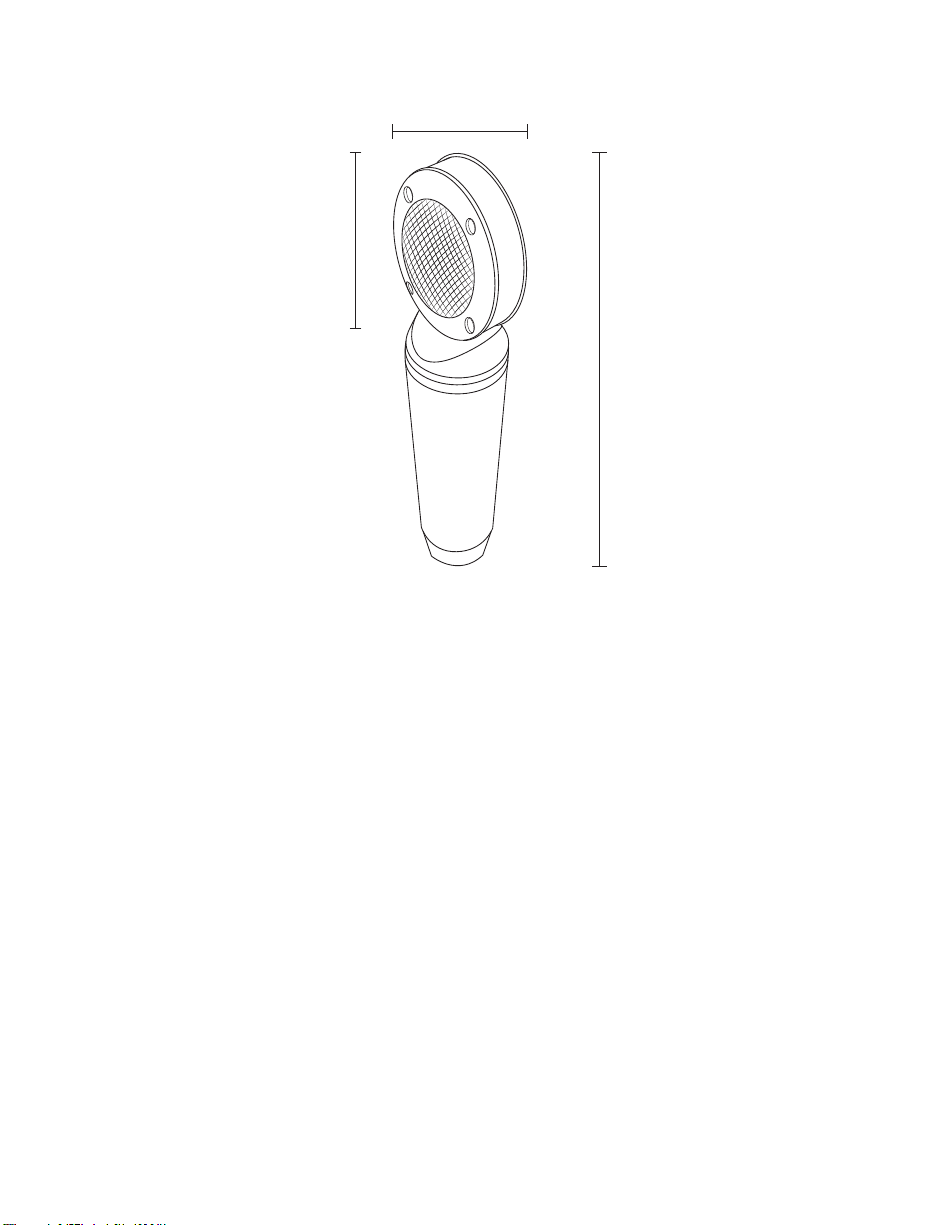

52.6 mm diameter (2.07 in.)

150.4 mm (5.92 in.)

40 mm width

(1.57 in.)

PT. GOSHEN SWARA INDONESIA

Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat

I.16.GSI31.00501.0211
