Showgear E748000 Manuel utilisateur

Tree & Pole Bracket

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Product code: E748000

USER MANUAL

ENGLISH

Tree & Pole Bracket

Product code: E748000

Preface

Thank you for purchasing this Showgear product.

The purpose of this user manual is to provide instructions for the correct and safe use of this product.

Keep the user manual for future reference as it is an integral part of the product. The user manual shall be

stored at an easily accessible location.

This user manual contains information concerning:

●Safety instructions

●Installation and operation of the product

●Intended and non-intended use of the product

●Maintenance procedures

●Troubleshooting

●Transport, storage and disposal of the product

Non-observance of the instructions in this user manual may result in serious injuries and damage of

property.

No part of this document may be copied, published or otherwise reproduced without the prior written

consent of Highlite International.

Design and product specifications are subject to change without prior notice.

For the latest version of this document or other language versions, please visit our website

www.highlite.com or contact us at service@highlite.com.

Highlite International and its authorized service providers are not liable for any injury, damage, direct or

indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or

reliance on the information contained in this document.

Tree & Pole Bracket

Product code: E748000

Table of contents

1. Introduction..........................................................................................................................................................3

Before Using the Product ..................................................................................................................................3

Intended Use .......................................................................................................................................................3

Text Conventions ................................................................................................................................................3

Symbols and Signal Words................................................................................................................................4

2. Safety ....................................................................................................................................................................4

Warnings and Safety Instructions ....................................................................................................................4

Requirements for the User.................................................................................................................................5

3. Description of the Device ...................................................................................................................................6

Overview..............................................................................................................................................................6

Product Specifications ......................................................................................................................................6

3.3. Accessories..........................................................................................................................................................7

Dimensions...........................................................................................................................................................7

4. Installation ............................................................................................................................................................8

Safety Instructions for Installation ....................................................................................................................8

Personal Protective Equipment .......................................................................................................................8

Maximum Load...................................................................................................................................................8

Mounting of the Device....................................................................................................................................9

Mounting of External Devices ........................................................................................................................10

5. Inspection and Maintenance ..........................................................................................................................11

Inspection ..........................................................................................................................................................11

Corrective Maintenance................................................................................................................................11

Basic Cleaning Instructions.............................................................................................................................11

6. Deinstallation, Transportation and Storage ....................................................................................................11

Instructions for Deinstallation..........................................................................................................................11

Loosening of the Ratchet .....................................................................................................................12

Instructions for Transportation ........................................................................................................................12

Storage...............................................................................................................................................................12

7. Disposal ..............................................................................................................................................................12

Tree & Pole Bracket

Product code: E748000

1. Introduction

Before Using the Product

Important

Read and follow the instructions in this user manual before installing, operating or

servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual. After unpacking, check the contents of the box. If any parts are missing or damaged,

contact your Highlite International dealer.

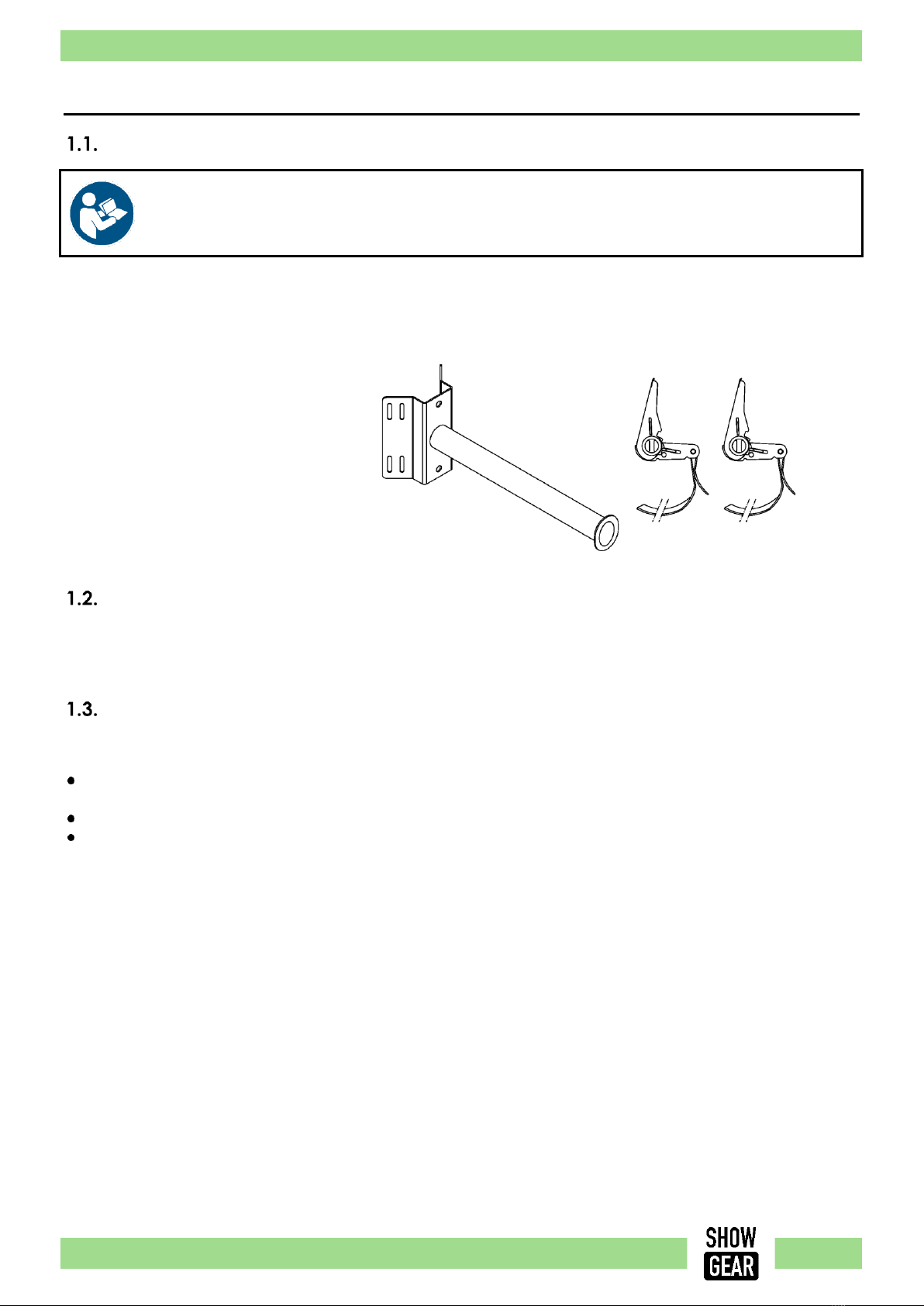

Your shipment includes:

●Showgear Tree & Pole Bracket

●2 x endless ratchet strap (2 m)

●User manual

Fig. 01

Intended Use

This device is intended for professional use as a connection element in the entertainment technology. It

shall be used on trees and upright structures, such as columns, pillars or poles (rounded and angular). Any

other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

Text Conventions

Throughout the user manual the following text conventions are used:

References: References to chapters and parts of the device are in bold lettering, for example:

“Refer to 2. Safety”, “turn the adjustment screw (02)”

0–255: Defines a range of values

Notes: Note: (in bold lettering) is followed by useful information or tips

Tree & Pole Bracket

Product code: E748000

Symbols and Signal Words

Safety notes and warnings are indicated throughout the user manual by safety signs.

Always follow the instructions provided in this user manual.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury.

Attention

Indicates important information for the correct operation and use of the

product.

Important

Read and observe the instructions in this document.

2. Safety

Important

Read and follow the instructions in this user manual before installing, using or servicing this

product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual.

Warnings and Safety Instructions

WARNING

Incorrect installation can cause serious injuries and damage of property.

This product may be installed only by instructed or skilled persons.

●Do not exceed the maximum load as indicated on the device and in this user manual.

●When the device is used together with other accessories, make sure that the maximum load of each

component is not exceeded.

WARNING

Do not use the device if it is damaged.

Do not use the device if the device or parts thereof show signs of damage and wear. Before and after

every use, examine the device visually for any defects. If any fault is found, mark the device clearly and

remove it from service.

●Examine the device for damage, cracks, and corrosion.

●Examine the welds for signs of corrosion, and cracks.

Tree & Pole Bracket

Product code: E748000

The device is supplied with 2 endless ratchet straps.

●Examine the endless ratchet straps for signs of wear. Do not use the endless ratchet straps if there are

tears, cuts, nicks and breaks in the webbing and the retaining stitches.

●Examine the ratchet for deformations, splits, signs of wear, and signs of corrosion.

Attention

Correct use of the endless ratchet straps

●Do not use the endless ratchet straps for lifting, suspending or towing.

●Do not use the endless ratchet straps if knotted.

●Never join a cut endless ratchet strap by knotting.

●Never knot endless ratchet straps together.

●Only use endless ratchet straps with a legible label.

Attention

For professional use only

This device shall be used only for the purposes it is designed for.

This device is intended for professional use as a connection element in the entertainment technology. It

shall be used only on trees and upright structures, such as columns, pillars or poles (rounded and

angular). Any incorrect use may lead to hazardous situations and result in injuries and material damage.

●Do not use the device on upright structures different from those indicated in this user manual.

●Do not modify the device. Unauthorized modifications to the device will render the warranty void.

Such modifications may result in injuries and material damage.

●Use the device only in environments with an ambient temperature between -20 °C and 60 °C.

Requirements for the User

DANGER

This product may not be used by ordinary persons.

This product may be used only by instructed or skilled persons. Installation and maintenance may be

carried out by instructed or skilled persons. Service shall be carried out only by skilled persons. Contact

your Highlite International dealer for more information.

Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled

person, for specific tasks and work activities associated with the installation, service and maintenance of

this product, so that they can identify risks and take precautions to avoid them.

Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards

associated with the installation, service and maintenance of this product.

Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons

include not only users of the product but also any other persons that may have access to the device or

who may be in the vicinity of the device.

Tree & Pole Bracket

Product code: E748000

3. Description of the Device

With the Tree & Pole Bracket you can mount external devices (≤ 50 kg) on trees and upright structures,

such as columns, pillars or poles (rounded and angular). The product can be mounted with 2 endless

ratchet straps.

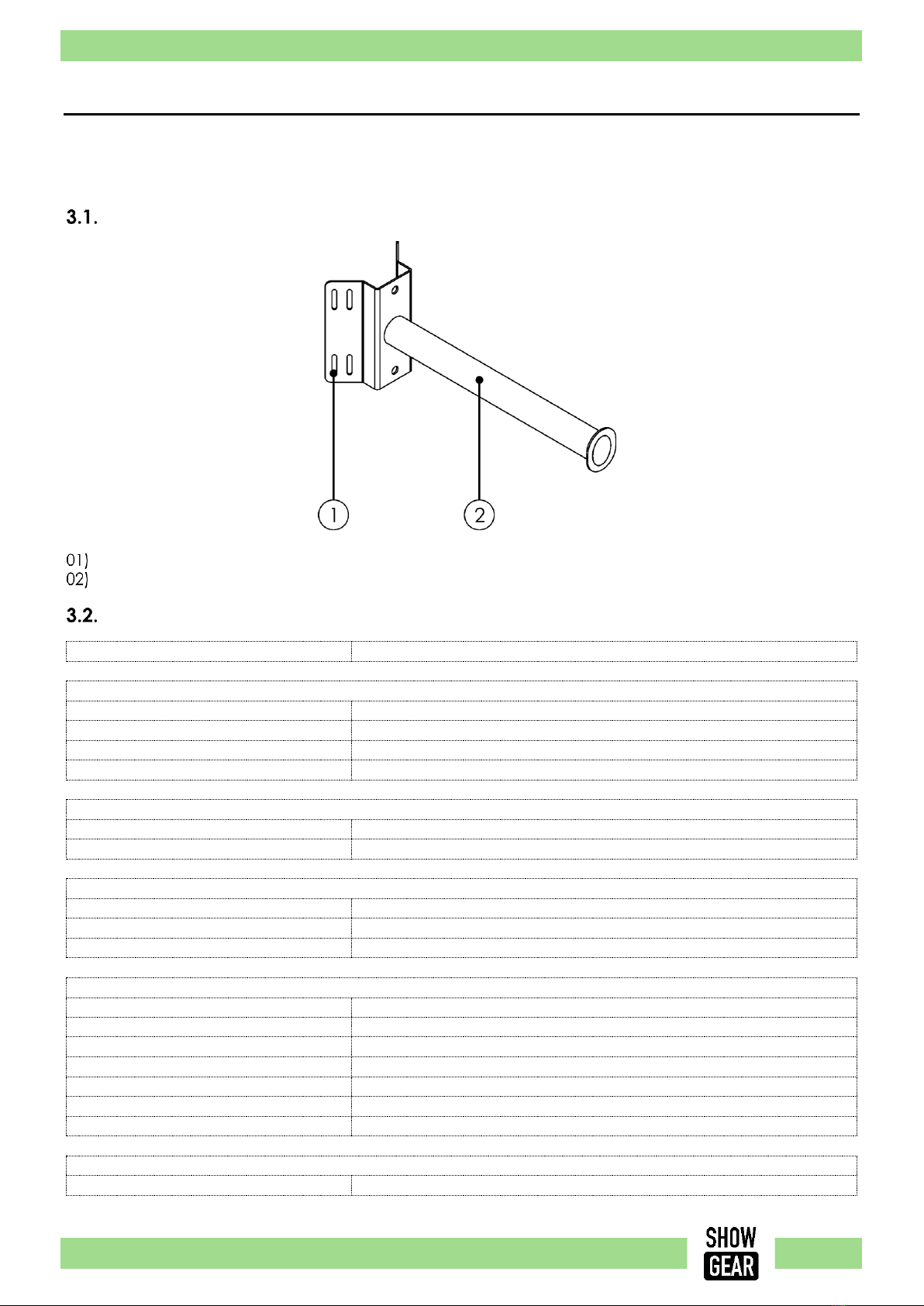

Overview

Fig. 02

8 x strap mounting holes

Mounting tube

Product Specifications

Model:

Tree & Pole Bracket

Physical:

Dimensions (bracket):

555 x 165 x 200 mm (LxWxH)

Dimensions (endless ratchet straps):

2000 x 200 mm (LxW)

Weight (bracket):

2,35 kg

Weight (endless ratchet straps):

2 x 0,24 kg

Mechanical:

Tube diameter:

Ø 50 mm

Maximum load:

50 kg

Construction:

Material:

Metal

Tensile strength:

250–500 daN

Color:

Black

Lashing:

Type:

Endless ratchet strap

Lashing capacity (LC):

800 daN

Standard hand force (SHF):

50 daN

Standard tension force (STF):

35 daN

Webbing material:

PES (polyester)

Endless ratchet strap length:

2 m

Max. elongation:

<5 %

Thermal:

Ambient temperature ta:

From -20 °C to 60 °C

Tree & Pole Bracket

Product code: E748000

3.3. Accessories

Attention

The device is designed to be used with the endless ratchet straps.

The device is delivered with 2 endless ratchet straps.

Fig. 03

Ratchet

Endless ratchet strap

Note:

It is possible to use other endless ratchet straps than the supplied ones. Make sure that you use endless

ratchet straps:

●that have LC (lashing capacity) equal or higher to the LC of the supplied endless ratchet straps.

●that are made of the same material as the supplied endless ratchet straps.

Dimensions

Fig. 04

Tree & Pole Bracket

Product code: E748000

4. Installation

Safety Instructions for Installation

WARNING

Incorrect installation can cause serious injuries and damage of property.

Installation must be carried out only by instructed or skilled persons.

Minimum two persons are necessary to install the device.

Personal Protective Equipment

During installation and rigging wear personal protective equipment in compliance with the national and

site-specific regulations.

Maximum Load

WARNING

Do not exceed the maximum load of the device.

The maximum load of the device is ≤ 50 kg. Do not mount external devices to the Tree & Pole Bracket

that exceed the maximum load of the Tree & Pole Bracket.

Make sure that the tree or the upright structure can hold the combined weight of all mounted devices

and accessories. In the calculations consider any dynamic forces, if applicable.

Tree & Pole Bracket

Product code: E748000

Mounting of the Device

CAUTION

Restrict the access under the work area during installation.

To mount the Tree & Pole Bracket, follow the steps below:

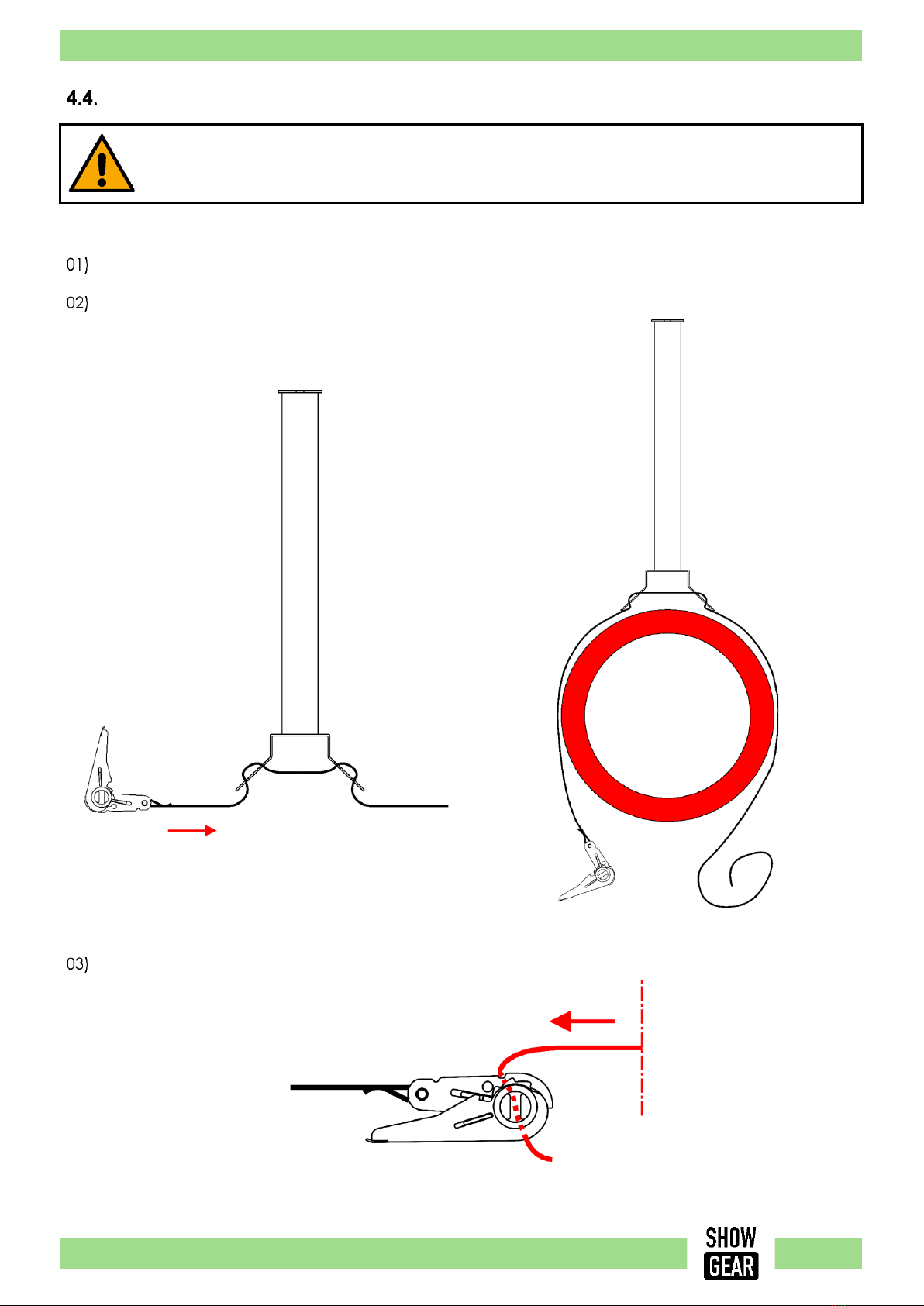

Thread both endless ratchet straps (04) on the Tree & Pole Bracket (Fig. 05). Make sure that the

endless ratchet straps (04) are not twisted.

Put the Tree & Pole Bracket against a tree or an upright structure (Fig. 06).

Fig. 05

Fig. 06

Thread the ratchets (03) (Fig. 07).

Fig. 07

Table des matières

Autres manuels Showgear Support et étagère

Showgear

Showgear PLB-2246 Manuel utilisateur

Showgear

Showgear Mammoth Stage Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
