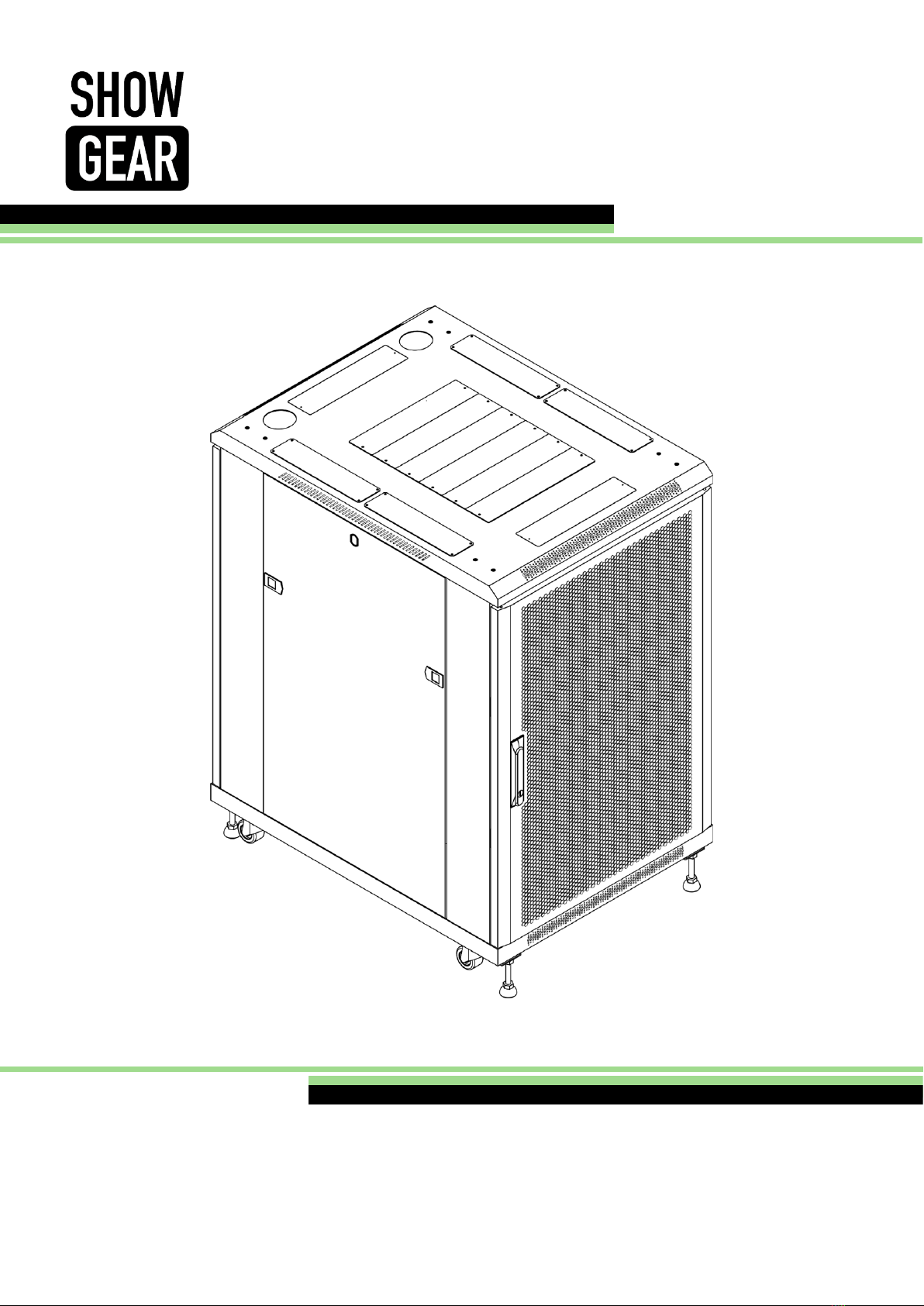

Showgear RCA-FSM-18 Manuel utilisateur

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode:

□D7670 □D7671 □D7672 □D7673

USER MANUAL

ENGLISH

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

Preface

Thank you for purchasing this Showgear product.

The purpose of this user manual is to provide instructions for the correct and safe use of this product.

Keep the user manual for future reference as it is an integral part of the product. The user manual shall be

stored at an easily accessible location.

This user manual contains information concerning:

●Safety instructions

●Installation and operation of the product

●Intended and non-intended use of the product

●Maintenance procedures

●Troubleshooting

●Transport, storage and disposal of the product

Non-observance of the instructions in this user manual may result in serious injuries and damage of

property.

No part of this document may be copied, published or otherwise reproduced without the prior written

consent of Highlite International.

Design and product specifications are subject to change without prior notice.

For the latest version of this document or other language versions, please visit our website

www.highlite.com or contact us at service@highlite.com.

Highlite International and its authorized service providers are not liable for any injury, damage, direct or

indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or

reliance on the information contained in this document.

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

Table of contents

1. Introduction..........................................................................................................................................................3

Before Using the Product ..................................................................................................................................3

Included Parts D7670 / D7671 / D7672 / D7673 ............................................................................................4

Included Items D7670 / D7671 / D7672 / D7673 ...........................................................................................6

Intended Use .......................................................................................................................................................7

Text Conventions ................................................................................................................................................7

Symbols and Signal Words................................................................................................................................7

Symbols on the Information Label ..................................................................................................................7

2. Safety ....................................................................................................................................................................8

Warnings and Safety Instructions ....................................................................................................................8

Requirements for the User.................................................................................................................................9

3. Description of the Product................................................................................................................................10

Front View ..........................................................................................................................................................10

Product Specifications ....................................................................................................................................11

Dimensions D7670.............................................................................................................................................12

Dimensions D7671.............................................................................................................................................13

Dimensions D7672.............................................................................................................................................14

Dimensions D7673.............................................................................................................................................15

4. Installation ..........................................................................................................................................................16

Safety Instructions for Installation ..................................................................................................................16

Installation Site Requirements ........................................................................................................................16

Tools for Assembling.........................................................................................................................................16

Assembling the Cabinet .................................................................................................................................17

Equipment Installation.....................................................................................................................................24

5. Maintenance .....................................................................................................................................................26

Preventive Maintenance................................................................................................................................26

Basic Cleaning Instructions ...................................................................................................................26

Corrective Maintenance................................................................................................................................26

6. Deinstallation, Transportation and Storage ....................................................................................................27

Instructions for Deinstallation..........................................................................................................................27

Instructions for Transportation ........................................................................................................................27

Storage...............................................................................................................................................................27

7. Disposal ..............................................................................................................................................................27

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

1. Introduction

Before Using the Product

Important

Read and follow the instructions in this user manual before installing, using or servicing this

product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual.

After unpacking, check the contents of the box. If any parts are missing or damaged, contact your

Highlite International dealer.

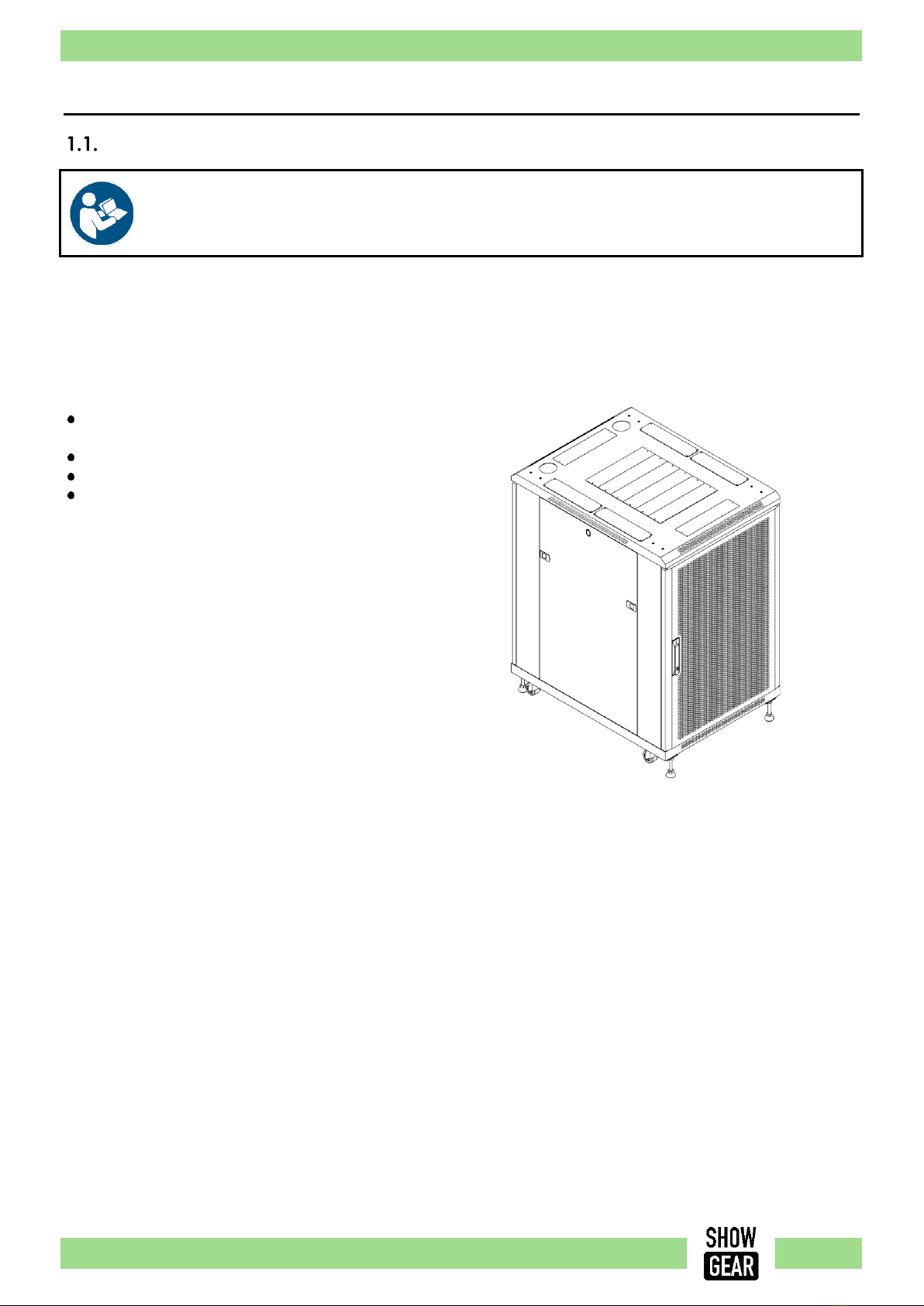

Your shipment includes:

Showgear RCA-FSM-18 / RCA-FSM-22 /

RCA-FSM-32 / RCA-FSM-42

Parts, as shown on page 4 and 5

Screws, as shown on page 6

User manual

Fig. 01

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

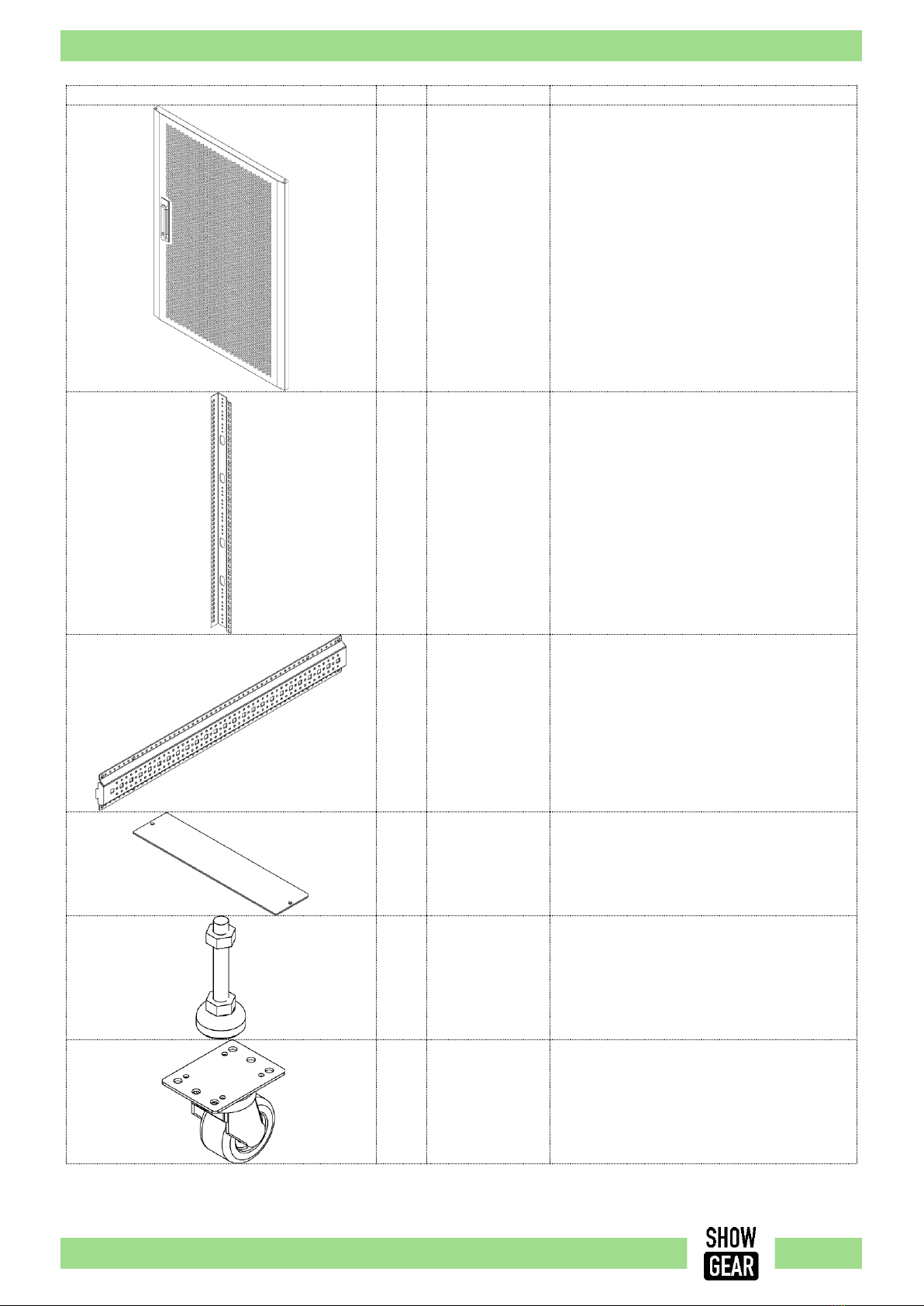

Included Parts D7670 / D7671 / D7672 / D7673


Item

Name

D7670, D7671, D7672, D7673

Bottom plate

1 x

Frame

2 x

Top plate

1 x

Side panel

2 x

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673


Item

Name

D7670, D7671, D7672, D7673

Mesh door

2 x

Vertical

bracket

4 x

Horizontal

bracket

6 x

Metal plate

2 x

Adjustable

foot

4 x

Wheel

4 x

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

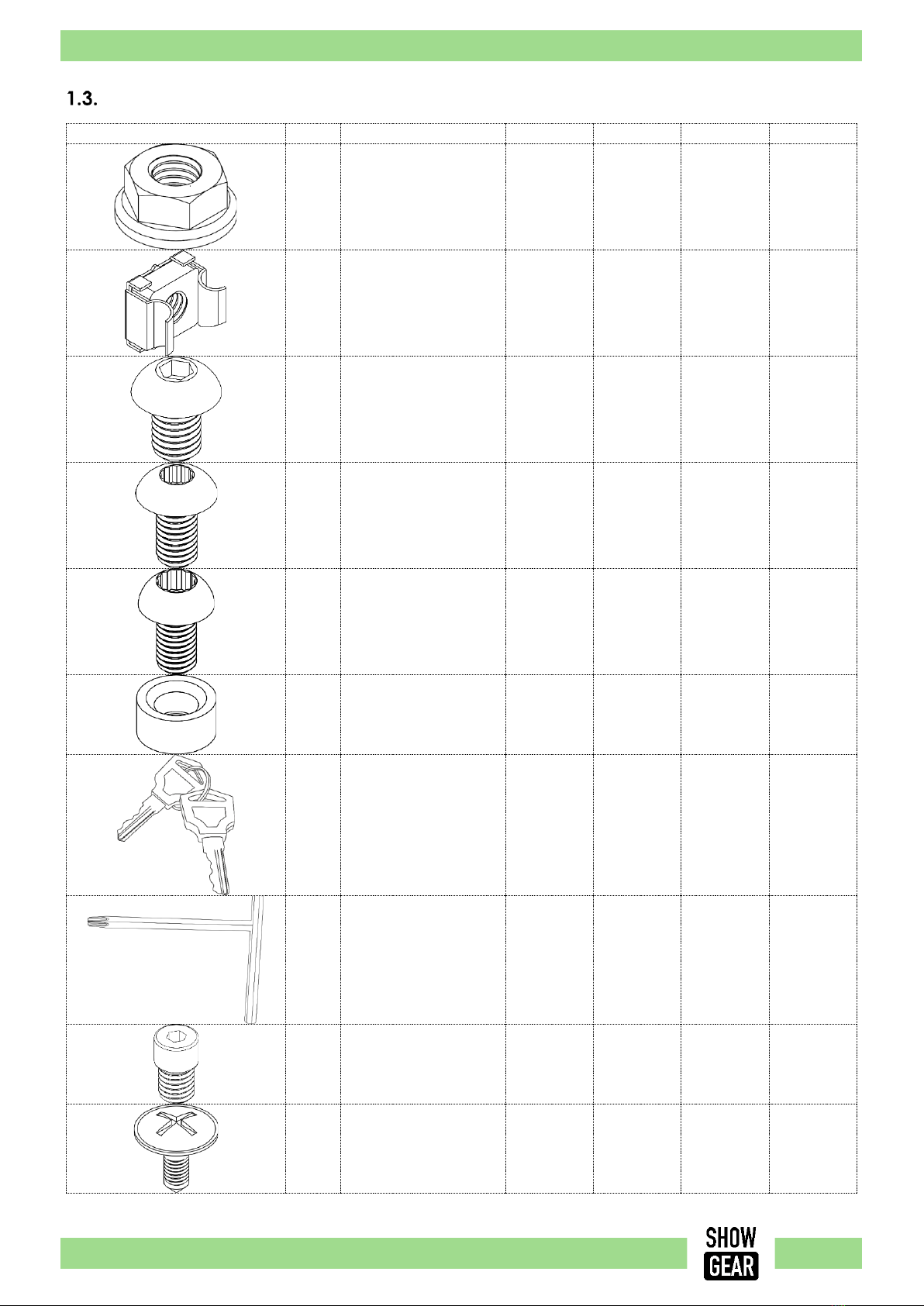

Included Items D7670 / D7671 / D7672 / D7673


Item

Name

D7670

D7671

D7672

D7673

Nut (M6)

(wrench 13)

16 x

Cage nut (M6)

20 x

40 x

Screw 8 x 12 mm

(hex 5)

16 x

Screw 6 x 12 mm

(T20)

20 x

40 x

Screw 5,5 x 10 mm

(T20)

100 x

104 x

120 x

Ring

2 x

Set of keys

2 x

Hex key (T20)

1 x

Side panel screw

M5 x 6 mm

4 x

Self-tapping screw

M4 x 8 mm

8 x

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

Intended Use

This product is intended for professional use as a server rack cabinet in theaters, entertainment facilities,

public venues, and similar. It is suitable only for indoor use. This product is not suitable for households.

Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

Text Conventions

Throughout the user manual the following text conventions are used:

References: References to chapters and parts of the product are in bold lettering, for example:

“Refer to 2. Safety”, “turn the adjustment screw (02)”

0–255: Defines a range of values

Notes: Note: (in bold lettering) is followed by useful information or tips

Symbols and Signal Words

Safety notes and warnings are indicated throughout the user manual by safety signs.

Always follow the instructions provided in this user manual.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury.

Attention

Indicates important information for the correct operation and use of the

product.

Attention

Heavy object

Important

Read and observe the instructions in this document.

Symbols on the Information Label

This product is provided with an information label. The information label is located on the backside of the

product.

The information label contains the following symbols:

This product is designed for indoor use.

Read and follow the instructions in the user manual before installing, operating or

servicing the product.

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

2. Safety

Important

Read and follow the instructions in this user manual before installing, using or servicing this

product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual.

Warnings and Safety Instructions

DANGER

Danger for children

This product is not suitable for installation in locations where children are likely to be present.

●Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within

children’s reach. Packaging material is a potential source of danger for children.

WARNING

Stability hazard

This product may fall or tip over, causing serious personal injury and material damage.

●Do not push the cabinet from the side panels to move it.

●When moving the cabinet on the wheels, push it from behind. Do not pull the cabinet towards you.

●Make sure that the cabinet is fully assembled and secured before you install equipment in the

cabinet.

●Do not exceed the maximum load capacity of the cabinet. Make sure that the cabinet can support

the total weight of all equipment installed.

●When you install equipment in the cabinet, start with the bottom of the cabinet. Put heavier

equipment at the bottom of the cabinet.

Attention

Heavy object

This product is heavy. Minimum two persons are necessary to assemble or to move the cabinet.

Attention

General safety

●Do not put any object on the cabinet.

●Do not stack the cabinets.

●Do not use the wheels to support the cabinet or to relocate the cabinet. The wheels are designed to

move the cabinet only over short distances.

●Make sure that there is sufficient space for ventilation around the cabinet.

●Do not block or cover the ventilation openings of the cabinet. Do not insert objects into the

ventilation openings of the cabinet.

●Keep the cabinet away from moisture, temperature extremes, flammable liquids and gasses,

conductive contaminants, dust and direct sunlight.

RCA-FSM-18 / RCA-FSM-22 / RCA-FSM-32 / RCA-FSM-42

Product code: D7670 / D7671 / D7672 / D7673

Attention

For professional use only

This product shall be used only for the purposes it is designed for.

This product is intended for professional use as a server rack cabinet in theaters, entertainment facilities,

public venues, and similar. Any incorrect use may lead to hazardous situations and result in injuries and

material damage.

●This product is not suitable for households.

This product does not contain user-serviceable parts. Unauthorized modifications to the product will

render the warranty void. Such modifications may result in injuries and material damage.

Attention

Do not expose the product to conditions that exceed the rated IP class conditions.

This product is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater

than 12 mm, such as fingers, and no protection against harmful ingress of water.

Requirements for the User

This product may be used by ordinary persons. Assembling, installation, and maintenance shall be carried

out only by instructed or skilled persons. Contact your Highlite International dealer for more information.

Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled

person, for specific tasks and work activities associated with the installation, service and maintenance of

this product, so that they can identify risks and take precautions to avoid them.

Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards

associated with the installation, service and maintenance of this product.

Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons

include not only users of the product but also any other persons that may have access to the product or

who may be in the vicinity of the product.

Ce manuel convient aux modèles suivants

Table des matières

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
